Key Takeaways

• Non-pressurized ETC systems cost around Rs 90,000 (July 2026) for 150 liters, offering affordable gravity-fed hot water.
• Pressurized heat pipe systems cost around Rs 150,000 (July 2026) for 200 liters, accommodating high pressure pumps and luxury showers.
• Polyurethane insulation of at least 50mm thickness maintains hot water temperature overnight even during cold winter nights.
• Selecting SUS304-2B food-grade stainless steel tanks prevents hard water scale corrosion and extends system life past 15 years.

Introduction

Choosing the right solar water heater requires understanding your household water pressure system, family size, and local climate conditions. Solar water heaters in Pakistan fall into two primary mechanical design categories - gravity-fed non-pressurized systems and high-pressure copper heat pipe collectors.

What is a non-pressurized evacuated tube collector (ETC) solar heater?

Non-pressurized ETC solar water heaters are the most common and budget-friendly solar thermal systems installed across Pakistan.

Water flows naturally into glass vacuum tubes, heats up through solar absorption, and rises into an overhead storage tank through natural thermo-siphon circulation. Hot water is then delivered down to household bathrooms through gravity pressure.

These units function best when installed below an elevated rooftop water supply tank.

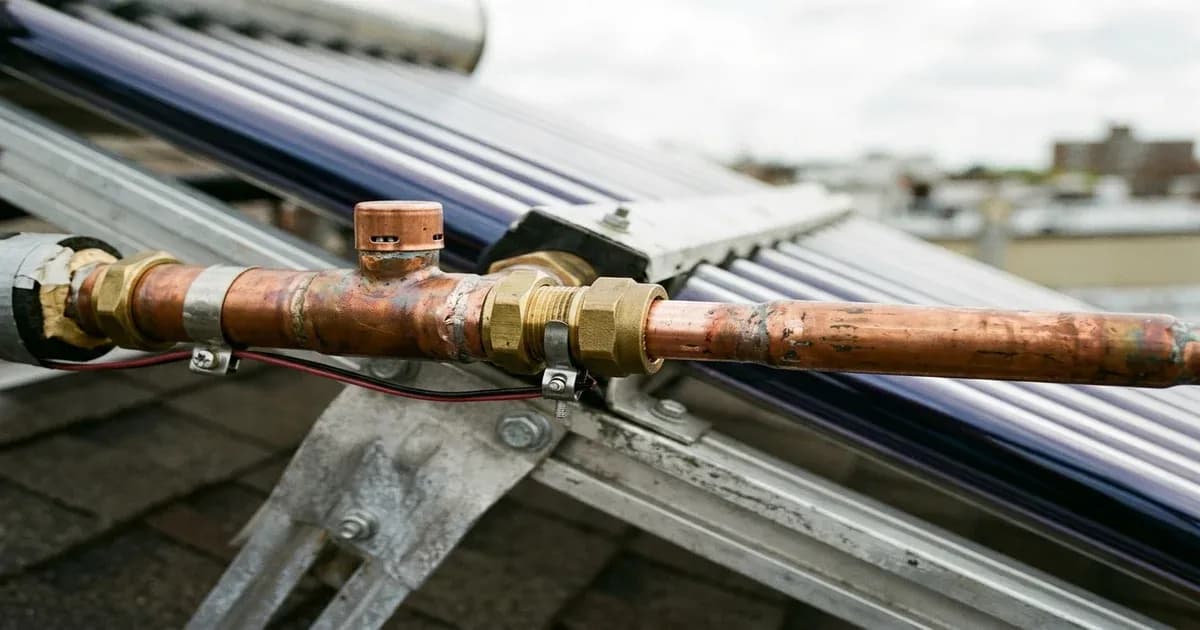

What is a pressurized copper heat pipe solar water heater?

Pressurized solar water heaters use sealed copper heat pipes inside evacuated glass tubes. Rather than circulating water inside the glass tubes, heat pipes transfer thermal energy to a copper manifold exchanger located in the storage tank.

Because no water enters the vacuum tubes directly, pressurized systems withstand high water pressure up to 6 bar created by automatic pressure booster pumps in modern homes.

A 200-liter pressurized solar water heater costs approximately Rs 155,000 (July 2026). If a glass tube breaks, the system continues operating without leaking water, making it suitable for modern plumbing installations.

How to calculate required tank storage capacity?

Sizing your solar water heater correctly prevents cold shower surprises in winter. Calculate daily hot water requirements based on family usage habits.

• Shower Use: Approximately 30 to 40 liters of warm water per person per shower.
• Kitchen and Handwashing - Approximately 10 to 15 liters per person daily.

A family of 4 requires roughly 150 liters of hot storage. A larger family of 6 to 8 members requires a 200-liter to 250-liter capacity system.

What maintenance is required for long solar heater life?

Solar water heaters require minimal routine maintenance to operate at peak efficiency.

• Clean dust off glass vacuum tubes once a month during dusty dry seasons to maximize solar light absorption.
• Inspect magnesium sacrificial anode rods every 2 years in hard water areas to prevent internal tank corrosion.
• Check rubber sealing rings around tube insertion points annually for weather cracking.

Summary and Recommendations

Explore top-rated solar water heaters and compare installation quotes on SolarNevs today.

Frequently Asked Questions

What is the main difference between non-pressurized and pressurized solar water heaters?

Non-pressurized systems rely on gravity flow and suited for roofs with elevated water tanks. Pressurized heat pipe systems withstand high municipal or pump water pressure without tank rupture.

Can a glass evacuated tube break in heavy hail or freezing conditions?

High quality borosilicate 3.3 glass tubes withstand hail up to 25mm in diameter. In case of damage, individual tubes can be replaced without draining the entire water tank.

What size solar water heater is recommended for a 5-marla house?

A 150-liter or 200-liter solar water heater provides sufficient hot water for typical 5-marla double-story homes with 2 to 3 bathrooms.
