Growatt ARK Battery Not Charging: Diagnostics and Fixes for Saudi Arabia

Key Takeaways

• The built-in battery management system continuously supervises individual cell voltages, temperature and the charge and discharge currents, automatically suspending charge current when ambient summer conditions exceed safe limits.
• The Growatt ARK high-voltage battery specifies a rated capacity 2.6 kWh Capacity (module) 2.56 kWh using cell chemistry Cobalt Free Lithium Iron Phosphate (LiFePO4) across a system voltage (HV) 90-585 V series string window.
• System charge acceptance requires operating within the manufacturer charge temperature -10~50 °C window, while the ambient temperature should be between 0°C and 55°C to ensure proper hybrid inverter functionality.
• Modular storage systems support expansion 3-10 modules, 7.68-25.6 kWh with a rated max. charge current 48 A Max. discharge current 48 A managed by the management / BMS HVC 60050-C2 controller.
• Compatible three-phase Growatt SPH hybrid inverters (TL3 BH-UP series) require installers to connect the end of rj45 of battery to bms communication port of inverter.
• Safety protocol dictates: caution!! please install the breaker at the battery and ac input side; always open the battery DC isolator breaker and de-energize the AC supply before inspecting terminals or cabling.
• In Saudi Arabia, an electronic certification and conformity assessment is mandatory for all imported goods entering saudi arabia through SABER, referred to simply as saber the system is an online verification tool which connects importers saso-approved certification bodies and saudi customs.
• Grid-tied installations must adhere to the Saudi Distribution Code, as systems must still comply with technical requirements such as voltage compatibility and safety standards per the saudi distribution code under the supervision of qualified SHAMSI personnel, crediting surplus energy at 5 halalas/kWh.

Why Does a Growatt ARK Battery Stop Charging in Saudi Arabia?

Energy storage installations paired with hybrid solar systems across Riyadh, Jeddah, and the Eastern Province operate in one of the most punishing thermal environments in the world. When a Growatt ARK Lithium Iron Phosphate (LiFePO4) battery system suddenly stops accepting charge during midday generation hours, installers and property owners frequently assume an internal battery failure has occurred. In reality, modern energy storage architectures rely on active supervisory protection that halts charging whenever environmental or electrical conditions deviate from operational boundaries.

The built-in battery management system continuously supervises individual cell voltages, temperature and the charge and discharge currents. When telemetry indicators report elevated internal temperatures, unverified communication states, or string voltage deviations, the master BMS commands the paired inverter to reduce charge current to zero amperes. Understanding how the hardware responds to local climate conditions and regulatory frameworks allows technicians to pinpoint faults and restore storage operations efficiently.

Thermal Limits: Desert Heat and Ambient Derating

The dominant cause of charging lockouts across Saudi Arabia during summer months is ambient heat saturation. High solar irradiance combined with ambient outdoor temperatures frequently pushes equipment enclosures past safe operating ceilings:

1. BMS Charge Temperature Boundaries: Technical documentation for the Growatt ARK series defines strict operational thresholds. The manufacturer specifies a charge temperature -10~50 °C, alongside a discharge temperature -10~50 °C. If outdoor ambient heat or enclosed utility rooms cause the battery pack temperature to touch or exceed 50°C, internal thermal protection engages immediately, suspending all charge current acceptance.
2. Inverter Ambient Thermal Limits: High-ambient conditions simultaneously impact the paired hybrid inverter. For models such as the SPF and SPH series, official specifications require: the ambient temperature should be between 0°C and 55°C to ensure stable operation. While inverters feature active fan cooling or heatsink dissipators, ambient temperatures approaching 55°C force aggressive thermal derating, lowering DC charging output to prevent component damage.
3. Direct Sunlight Exposure: Installing battery enclosures on exposed rooftops or sun-facing perimeter walls without shading can cause internal temperatures to rise substantially higher than ambient air, causing premature thermal lockouts even during moderate seasons.

Hardware Specifications: Growatt ARK High-Voltage Architecture

Troubleshooting charging faults requires understanding the modular series architecture of the Growatt ARK high-voltage storage system. Each stack utilizes modular blocks managed by a dedicated supervisory controller:

Troubleshooting Matrix: Common ARK Charging Faults and Corrective Actions

When troubleshooting an ARK battery that refuses charge, evaluate the operational symptoms against the diagnostic matrix below:

Step-by-Step Diagnostic and Resolution Protocol

Technicians servicing Growatt ARK installations in Saudi Arabia should follow this structured sequence to isolate and rectify charging failures:

Step 1: Evaluate BMS Telemetry and System Temperature

Access system diagnostics via the local inverter display or the ShinePhone monitoring interface. The built-in battery management system continuously supervises individual cell voltages, temperature and the charge and discharge currents. Check whether thermal protection flags are asserted:

• If internal pack temperatures register above 50°C, the system is performing normally by locking out charge current. Shading and ventilation improvements must be implemented before resetting.
• Verify that the ambient temperature around the hybrid inverter remains within the specified range: the ambient temperature should be between 0°C and 55°C to ensure.

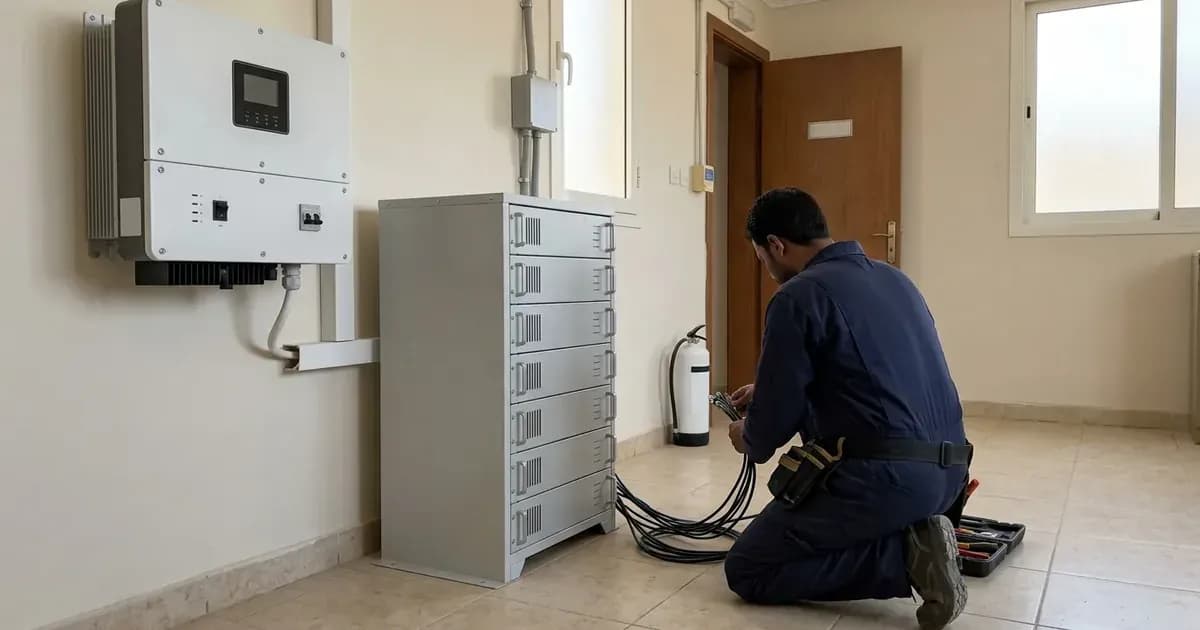

Step 2: Inspect the RJ45 CAN Communication Data Link

Closed-loop operation between the ARK master controller and the hybrid inverter requires continuous digital handshake telemetry:

• Inspect the communication cable connecting the master controller to the inverter. Technicians must connect the end of rj45 of battery to bms communication port of inverter.
• Verify that the master controller is a genuine management / BMS HVC 60050-C2 controller unit.
• Ensure that the cable utilizes factory Growatt pinouts rather than a standard commercial Ethernet patch cable, which may cross critical CAN differential signal pairs.
• Before disconnecting or reseating any communication plugs, observe safety protocols: caution!! please install the breaker at the battery and ac input side; always open the battery DC isolator breaker and de-energize the AC supply to avoid potential equipment damage or electrical shock.

Step 3: Verify Pack Series Voltage and Module Sizing

High-voltage Growatt ARK systems require a minimum of 3 modules to reach the inverter operating threshold:

• Confirm that the stack consists of between 3 and 10 modules, delivering expansion 3-10 modules, 7.68-25.6 kWh.
• Measure the DC bus voltage across the main terminals of the master controller. The system voltage (HV) 90-585 V must be satisfied. If fewer than 3 modules are present, total nominal voltage (51.2 V per pack) will not meet the 90 V inverter strike voltage, preventing charge initiation.

Step 4: Validate Inverter Charge Current Settings

Review the inverter internal parameter configuration through the engineering settings menu:

• Ensure the battery type is configured to Lithium with the Growatt CAN protocol active.
• Confirm that the maximum charge current does not exceed the manufacturer limit: max. charge current 48 A Max. discharge current 48 A.
• For three-phase Growatt SPH hybrid inverters (TL3 BH-UP series), verify that grid charge and solar charge priority schedules permit charging during current operational hours.

Saudi Regulatory Standards, SASO Conformity, and SEC Net Billing

Energy storage systems installed in the Kingdom must adhere to national technical frameworks, grid interconnection codes, and import certification laws:

SASO Certification and the SABER Platform

All energy storage products imported into the Kingdom of Saudi Arabia are subject to rigorous conformity controls:

• Under Saudi commercial regulations, an electronic certification and conformity assessment is mandatory for all imported goods entering saudi arabia.
• Import compliance is processed online: referred to simply as saber the system is an online verification tool which connects importers saso-approved certification bodies and saudi customs.
• Customs clearance requires proof of testing: if the product receives its approval certificate (which is a certificate of conformity) the importer is then issued a shipment certificate and is sent to saudi customs.
• Importers and distributors must guarantee that all products going through the saber system must comply with saso's technical regulations.
• Equipment should be procured through authorized supply partners. Regional logistics and energy providers, such as Naif Falcon, coordinate authorized supply chains: partner with us for innovation and sustainability in electronics and energy. contact us logistics solutions solar power secure packaging energy storage. They support installers with a dedicated highly qualified team we ensure extraordinary service and support so you have the confidence to achieve your energy and high-tech aspirations.

Saudi Distribution Code and SEC Grid Regulations

When integrating Growatt ARK battery storage with rooftop solar under the Saudi Electricity Company (SEC) jurisdiction:

• Technical grid alignment is mandatory: systems must still comply with technical requirements such as voltage compatibility and safety standards per the saudi distribution code.
• Capacity brackets dictate regulatory oversight: grid-connected solar pv systems between 1 kw and 2 mw fall under the small-scale solar pv framework.
• For standalone off-grid installations, no generation license is required, even for systems above 1 MW.
• Under the SEC Net Billing framework: Any surplus power exported to the grid is credited at 5 halalas/kWh, through a Net Billing system managed by the Saudi Electricity Company (Saudi Energy).
• Installation quality is strictly controlled: the Ministry of Energy has established a program to qualify contractors and consultants working on sub-2 MW systems. This program is administered through a digital platform called SHAMSI.
• Facility system sizing is bounded: Installed capacity cannot exceed the contracted load at each site.
• Upstream distribution transformers carry capacity limits: A transformer-level cap limiting solar capacity to 15% of the transformer rating.
• Utility metering is provided systematically: The bi-directional main meter is installed at no additional cost by the Saudi Electricity Company (Saudi Energy).

Electrical Safety and Handling Procedures

High-voltage energy storage systems carry lethal DC potentials. Technicians and operators must strictly respect manufacturer safety instructions during maintenance:

• Breaker Installation: Official manual directives emphasize: caution!! please install the breaker at the battery and ac input side. Never connect a battery stack directly to an inverter without dedicated circuit protection.
• Safe De-Energization: Before opening enclosure covers, inspecting cable lugs, or testing RJ45 communication leads, always open the battery DC isolator breaker and de-energize the AC supply. Verify that DC bus voltages have discharged fully before touching terminals.
• Enclosure Maintenance: High-voltage systems with ingress protection IP65 are designed for harsh outdoor environments, but cooling vents and heatsinks must remain free of blowing sand and dust accumulation. Maintenance involving enclosure disassembly or internal component replacement must only be conducted by authorized service personnel.
