Solar Mounting Structures for Roof Types

{/* visual_plan. stat_block */}

Key Takeaways

• Standard L2/L3 frames on RCC flat roofs cost Rs 3,500 to Rs 4,500 (July 2026) per panel.
• Elevated customized iron frames (L4/L5) cost Rs 7,500 to Rs 10,500 (July 2026) per panel, preserving roof space.
• Corrugated metal sheet roof mounting uses short rail aluminum clips costing Rs 2,500 to Rs 3,200 (July 2026) per panel.
• Structural wind load design must withstand wind speeds up to 130 km/h with chemical anchor bolt fixing.
• Hot-dip galvanization is mandatory to prevent steel rust in high-humidity or coastal regions like Karachi.

What are the primary mounting structure options for Pakistani roofs?

Solar panel mounting structures represent the mechanical foundation supporting your solar investment against severe weather, monsoon rains, and summer windstorms.

Pakistani residential and commercial buildings feature three main roof categories. Reinforced Concrete Cement (RCC) flat roofs, elevated customized steel frames, and corrugated metal/tin sheet roofs.

Selecting the right mounting architecture ensures structural safety and optimal 25-30 degree south-facing panel tilt. The table below presents a comprehensive cost and engineering comparison.

What is the cost per panel and total structure cost for RCC, sheet, and elevated setups?

For a standard 10kW residential installation requiring 17 panels of 585W capacity:

• Standard RCC Flat Roof (L2/L3): Total structure cost ranges between Rs 60,000 and Rs 76,000 (July 2026).
• Elevated Customized Frame (L4/L5): Total structure cost ranges between Rs 127,000 and Rs 178,000 (July 2026).
• Metal Corrugated Sheet Roof: Total structure cost ranges between Rs 42,000 and Rs 54,000 (July 2026).

Choosing elevated structures adds approximately Rs 60,000 to Rs 100,000 (July 2026) to total turn-key project expenses, but retains roof space for social gatherings and clothes drying.

How does roof structure selection affect wind load resistance and waterproofing?

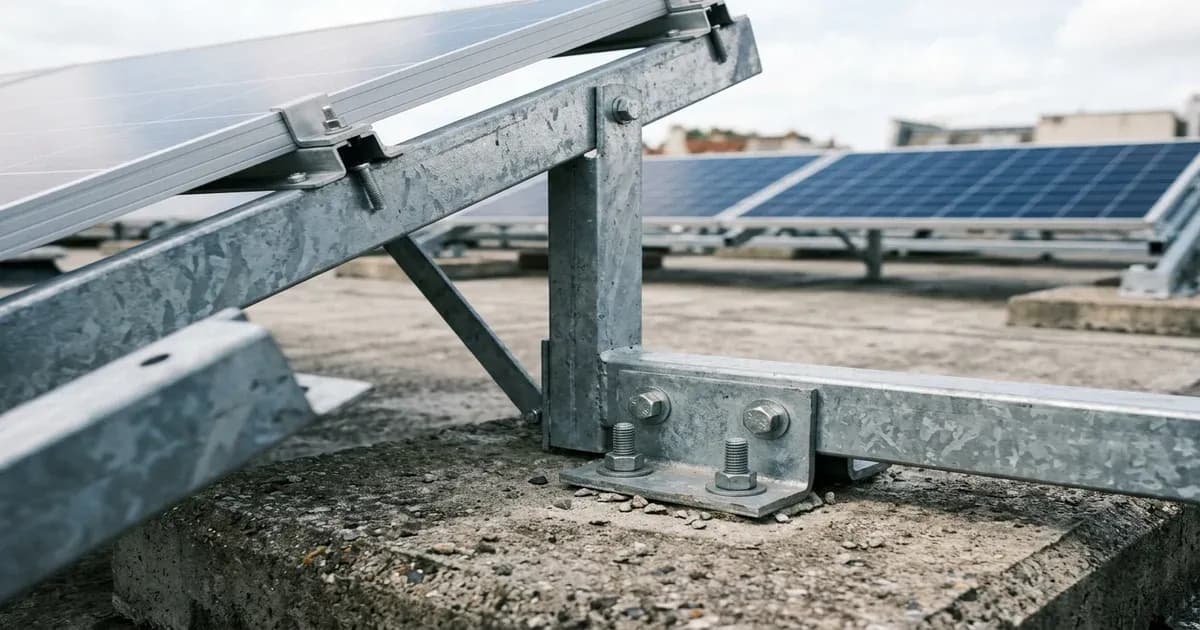

Mounting structures installed on RCC flat roofs require secure anchoring to prevent detachment during severe summer windstorms.

Installers use M12 chemical anchor bolts drilled 100mm into structural concrete roof beams. Chemical resin seals anchor holes completely, preventing rainwater seepage into roof slabs.

For metal corrugated sheet roofs, installers use EPDM rubber gasket self-drilling screws. The rubber gasket forms a watertight seal around screw entry holes, maintaining roof waterproofing.

Why elevated solar structures are popular in Lahore, Karachi, and Islamabad

Elevated customized iron structures (L4 and L5 frames) raise solar panel arrays 8 to 12 feet above roof slabs.

This height elevation prevents panel shading caused by water tanks, stairwell towers, and neighboring buildings, maximizing daily solar energy yield.

Additionally, elevating the solar array preserves the underlying roof terrace, allowing property owners to use roof space for family events and outdoor recreation.

Maintenance and rust prevention for customized steel frames in humid/coastal regions

Steel mounting frames installed in coastal regions like Karachi or high-humidity river zones like Lahore face severe rust risks.

Homeowners must specify hot-dip galvanized iron frames or apply multi-layer anti-rust primer and zinc epoxy paints to all welded joints.

Routine annual structure inspections should verify anchor bolt tightness and confirm zero rust spots across structural frame joints.

Frequently Asked Questions

What is the cost of standard RCC roof solar mounting structures?

Standard L2 or L3 galvanized iron mounting structures for RCC flat roofs cost between Rs 3,500 and Rs 4,500 (July 2026) per panel.

How much extra does an elevated solar structure cost in Pakistan?

Elevated customized iron frames (L4 or L5 structures) cost between Rs 7,500 and Rs 10,500 (July 2026) per panel, depending on height and steel pipe gauge.

How are solar panels mounted on metal corrugated sheet roofs?

Panels are mounted on corrugated sheet roofs using short aluminum rails attached with self-drilling EPDM rubber gasket screws, costing Rs 2,500 to Rs 3,200 (July 2026) per panel.
