Exide Battery Review: Tubular vs. Flat Plate for Solar in Pakistan

Key Takeaways

• Exide offers both tubular (TR series) and flat plate (HP, MF, N series) lead-acid batteries in Pakistan.
• Tubular batteries are generally preferred for solar applications due to their design for deep discharge cycles.
• Flat plate batteries are typically more affordable and suitable for lighter duty or lower capacity requirements.
• Always verify specific model capacities and current prices from reputable retailers like w11stop.com or buysolar.pk before purchase.

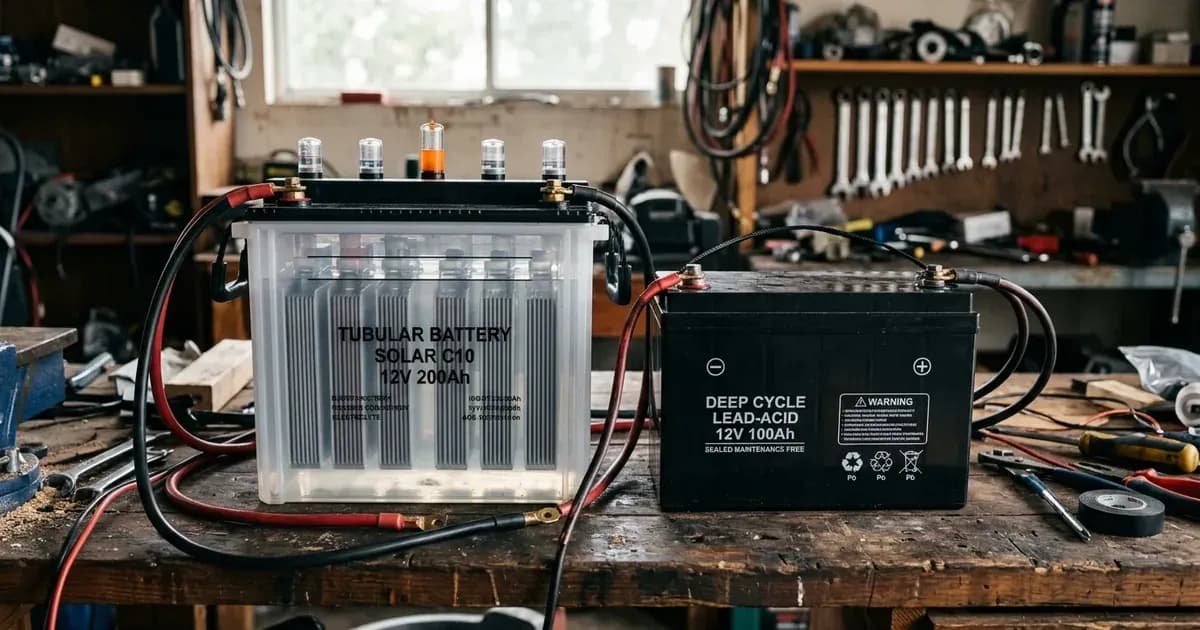

What are the differences between Exide tubular and flat plate batteries for solar?

Exide tubular batteries, specifically the TR series, are designed with robust tubular plates that make them well-suited for deep discharge cycles typical in solar power systems. In contrast, Exide flat plate batteries, which include the HP, MF, and N series, use flat plates and are generally more economical for applications with lighter duty cycles or lower capacity needs.

Understanding Exide Battery Types for Solar Applications

Choosing the right battery for your solar setup depends on your specific energy demands and budget. Exide offers a range of lead-acid battery types, each with characteristics that suit different applications.

Step 1: Examine Exide Tubular (TR Series) Batteries

Exide's TR series represents their tall tubular lead-acid batteries. These batteries are built for durability and sustained performance, especially in environments where frequent and deep discharges are common, such as off-grid or hybrid solar systems. The tubular plate design provides a larger surface area for electrochemical reactions, leading to better cycle life and efficiency compared to flat plate designs.

For example, the Exide TR-2500 is a 7P 230Ah Heavy Duty Tall Tubular Battery, rated at 12 V. This model is designed to handle significant energy demands over long periods.

Step 2: Examine Exide Flat Plate (HP, MF, N Series) Batteries

Exide also manufactures several lines of flat plate lead-acid batteries, including the HP (Deep Cycle Lead Acid), MF (Maintenance Free Lead Acid), and N (Lead Acid) series. These batteries typically feature flat, pasted plates. While they may not offer the same deep cycling capabilities as tubular batteries, they are often more cost-effective and can be suitable for applications where discharge depths are shallower or backup requirements are less stringent.

The Exide HP-250, for instance, is a 25PL 180Ah Deep Cycle Lead Acid Battery. The MF-110 is a 13PL 80AH Deep Cycle Lead Acid Battery, offering a maintenance-free option. The N-175 is a 19PL 125Ah Lead Acid Battery, representing a general-purpose option.

Step 3: Compare Capacities and Typical Use Cases

When comparing Exide tubular and flat plate batteries, consider the Ampere-hour (Ah) capacity and the intended application. Tubular batteries like the TR-2500 (230Ah) and TR-3500 are ideal for primary power storage in solar systems that rely heavily on battery backup. Flat plate batteries, with models ranging from the Exide MF-40 (9PL 22AH) to the HP-250 (180Ah), can serve well for smaller solar setups, occasional power backup, or as a more budget-friendly option where deep cycling is not the primary requirement.

Exide Battery Comparison Table

Exide Battery Series and Pricing in Pakistan

EXIDE Pakistan Limited offers a comprehensive range of batteries for various needs, including solar applications. We have gathered pricing and capacity information for their popular series from Pakistani retailers. You can explore a wider range of battery options on our main /pk/batteries category page.

Exide TR Series (Tall Tubular Lead Acid)

The TR series is Exide's offering for tall tubular batteries, known for their suitability in solar and inverter applications requiring consistent power delivery.

• Exide TR-2500: This is a 7P 230Ah Heavy Duty Tall Tubular Battery, 12 V. Its price in Pakistan is approximately Rs. 73,460/- as updated on August 25, 2026, according to w11stop.com.
• Exide TR-3500: A Heavy Duty Exide Tubular Battery, available for around Rs. 83,000 as of August 25, 2026, from buysolar.pk.

Our research indicates that pricing and availability for other TR series models (TR-1500, TR-2000, TR-3000) were not available from the provided fetchable sources.

Exide HP Series (Deep Cycle Lead Acid)

The HP series consists of deep cycle lead-acid batteries, offering a balance between performance and cost for solar energy storage.

• Exide HP-150: A 15PL 110Ah Deep Cycle Lead Acid Battery, priced at approximately Rs. 28,240/- on w11stop.com.
• Exide HP-200: This 17PL 130Ah Deep Cycle Lead Acid Battery is available for around Rs. 37,910/- on w11stop.com.
• Exide HP-230: A 21PL 160Ah Deep Cycle Lead Acid Battery, with a price of approximately Rs. 45,450/- on w11stop.com.
• Exide HP-250: This 25PL 180Ah Deep Cycle Lead Acid Battery costs about Rs. 54,500/- on w11stop.com.

Exide MF Series (Maintenance Free Lead Acid)

The MF series provides maintenance-free deep cycle lead-acid batteries, which are sealed and do not require water topping up, offering convenience.

• Exide MF-40: A 9PL 22AH Deep Cycle Lead Acid Battery, priced at approximately Rs. 8,240/- on w11stop.com.
• Exide MF-110: This 13PL 80AH Deep Cycle Lead Acid Battery is available for around Rs. 24,300/- on w11stop.com.

Exide N Series (Lead Acid)

The N series includes general lead-acid batteries suitable for various applications, including basic solar backup.

• Exide N-75: A 9PL 55Ah Lead Acid Battery, priced at approximately Rs. 15,820/- on w11stop.com.
• Exide N-85: This 11PL 65Ah Lead Acid Battery is available for around Rs. 17,840/- on w11stop.com.
• Exide N-175: A 19PL 125Ah Lead Acid Battery, with a price of approximately Rs. 36,480/- on w11stop.com.
• Exide N210: A Lead Acid Battery, available for around Rs. 36,400/- on w11stop.com.

We found that no pricing or detailed specifications for Exide NS series (NS-70L, NS-95, NS200, NS240 Plus) were available from the provided sources.

Safety: Handling Lead-Acid Batteries

Lead-acid batteries, whether tubular or flat plate, contain corrosive sulfuric acid and produce explosive hydrogen gas during charging. Always observe strict safety precautions.

• Ventilation: Ensure the battery installation area is well-ventilated, especially during charging, as hydrogen gas can accumulate. No sparks or flames should be present in the vicinity.
• Eye Protection: Always wear appropriate eye protection when working near batteries, particularly when checking electrolyte levels or handling terminals. If you need to add water, use only distilled or demineralized water, never acid.
• Insulated Tools: Use insulated tools to prevent accidental short circuits. A spanner across a battery bank can short hundreds of amps, causing severe burns or explosions.
• Terminal Connections: Before tightening or disconnecting terminals, ensure all power sources (PV, battery, AC) are isolated.

When to call a technician instead

While basic checks and comparisons can be done by you, complex installations, wiring, or any issues involving physical damage to the battery should be handled by a qualified technician. If you are unsure about battery sizing, charging parameters, or system integration, consult a professional. The provided retail sources do not publish specific warranty terms, but improper installation or maintenance can often void manufacturer warranties.
