Victron BlueNova Battery Compatibility: Setup and Configuration Guide

Key Takeaways

• Proper CAN-bus cable connection between the BlueNova battery and the Victron GX device is essential for communication.
• All Victron components, including the GX device, Multi/Quattro, and MPPTs, require specific minimum firmware versions for BlueNova compatibility.
• DVCC (Distributed Voltage and Current Control) is automatically enabled with a CAN-bus connection and is crucial for battery management.
• For complex multi-battery setups or RacPower interlink comms, consult BlueNova Energy Technical Support.

How do I connect and configure BlueNova Energy LiFePo4 batteries with Victron Energy systems?

Connecting and configuring BlueNova Energy LiFePo4 batteries with Victron Energy systems primarily involves establishing reliable CAN-bus communication and ensuring all components meet the necessary firmware requirements. The first step is to physically connect the battery to a Victron GX device using a CAN-bus cable.

Diagnosis and Setup Steps for BlueNova Energy Batteries

Proper setup is critical for the seamless operation of BlueNova Energy batteries within a Victron Energy system. Follow these steps to ensure correct installation and configuration:

1. Verify GX Device Requirement: A Victron GX device is required for communication between the BlueNova battery and the rest of the Victron system.

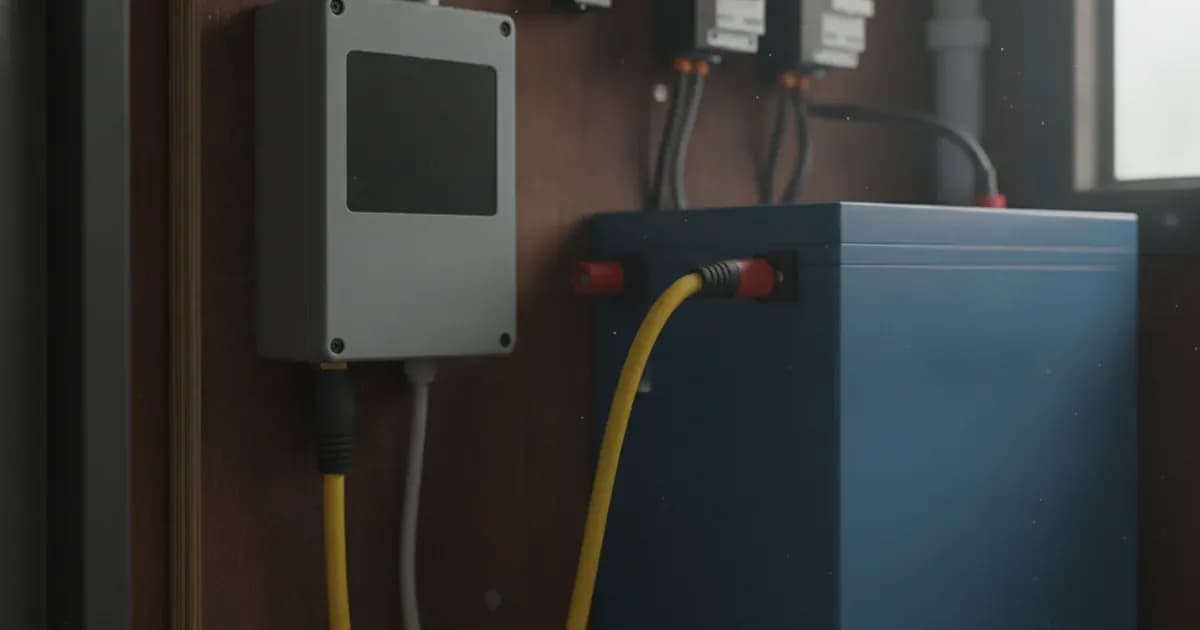

2. Connect the CAN-bus Cable:

• • Plug the GX device side of the cable into one of the VE.Can sockets on the back of the GX device or into the "BMS Can" port.
  • Plug the other end of the cable into one of the RJ45 CAN-bus ports on the BlueNova battery.

3. Check Firmware Versions: Ensure all Victron components have the minimum required firmware versions for compatibility. These include:

• • GX device firmware: Minimum v2.02 (latest recommended). For DVCC functionality, GX device firmware v2.12 is required.
  • ESS Assistant version: 164 or later (released November 2017).
  • BlueNova Energy 123SmartBMS firmware: v5.13.
  • BlueNova Energy BMMC firmware: V3.5 +.
  • Multi/Quattro firmware: 422.
  • MultiGrid firmware: 424.
  • VE.Direct MPPTs firmware: v1.29.
  • Lynx Ion + Shunt firmware: v2.04.
  • Lynx BMS firmware: v1.09.

4. Configure CAN-bus Speed: BlueNova batteries typically use a CAN-bus speed of 500kbps, which is the default for new batteries. Newer batteries may allow selectable speeds of 250kbps or 500kbps, sometimes requiring a firmware update for older models. If a setting change is needed, use the GX device menu path //Settings -> Services -> CAN-profile//.
5. Understand DVCC (Distributed Voltage and Current Control): DVCC is automatically activated when a BlueNova battery is connected via CAN-bus to a GX device with the latest firmware. This feature can be enabled or disabled in the Settings → System Setup menu.
6. Shared Voltage Sense (SVS): SVS is enabled by default when DVCC is active. It can be disabled in the Settings → System Setup menu if necessary.
7. Limit Charge Current: The user-configurable maximum charge current setting can generally be disabled for BlueNova Energy batteries.
8. RacPower Specifics:

• • RacPower (BP & DU) range BlueNova Energy batteries require CAN-bus terminations, which are supplied with each RacPower unit.
  • For RacPower batteries (latest "DU" and "BP" models) with CAN-bus and RS485, contact BlueNova Energy Technical Support for correct interlink comms cable configurations, especially if a BlueNova Energy BMAC Online unit is present.

9. CCGX Limitations: Note that it is not possible to connect both VE.Can products (such as VE.Can MPPTs) and a BlueNova Energy battery to a CCGX simultaneously. For such setups, a Cerbo GX, which features two separate sets of ports, is required.
10. Monitoring Multiple Batteries: To monitor individual paralleled BlueNova Energy batteries, a BlueNova Energy BMAC Online unit can be installed between the batteries and the Victron Energy GX device.

Common Compatibility Issues and Solutions

Victron System Configuration for BlueNova Batteries

Integrating BlueNova Energy LiFePo4 batteries into a Victron Energy system relies heavily on proper communication protocols and firmware synchronization. The Victron GX device acts as the central hub for this communication.

Firmware Requirements

Maintaining up-to-date firmware across your Victron system components is crucial for optimal compatibility and performance with BlueNova Energy batteries. The following minimum versions are specified:

• GX device firmware: Minimum v2.02 (recommended latest).
• ESS Assistant version: 164 or later (released in November 2017).
• BlueNova Energy 123SmartBMS firmware: v5.13.
• BlueNova Energy BMMC firmware: V3.5 +.
• Multi/Quattro firmware: 422.
• MultiGrid firmware: 424.
• GX device firmware (for DVCC): v2.12.
• VE.Direct MPPTs firmware: v1.29.
• Lynx Ion + Shunt firmware: v2.04.
• Lynx BMS firmware: v1.09.

CAN-bus Communication

The CAN-bus protocol is the primary method of communication between BlueNova batteries and Victron GX devices.

• Connection: The CAN-bus cable connects the BlueNova battery's RJ45 CAN-bus port to a VE.Can or "BMS Can" socket on the GX device.
• Termination: For BlueNova Energy "SSS" range batteries, a VE.Can terminator is not necessary for the other VE.Can socket on the GX device. However, RacPower (BP & DU) range BlueNova Energy batteries require CAN-bus terminations, which are supplied with each unit.
• Speed: The default CAN-bus speed for new BlueNova batteries is 500kbps. Some newer batteries offer selectable speeds of 250kbps or 500kbps. If you need to adjust the baud rate or configure a VE.Can port for BMS-Can, navigate to //Settings -> Services -> CAN-profile// on your GX device.

Distributed Voltage and Current Control (DVCC)

DVCC is a key feature for managing lithium battery charging and discharging in a Victron system.

• Activation: DVCC automatically activates when a BlueNova battery is connected via CAN-bus to a GX device running the required firmware (v2.12 or later).
• Functionality: It allows the GX device to control the charge and discharge parameters of connected Victron inverters and solar chargers based on information received from the battery's BMS.
• Configuration: You can enable or disable DVCC in the Settings → System Setup menu of your GX device.

Shared Voltage Sense (SVS)

SVS works in conjunction with DVCC to ensure accurate voltage readings across the system.

• Default State: SVS is enabled by default when DVCC is active.
• Adjustment: You can disable SVS in the Settings → System Setup menu if your specific system configuration requires it.

Multi-Battery Monitoring

For installations with multiple paralleled BlueNova Energy batteries, a BlueNova Energy BMAC Online unit can be used. This unit is installed between the BlueNova batteries and the Victron Energy GX device to allow monitoring of all individual batteries.

Safety: General Electrical Practices

The provided information does not contain specific safety facts for BlueNova Energy batteries or their hardware class. When working with any battery or electrical system, always adhere to general electrical safety practices to prevent injury or damage.

• Disconnect Power: Always isolate all power sources (PV, battery, AC breakers) before working on electrical connections.
• Insulated Tools: Use only insulated tools to prevent accidental short circuits. A spanner across a battery bank can short hundreds of amps, causing severe burns or equipment damage.
• Eye Protection: Wear appropriate eye protection when working near batteries.
• Ventilation: Ensure adequate ventilation in areas where batteries are installed, even for sealed lithium batteries, to prevent heat buildup.
• Authorized Service: Opening battery enclosures or Victron units is generally authorized-service work. If you need to replace components like fans or clean heatsink fins, ensure all power is isolated and wait the manual's specified capacitor-discharge time.

When to call a technician instead

While many setup and configuration steps can be performed by a competent DIY installer, there are situations where professional assistance is recommended.

• Persistent Communication Issues: If, after verifying all cable connections, firmware versions, and settings, the BlueNova battery still does not communicate with the GX device or is not visible, a technician can diagnose deeper issues.
• Complex Interlink Comms: For BlueNova Energy RacPower batteries, especially when a BlueNova Energy BMAC Online unit is present, specific interlink comms cable configurations may be required. In these cases, it is best to contact BlueNova Energy Technical Support directly for guidance.
• System Malfunctions: If the system exhibits unexpected behavior, such as incorrect charging/discharging cycles or alarms that cannot be resolved through basic troubleshooting, a qualified technician can provide expert diagnosis.
• Warranty Concerns: Attempting repairs or modifications beyond the scope of user-level configuration may void your product warranty. Consult the manufacturer's warranty terms before undertaking any advanced troubleshooting.
