Solar Battery Installation Mistakes (Parallel Strings and Cable Gauge)

{/* visual_plan. stat_block */}

Key Takeaways

• Undersized 16mm2 battery cables cause voltage drop and dangerous terminal heating under heavy inverter loads.
• Always use 35mm2 or 50mm2 flexible copper cables for 48V 5 kW hybrid inverter installations.
• Parallel battery cables must be identical in length and cross-section to balance current draw across strings.
• Install a dedicated 125A DC circuit breaker within 1 meter of the battery bank to protect against short circuits.

Why is cable gauge selection critical for 48V solar battery installations?

In a 48V hybrid solar installation, battery cables carry high direct currents (DC). A 5 kW inverter operating at full power draws over 100 amperes of current from a 48V battery bank (5,000W / 48V = 104A).

Inexperienced installers in Pakistan frequently make the mistake of using thin 16mm2 or 25mm2 cables intended for smaller AC loads. Thin cables introduce high electrical resistance, resulting in severe voltage drop under heavy loads.

A voltage drop of just 2 volts causes a 48V inverter to trigger false low-battery alarms when true battery capacity remains above 50%. also, excessive resistance generates heat, melting insulation and creating fire risks.

What cable sizes are recommended for different inverter capacities?

To prevent voltage drop and thermal hazards, battery cable cross-sections must match peak inverter current draw.

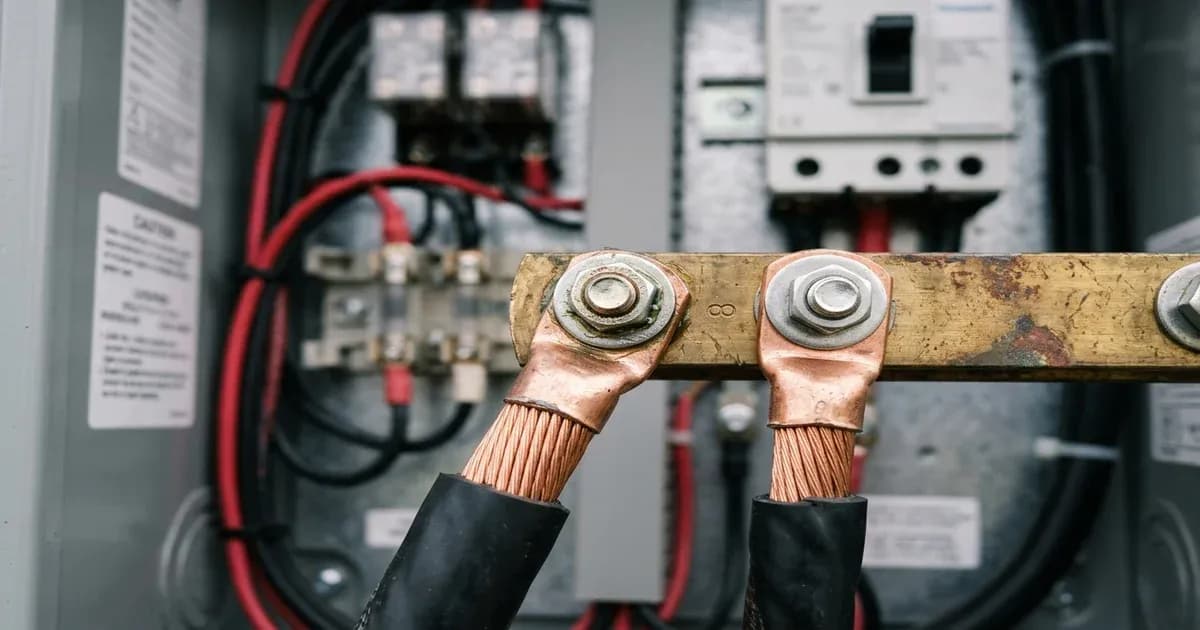

Always use multi-strand flexible copper battery cables with crimped hydraulic lugs. Avoid using stiff single-strand building wire or copper-clad aluminum (CCA) cables which suffer high electrical resistance.

The table below outlines recommended copper cable sizes and DC protection ratings for popular inverter capacities.

How do unequal parallel wire lengths ruin battery banks?

When connecting multiple lithium or tubular battery modules in parallel to expand capacity, maintaining equal wire lengths across all parallel branches is essential.

Electrical current follows the path of least resistance. If Parallel Battery A connects to the inverter using 0.5-meter cables while Parallel Battery B uses 1.5-meter cables, Battery A experiences lower total loop resistance.

As a result, Battery A supplies up to 70% of the total inverter load current. It operates hotter, cycles deeper, and degrades rapidly. To verify balanced operation, use identical cable lengths and cross-sections for all parallel branches, connecting the positive lead to the first battery and the negative lead to the final battery in the bank.

Why is dedicated DC circuit protection mandatory for battery safety?

Lithium batteries possess extremely low internal resistance and can deliver instantaneous short-circuit currents exceeding 2,000 amperes.

Connecting a lithium battery directly to an inverter without an intervening DC circuit breaker is a major safety violation. Standard AC circuit breakers cannot extinguish DC arcs and will weld shut during a fault.

Install a dedicated, polarized 125A to 160A DC molded-case circuit breaker (MCCB) or high-rupture capacity (HRC) fuse within 1 meter of the battery positive terminal. This guarantees rapid clearance of short-circuit faults before wiring insulation burns.

What inverter communication setup errors should installers avoid?

Modern lithium batteries from brands like Pylontech, Dyness, and Inverex rely on CAN bus or RS485 (July 2026) communication to share state-of-charge metrics with hybrid inverters.

A common installation error in Pakistan is plugging the communication cable into the wrong inverter port, or selecting incompatible protocol settings in the inverter menu.

When CAN communication fails, inverters default to lead-acid voltage estimation mode. This leads to inaccurate SoC displays, improper charging voltages, and premature low-voltage cutoffs. Always verify active CAN communication on the inverter display during system commissioning.

Frequently Asked Questions

What cable size should be used for connecting a 5 kW hybrid inverter to a lithium battery?

A 5 kW hybrid inverter operating at 48V requires flexible copper battery cables with a cross-sectional area of at least 35mm2 (or 50mm2 for long runs) to handle continuous 100A currents safely.

Why is unequal cable length dangerous when connecting batteries in parallel?

Unequal cable lengths introduce resistance variations between parallel strings, causing the closest battery to supply more current, overheat, and fail prematurely.

What size DC circuit breaker is required for a 48V lithium battery bank?

A 48V lithium battery connected to a 5 kW inverter requires a dedicated 125A to 160A polarized DC circuit breaker or high-rupture fuse.
