Tesla Inverter Battery Pairing Settings in Pakistan
Updated 7 September 2026 · By SolarNevs Research Desk, Dealer surveys + verified sources · 2 sources · Method ↗
Key Takeaways
- The most common cause of premature battery degradation or backup loss on Tesla inverters is selecting the wrong battery chemistry in Program 05 (
FLDfor tubular vsPYL/Libfor lithium). - First check the inverter LCD menu: confirm Program 05 matches your battery type and that bulk (Program 26) and floating (Program 27) charging voltages match your manufacturer's 25°C reference setpoints.
- For safety, isolate AC grid mains, DC PV isolators (up to 500 VDC on single-phase models and up to 1000 VDC on three-phase models), and battery breakers, then wait at least 5 minutes for internal capacitors to discharge; periodic equalization (Program 30) deliberately drives flooded cells into the hydrogen gassing region, requiring an actively ventilated space away from sparks and open flames, while equalization must remain disabled (
EdS) on lithium batteries. - Cease DIY troubleshooting and contact an authorized Tesla Industries service center in Islamabad, Lahore, or Karachi if battery error codes (Fault 03/04) or BMS communication alarms persist to preserve your 1-Year to 2-Year official warranty.
How do I correctly configure my Tesla inverter for my battery type?
Properly configuring your Tesla Industries Pakistan solar inverter for your specific battery type is essential for battery longevity and system performance. The most common issue is incorrect battery type selection in Program 05, leading to inappropriate charging voltages and discharge cut-offs. You need to adjust several program settings on your inverter's LCD panel to match your battery chemistry, whether it's a tubular (flooded lead-acid) or a lithium (LiFePO4) battery.
Diagnosis: Checking current battery settings
Before making any changes, check your inverter's current settings. This helps you understand how the system is currently configured and identify any discrepancies with your battery's requirements.

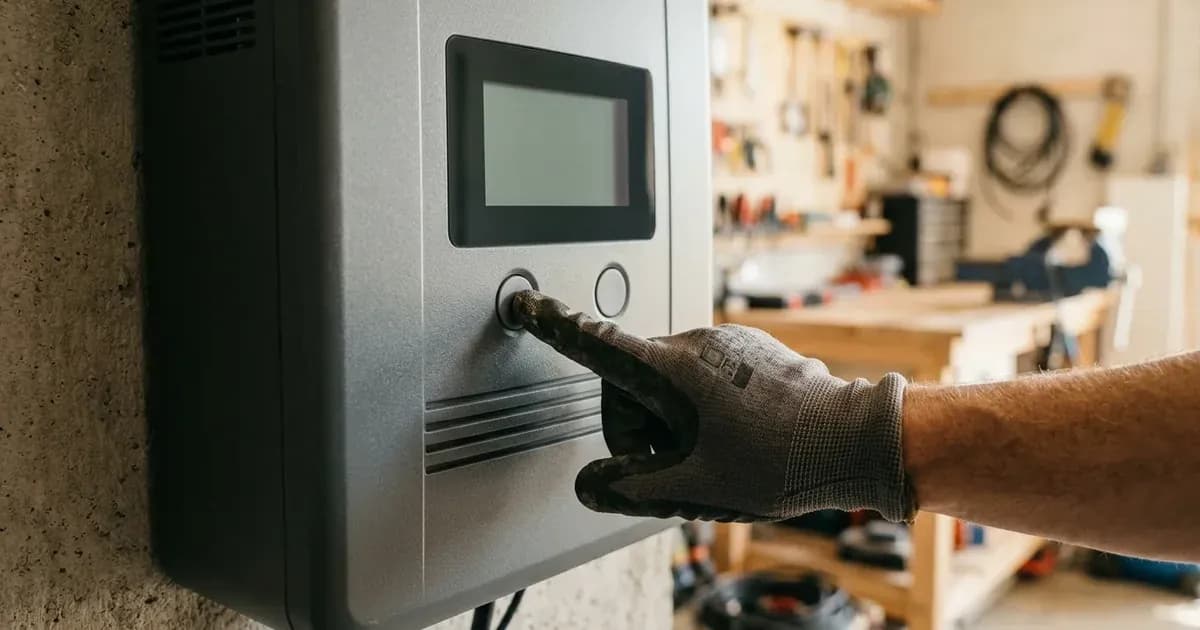

- Access the Program Menu: Press and hold the "Enter" button on your Tesla inverter's LCD panel for a few seconds until the program number appears.
- Navigate to Program 05 (Battery type): Use the "Up" or "Down" buttons to scroll to Program 05. Note the current selection (e.g.,
AGM,FLD,USE,PYL,Lib). - Check Charging Voltages: Navigate to Program 26 (Bulk charging voltage) and Program 27 (Floating charging voltage). Record these values.
- Review Low DC Cut-off: Go to Program 29 (Low DC cut-off voltage) and note the set voltage.
- Verify Equalization Settings: Check Program 30 (Battery equalization enable/disable), Program 31 (Battery equalization voltage), Program 33 (Battery equalized time), and Program 35 (Equalization interval).
Compare these recorded settings against your battery manufacturer's recommendations. Discrepancies indicate a need for adjustment.
Cause and fix table for battery pairing
This table outlines common battery pairing issues and their solutions for Tesla Industries inverters, which are built on the Voltronic Power OEM platform.
Symptom detail | Likely cause | Fix |
|---|---|---|
Battery not fully charging / low backup time | Incorrect battery type selected (e.g., | Change Program 05 to |
Battery overcharging / excessive gassing (tubular) | Bulk or float charging voltage too high | Reduce Program 26 (Bulk charging voltage) and Program 27 (Floating charging voltage) to match tubular battery specifications (referenced to 25°C ambient temperature). |
Battery deep cycling / premature failure | Low DC cut-off voltage set too low | Increase Program 29 (Low DC cut-off voltage) to |
Lithium battery damage / BMS fault | Equalization enabled for lithium battery | Disable equalization by setting Program 30 to |
Frequent switching to utility (SBU mode) | Battery voltage back to utility (Program 12) set too high | Lower Program 12 (Voltage / SOC back to utility) to |
Inverter not charging from utility when solar is low | Charger source priority (Program 16) set to | Change Program 16 to |
Slow battery charging from utility | Maximum utility charging current (Program 11) set too low | Increase Program 11 to |
Inverter-side battery settings for Tesla (Voltronic Platform)
Tesla Industries inverters, based on the Voltronic platform, use a numerical program menu for configuration. The following table details the key programs for battery pairing, with recommended settings for common battery types in Pakistan.
Program # | Program Name | Parameter Options | 24V System Default / Recommended Settings | 48V System Default / Recommended Settings | Chemistry Pairing Notes & Evidence |
|---|---|---|---|---|---|
Program 01 | Output source priority | | | | |
Program 02 | Maximum charging current | 10 A to 120 A (10 A increments) | 60 A (default); set to 10%–15% of Ah for Lead-Acid (e.g. 20 A – 30 A for 200 Ah); up to 100 A (e.g., for 200 Ah or larger lithium banks, which is 0.5C or less), ensuring it does not exceed the battery manufacturer's maximum charge rate | 60 A (default); set to 20 A – 30 A for 200 Ah Tubular; up to 120 A for 200 Ah or larger lithium banks, ensuring it does not exceed the battery manufacturer's maximum charge rate | This combines solar and AC utility charger current. ([MANUAL] "02 Maximum charging current... 10A to 100A / 120A") |
Program 05 | Battery type | | | | Selecting |
Program 11 | Maximum utility charging current | 2 A, 10 A, 20 A, 30 A, 40 A, 50 A, 60 A, 80 A, 100 A | 30 A (default); set to 15 A – 20 A for 200 Ah Tubular to prevent overheating | 30 A (default); set to 20 A – 30 A for 200 Ah Tubular; up to 60 A – 80 A for Lithium | This controls the charging rate from the WAPDA grid. ([MANUAL] "11 Maximum utility charging current") |
Program 12 | Voltage / SOC back to utility (SBU mode) | 22.0 V – 29.0 V (24 V) / 44.0 V – 58.0 V (48 V); or 10%–90% SOC | Default 23.0 V (or SOC 30%); set 23.5 V for Tubular; for LiFePO4, use | Default 46.0 V (or SOC 30%); set 47.0 V for Tubular, 50.0 V for LiFePO4 | This is the point at which the inverter switches the load from battery to WAPDA grid. ([MANUAL] "12 Setting voltage point back to utility source... Setting range is from 44.0 V to 58.0 V") |
Program 13 | Voltage / SOC back to battery (SBU mode) | Setting range is from 48.0 V to 58.0 V (48 V) or 24.0 V to 29.0 V (24 V) | Default 27.0 V (or Full) | Default 54.0 V (or Full) | This is the point at which the inverter switches the load back from WAPDA to battery power. ([MANUAL] "13 Setting voltage point back to battery mode... Setting range is from 48 V to 58 V") |
Program 16 | Charger source priority | | | | This controls whether the WAPDA grid is allowed to charge batteries during daylight. ([MANUAL] "16 Charger source priority... CSO... CUT... SNU... OSO") |
Program 26 | Bulk charging voltage (C.V voltage) | Setting range 25.0 V to 31.5 V (24 V) / 48.0 V to 61.0 V (48 V) | Default 28.2 V (AGM); adjust for Flooded/Tubular or custom Lithium | Default 56.4 V (AGM); adjust for Flooded/Tubular or custom Lithium | This is the constant voltage charging stage threshold (referenced to 25°C ambient temperature). ([MANUAL] "26 Bulk charging voltage (C.V voltage) Available options for 24 V model: 28.2 V (default)... for 48 V model: 56.4 V (default)") |
Program 27 | Floating charging voltage | Setting range 25.0 V to 31.5 V (24 V) / 48.0 V to 61.0 V (48 V) | Default 27.0 V (AGM); adjust for Flooded/Tubular or custom Lithium | Default 54.0 V (AGM); adjust for Flooded/Tubular or custom Lithium | This is the maintenance trickle charge voltage (referenced to 25°C ambient temperature). ([MANUAL] "27 Floating charging voltage Available options for 24 V model: 27 V (default)... for 48 V model: 54 V (default)") |
Program 29 | Low DC cut-off voltage | 20.0 V – 24.0 V (24 V) / 40.0 V – 48.0 V (48 V) (0.1 V step) | Default 21.0 V (AGM); 22.0 V for Tubular (prevents deep sulfation); 24.0 V for LiFePO4 (if not using PYL/Lib BMS communication). For specific LiFePO4 packs, consult your battery manufacturer's datasheet for precise low DC cut-off values, as incorrect settings can damage the battery or trigger BMS faults. | Default 42.0 V (AGM); 44.0 V for Tubular (prevents deep sulfation); 48.0 V for LiFePO4 (if not using PYL/Lib BMS communication). For 48V LiFePO4 in USE mode, a common safe starting point is 48.0 V, but always consult your battery manufacturer's datasheet for precise low DC cut-off values, as incorrect settings can damage the battery or trigger BMS faults. | This is the battery disconnect threshold to protect cells from irreversible depletion. ([MANUAL] "29 Low DC cut-off voltage... Available options for 24 V model: 21.0 V (default)... for 48 V model: 42.0 V (default)") |
Program 30 | Battery equalization enable | | | | Equalization reverses acid stratification and desulfates lead plates; it deliberately drives flooded cells into the hydrogen gassing region, requiring an actively ventilated space away from sparks and open flames. ([MANUAL] "30 Battery equalization... Battery equalization enable Battery equalization disable If “Flooded” or “User-Defined” is selected") |
Program 31 | Battery equalization voltage | Setting range 48.0 V to 61.0 V (48 V) or 25.0 V to 31.5 V (24 V) | Default 29.2 V (24 V) | Default 58.4 V (48 V) | This is the overcharge voltage applied during the periodic equalization cycle (referenced to 25°C ambient temperature). ([MANUAL] "31 Battery equalization voltage... 58.4 V (default) Setting range is from 48.0 V to 61.0 V.") |
Program 33 | Battery equalized time | 5 min to 900 min (5 min increments) | Default 60 min (1 hour) | Default 60 min (1 hour) | This is the duration of the constant voltage equalization phase. ([MANUAL] "33 Battery equalized time 60min (default) Setting range is from 5min to 900min.") |
Program 35 | Equalization interval | 0 to 90 days (1 day increment) | Default 30 days (set 30–60 days for Pakistani Tubular) | Default 30 days (set 30–60 days for Pakistani Tubular) | This is the frequency of automatic periodic equalization cycles. ([MANUAL] "35 Equalization interval 30days (default) Setting range is from 0 to 90days.") |
For more detailed battery maintenance schedules, refer to our guide on tubular battery maintenance schedule in Pakistan. If you are troubleshooting low gravity or backup drop issues, consult our Phoenix battery low gravity troubleshooting and Volta battery backup time drop fix guides. If you are evaluating lifetime system costs, our article on lithium vs tubular battery economics in Pakistan provides detailed cycle calculations.
Lithium Battery Communication (BMS)
For lithium batteries, especially those with a Battery Management System (BMS), selecting PYL (Pylontech) or Lib (Lithium) in Program 05 is critical. This enables the inverter to communicate directly with the battery's BMS via RS485 or CAN protocols, allowing the BMS to control charging and discharging parameters. This is often reported by installers as the most reliable method for lithium battery integration.
The default BMS RS485 baud rate is 9600 bps. When connecting lithium battery packs like Pylontech, Dyness, Livoltek, or Maxpower, ensure the custom RJ45 communication cable follows the correct pin assignment. Standard direct pass-through Ethernet cables must not be connected without verifying the pinout, as Pin 1 and Pin 2 carry RS232 voltages that can damage lithium battery BMS communication boards if plugged into standard RJ45 ports.
For specific lithium battery pairing guides, see:
Safety: Battery handling and inverter settings
Adjusting battery settings directly impacts battery health and personal safety:
- Flooded Lead-Acid (Tubular) Equalization Hazard: During battery equalization cycles (Program 30/31 at
29.2 Vfor 24 V or58.4 Vfor 48 V), flooded lead-acid and tubular batteries release flammable hydrogen and oxygen gases. Equalization deliberately drives cells into the hydrogen gassing region; battery compartments must maintain active cross-ventilation in a shaded space away from sparks, smoking, or open flames. - Lithium Battery Prohibition: Never activate equalization (Program 30) on sealed lithium or gel batteries. This can cause severe damage, overheating, and fire hazards. Ensure Program 30 is set to
EdS(disable) for these chemistries. - High-Voltage DC Shock Hazard: Solar array open-circuit voltages reach up to 500 VDC on single-phase Infinity HLE / Axpert models and up to 1000 VDC on three-phase HSC / Infini Plus series. PV input limits vary by model — several single-phase HLE/Axpert MPPT units are limited to 450 VDC and the Axpert PVS 3KW (PWM) to 80 VDC — so verify your specific model's max VOC before string sizing. High DC voltages do not have zero-crossing points and create persistent, lethal electrical arcs. Always isolate PV, battery, and AC grid disconnects before working on the system.
- Internal Capacitor Discharge Safety Window: Internal high-voltage DC bus capacitors retain dangerous electrical charges after shutdown. Technicians must wait at least
5 minutesafter isolating PV, battery, and AC grid disconnects before removing chassis covers. - Temperature Reference for Setpoints: All prescriptive lead-acid charge setpoints (e.g., bulk, float, equalization voltages) are referenced at 25°C ambient temperature. Deviations in high ambient heat require proper temperature compensation to prevent battery boiling or undercharging.
When to call a technician instead
While many settings can be configured via the LCD keypad, certain conditions require professional workshop diagnostics:
- Persistent Voltage Faults: If the inverter continues tripping on battery voltage alarms (such as Fault 03 for battery over-voltage or Fault 04 for low battery cutoff) after verifying settings, a technician should inspect for defective individual battery cells or open sensing circuits. Refer to our inverter error code glossary for complete code listings.
- BMS Communication Alarms: If a BMS communication warning persists when pairing lithium packs, verify RJ45 pinout assignments and protocol compatibility before commissioning.
- Physical Terminal Damage: If battery terminal posts show severe melting, loose high-resistance joints, or burnt DC breaker enclosures, power must be isolated immediately using insulated tools to prevent short circuits.
- Warranty Protection: Hardware-level repairs (such as replacing blown DC fuses or repairing internal power boards) must be performed by authorized service centers in Islamabad, Lahore, or Karachi to preserve your 1-Year to 2-Year official repair/replacement warranty.
For pricing and system specifications, visit the Tesla-PK Solar Inverter Price in Pakistan 2026 brand directory. Note that Tesla Industries (Pvt) Ltd is an indigenous Pakistani manufacturer founded in 1992 and has zero affiliation with Tesla, Inc. / Tesla Motors (USA). Inverters from Tesla Industries Pakistan operate on separate platforms and are not compatible with US Tesla Powerwall systems. The vast majority of these inverters are built upon the Voltronic Power OEM platform, as detailed in our guide to Chinese vs local brand inverter rebadging.
Still showing the fault? Book a technician
If the steps above did not clear it, tell us the inverter or battery and the exact code. We pass it to a technician who covers your city; visit charges are quoted before they come.
How this pays for the site: the technician or verifier pays SolarNevs a fixed introduction fee. Nobody pays to be recommended, and you are free to use our free guides instead.
Frequently asked questions
What are the recommended settings for tubular batteries with a Tesla inverter?
For tubular batteries, select `FLD` in Program 05. Set the low DC cut-off voltage (Program 29) to `22.0 V` for 24 V systems or `44.0 V` for 48 V systems (referenced to 25°C ambient temperature). Enable equalization (Program 30) with a `30-60 day` interval (Program 35) and a `60 min` duration (Program 33). Equalization voltage (Program 31) defaults to `29.2 V` for 24 V systems or `58.4 V` for 48 V systems, referenced to 25°C ambient temperature. Equalization deliberately drives cells into the hydrogen gassing region, requiring an actively ventilated space away from sparks and open flames.
How do I set up a lithium battery with a Tesla inverter?
For lithium batteries, select `PYL` or `Lib` in Program 05 for direct BMS communication and automatic cut-off configuration based on SOC percentage. Ensure battery equalization (Program 30) is set to disable (`EdS`); equalization must never be activated on sealed lithium or gel batteries to prevent severe cell damage, overheating, and fire hazards.
What is the bulk charging voltage for a 48V tubular battery on a Tesla inverter?
The default bulk charging voltage (Program 26) for a 48 V system is `56.4 V` (AGM), referenced to 25°C ambient temperature. This should be adjusted upwards for tubular batteries according to manufacturer specifications.
What is the low DC cut-off voltage for a 24V tubular battery?
For a 24 V tubular battery, the low DC cut-off voltage (Program 29) should be set to `22.0 V` (referenced to 25°C ambient temperature) to prevent deep discharge and sulfation. The default for AGM is `21.0 V` (25°C reference).
How often should equalization be performed for tubular batteries?
Equalization (Program 35) should be set to an interval of `30-60 days` for Pakistani tubular batteries with a default duration of `60 min` (Program 33). Equalization deliberately drives cells into the hydrogen gassing region, requiring an actively ventilated space away from sparks and open flames.
