Maxpower Inverter Battery Settings for Pairing (Suntronic Series)

Key Takeaways

• Always identify your Maxpower inverter as a Suntronic or Voltas model before adjusting settings.
• Program 05 (Battery type) is critical for matching your battery chemistry (Flooded, AGM, Lithium).
• Correctly setting charge voltages (Programs 26, 27) and low cut-off (Program 29) protects your battery; these voltage setpoints correspond to values typically specified by battery manufacturers at 25°C.
• Equalization (Programs 30-36) is for Flooded/Tubular batteries only and requires proper ventilation. WARNING: Equalization deliberately drives the cell into the explosive hydrogen gassing region; ensure an actively ventilated space away from sparks and flames. Before performing any physical work or opening the inverter, always isolate PV, battery, and AC grid connections, wait at least 5 minutes for capacitors to discharge, and be aware that unauthorized internal repairs may void your warranty. Refer to the 'Safety: Battery Handling and Inverter Settings' section for full safety protocols.

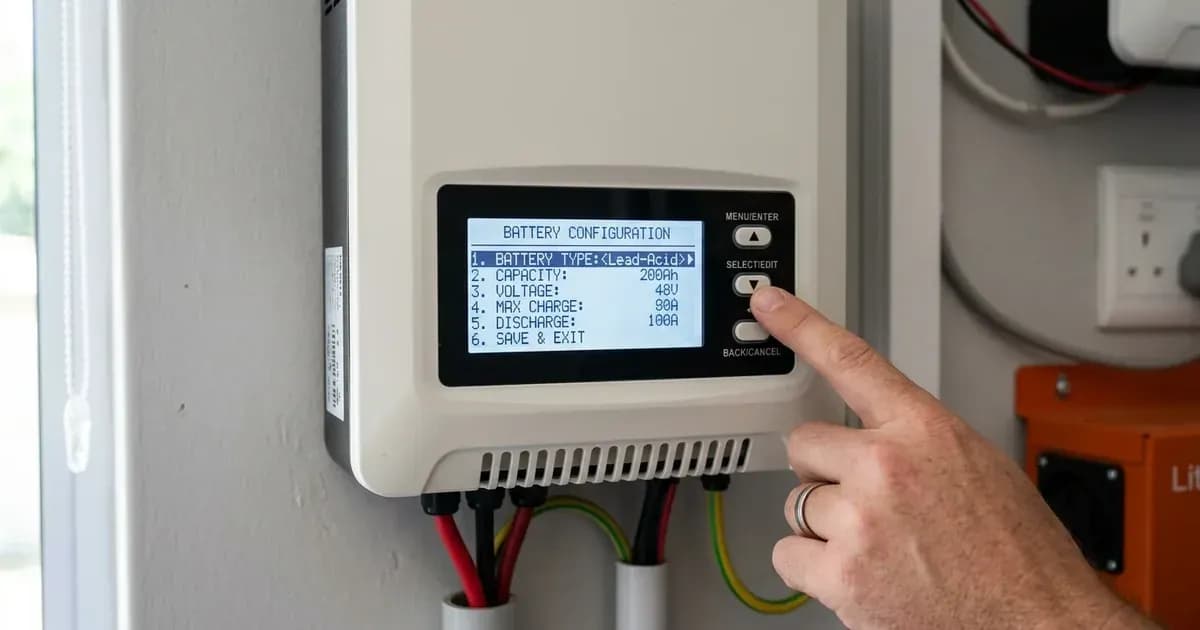

How do I set up my Maxpower inverter for different battery types?

Setting up your Maxpower inverter correctly for your specific battery type is crucial for battery lifespan and system performance. The detailed program settings discussed here apply specifically to Maxpower Suntronic series inverters, which are built on the Voltronic Power OEM platform. These inverters use a numbered program menu accessible via the LCD display.

Maxpower also offers the Voltas series, which uses a different Sofar Solar OEM platform. The settings and program numbers for Voltas inverters are not covered by this guide. If you have a Voltas inverter, consult its specific manual for battery configuration.

Identifying your Maxpower Inverter Type

Before adjusting any settings, confirm if your inverter is a Suntronic or Voltas model.

1. Check the Model Name: Look for the model name on the inverter's label. Suntronic models typically start with "Suntronic PV" (e.g., Suntronic PV 5000 Pro, Suntronic PV6000 Pro). Voltas models usually start with "Voltas" (e.g., Voltas 6K-H4, Voltas HYD-8K-H6 PRO).
2. Observe the Display and Menu: Suntronic inverters feature a 2-digit program menu (Programs 01 to 60+). Voltas inverters will have a different menu structure.
3. Check the Monitoring App: Suntronic models use the WatchPower app, while Voltas models use Solarman Smart/Business or Sofar Cloud.

Once you have confirmed you have a Maxpower Suntronic inverter, proceed with the settings below.

Maxpower Suntronic Inverter Battery Settings Table

The following table outlines key program settings for pairing your Maxpower Suntronic inverter with different battery chemistries. Always refer to your battery manufacturer's specifications for precise voltage recommendations.

Specific Battery Chemistry Considerations

Flooded/Tubular Lead-Acid Batteries

For Maxpower Suntronic inverters paired with Flooded/Tubular batteries (common in Pakistan from brands like Phoenix, Osaka, AGS, Volta), you will need to adjust several settings from the default AGM values.

1. Program 05 (Battery type): Set to FLD (Flooded/Tubular).
2. Program 26 (Bulk charging voltage): Adjust this to your battery manufacturer's specified bulk or absorption voltage. This is typically higher than AGM settings. Remember that these values are typically referenced at 25°C.
3. Program 27 (Floating charging voltage): Adjust this to your battery manufacturer's specified float voltage. This voltage is typically referenced at 25°C.
4. Program 29 (Low DC cut-off voltage): Set this higher than the default 21.0 V (for 24V) or 42.0 V (for 48V) to prevent deep discharge, which can cause sulfation and shorten battery life.
5. Programs 30-36 (Equalization): Enable equalization (EEN in Program 30) and set the voltage (Program 31), time (Program 33), timeout (Program 34), and interval (Program 35) according to your battery manufacturer's recommendations. For example, the inverter's default equalization voltage for a 48V system is 58.4 V, but this must be adjusted to match your battery manufacturer's specific recommendation within the inverter's setting range of 48.0V to 61.0V (typically referenced at 25°C), with a default equalized time of 60 minutes and an interval of 30 days. WARNING: Equalization deliberately drives the cell into the hydrogen gassing region. Ensure the battery compartment is in a well-ventilated space, and there must be no sparks or flames nearby. Before performing any physical work or opening the inverter, always isolate PV, battery, and AC grid connections, wait at least 5 minutes for capacitors to discharge, and be aware that unauthorized internal repairs may void your warranty. Refer to the 'Safety: Battery Handling and Inverter Settings' section for full safety protocols.

AGM and Gel Batteries

AGM and Gel batteries are sealed and generally do not require equalization.

1. Program 05 (Battery type): Set to AGM (default) or USE (User-Defined) if your battery has specific voltage requirements.
2. Programs 26, 27, 29: Use the battery manufacturer's recommended bulk, float, and low DC cut-off voltages. These are typically lower than flooded batteries and are referenced at 25°C.
3. Program 30 (Battery equalization enable): Ensure this is set to EdS (disable). Equalizing AGM or Gel batteries can damage them.

Lithium (LiFePO4) Batteries

Maxpower Suntronic inverters can be paired with Lithium batteries, including Maxpower's own MP series, Pylontech, or other compatible brands.

1. Program 05 (Battery type): Set to PYL (Pylontech) or Lib (Lithium) if your battery has a Battery Management System (BMS) that communicates with the inverter. This setting often auto-configures other charge parameters and switches to SOC-based cut-offs. This functionality is based on community-reported installer practice for Pylontech protocol emulation, which may work with some other lithium brands but is not officially documented for all Maxpower models. If your lithium battery does not have BMS communication, set it to USE (User-Defined).
2. Programs 26, 27, 29: If using USE mode, manually set the bulk, float, and low DC cut-off voltages according to your lithium battery's specifications. Lithium batteries typically have a narrower voltage window. These values are typically referenced at 25°C.
3. Program 30 (Battery equalization enable): Ensure this is set to EdS (disable). Lithium batteries do not require equalization and attempting to equalize them can cause damage.
4. BMS Communication: For PYL or Lib settings, ensure the RJ45 communication cable is correctly wired between the battery BMS port and the inverter's BMS port. Incorrect pinouts can prevent communication or damage components. You can refer to guides like the /pk/guides/fixes/pylontech-bms-communication-fault-troubleshooting for general BMS communication troubleshooting.

This article covers the inverter-side programs only; for the battery-side lithium pairing settings (pack DIP switches, protocol selection, and BMS configuration), see the dedicated guide: /pk/guides/fixes/maxpower-lithium-inverter-pairing-settings.

Safety: Battery Handling and Inverter Settings

Working with batteries and inverters involves significant electrical and chemical hazards. Always prioritize safety.

• High Voltage DC Shock Hazard: Solar arrays on Suntronic models can reach up to 500VDC, and Voltas models up to 1000VDC. These high DC voltages present lethal shock hazards. Always switch off and isolate PV, battery, and AC grid connections before working on the system.
• Internal Capacitor Stored Energy: Inverters contain internal DC bus capacitors that store high energy. After disconnecting all power sources, wait at least 5 minutes after isolating PV, battery, and AC grid connections before removing enclosure covers or touching internal terminals to allow capacitors to discharge.
• Lead-Acid Equalization Gassing: During battery equalization (Program 30/31), flooded lead-acid batteries emit explosive hydrogen and oxygen gas. The battery compartment must be in a well-ventilated space, and there must be no sparks or flames nearby. Never equalize sealed lithium, AGM, or gel batteries.
• Eye Protection: When working with flooded lead-acid batteries, especially during watering or specific-gravity testing, always wear eye protection. Battery acid is corrosive. Add only distilled or demineralized water, never acid.
• Tightening Terminals: When tightening or disconnecting battery terminals, kill power first and use insulated tools. WARNING: A spanner across a battery bank can short hundreds of amps, causing severe burns or explosions.

When to call a technician instead

While many settings can be adjusted by the user, there are situations where professional intervention is necessary:

• Persistent Issues: If, after carefully adjusting settings according to your battery manufacturer's specifications, your battery performance does not improve or new issues arise, a technician can diagnose underlying hardware problems.
• Internal Faults: Fault codes indicating internal component failures (e.g., Fault 08, 09, 53, 55, 57 on Suntronic models) require specialized repair and should not be attempted by untrained individuals.
• Warranty Concerns: Attempting unauthorized internal repairs or making incorrect settings adjustments that lead to component failure may void your inverter's 3-year standard manufacturer warranty.
• Voltas Inverter Settings: If you own a Maxpower Voltas inverter, and its manual does not provide clear instructions, it is best to contact Maxpower support or a certified technician familiar with the Sofar Solar platform.

For general inverter troubleshooting, you can also consult our /pk/guides/fixes/inverter-error-code-glossary. To understand the cost implications of repairs, see /pk/guides/fixes/inverter-repair-cost-in-pakistan.
