AGS Battery Inverter Settings and Pairing for Solar Systems

Key Takeaways

• The most critical setting for AGS tubular batteries is selecting "Flooded" chemistry rather than default "AGM".
• Set 48V bulk absorption voltage to 58.4V and float voltage to 54V at 25°C reference on Voltronic, Growatt, and Inverex platforms (apply −3 to −5 mV/cell/°C temperature compensation above 25°C in hot installations).
• AGS flooded batteries operate on voltage-mode charging only; never select Lithium or BMS communication modes.
• Size charging current to 10–20% of C20 capacity (18–37A for EC-2200; 23–46A for EC-3000).

Why are my AGS tubular batteries underperforming with my solar inverter?

AGS tubular batteries underperform primarily when paired with inverters running factory-default AGM battery profiles. Inverters like the Growatt SPF and Axpert VM III ship configured for sealed AGM batteries (56.4V bulk absorption on 48V systems), while the Flooded profile in those same manuals raises bulk absorption to 58.4V (25°C reference values; hot installations require −3 to −5 mV/cell/°C temperature compensation above 25°C) — and AGS tall-tubular EC-series batteries (such as the EC-2200 and EC-3000) are flooded cells. Atlas publishes no charging-voltage table of its own for the tubular range, so the inverter manual's Flooded row is the figure you program against. That leaves a standing 2V undercharge — and in our reading of the manuals' charge tables, that chronic undercharge is what drives sulfation and shrinking backup on tubular banks over time.

The first step in pairing AGS batteries is switching Program 05 from AGM to Flooded (or selecting "Use Batt V" on Deye hybrids).

Step-by-step inverter pairing checks for AGS tubular batteries

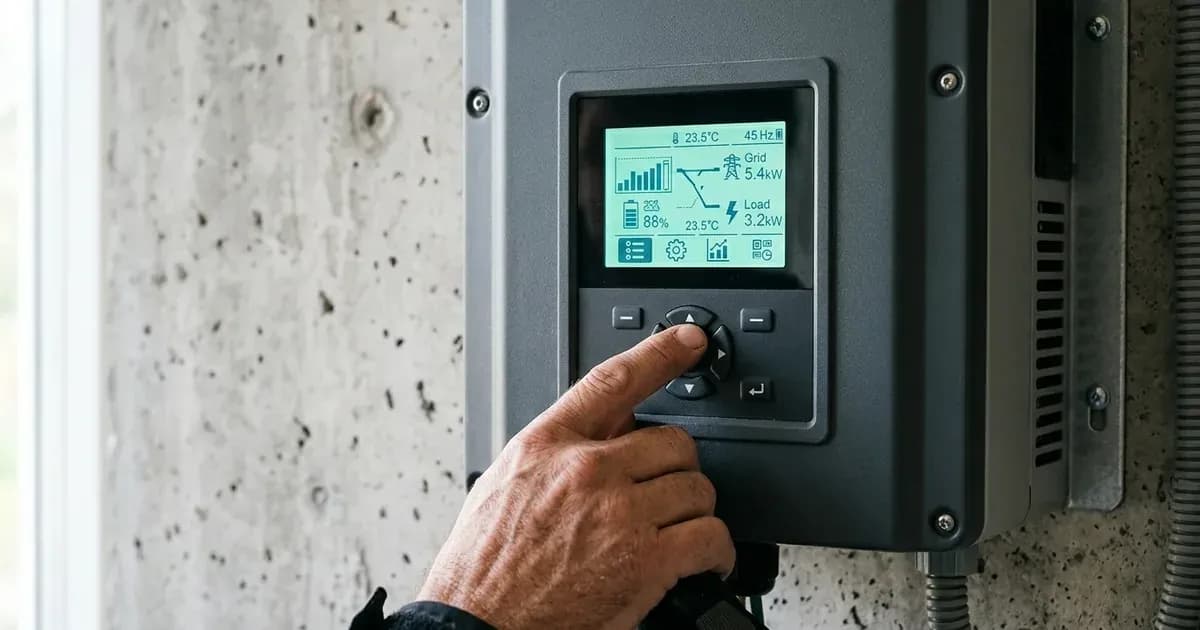

Configure your solar inverter parameters following this systematic diagnostic sequence to ensure optimal battery longevity and backup:

1. Select Flooded Chemistry Profile:

• • Growatt SPF 3500/5000 ES: Program 05 defaults to AGM. Switch it to "Flooded", or to "User-Defined" if you would rather set the bulk voltage yourself in prog 19 (default 56.4V, 48.0–58.4V).
  • Axpert VM III: Program 05 defaults to AGM. Change the setting to "Flooded".
  • Inverex Aerox: Select "Flooded" from the battery-type options (AGM / Flooded / User-Defined); check your model's manual for the exact menu location.
  • Deye Hybrid Inverters: In Battery Mode, check "Use Batt V" (voltage control). Never select "Lithium" or "Use Batt %", as flooded tubular banks lack digital state-of-charge communication.

2. Configure Bulk / Absorption Voltage:

• • Set 48V systems to 58.4V (29.2V for 24V units and 14.6V for 12V setups; on 5.2KW Inverex Aerox models, this is 58.4V) at 25°C reference. On Deye units, the manufacturer-recommended "Wet" profile uses 59.0V (14.7V per 12V battery). In ambient heat above 25°C, apply −3 to −5 mV/cell/°C temperature compensation.

3. Configure Float Voltage:

• • Set 48V systems to 54V (27V for 24V units and 13.5V for 12V units) at 25°C reference. On Deye units, configure float to 55.0V in "Wet" mode (13.7V per 12V unit). Apply −3 to −5 mV/cell/°C temperature compensation in ambient heat.

4. Enable Equalization Charging:

• • Equalization removes acid stratification and surface sulfation by delivering a controlled overcharge at 58.4V (Prog 43–48 on Growatt, Prog 30/31/33/34 on Axpert; 60 min every 30 days; referenced to 25°C). Because equalization deliberately drives the cell into the hydrogen gassing region, perform it only in a well-ventilated space away from sparks and open flames. Note that equalization menus only activate once Flooded or User-Defined is selected.

5. Set Maximum Charging Current:

• • Charge current should stay between 10% and 20% of the C20 Ah rating. Sizing guidelines vary — charger guidance (such as Suvastika) specifies ~10% of Ah, while Deye manuals permit up to 20% for flooded batteries. For an AGS EC-2200 (185Ah), our calculated range is 18–37A. For an EC-3000 (230Ah), our calculated range is 23–46A.

6. Set Low DC Cutoff Voltage:

• • Maintain Prog 21 default 42.0V (40.0–48.0V) on Growatt and Prog 29 default 42.0V (42.0–48.0V) on Axpert. Habitual deep discharge from setting cutoff too low reduces cyclic life. (AGS tubulars carry a retailer-published rating of 1250 cycles at 80% DoD, though this is absent from official Atlas pages).

7. Apply Temperature Compensation:

• • On Deye units, set the TEMPCO field to −3 to −5 mV/cell/°C above 25°C (default −5 mV/°C/cell). On inverters without temperature sensors, manually lower 48V bulk voltage by ~1.9V during extreme 45°C summer months (charge voltage must drop ~3–5 mV/cell/°C above 25°C; on a 48V 24-cell bank at 45°C that calculates to ~1.9V).

Common Inverter Settings for AGS Tubular Batteries

The table below summarizes programming values across major inverter families sold in Pakistan:

Figures as of August 2026.

Platform Rebadging and Practical Bank Wiring Rules

Many popular solar inverter brands in Pakistan — including Knox, Fronus, Crown, and Maxpower — are community-reported to be rebadges of Voltronic Power OEM platforms. Program numbers match the Voltronic Axpert map on most units, but this has not been verified against each brand's own manual — so check your unit's own manual before programming. Where the map matches, follow the Axpert Program 05 Flooded guidelines when configuring these units for AGS tubular banks. Review our investigation on who actually makes Knox, Fronus, and Crown inverters.

Practical Bank Wiring and String Sizing

To achieve full backup performance, series and parallel strings must be installed with care:

• Series String Matching: Always install four identical 12V AGS units in a 48V string (4 × 12V EC units in series). Never mix new and aged batteries in the same string; an aged battery with high internal resistance throttles charging across the other three units.
• Cable Gauge and Torque: Use correctly sized copper interconnect cables to minimize voltage drop under heavy inverter surge loads. Always kill power and open DC breakers before tightening terminal posts snugly using insulated spanners (Atlas publishes no torque figure; guidance is clean, shiny, and snug fitting), because a spanner across a bank shorts hundreds of amps.
• Balancing Across Strings: If using parallel strings, connect the inverter DC positive to the first battery in string one and the negative to the last battery in string two to ensure balanced current distribution.

Review our dedicated guide on solar battery installation mistakes and cable sizing to prevent avoidable wiring faults.

For lithium-specific communication errors, refer to lithium battery inverter compatibility errors. If your inverter fails to charge despite correct settings, check our diagnostic walkthrough for solar battery not charging.

Safety: Working with Flooded Lead-Acid Batteries

Observe these essential safety procedures during inverter configuration and battery commissioning:

• Hydrogen Gas Ventilation: Flooded batteries emit explosive hydrogen gas during normal bulk charging and heavy equalization (equalization deliberately gasses). Never install battery banks in unventilated enclosures, bedrooms, or near open circuit breakers.
• Corrosive Sulfuric Acid: Electrolyte contains dilute sulfuric acid (~1.24 SG service strength). Wear safety glasses and protective rubber gloves when handling battery caps or interconnects. Neutralize external corrosion with baking soda using AGS's recipe of 1 tablespoon per cup of water (external only).
• High Short-Circuit Risk: A 48V bank of AGS tubular monoblocs delivers hundreds of amps into a dropped tool. Use insulated wrenches and verify DC breakers are open before wiring.
• Inverter Stored Energy and Live Arrays: Inverter capacitors hold lethal voltage up to 5 minutes after disconnection (no user-serviceable parts). PV strings are live whenever light falls on them (no house breaker de-energizes DC).
• Heavy Lifting and Transport: Filled weight is 55.79 kg for EC-2200 and 64.90 kg for EC-3000, requiring a two-person lift and acid-tight upright transport.

When to call a technician instead

Contact a professional solar installer under the following conditions:

• You are unfamiliar with DC circuit breaker sizing, series wiring, or inverter parameter programming.
• The inverter throws an internal hardware fault code immediately upon connecting the battery string — look the code up in your own unit's manual rather than guessing at it.
• One or more batteries in the bank run abnormally hot to the touch during standard bulk charging.
• Warranty verification: Atlas Battery Limited runs claims back through the selling dealer (~250 named dealers across 160+ cities), and what the claim rests on is the dealer-stamped warranty card plus your retail invoice. Atlas publishes no warranty terms online, so keep both documents with the bank and ask your dealer what their card actually covers.

Figures as of August 2026.
