Ziewnic Inverter Battery Settings: Pairing Guide for Optimal Performance

Key Takeaways

• Incorrect battery type or charging parameters in Program 05 are the most common causes of poor battery performance or premature degradation on Ziewnic inverters.
• Always verify Program 05 (FLD for tubular vs PYL/Lib for lithium) and ensure bulk (Program 26) and floating (Program 27) charging voltages (at 25°C) match your manufacturer's setpoints.
• Always wait at least 5 minutes after disconnecting all solar PV, battery DC, and AC grid supplies for internal capacitors to discharge before removing enclosure panels or servicing terminal blocks; periodic equalization (Program 30) deliberately drives flooded cells into the hydrogen gassing region, requiring an actively ventilated space, while equalization must remain disabled (EdS) on lithium batteries.
• If your inverter displays persistent internal hardware faults (Fault 08, 09, 53, 57) or BMS communication errors, consult an authorized Ziewnic service center in Karachi or Lahore to preserve your warranty (5-year PCBA replacement on Lenox flagship hybrids; standard 3 to 5-year warranties on retail models).

How do I configure Ziewnic inverter battery settings for optimal performance?

Configuring your Ziewnic inverter with the correct battery settings is crucial for the longevity and efficient operation of your battery bank. Incorrect settings can lead to undercharging, overcharging, or premature battery degradation. The most common issue is mismatching the inverter's default settings (often for AGM) with your actual battery type, such as tubular or lithium.

Diagnosis: Verifying Your Ziewnic Inverter Battery Configuration

Before making any changes, it is important to understand your current inverter settings and battery type. Ziewnic inverters, particularly the Axpert Ultra, Axpert Twin Premium +, Diamond, and Max series, use a standardized program menu for configuration. Lenox and Roux series may have different interfaces but similar underlying parameters.

1. Identify Your Ziewnic Inverter Series:

• • Check your inverter's model name. Models like Axpert Ultra, Axpert Twin Premium +, Diamond 5G/6G, and Max series typically follow the Voltronic OEM platform with 2-digit program numbers (Programs 01 to 36+).
  • Lenox Series (e.g., PV8000, PV10500, PV15600 3-Phase) and Roux Series (e.g., Roux-X-LV4.7, Roux-X-LV6.7, Roux-X-LV11.7) feature color touch screens and use different settings menus - the numbered programs in this guide apply to the Voltronic-platform models (Axpert, Diamond, Max); consult the Lenox/Roux touch-screen manual for equivalent battery-type, charge-voltage, and cut-off parameters.

2. Access the Program Menu:

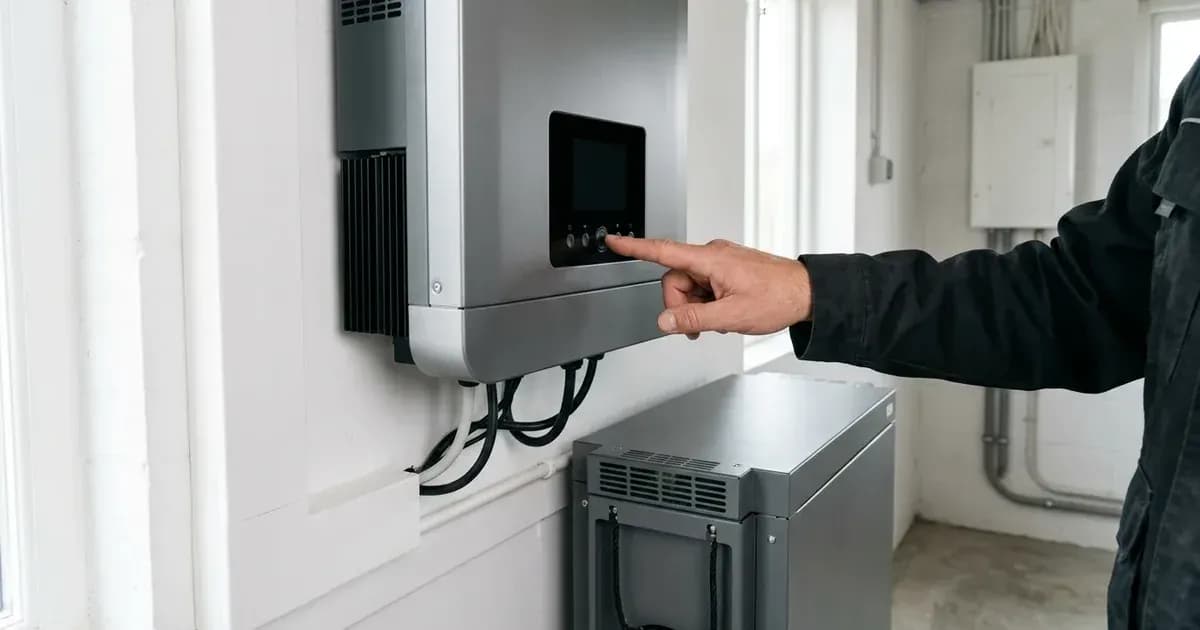

• • Locate the control buttons on your inverter's front panel (usually "Up," "Down," "Enter," "Esc").
  • Press the "Enter" button repeatedly until you see "Program" or a program number displayed on the LCD. Use the "Up" and "Down" buttons to navigate through the program numbers.

3. Verify Current Battery Type Setting (Program 05):

• • Navigate to Program 05. This setting tells the inverter what type of battery it is connected to.
  • Common options include AGM (default), FLD (Flooded/Tubular), USE (User-Defined), PYL (Pylontech), or Lib (Lithium). Ensure this matches your battery chemistry.

4. Check Charging Source Priority (Program 16):

• • Go to Program 16. This determines whether solar, utility (grid), or both can charge your batteries.
  • Options are CSO (Solar first), CUT (Utility first), SNU (Solar and Utility, default), or OSO (Only Solar).

5. Review Charging Current Limits (Program 02 and 11):

• • Program 02 sets the maximum combined charging current from both solar and utility (10A to 180A, 10A increments, model dependent).
  • Program 11 sets the maximum utility (AC) charging current specifically. These settings prevent overcurrent to your batteries.

6. Confirm Voltage Cut-offs (Program 12, 13, and 29):

• • Program 12 sets the voltage point at which the inverter switches the load back to the utility grid when in SBU (Solar-Battery-Utility) mode (Setting range is from 44.0 V to 58.0 V (48V) or 22.0 V to 29.0 V (24V)).
  • Program 13 sets the voltage point at which the inverter switches the load back to battery power (Setting range is from 48.0 V to 58.0 V (48V) or 24.0 V to 29.0 V (24V)).
  • Program 29 defines the low DC cut-off voltage, which is a critical setting to protect your batteries from deep discharge.

7. Examine Equalization Settings (Programs 30, 31, 33, 34, 35, 36):

• • These programs are specifically for flooded lead-acid batteries. Periodic equalization deliberately drives cells into the hydrogen gassing region, requiring an actively ventilated space, while remaining strictly disabled (EdS) for lithium.
  • Program 30 enables (EEN) or disables (EdS) equalization.
  • Programs 31, 33, 34, 35, and 36 control the equalization voltage, duration, timeout, and interval.

Ziewnic Inverter Battery Settings Table

The following table details the key program settings for Ziewnic inverters (Voltronic OEM platform) to correctly pair with different battery types. Always refer to your battery manufacturer's specifications for precise voltage recommendations.

Ziewnic Inverter Settings for Lead-Acid Batteries (Tubular, AGM)

For traditional lead-acid batteries, including flooded (tubular) and sealed AGM/Gel types, careful configuration is essential.

1. Battery Type (Program 05):

• • For Flooded/Tubular batteries (commonly used in Pakistan from brands like Osaka, Phoenix, AGS, Volta), select FLD.
  • For AGM/Gel batteries, select AGM.
  • If your battery manufacturer provides specific voltage recommendations that differ from the FLD or AGM presets, choose USE (User-Defined) and manually input the values.

2. Charging Voltages (Programs 26, 27):

• • Bulk Charging Voltage (Program 26): This is the constant voltage (C.V) threshold. For a 24V system, the default for AGM is 28.2 V at 25°C. For a 48V system, the default is 56.4 V at 25°C. Adjust these values based on your battery manufacturer's specifications for bulk/absorption charge at 25°C.
  • Floating Charging Voltage (Program 27): This is the maintenance trickle charge voltage. For a 24V system, the default for AGM is 27.0 V at 25°C. For a 48V system, the default is 54.0 V at 25°C.

3. Low DC Cut-off Voltage (Program 29):

• • This setting protects your batteries from over-discharge. The default for AGM is 21.0 V for 24V systems and 42.0 V for 48V systems. For flooded/tubular batteries, it is often recommended to set this value higher to prevent deep sulfation and extend battery life.

4. Equalization Settings (Programs 30-36):

• • Equalization (Program 30): This feature is only for flooded lead-acid/tubular batteries. Select EEN to enable it. It must be disabled (EdS) for AGM, Gel, or lithium batteries. During battery equalization (Programs 30 and 31), flooded lead-acid batteries emit explosive hydrogen and oxygen gas. The battery compartment must have positive cross-ventilation.
  • Equalization Voltage (Program 31): The default is 29.2 V for 24V systems and 58.4 V for 48V systems. Consult your battery manual for the correct equalization voltage.
  • Equalized Time (Program 33): Default is 60 minutes.
  • Equalized Timeout (Program 34): Default is 120 minutes.
  • Equalization Interval (Program 35): Default is 30 days. For Pakistani tubular batteries, commonly reported by installers, an interval of 30–60 days is suitable.
  • Equalization Activated Immediately (Program 36): Select AEN to manually trigger an equalization cycle if needed.

Ziewnic Inverter Settings for Lithium Batteries (LiFePO4)

Ziewnic inverters support various lithium battery types, including Pylontech and generic lithium-ion. Proper communication and settings are critical for these advanced batteries.

1. Battery Type (Program 05):

• • Select PYL for Pylontech batteries.
  • Select Lib for other compatible lithium battery types.
  • Choosing PYL or Lib automatically configures charge voltages and switches cut-offs to SOC percentage, allowing the battery's internal Battery Management System (BMS) to control charging and discharging parameters.

2. Charging Current (Programs 02, 11):

• • Lithium batteries can typically accept higher charge currents than lead-acid. Set Program 02 (Maximum charging current) and Program 11 (Maximum utility charging current) according to your lithium battery's specifications, up to the inverter's maximum (e.g., 180A, model dependent).

3. Voltage/SOC Back to Utility/Battery (Programs 12, 13):

• • When PYL or Lib is selected, these programs often refer to State of Charge (SOC) percentages rather than fixed voltages. The default for Program 12 (back to utility) is SOC 30%, and for Program 13 (back to battery) is "Full." These values are typically managed by the BMS.

4. Low DC Cut-off Voltage (Program 29):

• • While the BMS primarily manages the low voltage cut-off, the inverter's Program 29 default (42.0 V for 48V systems or 21.0 V for 24V systems) provides an additional layer of protection. Consult your lithium battery manufacturer's specifications for recommended inverter-side low voltage cut-off settings, if any, to work in conjunction with the BMS.

5. Equalization (Program 30):

• • Always disable equalization (EdS) for lithium batteries. Equalization is harmful to lithium cells and can damage the battery.

BMS Communication for Lithium Batteries

Before connecting any BMS communication cables, always disconnect all solar PV, battery DC, and AC grid supplies and wait at least 5 minutes for internal capacitors to discharge. Improper handling or incorrect wiring can damage the inverter or battery and may void your warranty. For optimal performance and safety, lithium batteries should communicate with the Ziewnic inverter via their Battery Management System (BMS). This typically involves an RJ45 cable connection.

1. RJ45 Pin Assignment:

• • The Ziewnic inverter's BMS communication port uses specific pin assignments. For RS485 communication, PIN 3 is RS485B and PIN 5 is RS485A. For CAN communication, PIN 6 is CANH and PIN 7 is CANL.
  • Caution: Direct pass-through Ethernet cables must NOT be connected without verifying PIN 3/5 (RS485) or PIN 6/7 (CAN), because Pin 1 and Pin 2 carry RS232 voltages that can damage battery BMS communication circuits if crossed.

2. Protocol Selection:

• • Ensure your inverter's firmware (selected via Program 05) matches the battery's communication protocol (e.g., Pylontech protocol emulation (PYL) over CAN/RS485).
  • The default BMS RS485 baud rate is 9600 bps with Dip 1 ON.

Safety: Handling Batteries and Inverter Settings

Working with batteries and inverters involves significant electrical hazards. Always prioritize safety.

• High-Voltage DC Shock Hazard: Solar array open circuit voltages reach up to 450VDC / 500VDC on single-phase Ziewnic models, and up to 800VDC on three-phase Lenox 12kW models. These high DC voltages pose a lethal electric shock hazard and persistent DC arcing risks.
• Internal Capacitor Stored Energy: Ziewnic inverters contain high-voltage DC bus capacitors that store significant electrical charge. Installers and service technicians must wait at least 5 minutes after disconnecting all solar PV, battery DC, and AC grid supplies before removing enclosure panels or servicing terminal blocks.
• Lead-Acid Equalization Gassing: During battery equalization (Programs 30 and 31), flooded lead-acid batteries emit explosive hydrogen and oxygen gas. The battery compartment must have positive cross-ventilation.
• Never Equalize Sealed Batteries: Equalization must be disabled (EdS in Program 30) for sealed AGM, Gel, or lithium batteries. Attempting to equalize these battery types will cause irreversible damage.

When to call a technician instead

While many battery settings can be adjusted by the user, some issues require professional intervention.

• Persistent Communication Errors: If your lithium battery's BMS consistently fails to communicate with the inverter despite verifying cable connections and settings, a technician may need to diagnose the communication port or BMS itself.
• Internal Component Failure: Fault codes such as Fault 08 (Bus voltage is too high), Fault 09 (Bus soft start failed), Fault 53 (Inverter soft start failed), or Fault 57 (Current sensor failed) indicate internal hardware issues. These are not field-serviceable and require returning the unit to an authorized Ziewnic service center in Karachi or Lahore.
• Authorized Service Centers: Ziewnic operates authorized service facilities in Karachi (Office # 5, 2nd floor, Above Meezan Bank, Rehman Mansion, Regal Chowk, Sharah-e-Liaquat, Saddar) and Lahore (51 Justice M. Akram (Mozang) Road, Near Masjid-e-Nimra, Near Saffa Wala Chowk).
• Warranty Concerns: Ziewnic flagship hybrid lines (Lenox) offer a 5-Year PCBA replacement warranty, while retail models carry standard 3 to 5-year warranties. Improper installation or unauthorized modifications could void your warranty.

For general inverter troubleshooting, you may find our inverter-error-code-glossary helpful. Understanding the OEM lineage of Ziewnic inverters can also provide context, as discussed in chinese-vs-local-brand-inverters-who-actually-makes-knox-fronus-crown-rebadging-exposed.
