Inverter Charging Settings: A Master Guide for Axpert, Deye, Growatt, and Solis Systems

Updated 6 September 2026 · By SolarNevs Research Desk, Dealer surveys + verified sources · 6 sources · Method ↗

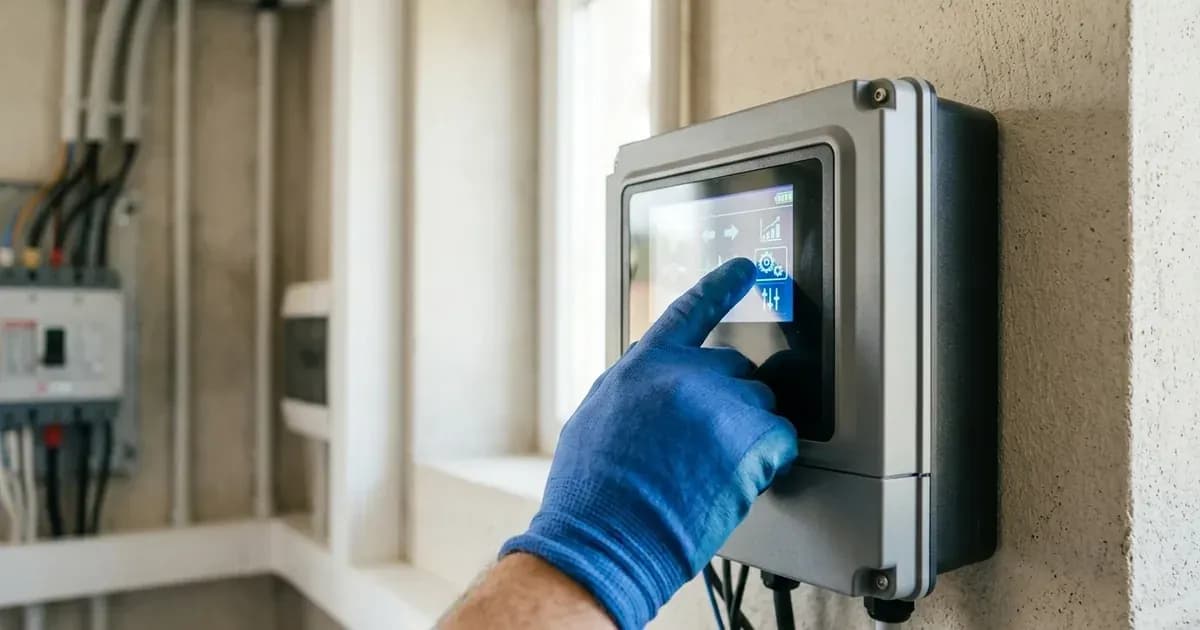

Gloved hand adjusting solar inverter charging parameters on a digital LCD control interface. — SolarNevs spec card

Key Takeaways

  • Always consult your inverter and battery manuals for precise charging voltage and current settings.
  • Battery chemistry (flooded, AGM, Gel, Li-ion) dictates the specific voltage and current requirements.
  • Incorrect settings can damage batteries, reduce their lifespan, or cause system malfunctions.
  • If you are unsure about any setting or encounter persistent issues, stop and contact a qualified technician.

Understanding Inverter Charging Settings

Properly configuring your inverter's charging settings is crucial for the health and longevity of your battery bank. These settings determine how your inverter charges your batteries from solar panels or the grid. Key parameters include bulk charging voltage, floating charging voltage, equalization voltage, and low DC cut-off voltage. For lithium-ion batteries, State of Charge (SOC) settings are also critical.

Different battery chemistries require distinct charging profiles. Lead-acid batteries (flooded, AGM, Gel) typically use voltage-based charging stages, while lithium-ion batteries often rely on their internal Battery Management System (BMS) to dictate charging parameters, especially when communication protocols (CAN, RS485) are established.

Axpert VM III Charging Settings

The Axpert VM III inverter/charger offers configurable settings for various battery chemistries. It is important to match these settings to your specific battery type and system voltage (24Vdc or 48Vdc).

Setting Name

Chemistry

Value/Range (1.5KW/3KW models)

Value/Range (5KW model)

Default Value (1.5KW/3KW)

Default Value (5KW)

Program Number

Bulk Charging Voltage

Flooded

29.2Vdc

58.4Vdc

29.2V

58.4V

N/A

Bulk Charging Voltage

AGM / Gel

28.2Vdc

56.4Vdc

28.2V

56.4V

N/A

Floating Charging Voltage

Flooded, AGM, Gel

27Vdc

54Vdc

27V

54V

N/A

User-Defined Bulk Charging Voltage

User-Defined

25.0V to 31.5V

48.0V to 61.0V

28.2V

56.4V

Program 26

User-Defined Floating Charging Voltage

User-Defined

25.0V to 31.5V

48.0V to 61.0V

27.0V

54.0V

Program 27

User-Defined Low DC Cut-off Voltage

User-Defined

21.0V to 24.0V

42.0V to 48.0V

21.0V

42.0V

Program 29

Battery Equalization Voltage

Flooded, User-Defined

25.0V to 31.5V

48.0V to 61.0V

29.2V

58.4V

Program 31

Safety Note for Equalization: Equalization charging drives lead-acid cells into the hydrogen gassing region. Always ensure the battery area is well-ventilated and free from sparks or flames during this process.

Growatt SPF 5000 ES Charging Settings

Growatt SPF 5000 ES inverters offer specific settings for both lead-acid and lithium batteries. For lithium batteries, State of Charge (SOC) based settings are used in addition to voltage parameters.

Setting Name

Chemistry

Value/Range

Default Value

Program Number

Bulk Charging Voltage

Flooded

58.4Vdc

58.4V

N/A

Bulk Charging Voltage

AGM / Gel

56.4Vdc

56.4V

N/A

Floating Charging Voltage

Flooded, AGM, Gel

54Vdc

54V

N/A

C.V. charging voltage

User-Defined

48.0V~58.4V

56.4V

Program 19

Floating charging voltage

User-Defined

48.0V~58.4V

54.0V

Program 20

Low DC cut-off voltage

User-Defined

40.0V~48.0V

42.0V

Program 21

Battery Equalization Voltage

Flooded, User-Defined

48.0V~58.4V

58.4V

Program 44

Cold Start SOC

Lithium

Low DC Cut-off SOC +10%

30%

N/A

Low DC Cut-off SOC

Lithium

5%~50%

20%

N/A

Low DC Warning SOC

Lithium

Low DC Cut-off SOC +5%

N/A

N/A

Low DC Warning Return SOC

Lithium

Low DC Cut-off SOC +10%

N/A

N/A

Setting SOC point back to utility source

Lithium

6%~95%

50%

Program 12

Setting SOC point back to battery mode

Lithium

10%~100%

95%

Program 13

For lithium batteries without communication, the Growatt SPF 5000 ES manual advises checking if the voltage points of Program 19 and 21 are too high if a "Bus voltage is too high" (Fault code 08) or "Battery connection is open" (Fault code 56) error occurs.

Deye SG03LP1 Battery Settings

Deye SG03LP1 inverters (models SUN-3.6K-SG03LP1-EU, SUN-5K-SG03LP1-EU, SUN-6K-SG03LP1-EU) provide a battery voltage range for both lead-acid and lithium-ion chemistries.

Setting Name

Chemistry

Value/Range

Battery Voltage Range

Lead-acid

40-60V

Battery Voltage Range

Li-ion

40-60V

For Li-ion batteries, the Deye SG03LP1 inverter features self-adaption to the Battery Management System (BMS). This means the inverter communicates with the battery's BMS to determine optimal charging and discharging parameters. If a "BMS communication fault" (F66) occurs, the inverter may stop charging or discharging. You can disable the BMS_Err_Stop item on the LCD if you do not want this behavior, but it is generally recommended to resolve communication issues.

Solis S5-EH1P Battery Settings

Solis S5-EH1P inverters support both Li-ion and lead-acid batteries. The manual provides specific parameters for each chemistry.

Lead-acid Battery Settings (Solis S5-EH1P)

Setting Name

Default Value

Battery Capacity

100Ah

Equalizing Voltage

56.4V

Floating Voltage

53.5V

Floating Current

04.0A

Overdischg Voltage

44.5V

Force Charg Voltage

43.8V

I_Max Discharge

060.0A

I_Max Charge

010.0A

Temp.Compensation

072mV/degC

AMB.Temp.Upper

+45degC

AMB.Temp.Lower

+05degC

Temperature Compensation: The Solis S5-EH1P manual specifies a temperature compensation of 072mV/degC for lead-acid batteries. This value adjusts charging voltages based on ambient temperature to prevent over or undercharging. The ambient temperature upper limit is +45degC and the lower limit is +05degC.

Li-ion Battery Settings (Solis S5-EH1P)

Setting Name

Value/Range

Default Value

OverDischg SOC

10%~40%

20%

ForceCharge SOC

5%~OverDischg SOC

10%

ForceChg Limit

0A~100A

100A

The Solis S5-EH1P inverter has a general battery voltage range of 42 - 58V and supports battery capacities from 50 - 2000Ah for both Li-ion and lead-acid.

GoodWe ET Battery Settings

GoodWe ET hybrid inverters (e.g., GW5KL-ET, GW6KL-ET, GW8KL-ET, GW10KL-ET) are designed for Li-Ion batteries and provide a nominal voltage and operational range.

Setting Name

Chemistry

Value/Range

Default Value

Nominal battery voltage

Li-Ion

500V

500V

Battery Voltage Range

Li-Ion

180~600V

N/A

Max. Charging Current

Li-Ion

25A

25A

Max. Discharging Current

Li-Ion

25A

25A

The GoodWe ET inverter prioritizes PV energy to loads, then excess to the battery. When the battery is full, excess is exported to the grid. If the battery is insufficient, the system draws power from the grid.

Pylontech US3000C Battery Specifications

While the Pylontech US3000C is a battery and not an inverter, its specifications are critical for setting compatible inverter charge parameters. This battery features a built-in BMS that manages and monitors cells.

Setting Name

Chemistry

Value/Range

Default Value

Nominal Voltage

Li-ion

48V

48V

Discharge Voltage

Li-ion

44.5 ~ 53.5V

N/A

Charge Voltage

Li-ion

52.5 ~ 53.5V

N/A

Recommend Charge/Discharge Current

Li-ion

37A

37A

Max. Charge/Discharge Current

Li-ion

74-89A@60sec

N/A

Peak Charge/Discharge Current

Li-ion

90~200A@15sec

N/A

Depth of discharge

Li-ion

95%

95%

Configuration (max. in 1 battery group)

Li-ion

16pcs

N/A

When pairing a Pylontech US3000C battery with an inverter, ensure the inverter's charge voltage and current settings fall within the battery's specified ranges. The Pylontech US3000C manual states that if the charging voltage is above 54V, battery protection will activate. Similarly, if the battery discharges to 44.5V or less, battery protection will turn on.

Battery Cable Sizing Recommendations

Proper battery cable sizing is essential to minimize voltage drop and ensure safe current flow. Undersized cables can lead to energy loss, overheating, and potential fire hazards.

Platform

Model

Recommended Battery Cable Size

Axpert VM III

1.5KW

1*6AWG (14mm2)

Axpert VM III

3KW

1*2AWG (38mm2)

Axpert VM III

5KW

1*2AWG (38mm2)

Deye SG03LP1

3.6/5Kw

3AWG (25mm2)

Deye SG03LP1

6Kw

2AWG (35mm2)

Growatt SPF 5000 ES

SPF 3500 ES

1 * 4 AWG

Growatt SPF 5000 ES

SPF 5000 ES

1 * 2 AWG

Pylontech US3000C

N/A (Power Cables)

4AWG (Two cables)

Pylontech US3000C

N/A (Grounding Cable)

10AWG or higher

For Pylontech US3000C, the power cables (4 AWG) have a peak current capacity of 120A and a constant capacity of 100A. Grounding cables should be 10AWG or higher yellow-green cables. You can find more information on sizing cables for solar systems at /pk/tools.

Safety Considerations for Battery Charging

Working with batteries and inverters involves electrical and chemical hazards. Always prioritize safety.

  • Qualified Personnel: Only qualified personnel should install and maintain these devices with batteries.
  • Frozen Batteries: Never attempt to charge a frozen battery. This can cause severe damage or explosion.
  • Metal Tools: Be extremely cautious when working with metal tools around batteries. A dropped tool can cause a spark or short circuit, leading to an explosion. Use insulated tools where possible.
  • Grounding: Inverters should be connected to a permanent grounded wiring system. For Pylontech US3000C batteries, the battery must connect to ground, and the resistance must be less than 0.1Ω.
  • Polarity: Before making final DC connections, ensure positive (+) is connected to positive (+) and negative (-) to negative (-). Reverse polarity connection will damage the inverter.
  • Ventilation: For lead-acid batteries, especially during bulk or equalization charging, ensure the area is well-ventilated to disperse hydrogen gas.
  • Eye Protection: When working with lead-acid batteries, wear eye protection to guard against acid splashes.
  • Disconnection: Before any wiring connections or electrical operations, disconnect all DC and AC power from the inverter. Wait at least 5 minutes for capacitors to discharge before touching internal components.
  • Temperature: The surface temperature of inverters can exceed 60℃ (140°F) or even 75℃ (167°F) during operation. Avoid touching the inverter's surface while it is running to prevent burns.
  • Lithium Batteries: Do not connect lithium batteries in series. The embedded BMS in Pylontech US3000C batteries is designed for 48VDC. It is prohibited to connect batteries of different types or with faulty/incompatible inverters.
  • Fire Safety: In case of a battery fire, only use a dry powder fire extinguisher. Liquid fire extinguishers are prohibited.

When to Consult a Professional

While many charging settings can be adjusted by the user, some situations require professional intervention:

  • Persistent Errors: If your inverter displays fault codes that you cannot resolve using the manual's troubleshooting steps, such as "Battery is over-charged" (Axpert VM III code 03, Growatt SPF 5000 ES code 03) or "BMS communication fault" (Deye SG03LP1 F66).
  • Unusual Behavior: If the system exhibits unexpected behavior, such as repeated shutdowns, unusual noises, or inconsistent charging.
  • BMS Issues: For lithium battery systems, if there are indications of BMS failure or communication loss, a technician can diagnose and resolve complex issues.
  • Warranty Concerns: Attempting repairs or modifications beyond the scope of the user manual may void your product warranty.
  • Complex System Expansion: When adding more batteries or integrating new components, a professional can ensure proper sizing, wiring, and configuration.
  • Safety Concerns: If you are ever unsure about the safety of an operation or feel uncomfortable performing a task, stop and call a qualified solar technician.

Products mentioned

Frequently asked questions

What are the recommended bulk and float charging voltages for an Axpert VM III 5KW inverter with flooded lead-acid batteries?

For an Axpert VM III 5KW inverter, the recommended bulk charging voltage for flooded lead-acid batteries is 58.4Vdc. The floating charging voltage for flooded, AGM, or Gel batteries is 54Vdc. Ensure adequate ventilation in the battery area, especially during bulk or equalization charging, to prevent hydrogen gas accumulation.

How do I set the low DC cut-off voltage on a Growatt SPF 5000 ES for lead-acid batteries?

On a Growatt SPF 5000 ES, the low DC cut-off voltage can be set using Program 21. The adjustable range is 40.0V~48.0V, with a default value of 42.0V. For lithium batteries, the inverter uses a Low DC Cut-off SOC (State of Charge) setting, typically 20% by default, adjustable from 5%~50%.

Can I use user-defined charging settings on an Axpert VM III inverter?

Yes, the Axpert VM III inverter allows user-defined settings. For a 5KW model, the bulk charging voltage (Program 26) can be set from 48.0V to 61.0V, and the floating charging voltage (Program 27) from 48.0V to 61.0V. The low DC cut-off voltage (Program 29) can be adjusted from 42.0V to 48.0V. Always consult your battery manufacturer's specifications when using user-defined settings, and be aware that specific temperature compensation values (e.g., 25°C) are not provided in the manual for these settings. Incorrect voltage settings can lead to battery damage or reduced lifespan.

What are the battery voltage ranges for Deye SG03LP1 inverters?

Deye SG03LP1 inverters (models SUN-3.6K-SG03LP1-EU, SUN-5K-SG03LP1-EU, SUN-6K-SG03LP1-EU) support a battery voltage range of 40-60V for both lead-acid and Li-ion batteries. For Li-ion batteries, the inverter features self-adaption to the Battery Management System (BMS) for optimal charging and discharging.

What is the maximum charging current for a GoodWe ET inverter with Li-Ion batteries?

For GoodWe ET inverters (e.g., GW5KL-ET, GW6KL-ET, GW8KL-ET, GW10KL-ET) with Li-Ion batteries, the maximum charging current is 25A. The nominal battery voltage for these inverters is 500V, with a battery voltage range of 180~600V.
