Victron ESS Quick Installation Guide

Key Takeaways

• Ensure all Victron components, especially the GX device and inverter/chargers, have the latest firmware before configuration.
• Use the correct cables and connection methods for each component to ensure reliable communication within the ESS.
• Properly configure essential settings like battery monitoring, charging parameters, and grid interaction using VE Configure Tools and the GX device menu.
• Always prioritize electrical safety by isolating power before making any physical connections or disconnections.

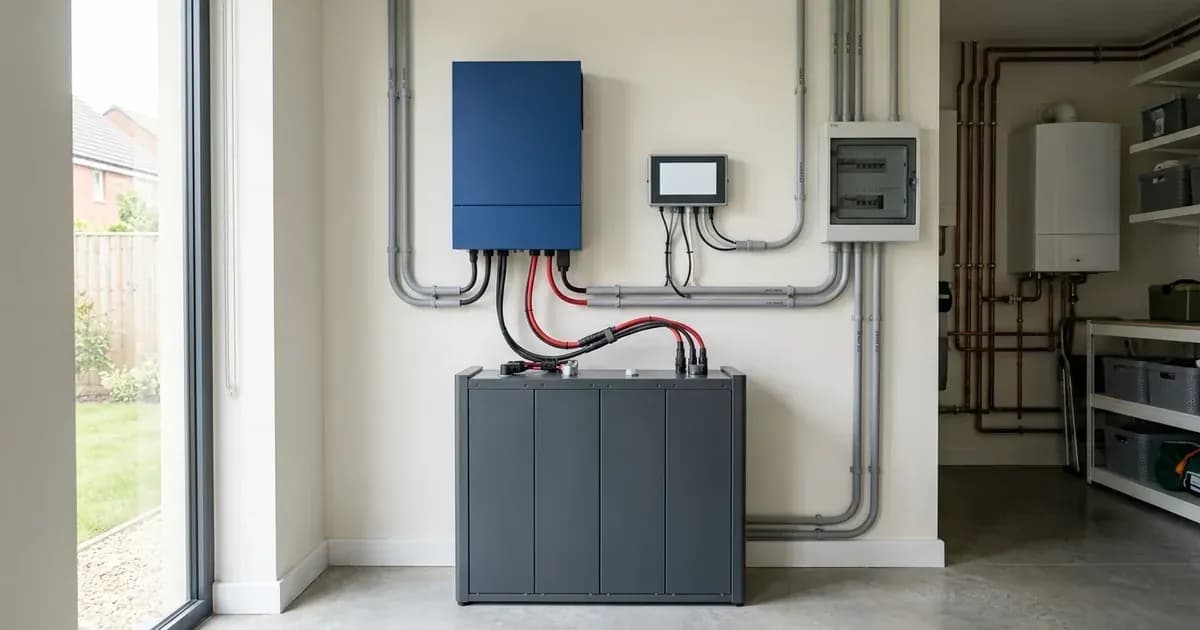

How do I correctly install a Victron Energy Storage System (ESS)?

Correctly installing a Victron Energy Storage System (ESS) involves a series of firmware updates, physical connections, and software configurations. The most common cause of installation issues stems from incorrect cabling or overlooked software settings. The first thing to check is that all components are running the latest firmware.

Diagnosis: Step-by-Step Victron ESS Installation

Follow these steps to correctly install and configure your Victron ESS, ensuring each component is properly integrated.

1. Update Firmware

Ensure all your Victron devices are running the latest firmware.

• GX Device (e.g., Cerbo GX): The easiest way is to let the GX device do an automatic update. This can be selected from its menu, once it is connected to the internet. Alternatively, update via a SD card.
• Inverter/Chargers and MPPT Solar Chargers: Use VictronConnect software for these updates.

2. Install VE Configure Tools

Download and install the VE Configure Tools software package on your computer. This software is essential for configuring your inverter/charger(s).

3. Connect Inverter/Charger to Computer

Connect your computer via an MK3 interface to the inverter/charger. This allows you to access and modify the inverter/charger settings using VE Configure Tools.

4. Configure Inverter/Charger Settings

Within VE Configure Tools, configure the following important settings:

• Battery monitor settings
• Charger settings
• AC input limit settings
• Grid settings
• Add ESS assistant to the Inverter/charger(s). This assistant enables the ESS functionality.

5. Connect GX Device to System Components

Ensure all components are correctly wired to the GX device:

• Inverter/Chargers: Connect GX device to inverter/chargers use RJ45 cable.
• MPPT Solar Chargers: Connect MPPT to GX device use VE.direct cable.
• Smart Battery: Connect smart battery to GX device, use special RJ45 cable.
• Energy Meters: Connect energy meters to GX device using the USB to RS485 interface or Zigbee units.

6. Connect GX Device to Internet

Connect GX device to internet via Ethernet cable or WiFi module. An internet connection is crucial for remote monitoring and firmware updates.

7. Configure GX Device ESS Settings

Access the GX device menu and configure the ESS settings:

• Go to ESS settings on GX device, make ESS settings.
• Go to CanBus, select smart battery.
• Find Fronius, SMA or Solar edge on GX device. assign correct role (for PV inverters).
• Find current sensor on GX device, assign correct role.
• Find Energy meter(s) on GX device, assign correct role.

8. Set Up VRM (Victron Remote Management)

For remote monitoring and management:

• Make a user account (in case you do not yet have account).
• Add the system to your account.
• Check if logging is correct on the VRM portal.

9. Commissioning Considerations

• Consider limiting access to end-user for certain settings.
• Consider turning automatic firmware updates off after initial setup to prevent unexpected changes.

Common Installation Issues and Fixes

This table outlines common problems encountered during Victron ESS installation and their corresponding solutions.

Victron ESS Configuration Steps

The core of a functional Victron ESS lies in its configuration. This process involves both the inverter/charger settings via VE Configure Tools and the overall system management through the GX device.

Inverter/Charger Configuration (using VE Configure Tools): After connecting your computer to the inverter/charger via an MK3 interface, you will use the VE Configure Tools software package to set critical operational parameters. The following settings are important:

• Battery monitor settings: These define how the inverter/charger tracks the battery's state of charge.
• Charger settings: These control the charging voltages and currents for your battery bank.
• AC input limit settings: These define the maximum current the inverter/charger can draw from the AC input (e.g., grid or generator).
• Grid settings: These configure how the ESS interacts with the electrical grid, including feed-in limits and grid codes.
• ESS assistant: This crucial software component must be added to the Inverter/charger(s) to enable the Energy Storage System functionality, allowing the system to manage power flow between the grid, battery, and loads.

GX Device Configuration: The GX device acts as the central communication and control hub for your ESS. Once all components are physically connected, you will configure its settings directly through its menu:

• ESS settings: Navigate to the ESS settings on the GX device to define the overall operating mode and parameters of your ESS.
• CanBus settings: If you have a compatible smart battery, go to CanBus and select smart battery to enable communication between the battery's BMS and the GX device.
• PV Inverter assignment: If you have grid-tied PV inverters (e.g., Fronius, SMA, or SolarEdge), find them on the GX device and assign correct role so the GX device can monitor and control their output.
• Current sensor assignment: If using external current sensors, find current sensor on GX device and assign correct role to ensure accurate power measurement.
• Energy meter assignment: Similarly, if using external energy meters, find Energy meter(s) on GX device and assign correct role for comprehensive energy monitoring.

These configuration steps ensure that all components work together seamlessly as an integrated Energy Storage System.

Safety: General Electrical Practices

While this guide does not detail specific safety facts for Victron ESS components, general electrical safety practices must always be observed during installation and maintenance.

• Isolate Power: Always ensure all power sources (grid, solar PV, battery) are disconnected and isolated before making or breaking any electrical connections. Verify isolation with a multimeter.
• Insulated Tools: Use only insulated tools when working with electrical components to prevent short circuits and electric shock.
• Proper Wiring: Ensure all wiring is correctly sized, terminated, and protected according to local electrical codes and the manufacturer's instructions.
• Battery Safety: Batteries can store significant energy. Avoid short-circuiting battery terminals, and wear appropriate personal protective equipment (PPE) such as eye protection and insulated gloves when working near batteries.
• Ventilation: Ensure adequate ventilation in areas where batteries and power electronics are installed to prevent heat buildup and dissipate any potential gases.

When to call a technician instead

This guide provides general steps for Victron ESS installation. If you are unsure about any step, lack experience with electrical systems, or encounter issues that you cannot resolve, it is always best to consult a qualified solar or electrical technician. Complex installations, systems with multiple inverters, or integration with existing electrical infrastructure may require professional expertise to ensure safety, compliance, and optimal performance. The guide does not contain information regarding warranty terms; consult your product documentation or supplier for warranty details.
