Victron Blue Smart IP22 Charger: Setup & Guide

Key Takeaways

• The Blue Smart IP22 Charger is an advanced multi-bank battery charger engineered for workshops, boats, and motorhomes.
• Operates on universal single-phase mains supplies: Mains power voltage (Nominal | Min/Max) 220 - 240VAC | 180 - 265VAC and Mains power frequency (Nominal | Min/Max) 50 - 60Hz | 45 - 65Hz.
• Extremely low quiescent standby consumption: Standby power 0.5W.
• High electrical conversion efficiency: Max efficiency 93% 94%.
• Adaptive charging management: Charge algorithm 6-stage adaptive (3 stage for Li-ion).
• Configurable charge profiles: Normal 14.4V | 13.8V | 13.2V 28.8V | 27.6V | 26.4V and High 14.7V | 13.8V | 13.2V 29.4V | 27.6V | 26.4V.
• Dedicated lithium profile: Li-ion 14.2V | N/A | 13.5V 28.4V | N/A | 27.0V.
• Simultaneous independent charging: Outputs 1 output or 3 isolated outputs (except 24/8 and 24/12 models).
• Defined thermal performance: Operating temperature range -20 to 50°C (-4 to 122°F) with full rated output up to 40°C (104°F).
• Compact, lightweight enclosure: Dimensions (h x w x d) 235 x 108 x 65 mm (9.3 x 4.3 x 2.6 inch) with Ingress protection (IP) rating IP22.

Multi-Bank DC Architecture & Acoustic Modes

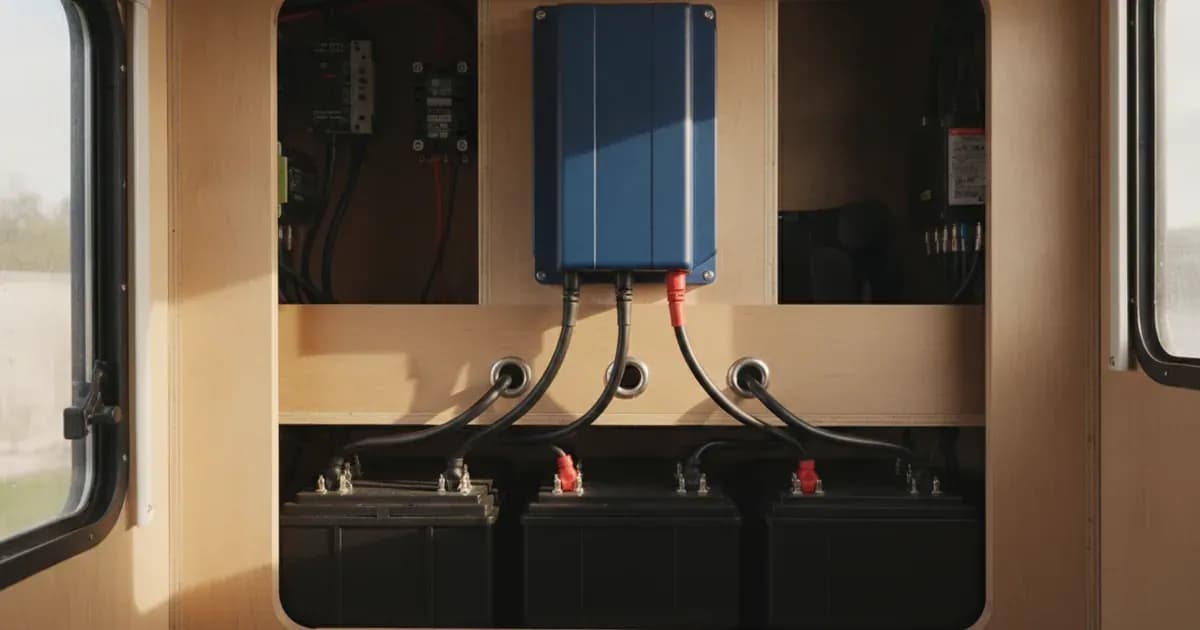

The Blue Smart IP22 Charger is designed for installations requiring independent charging of multiple battery banks (such as starter, house, and bow-thruster banks) from a single compact unit. Models with 3 isolated outputs share the total rated current dynamically among connected banks.

The Victron Blue Smart IP22 Charger operates on universal mains input of 180 - 265 VAC (45 - 65 Hz) with 0.5W standby power, 93% - 94% efficiency, and 235 x 108 x 65 mm (IP22) dimensions:

• Isolated DC Outputs: 1 or 3 Outputs, Dynamic Sharing, Screw Terminals, Full Power to 40°C.
• Multi-Stage Charge: 6-Stage Adaptive, Normal: 14.4/28.8, High: 14.7/29.4V, Li-ion Profile.
• Acoustic Modes: NIGHT Mode, Fan Off 8hrs, LOW Current, Bluetooth BLE.

Installation Rules & Multi-Output Wiring

1. Mains Supply: Connect single-phase AC mains across Mains power voltage (Nominal | Min/Max) 220 - 240VAC | 180 - 265VAC and Mains power frequency (Nominal | Min/Max) 50 - 60Hz | 45 - 65Hz.
2. Multi-Bank Connections: Wire individual battery banks to the screw terminals of Outputs 1 output or 3 isolated outputs (except 24/8 and 24/12 models), ensuring each positive line includes an inline fuse.
3. Low Standby Loss: Consumes only Standby power 0.5W when disconnected from loads.

Bluetooth Monitoring & Silent Operation

The Blue Smart IP22 integrates smart wireless configuration with silent operation features:

• VictronConnect Telemetry: Wirelessly configure parameters, monitor charging progress, and track historical metrics over Bluetooth.
• Adaptive 6-Stage Algorithm: The Charge algorithm 6-stage adaptive (3 stage for Li-ion) algorithm cycles through Bulk, Absorption, Recondition, Float, Storage, and Refresh stages.
• Voltage Presets: Pre-programmed with Normal 14.4V | 13.8V | 13.2V 28.8V | 27.6V | 26.4V, High 14.7V | 13.8V | 13.2V 29.4V | 27.6V | 26.4V, and Li-ion 14.2V | N/A | 13.5V 28.4V | N/A | 27.0V.
• NIGHT and LOW Modes: The app allows activation of NIGHT mode (turning off the internal cooling fan for 8 hours of silent charging) or LOW current mode for small batteries.
• Thermal Capabilities: Delivers full output across Operating temperature range -20 to 50°C (-4 to 122°F) with full rated output up to 40°C (104°F) within a chassis of Dimensions (h x w x d) 235 x 108 x 65 mm (9.3 x 4.3 x 2.6 inch) and Ingress protection (IP) rating IP22 at Max efficiency 93% 94%.
