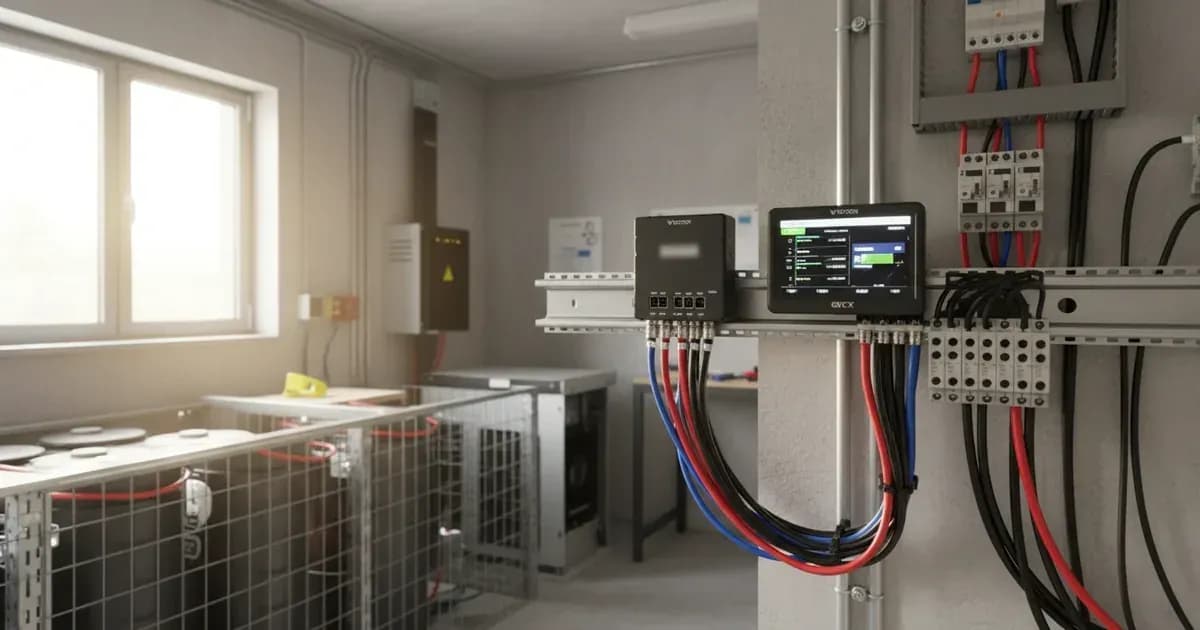

Victron Cerbo GX System Controller: Setup & Touch 50 Guide
Updated 6 September 2026 · By SolarNevs Research Desk, Dealer surveys + verified sources · 1 source · Method ↗
Key Takeaways
- The Victron Cerbo GX operates across a wide power supply range of 8 to 70V DC with a supplied 3.15 A slow-blow inline fuse.
- Pairs directly with GX Touch 50 and GX Touch 70 touchscreen displays via integrated HDMI and USB connectors.
- Relay 1 provides multi-function control including generator auto start/stop, alarm signalling, pump control, or temperature triggers.
- Relay 2 operates as a dedicated manual switch or temperature-controlled relay.
- Incorporates onboard interfaces for 4 resistive tank level senders, 4 temperature probes, and 2 digital inputs.
Power Supply & Hardware Installation
The Victron Cerbo GX serves as the central communications brain for Victron energy systems. It monitors inverters, solar charge controllers, batteries, and AC grid meters.
Under Chapter 3 of the Cerbo GX manual, power must be supplied directly from the DC battery bank:
- Operating Voltage: Accepts 8 to 70V DC, compatible with 12V, 24V, and 48V battery systems.
- Inline Protection: The supplied power lead includes an inline 3.15 A slow-blow fuse.
- Power Isolation: The device cannot be powered via Ethernet or USB ports.
GX Touch Display Pairing & Remote Console
The Cerbo GX supports both local touchscreen control and cloud telemetry:
Interface Port | Connected Hardware | Functional Role |
|---|---|---|
HDMI & USB Ports | GX Touch 50 / GX Touch 70 | Real-time graphical system display and touchscreen setup |
VE.Direct Ports (x3) | SmartShunt, MPPTs, BMV | High-speed point-to-point telemetry |
VE.Bus Ports (x2) | MultiPlus-II / Quattro | Inverter/charger system control and grid setpoints |
Ethernet & WiFi | VRM Portal Connection | Cloud monitoring and remote firmware management |
Relay Programming & Analogue Telemetry
The Cerbo GX integrates versatile dry-contact relays and sensor terminals:
- Relay 1 (Multi-Purpose): Can be assigned to trigger an audible alarm, automate generator start/stop based on battery voltage/SoC, or drive pump controls.
- Relay 2 (Auxiliary): Configurable as a manual switch or temperature-triggered relay.
- Sensor Inputs: Built-in terminal blocks support 4 resistive tank level senders (European 0–180Ω or US 240–33Ω), 4 temperature sensors, and 2 digital status inputs.
Add a battery at a surveyed price
Installers quote supply and fitting of the battery on this page for your existing or new system.
How this pays for the site: installers pay SolarNevs a fixed introduction fee when we pass them a genuine enquiry. They cannot pay to appear higher, and our surveyed prices are published before any introduction. You can also take our dated price tables straight to any installer.
Frequently asked questions
What is the acceptable DC operating voltage range for the Victron Cerbo GX?
The Cerbo GX accepts **8 to 70V DC** power supply. It cannot be powered through Ethernet or USB, and the supplied power cable includes an inline **3.15 A** slow-blow fuse (August 2026).
How are the GX Touch 50 and GX Touch 70 displays connected to the Cerbo GX?
The GX Touch displays connect via a dedicated HDMI port for video output and a companion USB port for power and capacitive touch input (August 2026).
What functions can be assigned to Relay 1 on the Cerbo GX?
Relay 1 can be configured for alarm signalling, generator auto start/stop, pump control, manual switching, or temperature-based triggering (August 2026).
What analogue sensors can be connected directly to the Cerbo GX terminal blocks?
The Cerbo GX provides dedicated terminal blocks for **4 resistive tank level inputs** and **4 temperature sensor inputs** (August 2026).
References
- Victron Energy: Cerbo GX Manual — accessed 31 August 2026
