Victron Venus GX: System Controller Setup

Updated 6 September 2026 · By SolarNevs Research Desk, Dealer surveys + verified sources · 1 source · Method ↗

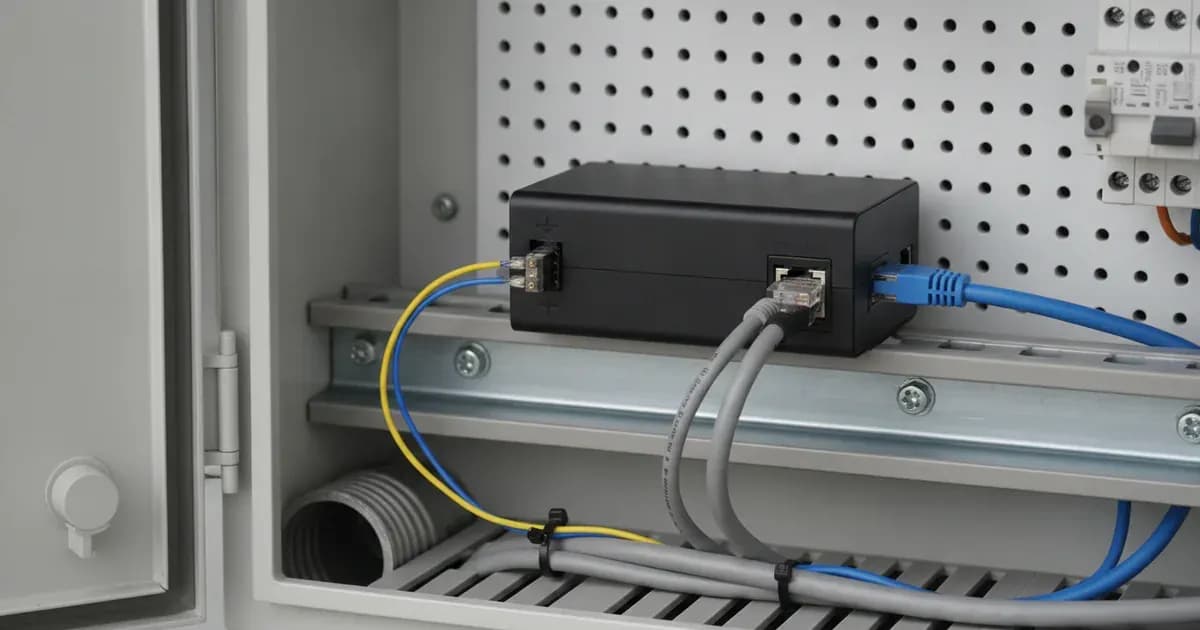

Victron Venus GX communication hub mounted on a DIN rail inside an electrical enclosure with VE.Direct, VE.Bus, and Ethernet cables neatly wired — SolarNevs spec card

Key Takeaways

  • The Venus GX acts as the central communication controller running Venus OS for comprehensive system management.
  • Universal DC power input: Power supply voltage range 8 - 70V DC.
  • Low quiescent operational current: Current draw 210 mA @ 12V 110 mA @ 24V 60 mA @ 48V.
  • Isolated MPPT/Shunt communication: VE.Direct 2 separate VE.Direct ports - isolated.
  • Isolated high-speed CAN bus: VE.Can 2 paralleled RJ45 sockets - isolated.
  • Secondary vehicle/marine CAN bus: CAN 2 nd CAN interface - non-isolated.
  • Isolated inverter/charger interface: VE.Bus 2 paralleled RJ45 sockets - isolated.
  • Peripheral expansion interfaces: USB 2 USB Host ports - not isolated.
  • Gigabit network integration: Ethernet 10/100/1000MB RJ45 socket - isolated except shield.
  • Integrated resistive fluid monitoring: Tank level inputs 3 x Configurable for European (0 - 180 Ohm) or US (240 - 30 Ohm) resistive tank level sensors.
  • Direct temperature monitoring: Temperature sense intputs 2 (requires ASS000001000).
  • Heavy-duty automation contact: Potential free contact NO/COM/NC - 6 A 250 VAC/30 VDC.
  • Compact, durable chassis: Outer dimensions (h x w x d) 45 x 143 x 96mm operating from Operating temperature range -20 to +50°C.

Central Communications & Port Architecture

The Venus GX collects real-time telemetry from all connected Victron and third-party hardware, coordinating charging algorithms through Distributed Voltage and Current Control (DVCC) and forwarding plant data to the VRM cloud.

The Victron Venus GX serves as a central system controller and Venus OS telemetry hub (Universal Power: 8 - 70V DC | Temperature: -20°C to +50°C) with comprehensive digital, analog, and network interfacing:

  • Digital Data Ports: 2x VE.Direct (Isol), 2x VE.Can (Isol), 1x CAN (Non-Isol), 2x VE.Bus (Isol).
  • Analog Sensor IO: 3x Tank Inputs, 2x Temp Inputs, 6A Changeover Rel, NO / COM / NC.
  • Network & Power: Gigabit RJ45, 2x USB Hosts, 8-70V DC In, 210mA @ 12V.

Installation Sequence & Hardware Connections

  1. Power Supply Input: Connect direct battery power to the power terminals, supporting Power supply voltage range 8 - 70V DC with Current draw 210 mA @ 12V 110 mA @ 24V 60 mA @ 48V.
  2. Inverter/Charger Linking: Wire MultiPlus or Quattro inverters via VE.Bus 2 paralleled RJ45 sockets - isolated.
  3. Solar & Shunt Interfaces: Connect MPPT solar chargers and SmartShunts using VE.Direct 2 separate VE.Direct ports - isolated.
  4. High-Speed CAN Networking: Connect lithium battery BMS units or Lynx Shunts to VE.Can 2 paralleled RJ45 sockets - isolated (or auxiliary equipment to the CAN 2 nd CAN interface - non-isolated).

Analog Sensor Integration & Automation Relay

The Venus GX provides rich onboard I/O capabilities for marine, RV, and generator automation:

  • Tank Level Monitoring: Features Tank level inputs 3 x Configurable for European (0 - 180 Ohm) or US (240 - 30 Ohm) resistive tank level sensors for direct fuel, fresh water, and waste water monitoring without external converters.
  • Temperature Sensing: Integrates Temperature sense intputs 2 (requires ASS000001000) for monitoring battery box or engine room ambient conditions.
  • Generator Auto-Start Relay: An onboard Potential free contact NO/COM/NC - 6 A 250 VAC/30 VDC executes automated generator start/stop sequences based on battery State of Charge, AC overload, or inverter temperature.
  • Network & VRM Integration: Connects via Ethernet 10/100/1000MB RJ45 socket - isolated except shield or built-in Wi-Fi, expanding peripheral storage via USB 2 USB Host ports - not isolated.
  • Physical Housing: Built in a chassis measuring Outer dimensions (h x w x d) 45 x 143 x 96mm and operating from Operating temperature range -20 to +50°C.

Technical Specifications & Interface Summary

Parameter

Engineering Rating

Design Significance

Power Supply Range

Power supply voltage range 8 - 70V DC

Direct connection to 12V, 24V, or 48V battery banks

Operational Power Draw

Current draw 210 mA @ 12V 110 mA @ 24V 60 mA @ 48V

Energy-efficient continuous monitoring

Solar & Sensor Ports

VE.Direct 2 separate VE.Direct ports - isolated

Galvanically isolated serial communication

Primary CAN Bus

VE.Can 2 paralleled RJ45 sockets - isolated

Standard NMEA 2000 and battery BMS connection

Secondary CAN Bus

CAN 2 nd CAN interface - non-isolated

Auxiliary interface for electric propulsion / vehicle bus

Inverter Interface

VE.Bus 2 paralleled RJ45 sockets - isolated

Isolated full-duplex control of MultiPlus/Quattro

Ethernet LAN

Ethernet 10/100/1000MB RJ45 socket - isolated except shield

High-speed wired connection to local routers

Expansion Ports

USB 2 USB Host ports - not isolated

Supports USB GPS, Wi-Fi dongles, and data logging

Tank Senders

Tank level inputs 3 x Configurable for European (0 - 180 Ohm) or US (240 - 30 Ohm) resistive tank level sensors

Native monitoring of fluid levels

Temperature Inputs

Temperature sense intputs 2 (requires ASS000001000)

Hardwired thermal telemetry for battery compartments

Automation Relay

Potential free contact NO/COM/NC - 6 A 250 VAC/30 VDC

Heavy-duty dry contacts for generator auto-start

Chassis Dimensions

Outer dimensions (h x w x d) 45 x 143 x 96mm

Compact wall and DIN rail enclosure

Operating Temperature

Operating temperature range -20 to +50°C

Robust industrial thermal performance
