Fox ESS Grid Fault Overvoltage Fix: Troubleshooting GridVoltFault in Pakistan

Key Takeaways

• The most likely cause of a Fox ESS grid fault in Pakistan is utility line voltage exceeding 253 V (10-min average) or 264.5 V instant (GridVoltFault) during sunny hours (11:00 AM – 3:00 PM), or voltage rise across undersized AC cables.
• Your first diagnostic check is to measure grid AC voltage directly at the inverter AC terminals to verify if utility feed is outside the nominal 230 V ± 10% (207 V–253 V) operating window.
• For safety, isolate AC grid breakers, PV isolators, and battery switches, and wait at least 5 minutes for internal capacitors to discharge before servicing terminals; high-voltage battery strings operate from 85 VDC to 438 VDC requiring insulated tools.
• If grid voltage rises above 250 V, enable Volt-Watt mode (reduces export from 100% to 20% between 250 V and 255 V) and upgrade AC cabling to 10 mm² or 16 mm² copper, or contact an authorized service center under your 5-Year manufacturer warranty for hardware faults.

Why does my Fox ESS inverter show a GridVoltFault or GridLostFault?

Fox ESS inverters display text alarms on hybrid LCDs, while some PV string inverters may use numeric fault codes (e.g., Code 01 to Code 40). However, numeric codes are not universally attested across all Fox ESS models and series. A GridVoltFault occurs when the measured grid voltage is outside the allowed operating range (too high or too low). The first step in troubleshooting is to measure grid AC voltage at terminals, enable Volt-Watt / Volt-Var derating, and check for high impedance on undersized AC cables. A GridLostFault indicates the inverter has lost its connection to the utility grid.

Under NEPRA regulations and Pakistani distribution utilities (LESCO, K-Electric, IESCO, FESCO, MEPCO), nominal single-phase voltage is 230 V ± 10%, giving an operating window of 207 V–253 V. During sunny hours (11:00 AM – 3:00 PM), distributed rooftop solar generation drives local feeder voltage above 253 V, causing standard European-programmed Fox ESS inverters (configured with VDE/G98 standards with 253 V 10-min average and 264.5 V instantaneous trip ceilings) to trip repeatedly into GridVoltFault.

For pricing and hardware specifications across the product line, explore our Fox ESS solar inverter price in Pakistan guide or check the complete inverter error code glossary.

Systematic diagnosis steps for Fox ESS grid faults

Follow this step-by-step diagnostic sequence to identify and resolve grid-related faults on Fox ESS single-phase and three-phase inverters:

1. Check the active alarm code on the inverter display:

• • GridVoltFault: The measured grid voltage is outside the allowed operating range (too high or too low). In Pakistan, this almost always indicates midday overvoltage exceeding 253 V.
  • GridLostFault: The inverter has lost connection to the grid. Inverter detects zero utility AC voltage when an AC isolator or main consumer unit breaker is tripped, or during a local WAPDA blackout.
  • GridFreqFault: The grid frequency is outside the allowed operating range. This triggers when utility grid AC frequency fluctuates outside allowed operating range.

2. Measure grid AC voltage at the inverter's AC terminals:

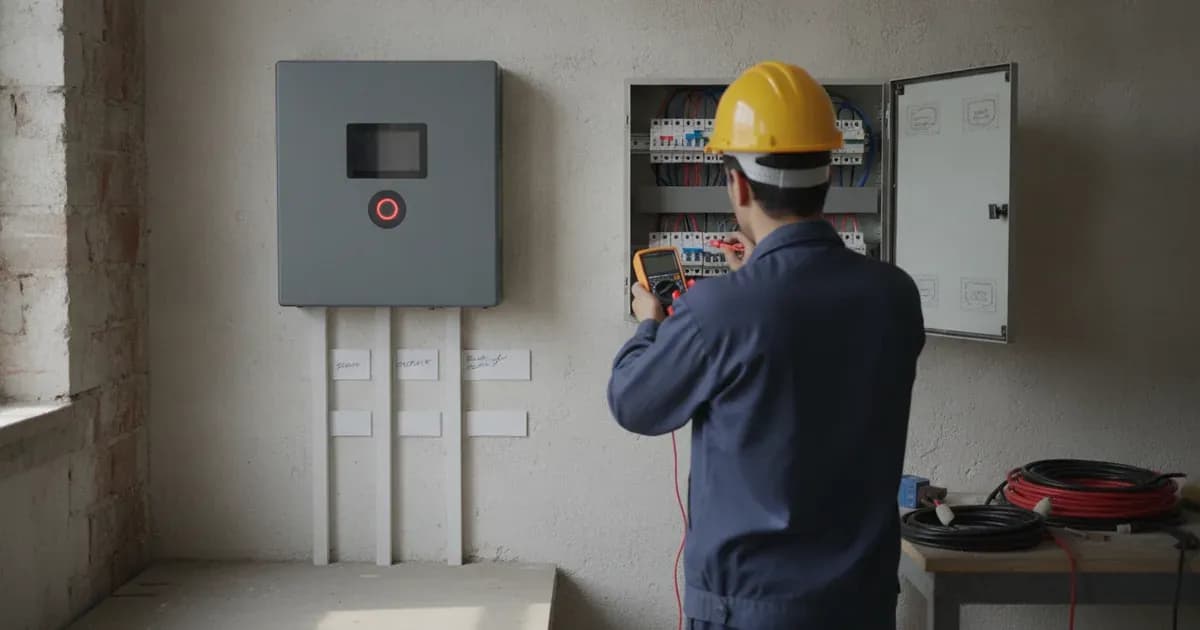

• • This is a live measurement — have a qualified electrician take the reading with insulated probes, and never touch bare terminals. Using a multimeter set to AC voltage, measure the live line voltage between Live and Neutral terminals inside the AC isolator or distribution board while the inverter attempts grid synchronization:
  • • Reading above 253 V (or >264.5 V instant): Confirms grid overvoltage is triggering GridVoltFault.
    • Reading below 207 V: Confirms grid undervoltage / brownout.
    • Reading between 207 V and 253 V: Utility feed is within nominal operating limits; inspect for localized cable resistance or frequency fluctuations.
    • Reading zero utility voltage: Confirms GridLostFault. The utility supply is absent or disconnected.

3. Inspect AC circuit breakers and isolator switches:

• • Check all AC circuit breakers and isolator switches between the inverter and the utility distribution board. Confirm local grid power availability to rule out neighborhood load-shedding outages, and verify AC connector termination.

4. Evaluate AC cable gauge and run length:

• • High resistance in undersized AC wiring (e.g. 4 mm² over >20 meters) creates a 5 V–10 V internal voltage rise under full 6 kW / 10 kW generation. Upgrading AC cables to 10 mm² or 16 mm² copper minimizes local impedance and prevents nuisance GridVoltFault trips. Cable replacement must be performed by a qualified electrician with the AC grid breaker, PV isolator, and battery switches all off, waiting at least 5 minutes for internal capacitors to discharge before touching any terminals.

Fox ESS grid fault causes and fixes

The table below lists the primary grid voltage, frequency, and connection fault codes on Fox ESS inverters along with their diagnostic causes and recommended actions.

Optimizing Fox ESS inverter settings for Pakistani grid conditions

In Pakistan, grid voltage fluctuations frequently cause solar systems to trip during peak daylight hours. You can adjust specific Fox ESS inverter firmware parameters and optimize AC wiring to maintain continuous solar generation. For broader context on grid overvoltage challenges, refer to our inverter grid overvoltage error in Pakistan troubleshooting guide.

1. Enabling Volt-Watt Response Mode (P(U))

Volt-Watt response mode allows the inverter to modulate active power output dynamically as grid voltage rises, preventing hard shutdowns:

• Menu Path: Settings -> Advanced (Pass: 0000) -> Grid Parameters -> Volt-Watt -> Enable.
• Operating Mechanism: The inverter smoothly reduces active solar export from 100% to 20% as grid voltage climbs between 250 V and 255 V, maintaining continuous power generation without tripping into a hard shutdown.

2. Enabling Volt-Var Reactive Power Control (Q(U))

Volt-Var control helps regulate local terminal voltage by managing reactive power:

• Menu Path: Settings -> Advanced -> Reactive Power -> Mode: Q(U).
• Operating Mechanism: Inverter absorbs inductive reactive power (leading power factor), depressing terminal AC voltage at the point of connection.

3. AC Cable Sizing and Voltage Drop Remediation

The physical wiring connecting the inverter to the main distribution board is a critical factor in terminal voltage stability:

• The Problem: High resistance in undersized AC wiring (e.g. 4 mm² over >20 meters) creates a 5 V–10 V internal voltage rise under full 6 kW / 10 kW generation.
• The Solution: Upgrading AC cables to 10 mm² or 16 mm² copper minimizes local impedance and prevents nuisance GridVoltFault trips. Cable replacement must be performed by a qualified electrician with the AC grid breaker, PV isolator, and battery switches all off, waiting at least 5 minutes for internal capacitors to discharge before touching any terminals.

Hardware Class and Operating Specifications

Fox ESS manufactures hybrid and on-grid solar inverters across single-phase and three-phase architectures:

• Ingress Protection & Enclosure: All residential and commercial hybrid inverters (H1, H3, KH, AC1) feature IP65 weather-resistant ingress protection with passive natural convection cooling (no noisy external fans on residential single-phase units). Commercial models (VL/R series) feature IP66 ratings with intelligent fan cooling.
• Battery Architecture Note: Fox ESS H1, KH, and H3 series are engineered natively for high-voltage lithium storage (85 V–600 V DC strings) and do not support standard 12V/24V/48V Flooded Tubular Lead-Acid batteries (e.g. Phoenix/Osaka/AGS). Only select low-voltage hybrid models (LV series) support 48V batteries.

To compare Fox ESS against other Tier-1 brands available in Pakistan, visit our guide on the best solar inverter in Pakistan 2026.

Hardware Safety and High-Voltage DC Precautions

Working on solar inverters and energy storage systems involves severe electrical hazards. Always adhere strictly to the following safety protocols:

• Mandatory 5-Minute Capacitor Discharge Delay: Internal DC bus capacitors store lethal electrical energy. Electricians must wait at least 5 minutes after fully disconnecting AC grid, DC PV isolator, and battery switches before opening wiring covers or servicing terminals. The manual explicitly requires installers to wait at least 5 minutes for internal capacitors to discharge.
• High-Voltage DC Shock Hazard: PV open-circuit voltages have a maximum limit of 600 VDC on single-phase H1 models and up to 1000 VDC on three-phase H3-Pro series. High-voltage lithium battery strings (Mira, ECS, EP) operate between 85 VDC and 438 VDC, posing severe direct current electrical shock and arc flash risks.
• Physical Mounting Clearances: Mount exclusively on a solid non-flammable vertical wall (brick or concrete) capable of supporting at least 4x the unit weight. Maintain minimum clearance: ≥300 mm on left/right sides, ≥500 mm above, and ≥1000 mm in front of the unit.

When to call an authorized solar technician

While parameter configuration and basic AC breaker checks can be performed on-site, certain conditions require professional service:

• Severe Feeder Overvoltage: If grid AC voltage consistently exceeds 264.5 V despite Volt-Watt configuration, contact your local electric distribution utility (LESCO, K-Electric, IESCO, FESCO, MEPCO) to request a transformer tap change.
• Internal Hardware Faults: If the inverter displays persistent internal hardware error codes such as RelayFault (internal safety relay failure), SPSFault (internal power supply fault), or BusVoltFault (internal DC bus voltage issue), contact Fox ESS support.
• Firmware Updates: Fox ESS restricts manual firmware flashing via USB; all firmware upgrades for inverter Master/Slave DSP and ARM communication modules are pushed remotely via the FoxCloud Installer Portal or authorized technical support tickets. Local offline USB rollback files are not publicly distributed.
• Warranty Protection: Fox ESS hybrid inverters and lithium storage batteries carry a standard 5-Year manufacturer warranty through authorized Pakistani distributors (such as SunSolar and BatteryMAX). Opening sealed electronics compartments or performing unauthorized internal repairs voids your warranty coverage.
