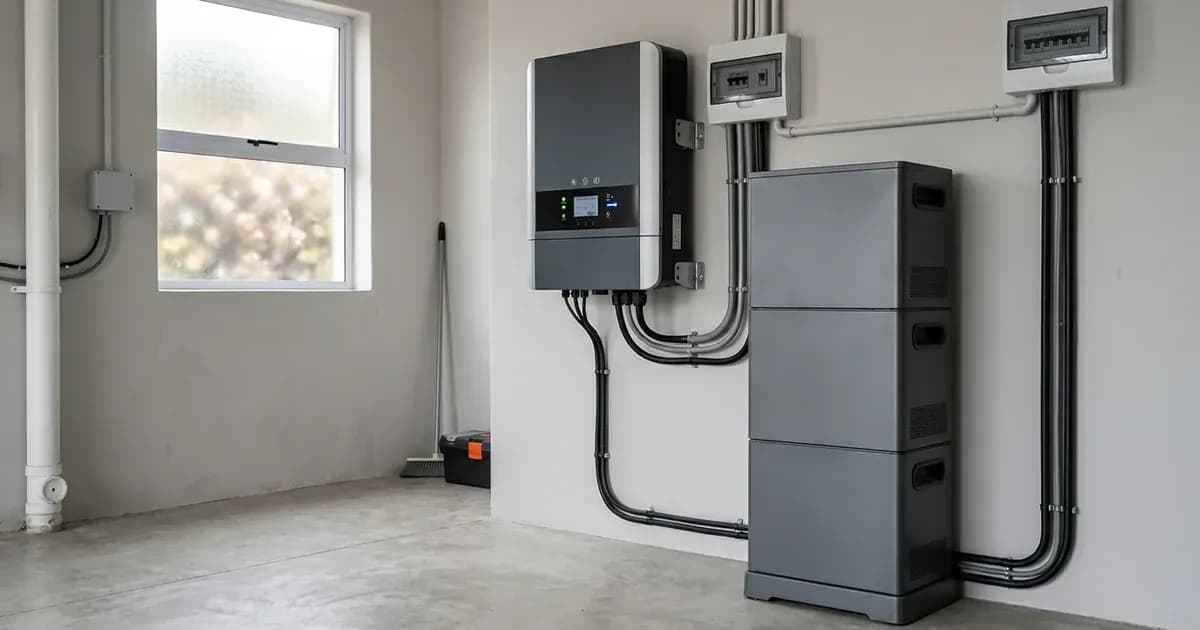

Fox ESS Battery Compatibility and Inverter Settings Guide

Key Takeaways

• The most likely cause of battery incompatibility is an incorrect battery type selection or a communication wiring issue.
• The first check is to verify the battery model selected in your inverter's menu matches your physical battery system.
• Always power down the inverter and battery system completely before making or checking physical connections.
• If communication issues persist after verifying wiring and settings, or if the battery's internal BMS reports faults, stop DIY troubleshooting and call a qualified technician.

Why isn't my Fox ESS inverter recognizing my battery?

Your Fox ESS inverter might not be recognizing your battery due to an incorrect battery type selection in the inverter's menu or a communication wiring issue. The first thing to check is the inverter's display for any battery-related alarms suchs as BatComFault or BMS Lost. These alarms indicate a problem with the communication link or the battery's presence.

Diagnosis

Follow these steps to diagnose and resolve battery compatibility and communication issues with your Fox ESS inverter.

1. Check Inverter Display for Alarms:

• • BatComFault: This alarm triggers when the inverter stops receiving periodic data packets (SOC, cell voltages, current limits) from the battery BMS over the CAN bus.
  • BMS Lost: This alarm indicates the communication between the BMS and Inverter is interrupted.
  • BatVoltFault: This alarm suggests the high-voltage battery string voltage is either below the startup threshold (<80V) or above the maximum limit (>480V (for H1 series) or >800V (for H3-Pro series)).

2. Verify Battery Type Selection in Inverter Settings:

• • Access your inverter's menu. Navigate to the 'Settings' or 'Battery' section.
  • Confirm that the selected battery type (e.g., Mira, ECS4100, EP5, EP11, HV2600, Pylon, CAN, User) precisely matches the model of your installed battery system. An incorrect selection will prevent proper communication and operation.

3. Inspect Battery Communication Cable (RJ45):

• • For Fox ESS hybrid inverters (H1, KH, H3), the BMS communication typically uses an RJ45 cable.
  • Ensure the cable is securely connected at both the inverter and the battery's Master BMS unit.
  • Verify the pinout: Pin 4 (CAN_L) and Pin 5 (CAN_H) are used for CAN bus communication. These should be on the same physical twisted pair within the cable. If you crimped a custom cable, ensure this detail is correct.

4. Confirm Battery System Power Status:

• • Ensure the battery's DC isolator or breaker is in the ON position.
  • For modular battery systems, confirm the Master BMS power switch is pressed and held for 2–3 seconds until the green LED turns solid and internal contactors click, indicating the BMS is active.

5. Perform a Full System Power-Cycle Sequence:

• • This sequence is critical for resetting communication and ensuring proper handshake between the inverter and battery.
  • Step 1: Turn OFF the AC grid isolator or breaker on your distribution board.
  • Step 2: Turn OFF the high-voltage DC battery isolator or breaker.
  • Step 3: Turn OFF the PV array DC isolator switch on the inverter underside.
  • Step 4: Wait at least 5 minutes for internal high-voltage capacitors to fully bleed down until the LCD and all LED indicators on the inverter are completely unlit. The manual states to "wait at least 5 minutes for internal capacitors to discharge."
  • Step 5: Power up the Battery System First: Turn ON the battery DC breaker, then press and hold the Master BMS power switch for 2–3 seconds until the green LED turns solid and internal contactors click.
  • Step 6: Turn ON the PV DC isolator switch.
  • Step 7: Turn ON the AC grid isolator.
  • Step 8: Confirm on the Inverter LCD (Status -> Battery) that real-time SOC%, voltage, and charge limits are populated without BatComFault.

Cause/fix table

This table outlines common symptoms related to battery compatibility and communication, their likely causes, and recommended fixes.

Fox ESS Inverter Battery Pairing Settings

Fox ESS hybrid inverters (H1, KH, and H3 series) are specifically engineered for high-voltage lithium storage, supporting battery strings generally from 85V to 600V DC. Specifically, H1 series supports 80V-480V DC, and H3-Pro series supports 160V-800V DC. It is important to note that these inverters do not support standard 12V/24V/48V flooded tubular lead-acid batteries like Phoenix, Osaka, or AGS.

The following table details the pairing parameters, operating voltage windows, module stacking limits, and recommended inverter menu settings for various Fox ESS proprietary high-voltage batteries.

Low-Voltage Battery Compatibility (for LV Series Inverters Only)

It is important to reiterate that Fox ESS H1, KH, and H3 high-voltage inverter series are not compatible with 48V low-voltage batteries. The following table provides recommended settings for Pylontech and Dyness low-voltage batteries, which are compatible only with Fox ESS Low-Voltage Hybrid lines (LV series, not covered in detail here).

<p class="caution">
<strong>Caution:</strong> The 56.4V charge voltage for Dyness batteries is specific to their chemistry and cell count. Applying this voltage to Pylontech (typically 15-cell) or other battery packs not rated for 56.4V can cause BMS overvoltage disconnects and cell overcharge, potentially damaging the battery and voiding its warranty. Always verify the maximum charge voltage with your battery manufacturer's specifications.
</p>

For more detailed information on specific Pylontech settings, refer to our guide on /pk/guides/fixes/pylontech-inverter-pairing-settings. For Dyness batteries, consult /pk/guides/fixes/dyness-inverter-pairing-settings. You can also find general troubleshooting for battery communication issues in our article on /pk/guides/fixes/lithium-battery-inverter-compatibility-errors.

Inverter Battery Operating Modes

Fox ESS inverters offer several operating modes that dictate how the battery interacts with solar generation, loads, and the grid. These settings are typically found under Menu -> Settings -> Work Mode.

• Self-Use Mode (Default): In this mode, solar power first supplies your domestic loads. Any surplus solar energy then charges the battery. If there is still remaining excess energy, it is exported to the grid. The battery discharges to power loads when solar generation is insufficient.
• Feed-In Priority Mode: Solar power prioritizes supplying domestic loads first. Any surplus solar is then exported directly to the grid at maximum capacity. Battery charging occurs only from remaining solar power after loads and grid export are satisfied.
• Back Up / EPS Mode: This mode maintains the battery at a high state of charge (default Min SOC 30%–50%) to reserve maximum energy for utility grid outages.

Safety

Working with solar inverters and high-voltage battery systems involves significant electrical hazards. Always prioritize safety.

• High-Voltage DC Shock Hazard: PV open-circuit voltages can reach up to 600VDC on single-phase H1/KH models and up to 1000VDC / 1100VDC on three-phase H3/T/VL series. High-voltage lithium battery strings (Mira, ECS, EP) operate between 85VDC and 600VDC, posing severe direct current electrical shock and arc flash risks.
• Mandatory 5-Minute Capacitor Discharge Delay: Internal DC bus capacitors store lethal electrical energy. Electricians must wait at least 5 minutes after fully disconnecting AC grid, DC PV isolator, and battery switches before opening wiring covers or servicing terminals. The manual states to "wait at least 5 minutes for internal capacitors to discharge."
• Emergency Shutdown & Fire Protocol: In the event of a battery or electrical fire, follow local fire safety protocols and use extinguishers suitable for electrical fires only after isolating all electrical sources. Never apply water directly to live high-voltage DC battery banks.

When to call a technician instead

While many compatibility issues can be resolved with careful setting adjustments, some problems require professional intervention. You should call a qualified solar technician or your Fox ESS distributor if:

• Communication issues persist after you have carefully followed all power-cycling and wiring inspection steps.
• The battery's BMS (Battery Management System) reports internal faults that are not related to communication.
• You are unsure about any wiring connections, especially high-voltage DC or AC connections.
• The inverter displays persistent internal hardware faults (e.g., SPSFault, RelayFault).
• You suspect physical damage to the inverter or battery components.

Attempting repairs or modifications beyond basic settings adjustments can void your warranty and pose serious safety risks. Always consult the official Fox ESS documentation or a certified professional when in doubt.
