Ziewnic Inverter Overload Fault (Error 07) Fix

Key Takeaways

• The most likely cause of a Ziewnic overload fault is connecting too many appliances, especially those with high start-up surges.
• The first check is to immediately reduce the connected load by switching off non-essential equipment.
• Always kill power first (solar, battery, grid), wait 5 minutes for capacitor discharge, and use insulated tools before inspecting wiring or terminals, because a metal spanner across a battery bank shorts hundreds of amps.
• If basic load management and setting adjustments do not resolve the fault, stop DIY troubleshooting and contact a certified Ziewnic service center.

What does Ziewnic Inverter Error 07 (OP Fault) mean?

When your Ziewnic inverter displays "Fault 07" or "OP" and a red fault LED illuminates, it indicates that the connected load has exceeded the inverter's capacity for too long. The inverter has shut down its output to protect itself from damage. This is a critical safety feature, but it also means your power supply has been interrupted.

The inverter typically issues a "Warning 07" (Overload) with a rapid beep pattern (once every 0.5 second) before a full shutdown. This warning gives you a short window to reduce the load before the fault occurs.

Diagnosis: Identifying the Overload Cause

Troubleshooting an overload fault involves systematically checking your connected loads, inverter settings, and the inverter's environment. First identify your series from the model label: the numeric fault codes and Program 06/23 settings in this guide apply to the Voltronic-platform models (Axpert Ultra, Diamond, Max series); Lenox and Roux series use touch-screen menus with different fault displays, and only their overload timing specs quoted below apply to them.

1. Check the Inverter Display for "Fault 07" or "OP":

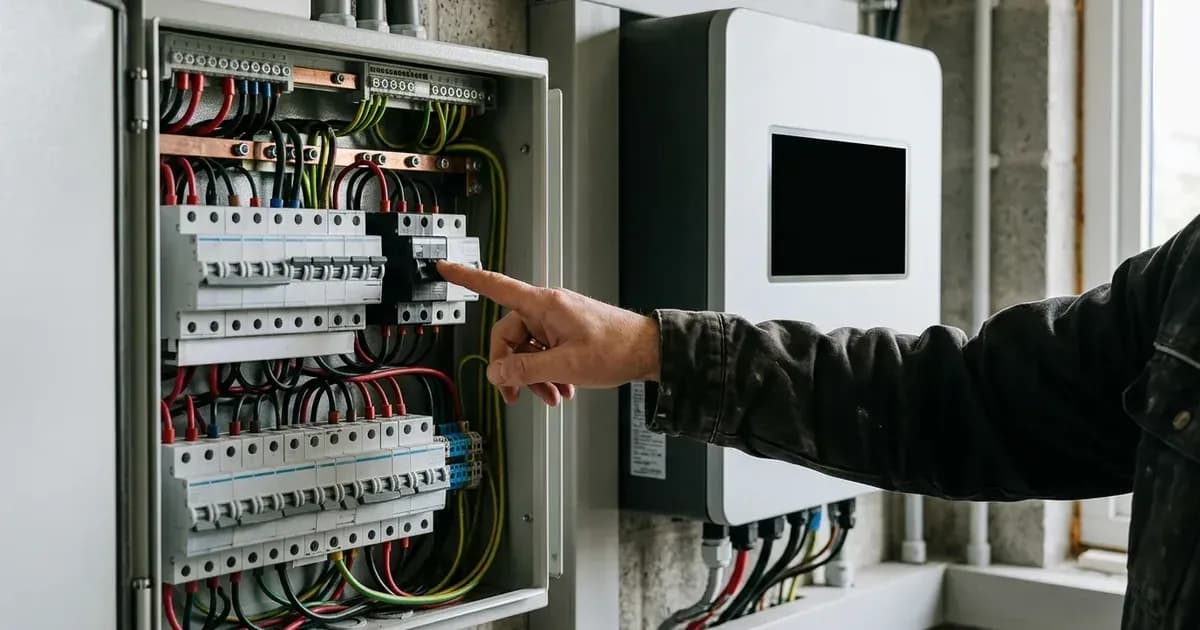

• • If "Fault 07" or "OP" is displayed: The inverter has already tripped due to overload. Proceed to reduce loads and reset.
  • If "Warning 07" is displayed and beeping: The inverter is currently overloaded but has not yet tripped. Immediately reduce loads.

2. Identify Recently Connected or Started Appliances:

• • Result: A new appliance was just turned on, or multiple heavy appliances started simultaneously (e.g., an air conditioner, water pump, and iron).
  • Meaning: The combined power draw, especially during start-up, exceeded the inverter's capacity.

3. Review Inverter Specifications for Rated Power and Surge Capacity:

• • Result: Your inverter, such as an Axpert Ultra (PV10000), has a rated power of 8000W and a surge power of 16000VA.
  • Meaning: The inverter can handle 8000W continuously but can briefly supply up to 16000VA for a few seconds during motor start-up. If your loads exceed these, an overload will occur.
  • Note: Roux Series models have specific overload abilities like 10.5 seconds at 110%–150% load, 5.5 seconds at 150%–200% load, and 200 milliseconds at over 200% load in battery mode. Lenox Series models tolerate 5 seconds at over 110% load and 10 seconds at 101%–110% load.

4. Check the Inverter's Overload Trip Timing Curves:

• • Result: For Voltronic OEM-based Ziewnic inverters (Axpert Ultra, Diamond, Max series), the manual states "Overload Protection 5s@≥110% load; 10s@105%~110% load".
  • Meaning: If your load is between 105% and 110% of the inverter's rated capacity, it will trip after 10 seconds. If it's 110% or more, it trips within 5 seconds. This helps you understand how quickly the inverter reacts to different levels of overload.

5. Inspect the Inverter's Cooling and Ventilation:

• • Result: The inverter is hot to the touch, fans are not spinning, or the air vents are blocked.
  • Meaning: Overheating can reduce the inverter's capacity, making it more prone to overload trips. A "Fault 02" (Over temperature) can occur if internal component temperature exceeds 100°C. Ensure at least 200mm clearance on sides and 500mm on top for airflow.

6. Check Program 23 (Overload Bypass Setting):

• • Result: Program 23 is set to bYd (Bypass disable, default).
  • Meaning: The inverter will shut down on overload when running in battery mode. If set to bYE (Bypass enable), it would transfer the load to the utility grid instead.

7. Check Program 06 (Auto Restart on Overload):

• • Result: Program 06 is set to LFd (Overload restart disable, default).
  • Meaning: The inverter will not attempt to restart automatically after an overload trip. If set to LFE (Overload restart enable), it would try to restart.

Cause/fix table section

Inverter-Side Checks for Overload Faults

Ziewnic inverters, particularly those based on the Voltronic OEM platform (Axpert Ultra, Diamond, Max series), offer specific programmable settings to manage overload conditions.

• Program 23: Overload Bypass This setting determines how your inverter reacts to an overload when operating in battery mode.
• • bYd (Bypass disable, default): If an overload occurs, the inverter will shut down its output. This is the default setting.
  • bYE (Bypass enable): If an overload occurs while the inverter is running on battery power, it will automatically transfer the load to the utility grid (WAPDA) instead of shutting down. This is highly recommended for domestic homes in Pakistan, especially where heavy motor loads like inverter ACs or water pumps are common, as it prevents sudden power loss.
• Program 06: Auto Restart When Overload Occurs This program controls whether the inverter attempts to restart itself after an overload trip.
• • LFd (Overload restart disable, default): The inverter will remain off after an overload trip until manually reset.
  • LFE (Overload restart enable): The inverter will automatically attempt to restart after an overload trip. While convenient, if the underlying cause of the overload (e.g., too many appliances) is not addressed, the inverter may repeatedly trip and restart, potentially stressing its components.
• Understanding Inductive Loads and Surge Capacity Many common household appliances, particularly those with motors (refrigerators, air conditioners, water pumps), draw a significantly higher current for a brief moment when they start up. This is known as inrush current or surge.
• • For example, a 1.5-ton inverter AC running at 1500W can pull over 4000W momentarily during start-up. If your inverter's surge capacity is insufficient, or if multiple such appliances start at once, it can trigger an instant "Error 07" or "Fault 51" (over-current surge).
  • Ziewnic inverters like the Axpert Ultra (PV10000) have a surge power of 16000VA, while a Premium Plus Hybrid (PV5000) has an 8400VA surge. The Roux Series has specific overload curves, for instance, tolerating 110%–150% load for 10.5 seconds in battery mode. Always check your specific model's specifications on the Ziewnic website to understand its surge limits.
  • For more detailed guidance on sizing your system, refer to our guide on what-size-solar-inverter-do-you-need-for-your-house-in-pakistan. If you are experiencing frequent trips during load shedding, our article on inverter-trips-during-load-shedding may offer additional insights.

Safety: Preventing Electrical Hazards

Working with solar inverters involves high voltages and currents that can be lethal. Always prioritize safety.

• High-Voltage DC Shock Hazard: Ziewnic inverters handle high DC voltages from solar panels. Maximum PV Open Circuit Voltage (VOC) varies significantly by model, ranging from 400VDC on some single-phase models (e.g., Max Series Dual) up to 500VDC on others (e.g., Axpert Ultra, Diamond 5G/6G, Roux Series), and up to 800VDC on three-phase models like the Lenox 12kW. Always check your specific model's specifications to determine its exact PV VOC limit. These voltages are lethal. Never touch exposed wiring or internal components while the system is live.
• Internal Capacitor Stored Energy Discharge: Inverters contain large capacitors that store significant electrical charge even after power is disconnected. Installers and service technicians must wait at least 5 minutes after disconnecting all solar PV, battery DC, and AC grid supplies before removing enclosure panels or servicing terminal blocks.
• Insulated Tools: When tightening or disconnecting terminals, always kill power first and use insulated tools. A metal spanner across a battery bank can short hundreds of amps, causing severe burns or explosions.
• Ventilation: Ensure the inverter has proper ventilation. Overheating can damage the unit and create fire hazards. Indoor models (IP21 rated) like the Diamond II 6G, Axpert Ultra, Max Series, and Roux Series must be installed in a clean, dry, and well-ventilated indoor location. Outdoor hybrid models (IP65 rated) like the Lenox series are designed for outdoor wall mounting.
• Anti-Dust Filter Maintenance: If your Ziewnic inverter has an anti-dust filter kit, clean it monthly. Blocked filters restrict airflow and can lead to thermal derating or "Error 02" (Over temperature) faults, which can indirectly contribute to overload issues.

When to call a technician instead

While many overload issues can be resolved with simple load management and setting adjustments, there are situations where professional intervention is necessary.

• Persistent Faults: If your inverter continues to trip on overload despite reducing loads and adjusting Program 06 and Program 23 settings, there might be an underlying hardware issue.
• Internal Component Failure: Faults like "Fault 51" (Over current or surge) that persist after a restart, or "Fault 53" (Inverter soft start failed), often indicate internal damage to components like IGBTs or the AC output bridge. These are not field-serviceable.
• Warranty Concerns: Attempting internal repairs on your Ziewnic inverter will void its warranty. Ziewnic offers a 5-year PCBA replacement warranty on its flagship Lenox hybrid line and standard 3 to 5-year warranties on retail models.
• Lack of Expertise: If you are unsure about any troubleshooting step or electrical safety procedure, it is always best to contact a certified Ziewnic service center. You can reach Ziewnic Solar Energy at UAN: (021) 111 000 666 or visit their service centers in Karachi or Lahore.
