Victron Dyness Battery Compatibility: Connection and Settings Guide

Key Takeaways

• A Victron GX device is essential for communication between Victron components and Dyness batteries.
• The BMS-Can connection (500 kbit/s) is critical for transmitting battery data.
• Ensure all Victron devices have the minimum required firmware version or newer.
• Solar chargers must be connected to the GX device for charge regulation.
• If communication issues persist after checking connections and firmware, consult a qualified technician.

How do I connect and configure Dyness batteries with Victron systems?

Connecting and configuring Dyness lithium batteries with Victron Energy systems requires careful attention to communication protocols and firmware versions. A Victron GX device is essential to facilitate the necessary data exchange between the battery's Battery Management System (BMS) and the Victron inverter/charger and solar chargers.

Diagnosis: Checking Your Victron-Dyness System Setup

Follow these steps to diagnose common setup issues and ensure proper communication between your Victron and Dyness components.

1. Verify GX Device Presence:

• • Check: Confirm that a Victron GX device (e.g., Cerbo GX) is installed in your system.
  • Meaning: A GX device is required for communication with Dyness batteries. Without it, the system cannot receive critical battery information.

2. Inspect BMS-Can Connection:

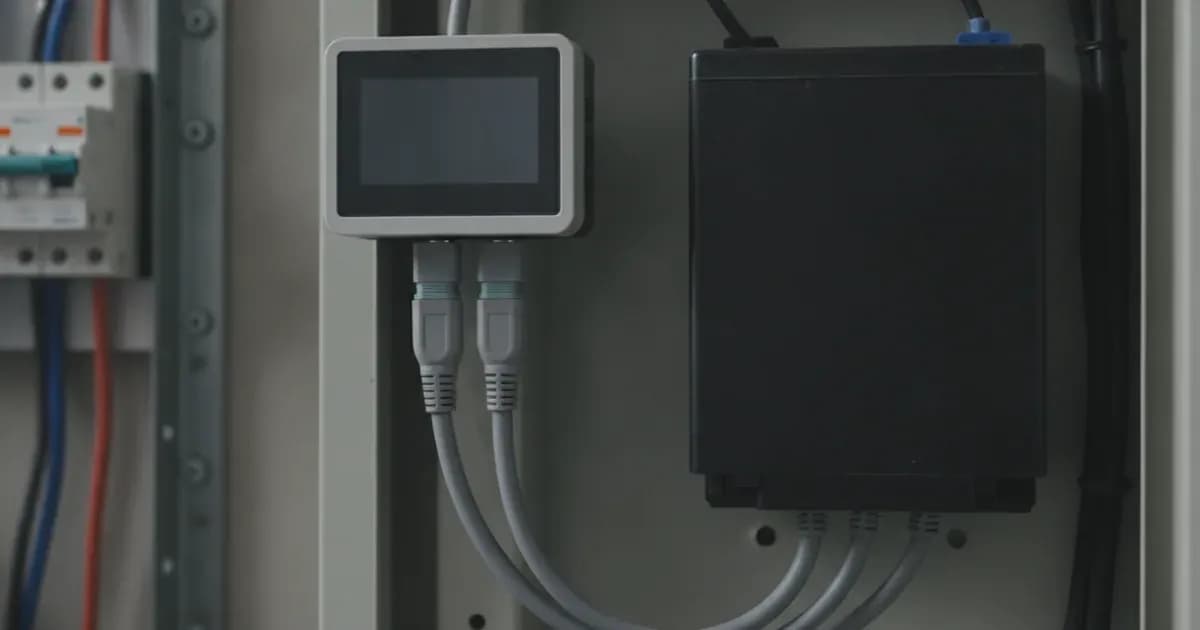

• • Check: Ensure the Dyness battery is connected to the GX device using a BMS-Can connection cable. Verify the connection type is 500 kbit/s.
  • Meaning: This connection is essential for the communication of charge and discharge limits, error codes, and the battery's state of charge. Either the BMS-Can or VE.Can ports on the battery can be used.

3. Confirm Victron Device Compatibility:

• • Check: Identify your Victron inverter/charger and solar charger models.
  • Meaning: All 48V Victron Multi, MultiPlus, Quattro, and RS models are compatible with Dyness batteries. All 48V BlueSolar and SmartSolar MPPT chargers are also compatible.

4. Check Firmware Versions:

• • Check: Access your Victron GX device and other connected components to verify their firmware versions.
  • Meaning: A minimum GX device firmware version of v3.31 is required. VE.Bus models need firmware version 469, and RS models require version 1.16. Using the latest firmware is recommended for optimal performance and troubleshooting.

5. Verify Solar Charger Connection to GX Device:

• • Check: Confirm that your solar charger is connected to the GX device via its VE.Direct or VE.Can communication port.
  • Meaning: This connection is mandatory. It allows the GX device to regulate charge currents and voltages based on the Dyness battery's BMS data, preventing overcharging or other issues.

6. Review System Behavior:

• • Check: Observe the system's charging and discharging behavior, and monitor for any alarms or unexpected shutdowns.
  • Meaning: If all connections and firmware are correct, the system should operate smoothly, with the GX device accurately displaying battery status and managing charge/discharge cycles.

Victron-Dyness Compatibility and Configuration Summary

This table summarizes the key settings and requirements for integrating Dyness batteries with Victron Energy systems.

Essential Setup Requirements for Victron-Dyness Systems

Successful integration of Dyness lithium batteries with Victron Energy equipment relies on specific setup requirements, primarily centered around communication and control.

A Victron GX device is a mandatory component for any Victron-Dyness battery system. This device acts as the central communication hub, collecting data from the Dyness battery's BMS and relaying it to other Victron components like inverters, chargers, and monitoring systems. Without a GX device, the Victron system cannot properly interpret the battery's state, leading to potential operational issues.

The BMS-Can connection is the critical link for data exchange. It is essential to use the BMS-Can (500 kbit/s) connection type of a GX device with these batteries. This connection facilitates the communication of vital information such as charge and discharge limits, error codes, and the battery's state of charge. This ensures the Victron system operates within the safe parameters defined by the Dyness battery's BMS. The Dyness battery itself may offer either BMS-Can or VE.Can ports for this connection.

Firmware versions across all Victron components must meet or exceed specified minimums. For the GX device, a minimum firmware version of v3.31 is required. VE.Bus models, which include many Victron Multi and Quattro inverter/chargers, need firmware version 469. For Victron RS models, firmware version 1.16 is the minimum. It is always recommended to use the latest available firmware version for new installations and when troubleshooting any issues.

Solar chargers must also be integrated into the communication network. This connection is mandatory because it is used to regulate charge currents and voltages. Victron BlueSolar and SmartSolar MPPT chargers must connect to the GX device via their VE.Direct or VE.Can communication ports. This allows the GX device to receive real-time battery data and adjust the solar charger's output accordingly, preventing overcharging and optimizing battery life.

For grid-connected systems, advanced control functions are configurable within the ESS (Energy Storage System) settings on the GX device. In off-grid systems, the control functions of the Battery Management System (BMS) are built into the latest version of the GX device's firmware, providing robust battery management without external grid interaction.

Safety: Working with Lithium Battery Systems

Working with lithium batteries, such as Dyness, requires adherence to strict safety protocols to prevent hazards like thermal events or electrical shock. Lithium Iron Phosphate (LiFePO4) batteries are generally stable, but improper handling or installation can still pose risks.

Always ensure all power sources, including PV arrays, grid connections, and the battery itself, are disconnected before performing any wiring or maintenance. Use insulated tools to prevent accidental short circuits, as a short across a high-voltage battery bank can release hundreds of amps instantly, causing severe burns or equipment damage.

The Battery Management System (BMS) within the Dyness battery is crucial for its safe operation, monitoring cell voltages, temperatures, and currents to prevent overcharge, over-discharge, and overheating. Never bypass or tamper with the BMS. Any instruction that involves opening the battery enclosure or modifying internal components should only be performed by authorized service personnel.

Lithium batteries can store significant energy. While the provided source does not detail specific safety guidelines for Dyness batteries, general best practices include:

• Electrical Safety: Always assume terminals are live. Use appropriate personal protective equipment (PPE), including insulated gloves and eye protection.
• Thermal Safety: Ensure adequate ventilation around the battery to prevent heat buildup. Avoid installing batteries in direct sunlight or confined spaces without airflow.
• Physical Damage: Protect batteries from physical impact or puncture, which can compromise cell integrity and lead to dangerous conditions.

When to call a technician instead

While this guide covers essential compatibility and setup steps, some situations require professional intervention. If you encounter persistent communication errors, unexpected system shutdowns, or if the GX device fails to recognize the Dyness battery after following all troubleshooting steps, it is best to contact a qualified solar or electrical technician.

Available documentation does not specify particular Dyness battery models or the minimum number of batteries required for different Victron inverters. If you have questions regarding specific Dyness battery models or system sizing, consult your battery supplier or a certified installer. Attempting to diagnose or repair complex internal battery or inverter faults without proper training and tools can void warranties and create safety hazards. Always prioritize safety and professional expertise for issues beyond basic configuration.
