Pennsylvania Peco And Ppl Solar Interconnection Guide

Key Takeaways

• Residential solar installations in Pennsylvania are subject to specific interconnection rules from utilities like PECO and PPL Electric.
• Inverters must meet UL 1741-SB and IEEE 1547-2018 standards for grid-tied operation.
• A lockable AC disconnect switch is mandatory near the utility meter for safety.
• Operation is prohibited until written Permission to Operate (PTO) is granted by the utility.

Understanding Level 1 Solar Interconnection in Pennsylvania

Connecting a solar photovoltaic (PV) system to the grid in Pennsylvania requires adherence to specific technical and safety standards set by local utilities like PECO and PPL Electric. These requirements ensure the safe and reliable operation of your solar system in conjunction with the existing electrical grid. This guide focuses on Level 1 simplified interconnection, which typically applies to smaller, residential systems.

What is actually going on: Technical Standards and Safety

When you connect a solar system to the utility grid, your equipment must be able to interact safely and effectively with the utility's infrastructure. This involves specific technical standards for inverters, safety disconnects, and overcurrent protection. These rules protect utility workers, prevent damage to the grid, and ensure your system operates correctly.

Grid-tied solar inverters must comply with UL 1741-SB and IEEE 1547-2018 anti-islanding parameters. These standards dictate how your inverter behaves during grid outages, ensuring it disconnects from the grid to prevent "islanding," where a section of the grid remains energised when it should not be.

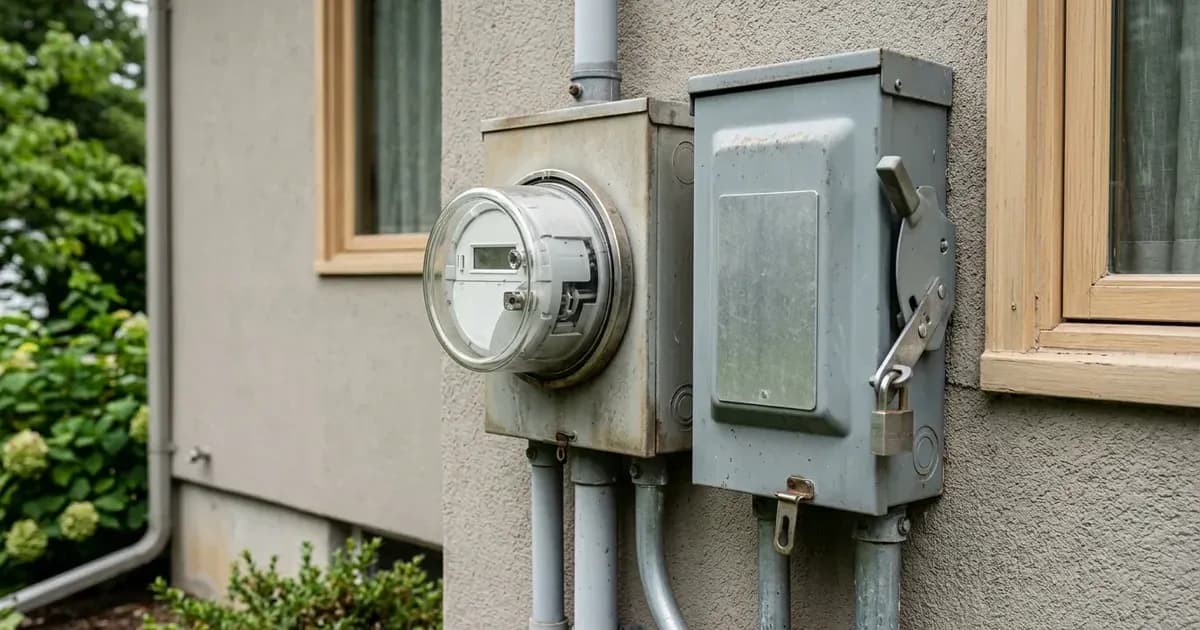

A lockable utility-accessible AC disconnect switch is required within 10 feet of the revenue meter. This switch provides a clear, physical means for utility personnel to disconnect your solar system from the grid for maintenance or emergencies.

Dedicated overcurrent protection devices must be sized according to NEC 705.12 120% busbar rules. This ensures that the electrical panel can safely handle the combined current from both the utility and your solar system without exceeding its rated capacity.

Rooftop PV systems must incorporate rapid shutdown devices complying with NEC 690.12 specifications. This safety feature allows firefighters and emergency responders to quickly de-energise the PV array on the roof, reducing electrical hazards during an emergency.

Photovoltaic systems operating at 80 volts DC or greater require certified Type 1 AFCI protection. Arc-fault circuit interrupters (AFCIs) detect dangerous electrical arcs that can cause fires and automatically shut down the circuit.

Equipment grounding conductors must be bonded directly to the main building service grounding electrode. Proper grounding is crucial for electrical safety, providing a path for fault currents and protecting against electric shock.

Connection of generating sources to panelboards must follow the 120% ampacity calculation in NEC 705.12. This rule prevents overloading the electrical busbar in your main service panel when adding a solar system.

Financial Incentives for Solar and Storage

Residential solar installations claim a 30% credit against total federal tax liability under Section 25D. This federal income tax credit helps offset the cost of installing solar PV systems.

Expenditures for solar and residential storage qualify for a 30% credit under Section 25D of the IRC. This means that not only the solar panels and associated equipment, but also qualified energy storage property, can benefit from this significant tax incentive.

Qualified energy storage property with a capacity of 3 kilowatt-hours or greater qualifies for federal credits. If you install a battery storage system with your solar panels, it must meet this minimum capacity to be eligible for the federal tax credit.

What you can check yourself, and what you cannot

As a homeowner, you can verify that your installer has provided documentation for your system's compliance with standards like UL 1741-SB and IEEE 1547-2018. You can also ensure that a lockable AC disconnect switch is installed in the specified location near your utility meter.

You cannot, however, perform electrical wiring, sizing of overcurrent protection, or installation of rapid shutdown devices yourself. These tasks require a licensed and accredited electrical installer to ensure compliance with the National Electrical Code (NEC) and utility-specific requirements. Operating the generating facility prior to receiving written Permission to Operate is strictly prohibited.

What the published sources do not tell you

The specific application process and timelines for obtaining Permission to Operate (PTO) can vary between PECO and PPL Electric. While the general requirement for PTO is stated, the detailed steps, forms, and typical waiting periods are not universally published and may depend on the utility's current workload and your specific project details.

Detailed engineering specifications for system architecture and sizing, specific wiring and isolation methods, and comprehensive commissioning and maintenance protocols are not provided in general regulatory documents. These are determined by site-specific engineering drawings, local utility connection capacity, manufacturer equipment ratings, and applicable national electrical codes. You will need to rely on your accredited installer for these details.
