SnapNrack UltraFoot and DeckAnchor: Shingle Roof Solar Mount Guide

Key Takeaways

• The SnapNrack UltraFoot ecosystem provides dual-path attachment flexibility, supporting direct rafter penetration and direct-to-deck sheathing fastening.
• The DeckAnchor 2.5 system eliminates the need for rafter hunting, preventing missed pilot holes and interior ceiling drywall damage.
• The UltraFoot Anchor model accepts either one center lag into a rafter or two DeckAnchors into structural roof decking.
• Integrated SpeedSeal technology creates chemical-free, watertight compression seals without lifting or damaging composition shingles.
• All structural components are precision-machined in corrosion-resistant stainless steel and structural aluminum for multi-decade durability.

The Evolution of Composition Shingle Roof Attachments

Securing solar arrays to residential composition shingle roofs has historically been one of the most labor-intensive and risk-prone aspects of photovoltaic installation. Traditional installation practices require technicians to locate structural rafters hidden beneath roofing felt, asphalt shingles, and decking. Installers use stud finders, acoustic tapping, or exploratory pilot drills. When a drill misses the narrow 1.5-inch rafter edge, the error leaves an unsealed penetration in the roof deck that can cause water leaks into attics and living spaces.

Furthermore, traditional metal flashing pans require installers to pry apart adhered asphalt shingle tabs using pry bars. In cold weather, brittle shingles crack; in hot weather, tearing asphalt compromises the roof's waterproofing envelope. When homeowners consider solar installations, they often ask do-solar-panels-damage-your-roof, and many homeowners coordinate attachments alongside roof-replacement-with-solar-panels.

To resolve these challenges, SnapNrack developed the UltraFoot and DeckAnchor mounting platform. By allowing attachments to fasten securely either into rafters or directly into structural roof sheathing, UltraFoot provides unparalleled layout freedom, accelerating installation timelines while ensuring complete structural integrity.

UltraFoot Architecture: Rafter, Deck, and Universal Anchor Models

The SnapNrack UltraFoot portfolio provides three targeted mounting architectures designed to match diverse engineering requirements and roof framing geometries:

```
+-------------------------------------------------------------------------+

+-------------------------------------------------------------------------+

+-------------------------------------------------------------------------+

+-------------------------------------------------------------------------+

+-------------------------------------------------------------------------+
```

As specified in official engineering documentation:

• "One (1) Sealing Washer Lag, 242-02168, is required for each Ultra Rail SpeedSeal™ Foot or UltraFoot, Rafter attachment."
• "One (1) Sealing Washer Lag, 242-02168, when rafter mounting or Two (2) DeckAnchors, 242-10035, when deck mounting is required for each UltraFoot, Anchor."

This universal design empowers solar installers to navigate unexpected roof obstructions. If an attachment point aligns directly over a rafter, the technician drives a single lag. If the attachment lands between rafters over an attic HVAC chase, valley framing, or plumbing vent, the technician secures the same UltraFoot Anchor with two DeckAnchors into the sheathing, maintaining array alignment without installing auxiliary wood blocking inside the attic.

Hardware Specifications and Component Catalog

The complete SnapNrack UltraFoot and DeckAnchor component catalog provides precision hardware matched to Ultra Rail systems:

For comparison with competing flashless and flashed roof attachments, review our engineering breakdown of ironridge-flashfoot2-roof-mount-guide-us.

SpeedSeal Waterproofing Technology

Water intrusion prevention is the primary engineering criteria for any roof-penetrating solar mount. Traditional flashed mounts rely on sliding metal pans high beneath overlapping shingles, which can break fragile shingle seal strips.

SnapNrack UltraFoot integrates proprietary SpeedSeal technology:

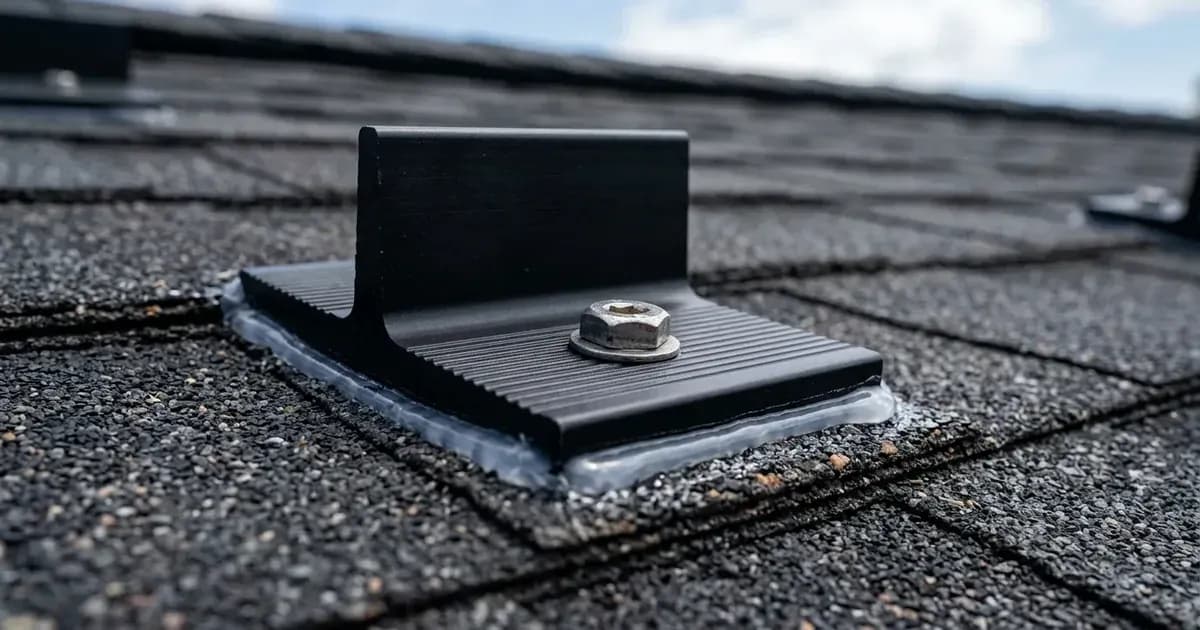

1. Compression Barrier: The cast aluminum foot incorporates an undercut sealing cavity fitted with an elastomeric gasket.
2. Granule Displacement: When the lag screw or DeckAnchors are torqued down, the sealing base compresses firmly against the asphalt shingle surface. The elastomeric barrier conforms into shingle granules, creating an impenetrable 360-degree seal.
3. Chemical-Free Installation: SpeedSeal eliminates the necessity of hauling messy tubes of chemical roofing sealant up ladders, preventing roof staining and chemical degradation of shingles over time.

In hurricane-prone coastal environments, attachment integrity under high wind speeds is critical. Structural engineers should review wind engineering protocols in our florida-hurricane-resilient-solar-and-wind-load-guide.

Installation Guidelines and Structural Best Practices

To ensure long-term structural reliability and maintain roof manufacturer warranties, installers must follow rigorous installation practices:

1. Sheathing Verification: Direct-to-deck mounting with DeckAnchor 2.5 is rated for sound structural roof decking, typically minimum 7/16-inch OSB or 1/2-inch plywood. Rotted, moisture-damaged, or delaminated sheathing cannot support pull-out loads and must be replaced prior to installation.
2. Proper Pilot Hole Drilling: When installing the Sealing Washer Lag into rafters, drill a pilot hole using the manufacturer-specified bit diameter to prevent splitting structural rafters.
3. Torque Specifications: Tighten all lag screws, DeckAnchors, and rail mounting bolts to the manufacturer-specified torque using calibrated hand tools or torque-limiting clutch drivers. Over-torquing can strip wood fibers or crush roof sheathing.
4. Array Leveling: Use the slotted vertical channel of the L-foot and stackable Leveling Spacers (part 242-05161) to achieve a flat, uniform rail plane across uneven rafters.

Electrical Safety and Site Precautions

[!WARNING]Installing solar roof mounts requires working on pitched, elevated roofs and near energized electrical wiring. Severe falls or electric shocks can result in fatal injuries. All installation work must strictly adhere to OSHA fall protection rules and the National Electrical Code.

• Fall Arrest Equipment: Technicians must be secured with full-body harnesses, shock-absorbing lanyards, and certified roof safety anchors at all times during roof staging and mounting.
• Concealed Wiring Safety: Always verify attic spaces beneath attachment points to ensure lag screws and DeckAnchors do not penetrate electrical branch circuits, plumbing lines, or HVAC conduits routed along roof sheathing.
• Technical Helpline: For engineering span calculations, DeckAnchor pull-out load testing data, or technical support, contact SnapNrack customer support at +1 (877) 732-2860.
