Victron Hub4 Grid Parallel System Integration

Key Takeaways

• Victron Hub-4 is deprecated; Victron Energy recommends using ESS (Energy Storage System) for all new installations.
• Many operational issues stem from battery state, communication failures, or outdated firmware.
• Firmware updates are crucial for resolving known bugs, such as the "Device must be reset" warning.
• Always verify anti-islanding measures and understand the system's battery safety mechanisms, including Sustain Mode.

Why is my Victron Hub-4 system not performing as expected, and is it still supported?

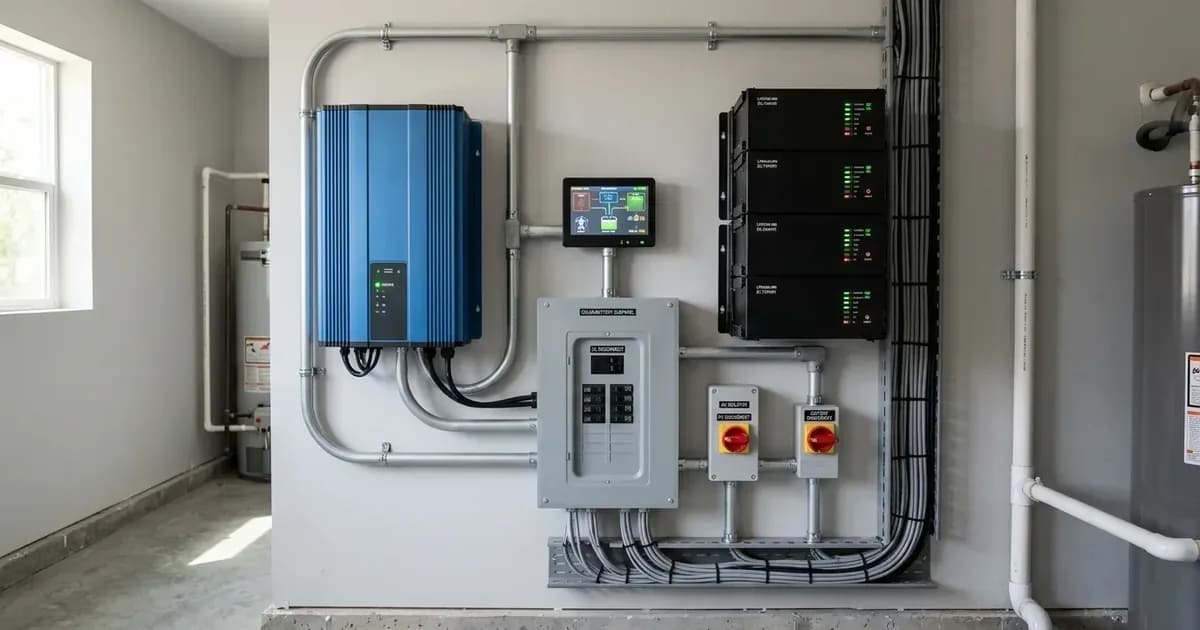

Victron Hub-4 is a grid-parallel energy storage system designed to optimize self-consumption using Multi or Quattro inverter/chargers. However, it is important to note that Hub-4 is deprecated. Victron Energy explicitly states that it should not be used for new installations, recommending ESS (Energy Storage System) as the preferred alternative. If your existing Hub-4 system is not performing as expected, the first step is to diagnose common fault modes related to battery state, communication, or configuration.

Diagnosis Steps for Victron Hub-4 Systems

Follow these steps to diagnose common issues with your Victron Hub-4 grid-parallel system.

1. Check System Status on CCGX or VRM Portal.

• • Observation: Access your Color Control GX (CCGX) display or the Victron Remote Management (VRM) Portal.
  • Meaning: This provides an overview of your system's current operation, including battery State of Charge (SOC), power flows, and any active alarms. Look for unexpected values or indicators that the system is not operating in its intended mode.
  • Action: Note any unusual readings or messages.

2. Verify Battery State and Charge Levels.

• • Observation: Check the battery SOC displayed on your CCGX or VRM.
  • Meaning: The system's ability to charge or discharge is directly tied to the battery's current state. If the battery is fully charged or fully discharged, the system will not attempt to charge or discharge further. The system may also enter Sustain mode to protect the battery.
  • Action: Confirm the battery SOC is within expected operating limits for charging or discharging. Understand if the system is in Sustain mode, which prevents discharge below approximately 50% SOC.

3. Inspect Communication Links.

• • Observation: Check the connection between your AC Sensor and the CCGX. For systems using external control, verify Modbus-TCP, MQTT, or D-Bus communication.
  • Meaning: A break in communication can prevent the system from accurately measuring grid power or receiving control commands, leading to unexpected behavior like switching to passthrough or Sustain mode.
  • Action: Ensure all communication cables are securely connected and that the CCGX is receiving data from the AC sensor. For external control, verify the communication protocol and register access.

4. Review Firmware Versions.

• • Observation: Check the firmware version of your Multi or Quattro inverter/charger and your CCGX.
  • Meaning: Known bugs, such as the "Device must be reset" warning or low battery pre-alarm issues, have been resolved in specific firmware versions (e.g., xxyy403 or higher). Outdated firmware can cause operational problems.
  • Action: Compare your current firmware versions against the latest recommended versions. Consider updating firmware if it is outdated, especially if you are experiencing known issues.

5. Examine VEConfigure3 and CCGX Settings.

• • Observation: Access VEConfigure3 for your Multi or Quattro inverter/charger and the settings menu on your CCGX.
  • Meaning: Incorrect configuration settings can prevent proper grid-parallel operation. Specific settings like the Hub-4 Assistant, PowerAssist, Input current limiter, and Lithium batteries checkbox must be correctly configured. On the CCGX, the Minimum SOC, AC Sensor role, and System Battery Monitor settings are critical.
  • Action: Verify that all settings align with the requirements for Hub-4 operation and your specific battery type. Pay close attention to settings that disable charging or feedback.

Common Hub-4 System Faults and Solutions

Hub-4 Settings and Configuration

Proper configuration is essential for the correct operation of a Victron Hub-4 grid-parallel system. These settings are typically accessed via VEConfigure3 for the Multi or Quattro inverter/charger and through the CCGX interface. External control via Modbus-TCP, MQTT, or D-Bus also offers advanced configuration options.

VEConfigure3 Settings for Multi/Quattro

When configuring your Multi or Quattro inverter/charger using VEConfigure3, ensure the following:

• Hub-4 Assistant: Install the "Self-consumption Hub-4 Assistant" to enable the grid-parallel functionality.
• PowerAssist: This feature is automatically disabled by the Hub-4 Assistant. Do not attempt to re-enable it.
• Input current limiter: Configure this limit as the threshold for AC current at the AC input.
• Dynamic current limiter: Do not enable this setting for Hub-4 systems.
• Lithium batteries checkbox: In the Charger tab, ensure this checkbox is consistent with your battery choice in the Assistant.

CCGX Settings

The Color Control GX (CCGX) plays a central role in monitoring and controlling the Hub-4 system. Key settings include:

• Minimum SOC: Configure the desired minimum State of Charge for your battery within the CCGX settings.
• AC Sensor Role: Set the role of your AC Sensor to "Grid meter" in the CCGX settings.
• Phase Type: Ensure the phase type (single or multi-phase) configured in the CCGX matches your system setup.
• Hub4Mode (for CCGX firmware < 1.70): Set this to 3 (Hub4 control disabled) via the D-Bus service com.victronenergy.settings, path /Settings/CGwacs/Devices/D<serial>/Hub4Mode.
• Hub4 Control (for CCGX firmware >= 1.70): Disable this setting under Settings→Hub4→Hub4 Control to stop automatic Mode 1 behavior.
• System Battery Monitor: Configure your BMV or battery with a built-in SOC monitor under Settings → System Setup Menu.
• Sync SOC to VE.Bus: Enable this setting under Settings → System Setup Menu.

External Control Loop Settings (Modes 2 and 3)

Hub-4 systems can be controlled externally, offering advanced integration capabilities.

Mode 2 (External Control Loop - Modbus-TCP) This mode uses Modbus-TCP registers for control:

• Grid power setpoint: Modbus-TCP register 2700. A positive value means taking power from the grid, while a negative value means sending power to the grid. The default is 0W.
• Max charge current (fractional): Modbus-TCP register 2701. A value of 0% disables charging, 100% allows unlimited charging. Values between 0% and 100% set a maximum charge percentage multiplied by the maximum charge current and battery voltage, divided by 100.
• Enable discharge: Modbus-TCP register 2702. A value below 50% disables discharge, while a value equal to or above 50% enables discharge.

Mode 3 (External Control Loop - External Command) This mode uses external commands, often via Modbus-TCP or MQTT:

• Switch: External command to set the inverter/charger state to on, charger-only, inverter-only, or off.
• Power setpoint in Watts: External command (CCGX inverts value) to regulate power on the AC input. A positive value indicates energy flowing to the grid, and a negative value indicates energy taken from the grid.
• Disable charge flag: Modbus-TCP register 38. Value 0 enables charging, value 1 disables charging.
• Disable feedback flag: Modbus-TCP register 39. Value 0 enables feedback, value 1 disables feedback.

Direct MK2 Usage (without CCGX) For direct MK2 usage, use RAM ID 128 and higher, with HUB4 ID = 3. AssistantRAM0 is the setpoint in Watts, and AssistantRAM1 contains flags (bit0: disable charge, bit1: disable feedback).

Safety

Operating any grid-tied energy storage system requires strict adherence to safety protocols.

• Anti-islanding / Loss of Mains Detection: Ensure your system has robust anti-islanding protection. This is built-in for certain Victron models and countries, but external options like an Anti-islanding box or Ziehl relays may be necessary depending on local regulations. This prevents the inverter from feeding power into a grid that has gone down, protecting utility workers.
• Battery Safety Mechanisms: Victron systems incorporate several features to protect batteries.
• • Sustain Mode: This mode prevents battery damage from deep discharge. If activated, the system will charge the battery from the grid (at a maximum of 5A) or excess solar until it reaches 0.1V above the sustain level.
  • Dynamic Cut-off: This feature adjusts the DC-input low shut-down level based on battery current. This compensates for internal resistance, making the voltage a more reliable indicator of an empty battery.
  • Low Cell Signal from BMS: For compatible batteries, Victron VE.Bus BMS and third-party CAN-bus enabled BMS can signal low cell conditions to the inverter/charger, prompting it to stop discharge and protect the battery.

When to call a technician instead

While many Hub-4 issues can be resolved through careful diagnosis and configuration, some situations warrant professional assistance. You should call a qualified technician if:

• You are unable to resolve persistent system faults after following the troubleshooting steps.
• You need to perform complex firmware updates that you are not comfortable with.
• The system is exhibiting erratic behavior that could indicate a hardware malfunction.
• You suspect issues with anti-islanding protection or other critical safety features.
• You are making changes to the physical wiring of the system. Always ensure power is isolated before working on electrical connections.
• The system is still under warranty, and you want to avoid voiding it by attempting repairs beyond basic troubleshooting.

Remember that Victron Hub-4 is deprecated, and for new installations, Victron recommends using ESS. A technician can advise on upgrading to ESS if you are considering a system overhaul.
