Victron Fronius AC Coupling Integration Guide

Key Takeaways

• Incorrect Victron assistant settings or outdated Fronius firmware are the most likely causes of integration issues.
• Always begin troubleshooting by verifying the firmware versions of both your Fronius PV inverter and your Victron inverter/charger.
• Working with AC-coupled systems involves high voltages and currents; always isolate all power sources before making physical connections or disconnections.
• If basic configuration checks and firmware updates do not resolve the issue, or if you are unsure about electrical work, stop and contact a qualified solar technician.

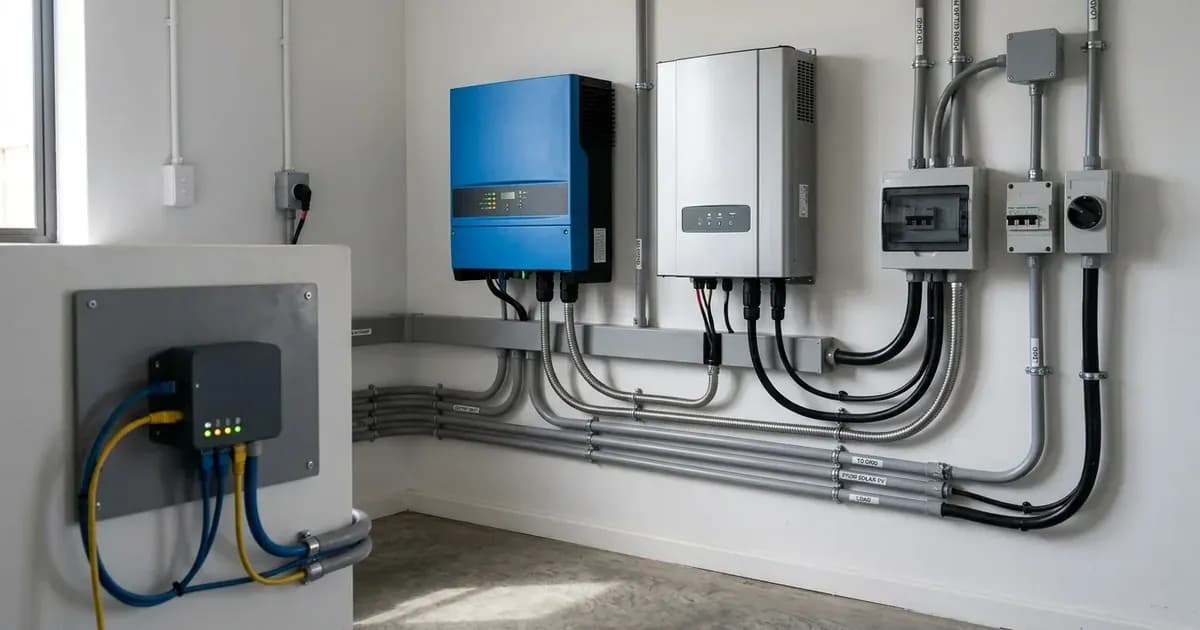

How do I integrate Victron and Fronius PV inverters for AC coupling?

Integrating Victron inverter/chargers with Fronius PV inverters for AC coupling allows you to combine the strengths of both systems for efficient energy management. The most common cause of integration problems stems from incorrect Victron assistant configurations or incompatible Fronius firmware versions. The first step in any integration or troubleshooting process is to ensure all components meet the minimum software requirements and are correctly configured.

Diagnosis and Setup Steps

Follow these steps to set up or diagnose issues with your Victron-Fronius AC-coupled system.

1. Verify Fronius Inverter Model and Firmware:

• • Check: Identify your specific Fronius PV inverter model and its current firmware version. Refer to the table below for compatible models and their minimum required firmware.
  • Meaning: If your inverter is not listed or its firmware is older than the minimum specified, an update or different hardware may be necessary for reliable integration. | Model | Type | Power Range | Minimum Software Version | |---|---|---|---| | Fronius Primo | 1~ (ROW) | 3 kW up to 8.2 kW | fro27140.upd or higher | | Fronius Symo | 3~ (ROW) | 3 kW up to 20 kW | fro27140.upd or higher | | Fronius Eco | 3~ (ROW) | 25 kW or 27 kW | fro27140.upd or higher | | Fronius Agilo | 3~ (ROW) | 75 kW up to 100 kW | update19.tl or higher | | Fronius IG Plus V | 1~, 2~, 3~ | 2.5 kW up to 12 kW | IGF 5.0.66 or higher | | Fronius Primo UL | 1~ (UL) | 3.8 kW up to 15 kW | fro27470.upd or higher | | Fronius Symo 10-24 480V | 3~ (UL) | 10 kW up to 24 kW | fro27140.upd or higher | | Fronius Symo 10-15 208-240V | 3~ (UL) | 10 up to 15 kW | fro27140.upd or higher |

2. Ensure GX Device Integration:

• • Check: Confirm that your Fronius inverter is properly connected to a Victron GX device (e.g., Cerbo GX) and is visible on its display. Most modern Fronius inverters (Symo, Galvo, Primo, Eco) have a Datamanager card pre-installed for this. Older models like the Symo Light, IG Plus, and Agilo require a separate Datamanager 2.0 or Datamanager Box for integration.
  • Meaning: The GX device acts as the central communication hub, allowing the Victron system to monitor and control the Fronius inverter's output, including features like Zero feed-in. Without proper GX integration, the systems cannot communicate.

3. Review Victron Assistant Settings:

• • Check: Connect a computer to your Victron inverter/charger via VE.Bus (using an MK2USB interface) and open VE.Configure software. Verify that the correct assistant is loaded:
  • • For off-grid systems: "PV Inverter support Assistant"
    • For on-grid/energy-storage systems: "ESS Assistant"
  • Meaning: These assistants enable the Victron inverter to manage the AC-coupled PV power by dynamically adjusting the AC frequency. Incorrect or missing assistants will prevent the Victron system from controlling the Fronius inverter.

4. Examine Frequency Shift Settings:

• • Check: Within the Victron assistant settings, review the frequency control parameters. These settings dictate how the Victron system signals the Fronius inverter to reduce or increase its power output.
  • Meaning: The Victron system uses frequency shifting to prevent overcharging batteries or exceeding grid export limits. If these settings are misconfigured, the Fronius inverter may not respond correctly to the Victron system's commands.

5. Monitor System Behavior on VRM Portal:

• • Check: Access your system's data on the Victron Remote Management (VRM) Portal. Observe the PV production, battery state of charge, and AC frequency over time.
  • Meaning: The VRM Portal provides valuable insights into how your integrated system is performing. Discrepancies between expected and observed behavior, such as persistent high PV production when batteries are full, can indicate a configuration issue.

Common Causes and Fixes for Victron-Fronius AC Coupling Issues

Essential Settings for Victron-Fronius AC Coupling

Proper configuration of both your Fronius PV inverter and Victron inverter/charger is crucial for stable AC coupling. These settings manage how the systems interact, particularly concerning frequency control and power output.

Fronius PV Inverter Setup

The Fronius inverter needs to be configured for micro-grid operation to correctly respond to frequency shifts from the Victron system.

Victron Multi/Quattro Assistant Settings

The Victron inverter/charger requires a specific assistant to manage AC-coupled PV. You will use VE.Configure software to load and set these parameters.

These frequency settings define the range within which the Victron system will operate to control the Fronius inverter. The "Frequency Start" is the point at which the Victron system begins to increase the AC frequency to signal the Fronius to reduce power. The "Frequency Disconnect" is the point at which the Fronius inverter should completely shut down its output. The adjusted "Frequency Disconnect" for specific Fronius firmware versions is a critical workaround for the relay lock issue.

Safety: Working with AC-Coupled Systems

Integrating and troubleshooting AC-coupled PV systems involves significant electrical hazards. Always prioritize safety to prevent injury or damage to equipment.

• Isolate All Power Sources: Before performing any physical work on the system, including checking connections or installing components, ensure that all AC and DC power sources are completely isolated. This includes turning off PV array disconnects, battery disconnects, and AC breakers for both the grid and the inverter output.
• Verify Zero Voltage: Use a certified multimeter to confirm that all circuits are de-energized before touching any terminals or wiring.
• Use Insulated Tools: Always use tools with insulated handles when working on electrical components to minimize the risk of accidental short circuits or electric shock.
• High Voltage and Current: Remember that both the PV array and the AC grid can produce lethal voltages and currents. A spanner accidentally bridging terminals on a battery bank or AC bus can cause severe arcing and burns.
• Ventilation: Ensure adequate ventilation in areas where batteries are present, especially if they are lead-acid, as they can produce explosive hydrogen gas during charging.

When to call a technician instead

While many configuration checks can be performed by a competent user, there are clear limits to DIY troubleshooting for AC-coupled systems.

• Persistent Issues: If you have followed all diagnostic and setup steps, verified firmware, and adjusted settings, but the system continues to malfunction or display unexpected behavior, it indicates a more complex problem.
• High Voltage Work: Any task requiring direct manipulation of high-voltage AC wiring or internal components of the inverters should only be performed by a qualified electrician or solar technician.
• Warranty Concerns: Attempting unauthorized repairs or modifications to your Victron or Fronius equipment may void your product warranties. Consult the manufacturer's warranty terms before undertaking any invasive procedures.
• Uncertainty: If you are ever unsure about a step, the meaning of an alarm, or the safety implications of an action, it is always best to stop and contact a certified Victron or Fronius installer or a professional solar technician. They have the specialized knowledge, tools, and safety training to diagnose and resolve complex issues safely and effectively.
