Victron VE.Bus Parallel and Three-Phase Systems: Setup and Troubleshooting

Key Takeaways

• Parallel and three-phase systems are complex and require experienced, trained installers.
• Always update all VE.Bus units to the latest firmware version during system commissioning.
• Ensure all units in a system are the same type and have identical compatibility IDs.
• Maintain symmetrical AC and DC wiring for parallel units and connect all DC to a single bus.

What are Victron VE.Bus Parallel and Three-Phase Systems?

Victron Energy's VE.Bus platform enables advanced configurations for their MultiPlus and Quattro inverter/chargers. This allows you to combine multiple units to achieve higher power output (parallel operation) or to create a three-phase AC power supply. These systems are designed for demanding applications where single-unit capacity is insufficient or a three-phase grid connection is required. The VE.Bus manual explains that it "applies to components that use VE.Bus, for example, MultiPlus, Quattro and some larger VE.Bus inverters."

Setting Up Your Victron VE.Bus Parallel or Three-Phase System

Proper setup is critical for the stable operation of parallel and three-phase VE.Bus systems. Follow these guidelines carefully.

1. Unit Compatibility and Firmware

All units within a single VE.Bus system must be identical. This means they must be "the same type and firmware version; this includes same size, system voltage, and feature set." During commissioning, you must "Always update all units to the latest firmware version."

2. Compatibility ID

The compatibility ID ensures that units can work together.

• The "4-digit number in the compatibility ID of all units in the VE.Bus system is identical."
• For units connected in parallel within a single phase, "units in a single phase (so parallel units) have an identical letter in the compatibility ID."

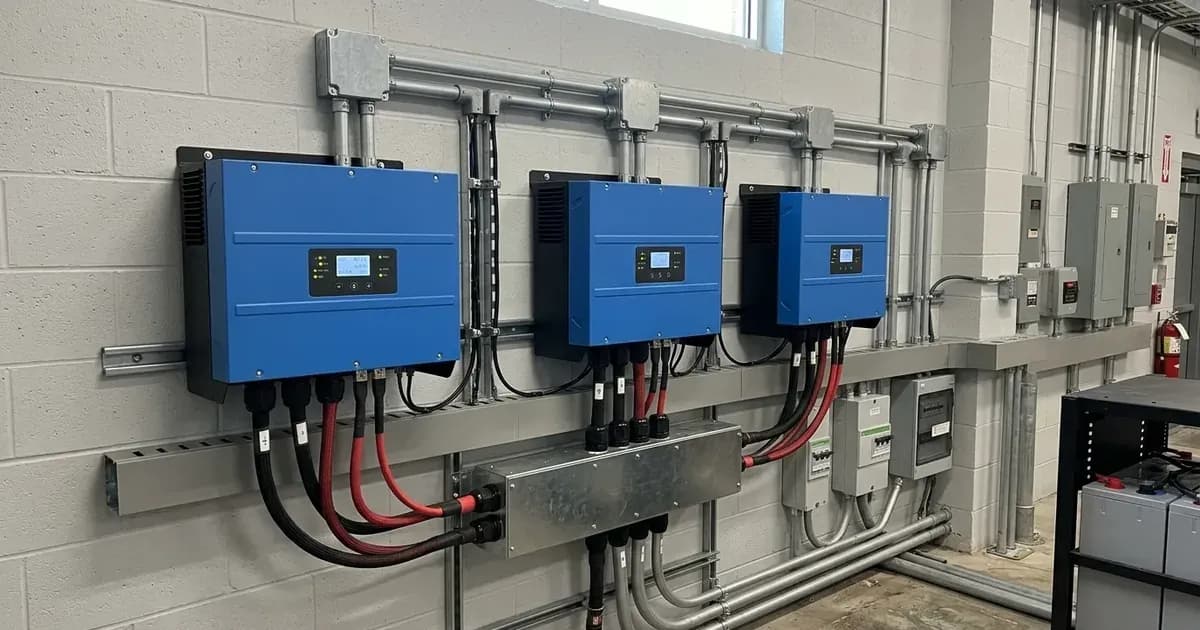

3. Wiring Requirements

Correct wiring is paramount for performance and safety.

• DC Wiring: "Every DC connection (on every Multi/Quattro and on every battery) has to be connected together to a single DC bus." Do not use separate batteries or DC bus structures for subsets of units.
• AC and DC Wiring Symmetry: For parallel units, "Both the DC and AC wiring needs to be symmetrical per phase: use the same length, type and cross-section to every unit in the phase."
• AC Cabling: Do not use overly thick AC cabling, as "extra thick cabling has negative side effects."

4. Fusing

Individual fusing for each unit is required.

• AC Fusing: "each unit needs to be fused individually." Use "the same type of fuse on each unit due to same resistance." Consider "mechanically connected fuses, so that if one trips, they all trip - leading to a clear fault."
• DC Fusing: "each unit needs to be fused individually." Use "the same type of fuse on each unit due to same resistance."

5. Specific Model Considerations

Some MultiPlus-II models have specific requirements for parallel operation. "MultiPlus-II 8k, 10k, and 15k models can only be connected in parallel if an external AC transfer switch is used."

6. System Sizing Examples

Victron provides examples for maximum system sizes:

• 15kVA Quattro: A "maximum single phase system with 15kVA Quattros is 75kVA: five units." For three-phase, "the maximum system size is a 180kVA three phase system. Which then consists of four units on each of the three phases: 12 units in total."
• 10kVA Quattro: A "maximum single phase system with 10kVA Quattros is 60kVA: six units." For three-phase, "the maximum system size is a 150kVA three phase system."

Troubleshooting Common Issues

If your Victron VE.Bus parallel or three-phase system is not operating as expected, these steps can help diagnose the problem.

Diagnosis Steps

1. Check Firmware Versions: Verify that "all units" are updated "to the latest firmware version." Inconsistent firmware can cause communication issues.
2. Inspect Compatibility IDs: Confirm that the "4-digit number in the compatibility ID of all units in the VE.Bus system is identical." For parallel units, ensure the "letter in the compatibility ID" is identical within each phase.
3. Verify DC Bus Connection: Ensure "Every DC connection (on every Multi/Quattro and on every battery) has to be connected together to a single DC bus." Separate DC buses will cause system failure.
4. Examine AC and DC Wiring Symmetry: For parallel units, check that "Both the DC and AC wiring needs to be symmetrical per phase: use the same length, type and cross-section to every unit in the phase."
5. Review Phase Rotation (Three-Phase): If the system does not accept mains input, check the phase rotation. "If a GX device is connected, it will signal a phase rotation alarm." The system "will not accept the mains input and only operates in inverter mode" if the rotation is incorrect.
6. Check for Non-Symmetrical Installations with Monitoring: If you have an uneven number of units per phase (e.g., "2 units on L1, 3 on L2, 3 on L3"), note that "Combining such system with any other monitoring device, such as the VE.Bus Smart Dongle or a GX device like the Cerbo is not supported." This can lead to "Numbers and information shown on the GX device as well as VRM portal will or can be wrong."

Cause and Fix Table

Monitoring and Configuration Notes

Victron offers various tools for system monitoring and configuration, but some have limitations with complex setups.

• VE.Bus System Configurator: This tool "allows setting up a system using Multis (each having a single AC input), that is configured to have multiple separate AC inputs." However, "such system is not supported by GX devices."
• GX Devices (e.g., Cerbo) and VE.Bus Smart Dongle: These monitoring devices are "not supported" for non-symmetrical installations (e.g., "2 units on L1, 3 on L2, 3 on L3"). If used in such a setup, "Numbers and information shown on the GX device as well as VRM portal will or can be wrong."
• Digital Multi Control: This device "supports" non-symmetrical installations where other monitoring solutions do not.

Safety: Critical Considerations for Complex Systems

Working with parallel and three-phase inverter systems involves significant electrical hazards.

• Installer Experience: "Parallel and Multiphase systems are complex. We do not support or recommend that untrained and/or inexperienced installers work on these size systems." Victron provides "advanced training theory and practical videos and competency exams for 3 phase and parallel installation and commissioning available on Victron Professional."
• DC Wiring: Always ensure "Every DC connection (on every Multi/Quattro and on every battery) has to be connected together to a single DC bus." Incorrect DC wiring can lead to system failure and hazards.
• Symmetrical Wiring: For parallel units, "Both the DC and AC wiring needs to be symmetrical per phase: use the same length, type and cross-section to every unit in the phase." Asymmetrical wiring can cause uneven load distribution and system instability.
• Fusing: "each unit needs to be fused individually" on both AC and DC sides. Use "the same type of fuse on each unit due to same resistance." Consider "mechanically connected fuses" for AC to ensure all phases trip simultaneously in a fault condition.
• High Voltage and Current: These systems operate at high voltages and currents. Always isolate all power sources (AC input, battery, PV) before working on any components. Use insulated tools and follow lockout/tagout procedures. A spanner across a battery bank can short hundreds of amps, causing severe burns or fire.

When to call a technician instead

Given the complexity and safety risks, you should call a qualified Victron technician if:

• You are not experienced or trained in installing and commissioning parallel or three-phase inverter systems.
• You encounter persistent alarms or system failures that are not resolved by basic troubleshooting steps.
• You are unsure about any wiring, fusing, or configuration requirements.
• The system involves MultiPlus-II 8k, 10k, or 15k models and requires an external AC transfer switch for parallel operation, which you are not comfortable installing.
• You suspect internal component failure within an inverter. Opening the unit should only be done by authorized service personnel.
• Your system is non-symmetrical, and you are experiencing issues with monitoring or control via GX devices or the VRM portal.

Attempting to troubleshoot or repair these complex systems without proper training can void your warranty and pose significant safety risks.
