10kW Solar System Australia: Costs, Daily Output, and Grid Rules

Key Takeaways

• A 10kW solar array generates an average of 39.6 kWh of electricity per day and 14,454 kWh annually, offering the capacity needed for all-electric households.
• Installed system pricing sits around $8,220 after Small-scale Technology Certificate deductions, delivering approximately $1,818 in yearly electricity savings and a 4.5 year payback at 40% self-consumption.
• Sizing and output calculations factor in a typical system efficiency loss of 15% for quality residential installations.
• Inverters rated above 5kW generally require a three-phase connection to satisfy Distribution Network Service Provider export and network balancing rules.
• Systems under 100 kW and generating under 250 MWh qualify for federal Small-scale Renewable Energy Scheme incentives.

Is a 10kW Solar System Right for Your Australian Household?

While a standard 6.6kW solar system guide Australia configuration covers the daytime base load for many homes, larger households frequently discover that 6.6kW cannot fully offset modern high-draw electrical appliances. Electrification trends—such as switching from gas to ducted reverse-cycle heat pumps, installing electric vehicle chargers, running swimming pool filtration systems, and adding home battery storage—dramatically increase household electricity requirements.

Based on solar modeling data, each kilowatt of installed solar panels in Australia generates an average of 3.96 kWh of electricity per day. A 10kW solar system generates an average of 39.6 kWh of electricity per day and 14,454 kWh annually. This substantial energy harvest provides abundant generation during daylight hours to power heavy domestic appliances directly and charge residential battery systems.

To put this generation capacity into perspective across common residential scales:

• A benchmark 6.6kW solar system produces around 26.1 kWh daily on unshaded rooftops.
• By comparison, a 5kW system generates 19.8 kWh per day and 7,227 kWh per year.
• A 10kW solar system generates an average of 39.6 kWh of electricity per day and 14,454 kWh annually.
• A larger 15kW system produces 59.4 kWh per day and 21,681 kWh annually.

For properties consuming twenty to thirty-five kilowatt-hours daily, a 10kW array ensures that daytime consumption is supplied by clean rooftop generation rather than expensive grid retail tariffs.

Roof Space and System Layout Considerations

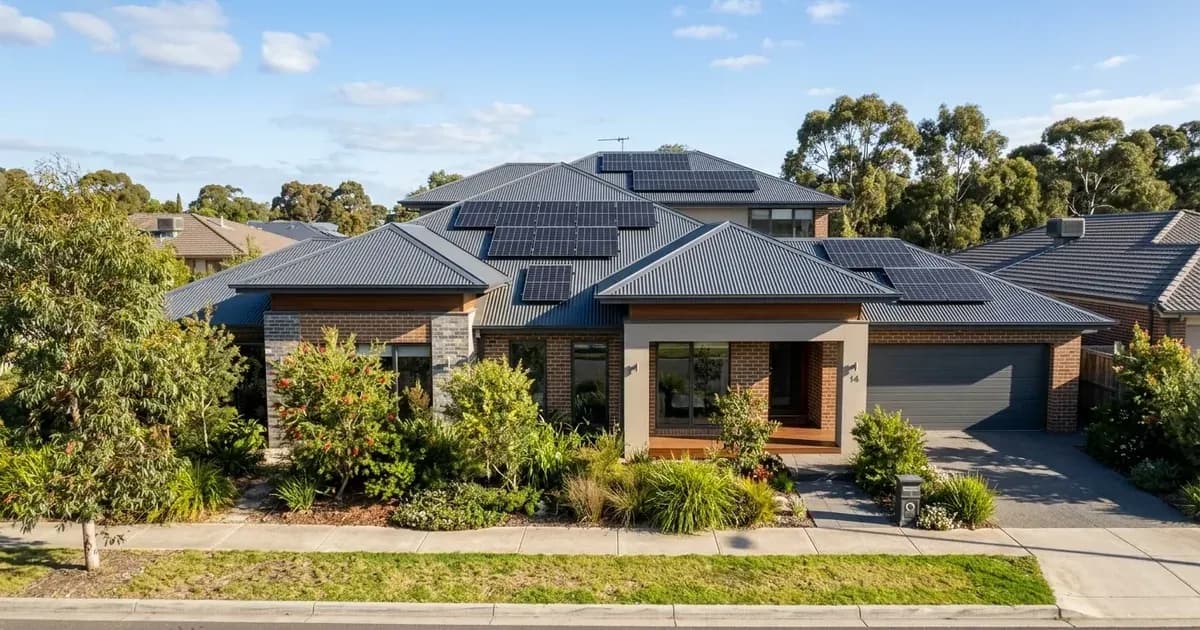

Installing a 10kW array requires substantial unshaded roof space. High-efficiency photovoltaic modules allow homeowners to maximize solar density, but physical layout planning remains essential.

Because a 10kW system utilizes dozens of panels, residential roofs rarely have a single roof plane large enough to accommodate the entire array facing true north. Fortunately, modern inverters feature multiple maximum power point tracking inputs. An experienced solar designer can split the array across east and west roof planes. An east-west split flattens the generation curve across the day: eastern panels capture early morning sun, while western panels sustain generation late into the afternoon, closely matching typical domestic evening demand profiles.

Sizing and output calculations factor in a typical system efficiency loss of 15% for quality residential installations. This account covers unavoidable real-world operational factors such as ambient temperature derating, dust accumulation, DC-to-AC conversion losses, and minor cabling resistance.

Single-Phase vs Three-Phase Grid Connection Rules

A critical technical threshold when sizing up to a 10kW array involves the property's grid connection:

1. Single-Phase Properties: Most Distribution Network Service Providers across Australia enforce a 5kW inverter capacity limit on single-phase connections. Homeowners seeking to install an inverter larger than 5kW on single-phase power may face strict export limits (such as complete export bans) or may be required to pay for a service upgrade to three-phase supply.
2. Three-Phase Properties: Three-phase connections typically permit inverter capacities up to fifteen to thirty kilowatts, allowing homeowners to install an 8kW or 10kW inverter with full standard export pre-approval.

[!IMPORTANT]All high-voltage DC string cabling, inverter mounting, and switchboard modifications must be carried out by a Clean Energy Council accredited licensed electrician in compliance with Australian wiring standards and state electrical safety legislation.

Financial Returns: Cost, Bill Savings, and Payback Periods

Federal incentives administered under the Small-scale Renewable Energy Scheme substantially reduce upfront capital outlay. Eligible small-scale systems must have a capacity less than 100 kW and have a total annual electricity output less than 250 MWh.

Under Clean Energy Regulator rules, certificates can be created over one or 5 years or across a single maximum deeming period. Small-scale Technology Certificates typically trade in the commercial spot range between $33 and $38 per certificate. To benchmark the incentive, for a typical 6.6kW system in Sydney, the incentive in 2026 is roughly 45 STCs, which equates to about $1,620 to $1,800 depending on the certificate price at the time of installation. For a 10kW array, the number of STCs created scales upward proportionally with total panel wattage, providing thousands of dollars in upfront discounts applied directly by your accredited retailer. Detailed rebate mechanics are explored in our guide to solar rebate Australia how stcs work.

The table below illustrates comparative installation costs, daily consumption baselines, and financial returns across system sizes:

A standard 6kW residential installation costs an average of $5,440 out of pocket. A typical 10kW system with an installed cost of $8,220 consuming 30 kWh daily at 40% self-consumption delivers annual savings of $1,818 with a 4.5 year payback. Across residential system scales, annual bill savings span from about $909 for a 5kW system to about $2,727 for a 15kW system, with payback periods generally falling between 4.3 and 5.3 years.

Pairing a 10kW Solar Array with Home Battery Storage

Because a 10kW array generates an average of 39.6 kWh of electricity per day, high-consumption households frequently export excess energy during midday hours. While feed-in tariffs provide modest utility bill credits, self-consuming your generation yields far greater financial returns.

Integrating battery storage captures daytime surplus for evening use. To explore market pricing and federal incentives, review home battery price Australia and the cheaper home batteries rebate explained Australia. A 10kW solar system paired with home storage allows households to achieve high levels of energy independence, powering air conditioning and household loads overnight purely from stored clean energy.
