Australian Commercial Solar High Voltage Interconnection Guide

Key Takeaways

• High Voltage network connection follows dedicated technical and legal pathways fundamentally distinct from standard Low Voltage connections.
• Embedded generators below 5MW qualify for NER Chapter 5A AEMO registration exemption, while systems 5MW and above require Chapter 5 registration.
• Commercial sites with loads exceeding 1.5MVA or zero-export behind-the-meter generation must submit applications via utility connection portals.
• The Preliminary Enquiry stage focuses on identifying a single preferred connection configuration before initiating detailed network studies.
• End-to-end development spans 2 to 3 years for Chapter 5A systems and 3 to 5 years for large Chapter 5 facilities.

High Voltage Connection Architecture and Regulatory Streams

Connecting commercial solar farms and industrial microgrids directly to 11kV, 22kV, or 33kV distribution networks involves specialized engineering procedures:

"Connecting to the High Voltage (HV) electricity network is a different process from connecting to the Low Voltage network."

Under the National Electricity Rules (NER), projects fall into distinct regulatory categories depending on system capacity and site configuration:

• "Chapter 5A - Generators less than 5MW (AEMO registration exempt)"
• "Chapter 5 – Generators greater than 5MW (AEMO registration required)"
• "Loads - Greater than 1.5MVA or modifications to existing HV connections"
• "HV connected premises with zero-export behind the meter generation."

Commercial High Voltage Solar Project Scope regulatory categorization:

• Capacity < 5MW (Chap 5A): AEMO Registration Exempt, Timeline: 2 to 3 Years.
• Capacity >= 5MW (Chap 5): Full AEMO Registration, Timeline: 3 to 5 Years.

Digital Application and Enquiry Management

All formal communications and documentation submissions must flow through registered utility systems:

"All enquiries for connection to the HV network are submitted within the Essential Connections Portal"

The connection pathway begins with early feasibility assessment:

"The Preliminary Enquiry key objective is to determine a single preferred connection option."

Following preliminary assessment, developers can request comprehensive technical reviews under national electricity rules:

"A Connection Applicant may request Essential Energy to provide a Detailed Response under clause 5.3A.8 of the NER.""A price guide for the cost associated for this are listed within [CEOP8079 Connection Process Guidelines]"

Multi-Stage Delivery Timelines and Milestone Schedule

High-voltage grid connection entails detailed network modeling, protection design, and physical infrastructure construction. As defined in the statutory schedule:

High Voltage Protection and Safety Standards

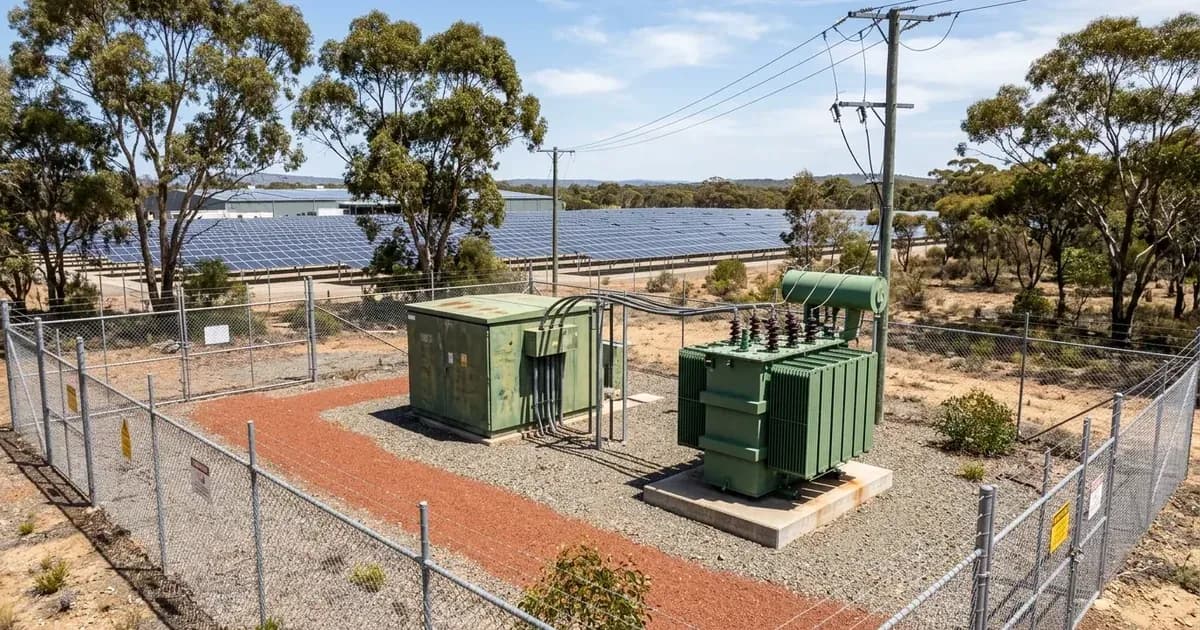

High-voltage commercial solar installations must incorporate dedicated primary switchgear, differential transformer protection relays, and anti-islanding schemes compliant with AS/NZS 3000 and network technical guidelines. High-voltage switching operations must strictly be performed by authorized High Voltage Operating personnel following certified safe-work switching sheets. SCADA remote terminal units must be integrated to enable remote distributor trip isolation during transmission contingencies.
