Victron VE.Bus Network Interference Troubleshooting

Key Takeaways

• Spurious VE.Bus errors often point to issues with cable quality, physical interference, or improper routing.
• Always use manufactured VE.Bus cables; avoid on-site crimping to prevent increased noise.
• Maintain strict separation between VE.Bus communication cables and all power cables, especially DC solar and AC lines.
• If errors persist after cable replacement, re-routing is essential. For complex or persistent issues, a qualified technician may be needed.

Why am I getting spurious VE.Bus error codes on my Victron system?

Spurious VE.Bus error codes on your Victron system are typically caused by issues with the VE.Bus cables themselves, physical interference, or electromagnetic interference (EMI). The most common cause is a compromised communication path, which can be exacerbated by load changes, AC input connection/disconnection, temperature fluctuations, or physical disturbances.

Diagnosis

Follow these steps to diagnose VE.Bus network interference.

1. Check VE.Bus network quality counters.

• • Access these counters via Victron Remote Management (VRM) by adding /diagnostics to your site's VRM URL. These counters track the number of frame retransmissions after an invalid frame is received.
  • What it means: A high number of retransmissions (e.g., more than 10 in a new system after commissioning) indicates a problem within the physical installation or significant interference. These counters can be reset via the GX device in the Multi Advanced menu.

2. Observe error triggers.

• • Note if VE.Bus errors appear to be triggered or worsened by specific events. These include changes in load types or sizes, connecting or disconnecting AC input, changes in ambient temperature, physical disturbances near the cabling, or the age and corrosion of connections.
  • What it means: If errors correlate with these events, it strongly suggests physical or electromagnetic interference with the VE.Bus network.

3. Inspect VE.Bus cables.

• • Visually check all VE.Bus RJ45 cables for any signs of damage, kinks, or loose connections. Ensure they are fully seated in their ports.
  • What it means: Damaged cables can introduce noise or signal loss, leading to errors.

4. Verify cable type and routing.

• • Confirm that all VE.Bus cables are manufactured cables, not custom-crimped ones. Check the routing to ensure communication cables are kept separate from power cables (DC solar, AC, and DC battery cables).
  • What it means: On-site crimping increases the noise-to-signal ratio. Proximity to power cables, especially DC solar and AC cables, is a major source of electromagnetic interference. DC solar cables are the most likely to cause interference, followed by AC cables.

5. Assess cable length and management.

• • Evaluate the length of your VE.Bus communication cables. Note if there is any excess cable bundled or coiled.
  • What it means: Longer cable runs can lead to weaker signals and greater noise, especially if run in parallel with power cables. Bundling or coiling excess cable can also increase interference.

Cause/fix table section

VE.Bus Network Best Practices

The VE.Bus network is a robust communication system, but it requires careful installation to avoid interference. Understanding its characteristics and following best practices can prevent many common error codes.

Cable Selection and Quality: The quality of your VE.Bus cables is paramount. Always use manufactured RJ45 cables designed for network communication. On-site crimping, even if visually perfect and testing for continuity, often results in a higher noise-to-signal ratio, leading to communication errors. If you are troubleshooting, replacing any custom-crimped cables with factory-made ones is a critical first step.

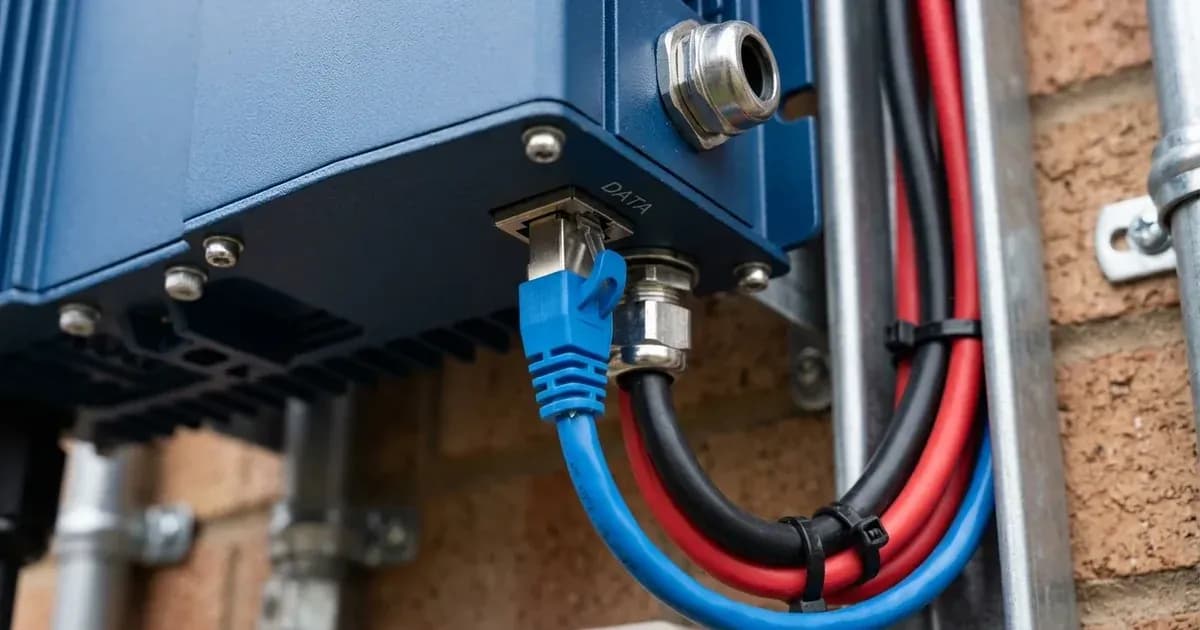

Cable Routing and Separation: Electromagnetic interference (EMI) is a significant cause of VE.Bus issues. Power cables, especially DC solar cables and AC cables, generate electromagnetic fields that can induce noise into nearby communication cables.

• Separation is key: Maintain as much distance as possible between VE.Bus cables and all power cables. Even 1 cm of separation can significantly reduce interference, but more is always better.
• Avoid bundling: Never bundle VE.Bus cables with power cables. This practice dramatically increases the risk of interference.
• Re-routing: If errors persist after replacing cables, re-routing them to ensure greater separation from power lines is often necessary.

Cable Length and Management: While specific maximum lengths are not provided, minimizing cable length is a general best practice for any communication network.

• Minimize length: Use the shortest possible manufactured VE.Bus cables for your installation.
• Avoid coiling: Do not coil or bundle excess cable length. This can create an antenna effect, making the cable more susceptible to picking up EMI.

Network Topology and Termination: The Victron VE.Bus network uses a specific bus topology.

• Bus topology: The optimal arrangement is a single RJ45 cable link from the GX device to the first VE.Bus inverter/charger, and then daisy-chaining to subsequent VE.Bus inverter/chargers if they exist. This is a linear bus, not a ring.
• No termination: Unlike some other network types, the VE.Bus network does not require termination at either end. The end-ports of the VE.Bus should be left open or blanked out with no connection made. Do not loop cables into these end points.

Interference Reduction: For persistent issues, consider additional measures to reduce noise:

• Ferrite core clips: The use of Ferrite core noise suppressing cable clips on communication cables can help filter out residual noise.

Safety: Electrical Hazards

Working with solar power systems involves significant electrical hazards. Always prioritize safety.

• Isolate power: Before inspecting or manipulating any cables, ensure all power sources to the inverter/charger and associated components are completely isolated. This includes disconnecting PV, battery, and AC breakers.
• Capacitor discharge: After isolating power, wait for the manual's specified capacitor-discharge time before opening any units or touching internal components.
• Insulated tools: Use insulated tools when working with electrical connections to prevent accidental shorts or shocks.
• Short circuit risk: A spanner or other metal tool accidentally bridging battery terminals or busbars can cause a severe short circuit, leading to burns, equipment damage, or fire.

When to call a technician instead

While many VE.Bus interference issues can be resolved with careful cable management, there are situations where professional help is advisable. If you have systematically followed all troubleshooting steps, replaced cables, re-routed them, and are still experiencing persistent VE.Bus errors, it indicates a more complex issue. This could involve internal component failure, subtle installation faults that are difficult to diagnose without specialized equipment, or a system configuration beyond typical DIY scope. For large or critical installations, or if you are uncomfortable working with high-voltage DC or AC systems, contact a qualified Victron Energy installer or technician. They have the expertise and tools to diagnose and resolve complex network issues safely.
