Tesla Inverter Overload Fault Fix: Troubleshooting and Preventing Error 07

Please note: This article refers to inverters manufactured by Tesla Industries (Pvt) Ltd, an indigenous Pakistani company founded in 1992. Tesla Industries Pakistan has no affiliation, corporate relationship, or shared ownership with Tesla, Inc. / Tesla Motors (USA, founded by Elon Musk in 2003).

Key Takeaways

• Error 07 indicates your Tesla inverter is overloaded, meaning the connected load exceeds its capacity.
• The inverter will trip after 5 seconds for loads at or above 110% capacity, or 10 seconds for loads between 105% and 110%.
• Heavy motor loads like air conditioners or water pumps can cause momentary surges that trigger overload faults.
• You can configure your inverter to bypass to the grid (Program 23) or attempt an auto-restart (Program 06) to manage overloads.

Why does my Tesla inverter show an overload fault (Error 07)?

Your Tesla inverter displays Error 07 when the connected electrical load exceeds its rated capacity for a specific duration. This is a protective measure to prevent damage to the inverter. The most common cause is too many appliances running simultaneously, especially those with high startup power demands.

The first thing to check is the total wattage of all active appliances connected to your inverter. Compare this to your inverter's rated output power.

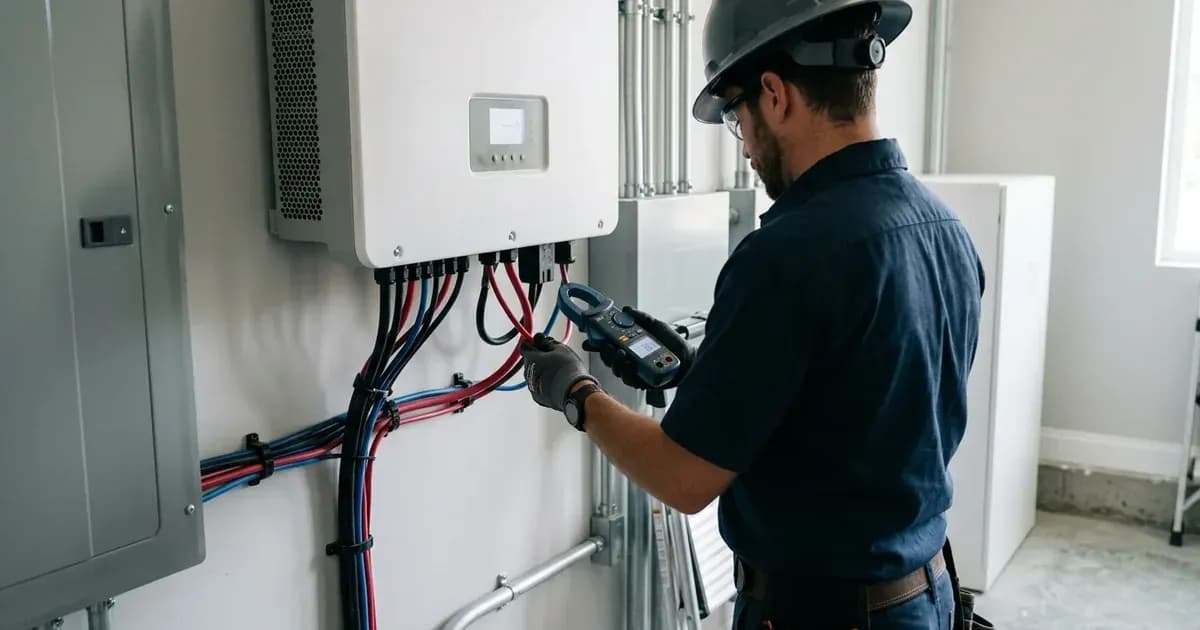

Diagnosis and Troubleshooting Steps

Follow these steps to diagnose and resolve an overload fault on your Tesla inverter:

1. Identify the Fault Code:

• • Check the Inverter Display: Confirm that the inverter's LCD screen shows "Fault 07" or "Warning 07".
  • Listen for Alarms: If "Warning 07" is active, you will hear a beep once every 0.5 second. Fault 07 typically results in a shutdown.

2. Reduce Connected Load:

• • Immediate Action: Disconnect or switch off non-essential appliances immediately. Start with high-power devices like air conditioners, water pumps, electric irons, or microwave ovens.
  • Observe Inverter: If the fault clears, gradually reintroduce essential loads one by one to identify which combination triggers the overload.

3. Check Overload Trip Timing:

• • Understand Trip Curves: Your Tesla inverter is designed to operate for 10 seconds when the load is between 105% and 110% of its rated capacity. If the load is at or greater than 110%, it will trip after 5 seconds. This timing helps you understand how quickly the inverter reacts to excessive loads.
  • Surge Capacity: Remember that the inverter can handle a surge of up to 2 times its rated power for 5 seconds. For example, a Tesla Infinity HLE 6KW inverter has a 6000W rated output and can handle a 12000VA surge for 5 seconds. A Tesla Infinity HLE 8KW inverter, with an 8000W output, can handle a 16000VA surge for 5 seconds.

4. Review Inverter Settings (Program 23 - Overload Bypass):

• • Access Program 23: Navigate to Program 23 on your inverter's settings menu.
  • Enable Bypass: The default setting is bYd (Bypass disable). Change this to bYE (Bypass enable). When enabled, if an overload occurs while the inverter is running in battery mode, it will automatically transfer the load to the utility (grid) line mode instead of shutting down. This can prevent complete power loss during temporary overloads.

5. Review Inverter Settings (Program 06 - Auto Restart):

• • Access Program 06: Navigate to Program 06 on your inverter's settings menu.
  • Enable Auto Restart: The default setting is LFd (Overload restart disable). Change this to LFE (Overload restart enable). If enabled, the inverter will attempt to automatically restart after an overload trip, restoring power without manual intervention.

6. Consider Inductive Loads:

• • Motor Start-Up: Appliances with electric motors (e.g., refrigerators, air conditioners, water pumps) draw a significantly higher current at startup (often 3 to 5 times their running wattage). This momentary surge can exceed the inverter's surge capacity, triggering Error 07 or Fault 51 (over current or surge).
  • Stagger Start-Up: Avoid starting multiple inductive loads simultaneously. Allow one motor to stabilize before starting another.

7. Check for Internal Faults (If Problem Persists):

• • If you have reduced the load, adjusted settings, and the inverter continues to trip with Error 07, there might be an internal hardware issue. Fault 51 (over current or surge) can also indicate a problem with the inverter's output stage.

Cause/Fix Table

Managing Overloads with Tesla Inverter Settings

Tesla inverters, built on the Voltronic Power OEM platform, offer specific program settings to manage and mitigate overload situations. Understanding these settings is key to preventing frequent trips and ensuring system stability.

Overload Bypass Mode (Program 23)

This setting determines how your inverter reacts when an overload occurs while it's operating in battery mode.

• bYd (Bypass disable, default): The inverter will shut down its output if an overload timeout occurs. This means a complete loss of power until the fault is cleared and the inverter is restarted.
• bYE (Bypass enable): If an overload occurs while the inverter is running on battery power, it will automatically transfer the load to the utility (WAPDA grid) line mode. This prevents a complete shutdown and ensures continuous power supply, provided the grid is available.

For domestic homes with heavy motor loads or during periods of load shedding, setting Program 23 to bYE is commonly reported by installers as a practical solution to maintain power continuity.

Auto Restart on Overload (Program 06)

This program controls whether your inverter attempts to restart automatically after an overload trip.

• LFd (Overload restart disable, default): The inverter will remain off after an overload trip, requiring manual intervention to restart.
• LFE (Overload restart enable): The unit will attempt an automatic restart after an overload trip. This can be convenient, but if the underlying cause of the overload (e.g., too many appliances) is not addressed, the inverter may repeatedly trip and restart.

Inductive Load Management

Inductive loads, such as refrigerators, air conditioners, and water pumps, are a frequent cause of overload faults. These appliances can draw a momentary start-up surge that is 3 to 5 times their running wattage. For example, a 1.5-ton inverter AC running at 1500W can pull over 4000W during startup. On a Tesla Infinity 6kW or Axpert 5.6kW inverter, concurrent motor starts can breach the surge capacity, leading to instant Error 07 or Fault 51 (over-current surge).

To manage these loads:

• Stagger Start-Up: Avoid turning on multiple motor-driven appliances at the same time.
• Consider Inverter Sizing: Ensure your inverter is adequately sized for your peak load, including potential surges. You can use a tool like the solarnevs inverter sizing calculator to estimate your needs. For guidance on appropriate sizing, refer to our guide on what size solar inverter you need for your house in Pakistan.

Safety: High Voltage and Thermal Management

Working with solar inverters involves significant electrical hazards. Always prioritize safety.

• High-Voltage DC Shock Hazard: Solar array open-circuit voltages can range from 80VDC to 500VDC on single-phase Tesla Infinity HLE / Axpert models, depending on the specific model, and reach up to 1000VDC on three-phase HSC / Infini Plus series. These high DC voltages can create persistent, lethal electrical arcs. Always assume circuits are live until verified otherwise.
• Internal Capacitor Discharge: After shutting down the inverter, internal high-voltage DC bus capacitors retain dangerous electrical charges. Technicians must wait at least 5 minutes after isolating PV, battery, and AC grid disconnects before attempting to remove any chassis covers.
• Environmental Protection (IP Rating): Tesla Infinity HLE / HSE / Axpert Lines are IP21 rated, meaning they are designed for indoor installation only in a dry, ventilated, dust-controlled area. Installing these models outdoors or exposing them to moisture can cause corrosion, short circuits, and will void the warranty. Tesla HSC Series inverters are IP65 rated and are suitable for outdoor mounting.
• Thermal Management and Fan Maintenance: Overload faults can sometimes be exacerbated by poor cooling. Ensure your inverter has at least 200mm side and 500mm top airflow clearance. For models equipped with anti-dust filter kits, the air filter foam should be cleaned every 1 month to prevent restricted airflow and cooling fan strain, which can lead to Fault Code 02 (over temperature) or contribute to overload issues.

When to call a technician instead

While many overload issues can be resolved with simple load management and setting adjustments, there are situations where professional help is required:

• Persistent Faults: If Error 07 or Fault 51 (over current or surge) persists despite reducing loads and adjusting Program 06 and 23 settings, it may indicate an internal hardware failure.
• Unusual Noises or Smells: Any burning smells, smoke, or unusual noises from the inverter should prompt immediate shutdown and a call to a technician.
• Internal Component Failure: Faults like "Fault 51 Over current or surge" that do not clear after a restart may mean internal components like output MOSFETs or IGBTs are damaged.
• Warranty Concerns: Attempting unauthorized internal repairs will void your inverter's warranty. Tesla Industries Pakistan offers a standard 1-Year to 2-Year official repair/replacement warranty. For internal issues, contact an authorized Tesla service center in Islamabad, Lahore, or Karachi.
• Complex Wiring Issues: If you suspect a short circuit in your home's wiring or distribution box, a qualified electrician or solar technician should be consulted.
