Ziewnic Inverter Error Codes List (Axpert, Diamond, Max Series): Diagnose and Fix Common Faults

Updated 7 September 2026 · By SolarNevs Research Desk, Dealer surveys + verified sources · 2 sources · Method ↗

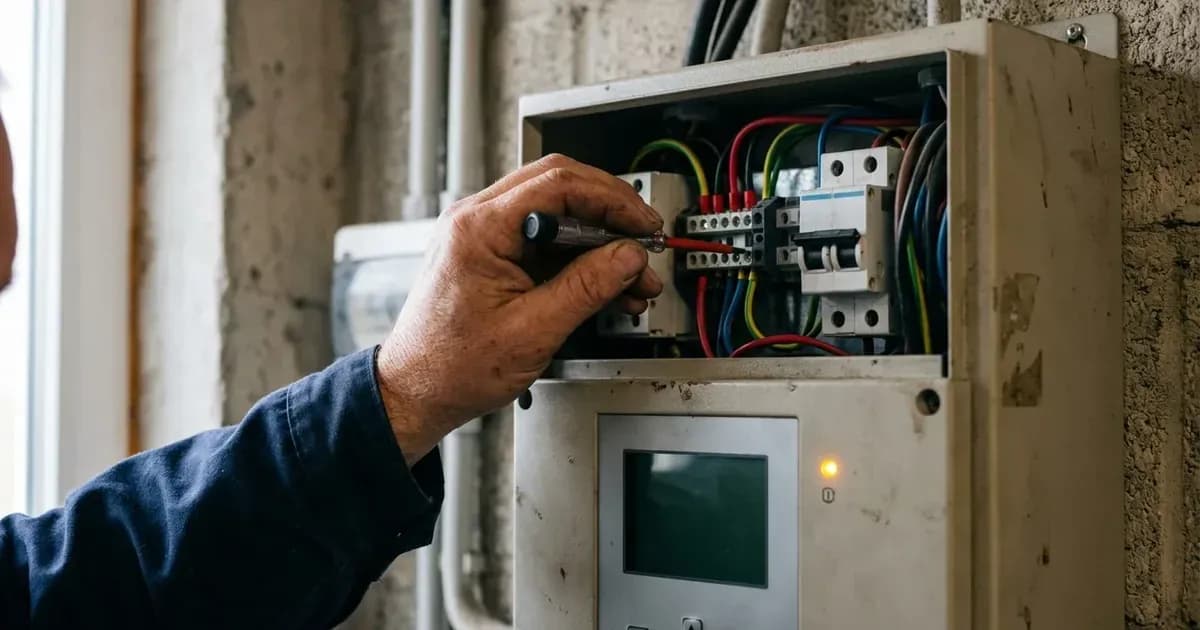

Electrician diagnosing inverter wiring terminals and status indicator light — SolarNevs spec card

Key Takeaways

  • The most common Ziewnic inverter issues in Pakistan are overload trips (Fault 07) and internal component over-temperature conditions (Fault 02).
  • Always check the inverter's LCD display for a specific 2-digit fault code (01 to 59) or warning code (01 to 32) as your first diagnostic step.
  • Solar array open circuit voltages reach up to 450 VDC / 500 VDC on single-phase models and up to 800 VDC on three-phase hybrid models. High DC voltages pose a lethal electric shock hazard and create persistent DC arcing risks. Always wait at least 5 minutes after disconnecting all solar PV, battery DC, and AC grid supplies before removing enclosure panels or servicing terminal blocks.
  • Internal hardware alarms (Fault 08, 09, 53, 57) are not field-serviceable and require an authorized Ziewnic service center in Karachi or Lahore.

IMPORTANT: This guide and the error codes listed apply exclusively to Ziewnic inverters built on the Voltronic Power OEM platform (Axpert Ultra, Axpert Twin Premium +, Diamond, and Max series). Ziewnic Lenox and Roux series inverters use different diagnostic systems and fault codes, and this information does not apply to them.

What Do Ziewnic Inverter Error Codes and Warnings Indicate?

Ziewnic inverters, particularly the Axpert Ultra, Axpert Twin Premium +, Diamond, and Max series, use standardized two-digit codes to signal operational events and protection trips. These codes are divided into Faults (01 to 59), which cause the inverter to shut down its AC output, and Warnings (01 to 32), which indicate abnormal operating conditions while allowing the inverter to continue running.

In Pakistan, most Ziewnic hybrid and off-grid models are built on the Voltronic Power OEM platform (including Axpert VM IV TWIN and Axpert MAX architecture). This shared firmware foundation means error codes, diagnostic meanings, and troubleshooting workflows remain consistent across models. Understanding these codes helps installers and homeowners resolve external load and battery faults quickly or identify when internal components require authorized service.

Diagnosing Ziewnic Inverter Faults and Warnings

When your Ziewnic inverter displays an error or warning code, follow this systematic four-step diagnostic procedure:

  1. Check the LCD Display: Note the exact two-digit fault code (01 to 59) or warning code (01 to 32) shown on the screen.
  2. Observe LED Indicators:
    • A solid red Fault LED indicates a critical fault condition, and the inverter has shut down its AC output.
    • A flashing red Fault LED indicates a warning condition, and the inverter is still operating.
    • The Line (green) LED is solid on when powered by utility in Line mode, and flashing when powered by battery or PV.
    • The Charging (green) LED is solid on when the battery is fully charged, and flashing when actively charging.
  1. Listen for Audible Alarms: Some warnings and faults sound distinctive beeping alerts. For example, Warning 01 (fan locked) beeps three times every second, Warning 07 (overload) beeps once every 0.5 second, and Warning 10 (power derating) beeps twice every 3 seconds.
  2. Inspect the Physical Environment and Wiring:
    • Verify cooling fans spin freely without dust buildup.
    • Ensure adequate airflow clearances around the chassis (>200mm side, >500mm top).
    • Clean anti-dust foam filter kits monthly to prevent restricted air intake.
    • WARNING: Before inspecting or tightening battery terminals, ensure all power sources to the inverter are disconnected and use insulated tools, because a spanner across a battery bank shorts hundreds of amps and creates severe arc flash and fire hazards.

Ziewnic Inverter Fault and Warning Code Table

This reference table lists the standardized fault and warning codes across Ziewnic Voltronic OEM platform models, including Axpert Ultra, Axpert Twin Premium +, Diamond 5G/6G, and Max series: Lenox and Roux touch-screen hybrid models run different platforms with their own fault-code schemes — identify your model series from the front label before using this table.

Code

Type

Meaning / Fault Event

Trigger Condition & Diagnostics

Fix Direction / Recommended Action

Fault 01

Fault

Fan is locked when inverter is off

Internal cooling fan jammed, defective, or tachometer disconnected during standby.

Clean dust/obstructions from fan grille; check connector; replace cooling fan if motor failed.

Fault 02

Fault

Over temperature

Internal heatsink/component temperature exceeds 100°C.

Check airflow clearances (>200mm side, >500mm top); clean anti-dust foam filter; reduce load.

Fault 03

Fault

Battery voltage is too high

Battery bank voltage exceeds your inverter's high DC cut-off threshold. This threshold varies by model and battery voltage (e.g., typically around 32-33V for 24V systems and 63-66V for 48V systems).

Verify battery count (e.g. 2x12V or 4x12V); test individual cell voltages; verify your specific model's specifications and check your charge voltage settings in Program 26/27.

Fault 04

Fault

Battery voltage is too low

Battery voltage drops below low DC cut-off threshold (21.0 V for 24 V; 42.0 V for 48 V).

Re-charge batteries from solar/grid; test for dead/sulfated cells; increase cutoff voltage in Program 29.

Fault 05

Fault

Output short circuited

Direct AC output short circuit or severe wiring fault detected.

Turn off AC output breaker immediately; inspect AC load distribution board; clear short circuit.

Fault 06

Fault

Output voltage is too high

Inverter AC output exceeds upper limit (>260 Vac).

Reduce connected reactive load; restart inverter; return to authorized repair center if persistent.

Fault 07

Fault

Overload time out

Connected load exceeds rating (≥110% load for 5s, or 105%–110% load for 10s).

Shed heavy appliances (compressors, ACs, irons); reset unit; enable overload bypass in Program 23.

Fault 08

Fault

Bus voltage is too high

DC high-voltage bus capacitor over-voltage caused by severe grid/PV voltage spike.

Restart inverter after voltage stabilizes; if recurring, internal DC bus clamp failed (repair center).

Fault 09

Fault

Bus soft start failed

DC bus soft-start resistor or charging circuit failed to ramp up bus voltage smoothly.

Power cycle inverter; check for PV surge or battery ground fault; internal hardware repair required.

Fault 10

Fault

PV over current

Solar panel array current exceeds maximum input rating (e.g. >27 A).

Reconfigure PV string parallel combinations; ensure string currents match inverter MPPT limits.

Fault 51

Fault

Over current or surge

Instantaneous current surge detected on inverter output or DC bridge.

Disconnect heavy inrush loads; restart unit; if fault does not clear, output IGBT damaged.

Fault 52

Fault

Bus voltage is too low

DC bus voltage collapsed under sudden heavy load or battery voltage drop.

Check battery health; verify cable thickness; ensure battery terminals are not loose/corroded.

Fault 53

Fault

Inverter soft start failed

AC output bridge failed to ramp up AC voltage cleanly at start-up.

Disconnect all AC loads during startup; restart unit; if persistent, internal board service needed.

Fault 55

Fault

Over DC voltage in AC output

DC offset leakage detected in AC output (> unbalanced output threshold).

Disconnect loads and test output; internal output DC decoupling transformer/filter failure.

Fault 57

Fault

Current sensor failed

Internal Hall current transducer or op-amp sensing circuit failed.

Power cycle inverter; return to authorized repair center if sensor drift persists.

Fault 58

Fault

Output voltage is too low

Inverter AC output voltage drops below acceptable range (<190 Vac).

Reduce load; inspect AC wiring; verify battery capacity; return for service if unloaded voltage is low.

Fault 59

Fault

PV voltage is beyond acceptable range

Solar PV open-circuit string voltage exceeds your model's maximum limit (e.g., 400-500 VDC depending on series).

Reduce number of solar panels wired in series per string; recalculate open-circuit voltage at winter temperatures.

Warning 01

Warning

Fan is locked when inverter is on

Cooling fan blocked while inverter is actively operating (Beep 3x/sec).

Clear dust from fan housing immediately; verify fan spin; replace fan before thermal trip occurs.

Warning 02

Warning

Over temperature

Inverter heatsink temperature elevated; approaching thermal derating limit (No audible alarm).

Improve ventilation; clean filter sponge; ensure no direct sunlight on inverter body.

Warning 03

Warning

Battery is over-charged

Battery bank voltage higher than standard charging curve (Beep 1x/sec).

Verify charging voltage set in Program 26/27; calibrate user battery parameters; check solar controller.

Warning 04

Warning

Low battery

Battery voltage approaching low DC cut-off threshold (Beep 1x/sec).

Allow solar/grid to charge battery bank; reduce non-critical DC/AC loads during power outage.

Warning 07

Warning

Overload

Connected load between 100% and 110% of rated capacity (Beep 1x every 0.5 sec).

Reduce connected appliances before the 10-second overload countdown trips into Fault 07.

Warning 10

Warning

Output power derating

Output power derated due to high temperature or low AC input voltage (<170 V) (Beep 2x every 3s).

Provide active cooling; adjust AC input range in Program 03 from UPS to Appliance mode (90–280V).

Warning 15

Warning

PV energy is low

Solar panel generation insufficient to support load or charging (Beep 2x every 3s).

Normal at dawn/dusk/cloudy days; check for panel shading, heavy dust buildup, or blown DC string fuse.

Warning 16

Warning

High AC input (>280 VAC) during BUS soft start

Utility grid voltage exceeds 280 VAC during bus initialization (No audible alarm).

Wait for grid voltage to normalize; install external voltage stabilizer if WAPDA voltage fluctuates high.

Warning 32

Warning

Communication failure between inverter and display panel

Removable LCD display / control board flat ribbon cable loose or damaged (No audible alarm).

Reseat the RJ45/ribbon cable connecting the front LCD display module to the main inverter motherboard.

Warning 60 / 61

Warning / Fault

BMS communication lost / Lithium battery comm error (lithium-paired models; code numbering varies by firmware — confirm the code meaning in your unit's manual before rewiring)

RJ45 communication loss between lithium battery BMS and inverter BMS port.

Before checking or modifying RJ45 cable pinouts, ensure all power sources (PV, battery, AC grid) to the inverter and battery are disconnected, and wait at least 5 minutes for internal capacitors to discharge. Incorrect wiring can damage the battery BMS or inverter. Check custom RJ45 cable pinout (PIN 3/5 RS485 or PIN 6/7 CAN); verify protocol selection in Prog 05 (PYL/Lib). If unsure, consult an authorized technician to preserve warranty.

Understanding Ziewnic Inverter Status Indicators

Beyond specific numerical error codes, your Ziewnic inverter provides visual indicators through its LCD panel and LED cluster to report system status:

  • No Response / Completely Blank Screen: If the inverter displays no screen characters and no LEDs illuminate upon power-on, the battery voltage is far too low (<1.4 V per cell, translating to <16.8 V on a 24 V bank or <33.6 V on a 48 V bank) or battery polarity is connected reversed. Check battery terminal wiring polarity and recharge depleted batteries.
  • Automatic Shutdown During Startup: If the LCD/LEDs and buzzer are active for 3 seconds then shut completely off, the battery voltage is too low (<1.91 V per cell, translating to <22.9 V on a 24 V bank or <45.8 V on a 48 V bank). Recharge or replace the battery bank.
  • Inverter On, Display Active, No AC Output: This symptom indicates an active fault lockout (such as Fault 05 for short circuit, Fault 07 for overload, Fault 02 for over-temperature, or Fault 51 for surge), the power rocker switch is in standby mode, or an external AC distribution breaker has tripped.

For comprehensive fault diagnostic references, cross-reference our master inverter error code glossary. If your inverter powers on without generating AC electricity, consult our dedicated guide on inverter shows error but no output. For thermal throttling and high fan speeds, see inverter overheating and fan noise. If your unit sounds continuous acoustic alerts, refer to inverter beeping continuously.

Safety: High Voltage, Chemical, and Terminal Hazards

Working with solar inverters and battery storage banks involves significant electrical and chemical hazards. Always prioritize safety:

  • High-Voltage DC Shock Hazard: Solar array open circuit voltages reach up to 450 VDC / 500 VDC on single-phase models (Diamond, Axpert, Max, Roux) and up to 800 VDC on three-phase hybrid models (Lenox 12kW). High DC voltages pose a lethal electric shock hazard and create persistent DC arcing risks. Always verify electrical isolation before handling wiring.
  • Internal Capacitor Stored Energy Discharge: High-voltage DC bus capacitors store significant electrical charge. Installers and service technicians must wait at least 5 minutes after disconnecting all solar PV, battery DC, and AC grid supplies before removing enclosure panels or servicing terminal blocks.
  • Environmental Placement & IP Boundaries: Ziewnic inverters with an IP21 rating (Diamond II 6G, Diamond 5G, Axpert Ultra, Axpert Twin Premium +, Max Series, and Roux Series) must strictly be installed indoors in a clean, dry, and well-ventilated area, protected from rain and direct water spray. Lenox 3.0 series models have an IP65 rating and are suitable for outdoor wall installation.
  • Anti-Dust Filter Maintenance: Inverters equipped with anti-dust filter kits must be cleaned of dust every one month to maintain cooling airflow and prevent thermal derating or Fault 02 over-temperature trips.
  • Lead-Acid Equalization Gassing & Ventilation: During battery equalization (Program 30/31 at 29.2 V / 58.4 V referenced to 25°C), flooded lead-acid batteries emit explosive hydrogen and oxygen gas. The battery compartment must maintain positive cross-ventilation away from sparks and flames. Never equalize sealed lithium or AGM/gel batteries.
  • Battery Terminal Connections and Short-Circuit Risks: When tightening or disconnecting terminals, always kill power first and use insulated tools. A metal spanner or wrench across a battery bank shorts hundreds of amps, causing severe burns, explosive arcing, and permanent hardware damage.

When to call a technician instead

While many common issues can be resolved with basic troubleshooting, some problems require professional assistance:

  • Internal Component Failures: Fault codes 08 (Bus voltage is too high), 09 (Bus soft start failed), 53 (Inverter soft start failed), and 57 (Current sensor failed) indicate internal hardware malfunctions that are not field-serviceable. These require return to an authorized repair center.
  • Persistent Faults and Warranty Claims: If an error code persists despite following the recommended troubleshooting steps, contact Ziewnic's technical helpline or visit an authorized service center in Karachi (Regal Chowk Saddar) or Lahore (Mozang Road). Ziewnic offers a 5-Year PCBA replacement warranty on flagship hybrid lines (Lenox) and standard 3 to 5-year warranties on retail models.
  • Warranty Integrity: Any unauthorized opening of internal component sub-assemblies or uncertified board repairs may void your manufacturer warranty.

Frequently asked questions

What does Ziewnic inverter Fault 07 mean?

Fault 07 indicates an overload timeout. This occurs when the connected load exceeds the inverter's capacity, for example, 105%–110% load for 10 seconds or ≥110% load for 5 seconds. The inverter will shut down to protect itself.

My Ziewnic inverter shows Fault 02. What should I check?

Fault 02 signals an over-temperature condition, meaning the internal heatsink or component temperature has exceeded 100°C. Check for blocked airflow clearances (>200mm side, >500mm top), clean the anti-dust filter, and reduce the connected load.

What should I do if my Ziewnic inverter displays Fault 03?

Fault 03 means the battery voltage is too high, exceeding your inverter's high DC cut-off threshold. This threshold varies by model and battery voltage (e.g., typically around 32-33V for 24V systems and 63-66V for 48V systems). Verify your specific model's specifications and check your charge voltage settings in Program 26/27.

How do I fix Ziewnic Warning 01?

Clear dust from fan housing immediately; verify fan spin; replace fan before thermal trip occurs. If the fan is still locked or requires internal access for cleaning/replacement, then isolate all PV, battery, and AC supplies and wait at least 5 minutes for internal capacitors to discharge before proceeding. Fan replacement requires opening the unit — use an authorized Ziewnic service center to preserve your warranty.

What does Ziewnic Fault 59 indicate?

Fault 59 means the PV voltage is beyond the acceptable range, specifically that the solar array open-circuit string voltage exceeds your model's maximum PV open-circuit limit (e.g., 430 VDC on Diamond II 6G, 500 VDC on Axpert Ultra; check your nameplate). Isolate the array, then reduce the number of panels wired in series per string.
