UK Commercial Flat Roof Solar Ballasting and Wind Deflector Guide

Key Takeaways

• Non-penetrating ballasted solar arrays protect single-ply, felt, or asphalt commercial flat roof membranes from water penetration.
• Under Class J permitted development, equipment on flat roofs must not exceed 1 metre above the highest roof point.
• Arrays must maintain a strict 1 metre buffer from all external roof edges.
• Building Regulations Approved Document A dictates that total roof loadings must not compromise existing structural elements.
• Aerodynamic rear wind deflectors significantly reduce negative wind suction, limiting total ballasting dead load.
• Designers must ensure long-term maintenance access without creating fall hazards under the 2015 Regulations.

Planning Geometry and Class J Parameters

Commercial rooftop installations in England proceed under Class J of Schedule 2 to the General Permitted Development Order:

• Permitted Scope: Authorises the installation, alteration or replacement of microgeneration solar thermal equipment, microgeneration solar PV equipment, or other solar PV equipment on the roof of a building other than a dwellinghouse or a block of flats.
• Height Ceiling: The highest part of the solar PV equipment would be higher than 1 metre above the highest part of the roof (excluding any chimney). Exceeding this 1 metre threshold requires planning permission.
• Perimeter Buffer: Development is not permitted if the solar PV equipment or solar thermal equipment would be installed within 1 metre of the external edge of that roof.

Structural Integrity: Approved Document A

Adding ballasted arrays places significant static dead load onto flat roof decking, beams, and columns:

• Statutory Standards: Approved Document A provides statutory building regulation in England covering the structural elements of a building.
• Roof Loadings: This edition covers the loadings on a building, and the construction of the structural elements including the foundations, walls, floors, roofs and chimneys.
• Oversight Duty: Since April 2023, the Building Safety Regulator has a duty under the Building Safety Act 2022 to keep under review the safety and standards of all buildings in England, which includes advising government on updates to the Approved Documents.
• Reference: Approved Document A: structure Ref: ISBN 978 1 85946 508 0.

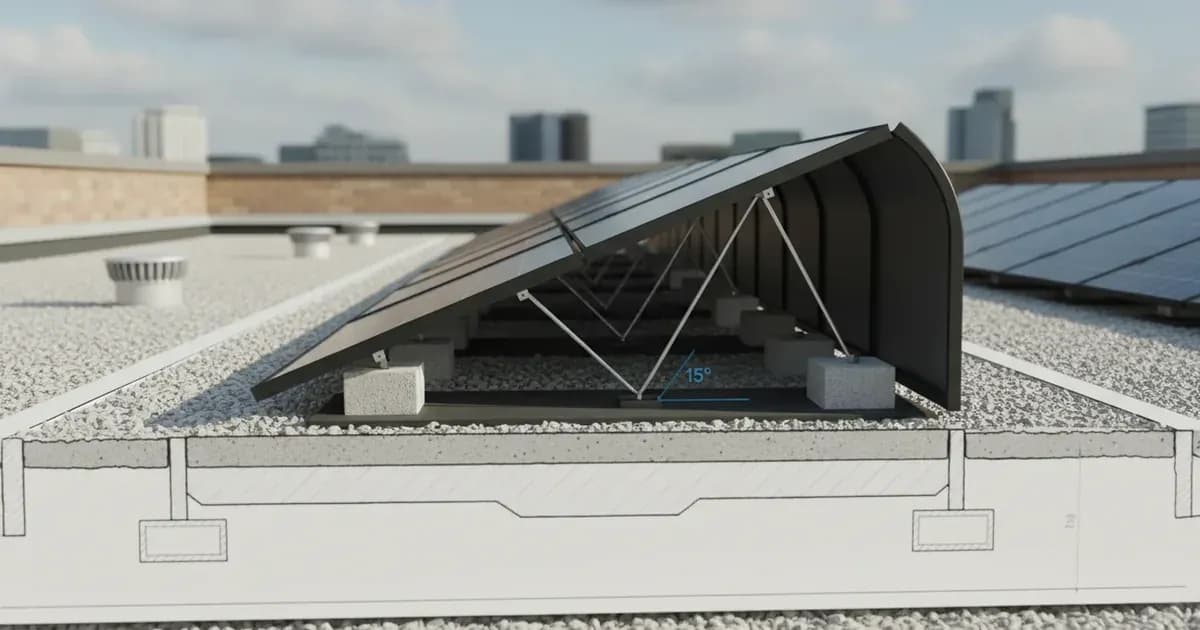

Aerodynamics: Ballast Blocks vs Rear Wind Deflectors

Open-backed solar modules tilted toward the south create aerodynamic drag that generates severe uplift during gale-force wind events:

1. Without Deflectors: Upward suction forces require substantial concrete ballast blocks (often exceeding standard structural tolerances), threatening the load-bearing capacity of lightweight metal deck roofs.
2. With Aerodynamic Deflectors: Sloped aluminium or steel panels close off the rear of each row, directing horizontal wind streams over the array and generating downward aerodynamic force. This reduces necessary ballast blocks to manageable levels.
3. Protective Underlay: Ballasted trays rest on protective rubber mats (EPDM or recycled rubber) to distribute pressure and protect delicate waterproof membranes.

Construction Safety and Maintenance Compliance

Installing and servicing ballasted systems requires full compliance with occupational health statutes:

Designer Risk Mitigation under the 2015 Regulations

Under Regulation 9 of the Construction (Design and Management) Regulations:

• When preparing or modifying a design the designer must take into account the general principles of prevention and any pre-construction information to eliminate, so far as is reasonably practicable, foreseeable risks to health or safety.
• Risks must be eliminated for persons maintaining or cleaning a structure.
• A designer must take all reasonable steps to provide, with the design, sufficient information about the design, construction or maintenance of the structure, to adequately assist the client, other designers and contractors to comply with their duties under these Regulations.

Work at Height Precautions

Under Regulation 6 of the Work at Height Regulations 2005:

• Where work is carried out at height, every employer shall take suitable and sufficient measures to prevent, so far as is reasonably practicable, any person falling a distance liable to cause personal injury.
• Employers must satisfy this duty by providing sufficient work equipment for preventing, so far as is reasonably practicable, a fall occurring.
