SolaX BatPowerLow & Battery Not Charging: UK Diagnostics Guide

Key Takeaways

• SolaX error code IE 18 BatPowerLow indicates that the connected battery has discharged to its minimum state of charge (SOC) threshold in emergency power supply (EPS) or off-grid mode.
• The first recovery action is shutting down non-essential household circuits, pressing the ESC key on the inverter keypad to clear the latch, and allowing PV generation or off-peak mains power to recharge the pack.
• When handling high-voltage battery storage, always turn off the system via the LCD, open the AC and DC isolators, and wait at least five minutes for stored capacitive energy to dissipate.
• Persistent charging lockouts accompanied by BMS error codes (such as BE 04 BMS_LowerVolt or BMS_Relay_Fault) point to deep cell discharge or contactor failure requiring forced charging or technician service.

What causes the SolaX BatPowerLow (IE18) error?

When a SolaX X1-Hybrid or X1-Fit storage inverter displays IE 18 BatPowerLow, the battery management system (BMS) has engaged low-capacity lockout protection. This occurs when battery reserve energy is completely depleted, usually following an extended power cut or prolonged off-grid operation.

Official manufacturer engineering bulletins explain: it indicates the battery has reached the Minimum SOC (off-grid). Charge the battery via PV/grid or adjust Min Esc Soc settings under "EPS Settings". A companion technical notice confirms: the battery has reached the minimum SOC (State of Charge) in EPS mode. Recharge the battery via PV/grid or adjust SOC settings.

In the UK, pairing high-voltage lithium storage with smart time-of-use tariffs is standard practice, but safety enclosures and fire protection must conform to British standards detailed in our battery storage fire safety guide. System wiring must align with our UK solar electrical installation guide.

SolaX charger configuration and default settings

If your battery sits idle despite available daylight or mains grid power, check the inverter charging parameters. SolaX hybrid firmware provides a dedicated configuration menu: Setting Charger The inverter is compatible with lithium-ion battery and Lead-acid battery. You can set the charge & discharge parameters of battery.

The factory defaults for lithium-ion storage systems (such as the Triple Power T-BAT SYS-HV) are:

• Maximum Charge Current: • Max Charge: Maximum charging current of battery. Default: 30A, range: 0-30A.
• Maximum Discharge Current: • Max Discharge: Maximum discharging current of battery. Default: 30A, range: 0-30A.
• State of Charge Ceiling: • Charger upper limit: Default: 100%, range: 10%-100% » The maximum battery SOC when charging.

If the Max Charge parameter has been inadvertently restricted to 0A or throttled by an upstream home automation script, the inverter will refuse to charge the battery.

Triple Power T-BAT BMS error codes and fault modes

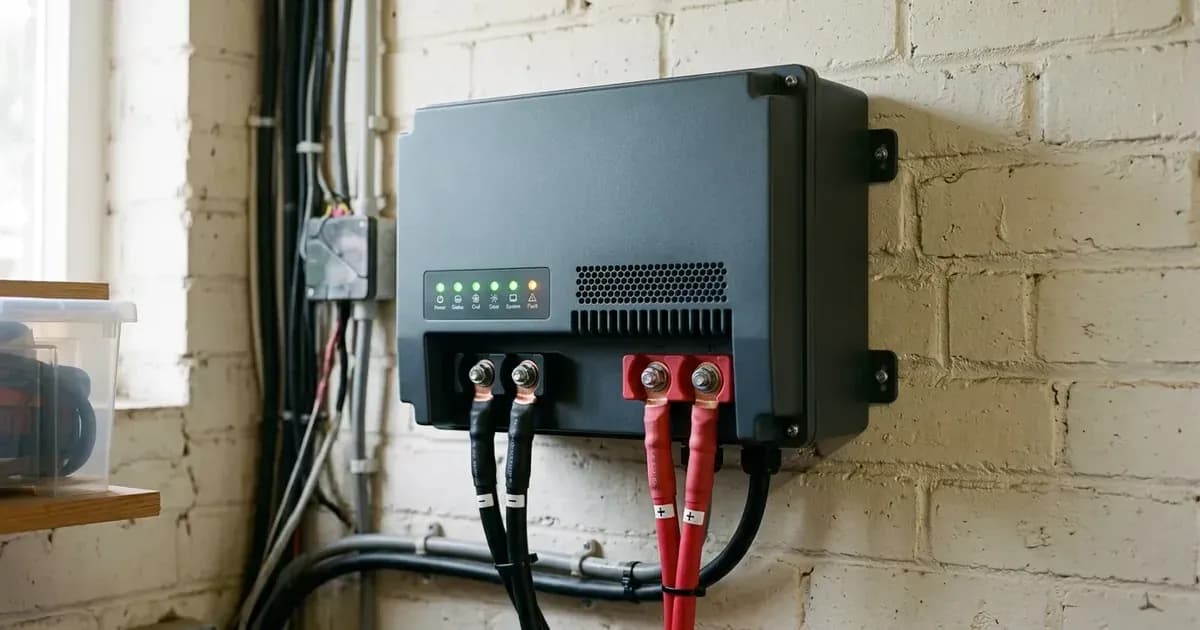

When paired with SolaX high-voltage lithium storage (TBMS-MCS0800 master controller with TP-HS25 or TP-HS36 modules), battery charging lockouts are often reported under the BE error series or T-BAT BMS status codes:

1. BMS Communication Disconnection (IE 19 & BMS_External_Err): Inverter code IE 19 BMS Lost signals battery communication lost. The T-BAT manual classifies this as: BMS_External_Err External fault of BMS Unable to establish communication with inverter: ■ Restart BMS; ■ Contact the after-sales personnel of our company. Always verify: • Check that the communication cable between the battery and the inverter are properly connected.
2. Inter-Module Communication Fault (BMS_Internal_Err): BMS_Internal_Err Internal fault of BMS Unable to establish communication with inverter: ■ Restart BMS; ■ Check whether the connection among batteries is normal; ■ Contact the after-sales personnel of our company.
3. Severe Cell Undervoltage (BE 04 & BMS_LowerVoltage): Reported on the inverter as BE 04 BMS_LowerVolt Low voltage in battery system. The battery manual directs: BMS_LowerVolatge BMS undervoltage Undervoltage of single battery. ■ Battery is forced to charge through inverter; ■ Contact the after-sales personnel of our company.
4. BMS Insulation Breakdown (BE 12 & BMS_Insulation_Fault): BE 12 BMS_ISO_Fault Battery insulation fault. The battery guide specifies: BMS_Insulation_Fault Insulation fault Insulation fault of BMS. ■ Restart BMS; ■ Contact the after-sales personnel of our company.
5. Safety Contactor Adhesion (BE 16 & BMS_Relay_Fault): BE 16 BMS_Relay Fault Battery relay fault. The T-BAT manual records: BMS_Relay_Fault Relay fault Relay contact adhesion fault of BMS. Restart BMS;

Step-by-step recovery procedure for BatPowerLow

To clear an active BatPowerLow latch and recover battery operation safely, follow this sequence:

Step 1: Shed high-power electrical loads

Heavy electrical demand connected to the EPS backup terminal will immediately trip an undervoltage pack back into lockout. Follow manufacturer instructions: • Shutdown the high-power device and press the ESC key to restart the inverter.

Step 2: Clear latch and initiate charging

Press the ESC key on the front keypad to clear the fault screen. Ensure solar PV strings are active or enable grid charging in the inverter work mode settings.

Step 3: Achieve protection recovery threshold

Continue charging until the pack recovers healthy cell potential: • Charge the battery to a level higher than the protection capacity or protection voltage.

Step 4: Adjust EPS minimum SOC reserve

If the property experiences frequent grid outages, navigate to EPS Settings and increase the Min Esc Soc threshold (for instance, from 10% to 20%). This retains sufficient reserve capacity to prevent the battery from touching critical undervoltage cutoffs during power cuts.

Battery triage and symptom matrix

Maintaining an operational battery allows homeowners to capture off-peak grid power and export surplus solar under Smart Export Guarantee tariffs.

High-voltage lithium battery safety measures

Working around high-voltage DC storage batteries requires stringent safety compliance:

• High DC Bus Potential: SolaX T-BAT systems operate at series voltages reaching several hundred volts DC. Contact with exposed battery terminals can result in severe shock or arc flash injuries.
• Capacitor Discharge Time: After the inverter is powered off, there may still be residual electricity and heat which may cause electric shocks and body burns. Please wear personal protective equipment (PPE) and start maintaining the inverter at least five minutes after power off.
• Approved Forced Charging: Never connect an external automotive or bench power supply directly to lithium cells. Always execute recovery charging strictly through the inverter internal charging circuits.
