Victron BYD Battery Compatibility: Setup Guide and Firmware Requirements

Key Takeaways

• A Victron GX device is essential for managing BYD B-Box batteries.
• Firmware versions on all Victron and BYD components must meet minimum requirements for compatibility.
• Communication between Victron and BYD systems relies on a 500 kbit/s BMS-Can (CAN-bus) connection.
• Always update firmware on new installations to ensure proper function and resolve potential issues.

How do I ensure Victron Energy and BYD B-Box batteries are compatible?

Ensuring compatibility between Victron Energy systems and BYD B-Box batteries primarily involves verifying firmware versions across all components and establishing correct communication protocols. A Victron GX device is mandatory for this integration.

Compatibility Checklist and Setup Verification Steps

This section outlines the necessary checks to confirm your Victron Energy and BYD B-Box battery system is correctly configured and compatible. Each step details an observable check and what its result means for your system.

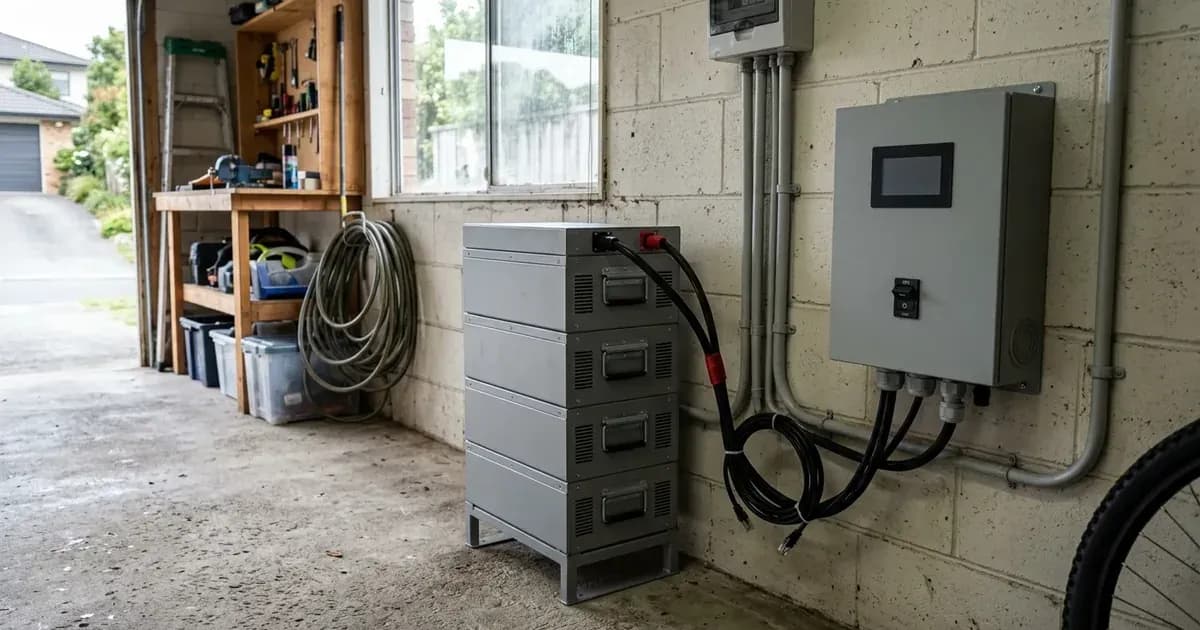

1. Verify GX Device Presence:

• • Check: Confirm that a Victron GX device, such as a Cerbo GX, is installed and operational within your system.
  • Result: A GX device is required for BYD B-Box battery management. Without it, the system will not function correctly with BYD batteries, as it facilitates the critical BMS-Can communication.

2. Check GX Device Firmware Version:

• • Check: Access the GX device's interface and note its current firmware version.
  • Result: For BYD B-Box Pro batteries, the GX device firmware must be v2.42 or newer. For BYD B-Box Premium LV batteries, the required firmware is v2.52 or newer. If your firmware is older, an update is necessary.

3. Verify Inverter/Charger Firmware Version:

• • Check: For 48V Victron Multis, MultiPlusses, MultiGrids, Quattros, or RS models, check their firmware version.
  • Result: The minimum supported firmware version for these inverter/chargers is 469. Older versions may lead to compatibility issues with BYD B-Box batteries.

4. Confirm BYD Battery Management Unit (BMU) Firmware:

• • Check: Identify the firmware version of your BYD B-Box Pro BMU or BYD B-Box Premium BMS.
  • Result: For BYD B-Box Pro BMU, the minimum version for Victron compatibility is V4-13 or v4.13. For BYD B-Box Premium batteries, the minimum version is V1.4, and for the Premium BMS, it is V1.3. Contact BYD for updates if your Pro BMU firmware is older. Premium battery firmware can often be updated automatically via the BMU's ethernet port when connected to the internet.

5. Inspect Communication Connections:

• • Check: Ensure a BMS-Can (CAN-bus) connection is established between the GX device and the BYD B-Box battery. Also, verify the VE.Bus connection between the inverter/charger and the GX device, and VE.Direct or VE.Can connections for solar chargers to the GX device.
  • Result: The BMS-Can connection operates at 500 kbit/s and is crucial for the communication of charge and discharge limits, error codes, and state of charge. The GX device regulates charge currents and voltages for solar chargers, making their connection mandatory.

6. Review BYD B-Box Model Compatibility:

• • Check: Identify your specific BYD B-Box battery model (e.g., B-Box Pro 2.5-10.0, B-Box Premium LVL 15.4).
  • Result: Victron Energy systems are compatible with various BYD B-Box models, including Pro, L, Premium LVL, LVS, LV Flex, and LV5.0+. However, Victron is not compatible with the BYD HVS/HVM range of high-voltage batteries.

Compatibility Requirements and Configuration Overview

This table summarizes the key components, settings, and requirements for integrating Victron Energy systems with BYD B-Box batteries. Adhering to these specifications ensures proper communication and operation.

System Integration and Firmware Management

Integrating Victron Energy and BYD B-Box batteries requires careful attention to component selection and firmware management. A Victron GX device, such as a Cerbo GX, is a mandatory component for any Victron-BYD system. This device acts as the central communication hub, translating information between the Victron inverter/chargers, solar chargers, and the BYD battery's Battery Management Unit (BMU).

Communication between the GX device and the BYD B-Box battery occurs via a BMS-Can (CAN-bus) connection, operating at a speed of 500 kbit/s. This protocol is responsible for transmitting essential data, including keep-alive signals, charge and discharge limits, error codes, and the battery's state of charge. Without this connection, the system cannot operate safely or efficiently.

For optimal performance and to avoid compatibility issues, it is recommended to use the latest firmware version on new installations for all Victron components, including the GX device and inverter/chargers. This practice also aids in troubleshooting any issues that may arise.

Specific minimum firmware versions are required depending on the BYD B-Box battery model:

• For BYD B-Box Pro batteries, the GX device firmware must be v2.42 or newer.
• For BYD B-Box Premium LV batteries, the GX device firmware must be v2.52 or newer.
• Victron inverter/chargers (48V Multis, MultiPlusses, MultiGrids, Quattros, RS models) require a minimum firmware version of 469.

BYD battery firmware also has minimum requirements:

• BYD B-Box Pro BMU requires firmware V4-13 or v4.13 for Victron compatibility. Batteries with older firmware versions can be updated; contact BYD for more information.
• BYD B-Box Premium batteries require firmware V1.4, and the Premium BMS requires V1.3. If necessary, this can be updated automatically via the ethernet port on the BMU when connected to the internet.

It is important to note that while many BYD B-Box models are compatible, Victron Energy systems are not compatible with the BYD HVS/HVM range of high-voltage batteries. Additionally, some older Victron solar charger models, such as the BlueSolar MPPT 150/70 CAN-bus and BlueSolar MPPT 150/85 CAN-bus, are end-of-life since 2019 and may not be suitable for new installations.

The BYD BMU automatically manages charge rates. While the document notes that temperature effects on charge rates should be considered in the design stage for hot and cold climates, specific figures for temperature compensation are not provided in the source material.

Safety: Electrical Connections and Firmware Updates

Working with solar energy systems involves high voltages and currents. Always prioritize safety during installation, configuration, and maintenance.

• Isolate Power: Before making or checking any electrical connections, ensure all power sources are isolated. This includes disconnecting PV arrays, battery banks, and AC grid connections. Wait for the manual's specified capacitor-discharge time for inverters and chargers before proceeding.
• Insulated Tools: Use only insulated tools when working on electrical components to prevent accidental short circuits. A spanner across a battery bank can short hundreds of amps, leading to severe burns or equipment damage.
• Firmware Updates: While firmware updates are crucial for compatibility and performance, they should be performed carefully. Ensure a stable power supply during the update process to prevent bricking devices. Follow manufacturer guidelines precisely. Opening a unit to replace components or clean heatsink fins is authorized-service work and should only be performed by qualified personnel after isolating all power sources.

When to call a technician instead

While this guide provides steps for verifying compatibility and configuration, certain situations warrant professional assistance. You should call a qualified solar technician if:

• You are unsure about any step in the installation or configuration process.
• Firmware updates fail or result in unexpected system behavior.
• You encounter persistent communication errors between components despite verifying all connections and firmware versions.
• The system displays error codes not covered in the general compatibility documentation (as specific error codes are not detailed in the provided source material).
• You are dealing with high-voltage or high-current connections and lack the necessary safety equipment or expertise.
• The BYD B-Box Pro BMU requires a firmware update, as this process may necessitate contacting BYD directly for support.

Attempting to troubleshoot complex electrical issues without proper training or tools can be dangerous and may void product warranties.
