Victron Fronius AC Coupling: Microgrid Setup Guide

Key Takeaways

• AC coupling Victron inverter/chargers with Fronius PV inverters relies on frequency shifting.
• Fronius PV inverters require a specific "Setup MG (Micro-Grid)" configuration.
• Victron Multi or Quattro inverter/chargers need the "PV Inverter support Assistant" loaded.
• Victron GX Devices provide integrated monitoring for Fronius PV inverters.

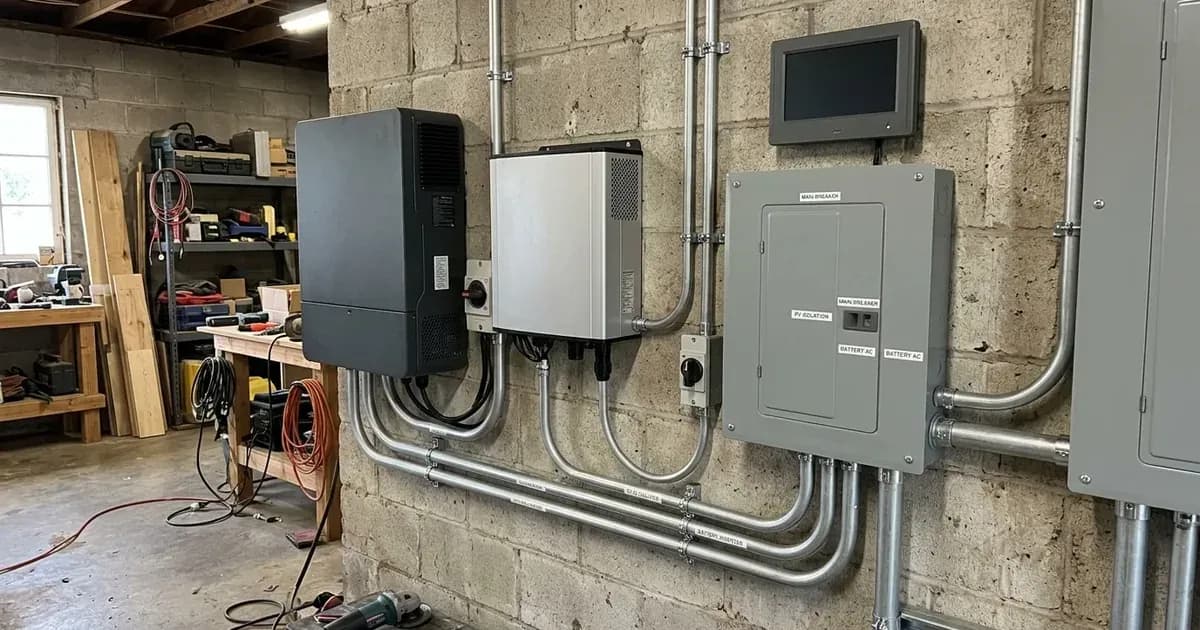

How do I AC couple Victron and Fronius inverters for a microgrid?

AC coupling Victron Multi or Quattro inverter/chargers with Fronius PV inverters for a microgrid setup primarily uses frequency shifting. This requires specific settings on both the Fronius PV inverter and the Victron inverter/charger to ensure stable operation and power management.

Diagnosis and Setup Steps

Integrating Victron and Fronius components for AC coupling involves configuring both systems to communicate and manage power flow effectively. Follow these steps to diagnose common issues and ensure proper setup.

1. Verify Fronius PV Inverter Micro-Grid Setting:

• • Check: Ensure your Fronius PV Inverter is configured for micro-grid operation. The manual specifies that the Fronius PV Inverter must be set to "Setup MG (Micro-Grid)". This setting enables the inverter to respond to frequency shifting signals from the Victron system.
  • Result: If this setting is incorrect or missing, the Fronius inverter will not properly integrate with the Victron system, leading to instability or non-operation.

2. Confirm Victron Multi/Quattro Assistant Configuration:

• • Check: For off-grid systems, the Victron Multi or Quattro inverter/charger requires the "PV Inverter support Assistant" to be loaded. This assistant manages the frequency shifting signals that control the Fronius PV inverter's output.
  • Result: Without this assistant, the Victron system cannot effectively communicate with and control the Fronius inverter, preventing proper AC coupling.

3. Check GX Device Detection of Fronius Inverter:

• • Check: Access your Victron GX Device (e.g., Cerbo GX) to verify that it correctly detects the Fronius PV inverter. The GX Device includes built-in Fronius monitoring. You may need to configure the Setup Local Area Network (LAN) Configuration and follow steps for Adding Fronius to the GX Device.
  • Result: If the Fronius PV-inverter is detected as "Unknown PV-inverter", or "Multiphase", or cannot be configured as 3-phase, it indicates a communication or configuration issue that needs to be resolved before full functionality is achieved.

4. Address System Locked to 53 Hz:

• • Check: If your system becomes locked to 53 Hz and does not resume normal operation, this indicates an issue where the frequency shifting mechanism is not disengaging or resetting correctly.
  • Result: This symptom points to a deeper configuration problem within either the Fronius or Victron settings, preventing the system from returning to its nominal frequency.

Cause and Fix Table

System Integration and Monitoring

Successful AC coupling between Victron and Fronius systems extends beyond initial setup to include robust monitoring and control.

Configuration for AC Coupling

The core of AC coupling these two brands lies in their ability to use frequency shifting for power management.

• Fronius PV Inverter Setting: The Fronius PV Inverter must be set to "Setup MG (Micro-Grid)". This configuration enables the Fronius inverter to adjust its output based on the frequency signals it receives from the Victron system.
• Victron Multi or Quattro Setting: For off-grid systems, you must load the "PV Inverter support Assistant" onto your Victron Multi or Quattro inverter/charger. This assistant is crucial for the Victron unit to generate and interpret the frequency shifting signals that regulate the Fronius PV inverter's power contribution.

Monitoring with Victron GX Devices

Victron GX Devices, such as the Cerbo GX, play a central role in monitoring the integrated system. They offer built-in Fronius monitoring capabilities.

• GX Device Configuration: To enable this, you will need to perform "Setup Local Area Network (LAN) Configuration" on your GX Device. Following this, you can proceed with "Adding Fronius to the GX Device" through its interface.
• Monitoring Options: Once configured, you can monitor the system directly from the "Monitoring GX Device" interface or remotely via the "Monitoring on the VRM Portal". This provides comprehensive oversight of both Victron and Fronius components.
• Zero Feed-in: The system also supports "Zero Feed-in" functionality, which can be configured to prevent excess PV power from being exported to the grid, prioritizing self-consumption.

Safety: Electrical Systems

Working with AC coupled solar power systems involves high voltages and currents. Always prioritize safety.

• Isolate Power: Before performing any checks or adjustments, ensure all power sources are isolated. This includes disconnecting the grid, PV arrays, and battery banks.
• Insulated Tools: Use only insulated tools when working with electrical connections to prevent accidental short circuits or shocks.
• Professional Assistance: If you are unsure about any step, or if the system involves complex wiring or high power, consult a qualified electrician or solar technician.

When to call a technician instead

While many configuration steps can be performed by a competent user, certain situations warrant professional intervention. If you encounter persistent issues such as the system being locked to 53 Hz, or if the Fronius PV-inverter is consistently detected incorrectly despite following the setup steps, it is best to contact a qualified Victron or Fronius technician. They have specialized tools and knowledge to diagnose complex communication or hardware faults. Attempting advanced troubleshooting without proper training or equipment can void warranties or lead to system damage.
