Inverex Nitrox Solar Inverter Error Codes and Troubleshooting Guide

{/* visual_plan: stat_block */}

Key Takeaways

• Inverex Nitrox Fault F13 signals grid working mode fault or internal relay error.
• Fault F18 indicates hardware AC overcurrent protection trip during heavy load starts.
• Fault F56 indicates low DC bus voltage or disconnected battery bank under heavy load.
• Repair costs for Inverex Nitrox control boards range from Rs 10,000 to Rs 28,000 (July 2026) in Pakistan.

Introduction

Inverex Nitrox hybrid inverters, manufactured under OEM agreements with Deye, represent one of the most widely adopted solar energy solutions in Pakistan. Designed for dual net-metering and battery storage applications, Inverex Nitrox 5kW, 8kW, 10kW, and 12kW units deliver consistent performance. However, grid voltage instability and heavy motor loads can cause protective fault codes to display on the digital screen. This guide explains all common Inverex Nitrox error codes, offering step-by-step solutions and repair cost estimates.

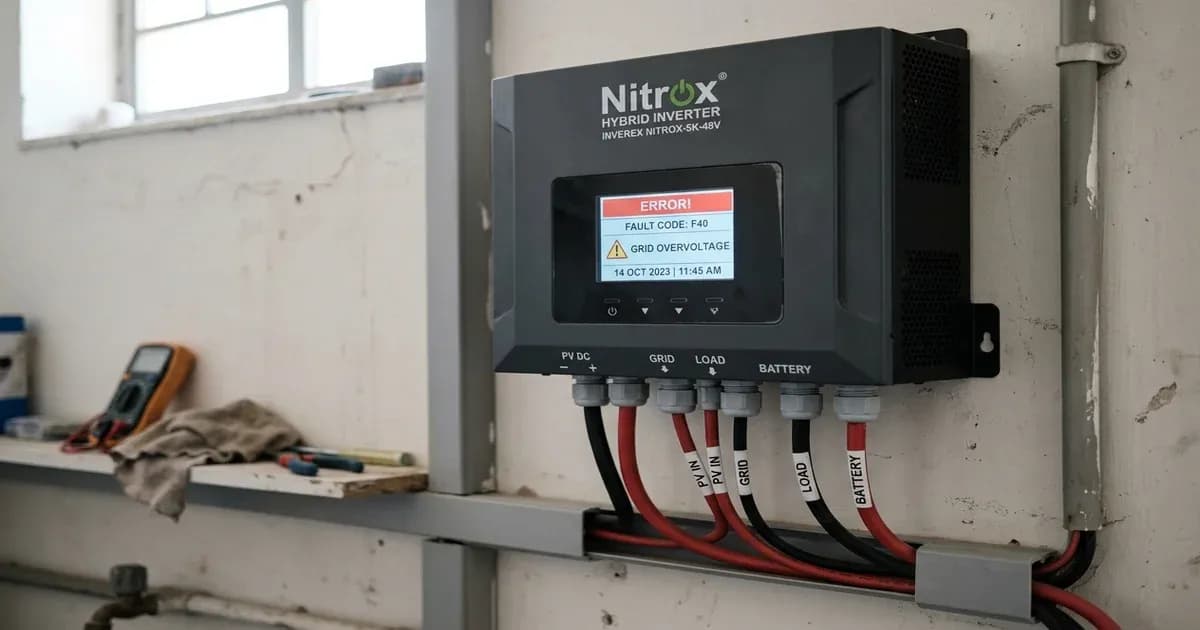

What are the common Inverex Nitrox error codes?

Inverex Nitrox hybrid inverters use an F-code diagnostic system displayed on their color touchscreens and Solarman mobile application. These codes categorized by numerical values allow system owners to pinpoint whether faults originate from utility grid supply, battery storage, solar array, or internal control hardware.

Fault F13 indicates a grid working mode failure or internal AC transfer relay error. This error occurs when grid voltage or frequency fluctuates rapidly, preventing the inverter from synchronizing smoothly with the utility grid. Fault F18 signals hardware AC overcurrent, which trips when output load current exceeds maximum rated surge capacity.

Fault F20 indicates DC bus overvoltage inside the inverter cabinet. This condition happens during abrupt AC load rejection while solar panels are generating peak power. Fault F56 signals low DC bus voltage or battery disconnection, which activates when battery bank voltage drops suddenly under heavy appliance loads.

Warning W04 indicates low battery voltage state, alerting users that battery capacity is near minimum cutoff limits. Fault F01 signals DC input overcurrent, caused by short circuits on solar panel strings or incorrect string wiring.

How do you troubleshoot Inverex Nitrox Fault F13 and Fault F18?

Troubleshooting Inverex Nitrox Fault F13 grid mode errors requires checking grid AC voltage and frequency stability. Measure AC voltage across live and neutral input terminals when grid power is present. If grid voltage fluctuates outside the configured 180V to 260V AC window, the inverter will isolate itself and display Fault F13. Adjust grid voltage response parameters on the touchscreen menu if authorized by your installer.

To resolve Fault F18 hardware AC overcurrent trips, examine connected household loads. Fault F18 is frequently caused by simultaneous startup of heavy inductive loads, such as multiple 1.5-ton air conditioners or 2-horsepower water pump motors.

Disconnect non-essential heavy appliances from the backup load output port. Switch off the main AC output breaker, restart the inverter, and re-engage loads incrementally. Consider installing soft-starter devices on air conditioner compressors to reduce initial motor inrush currents below inverter trip thresholds.

What causes Inverex Nitrox Fault F56 low bus voltage?

Fault F56 low DC bus voltage is a common error on Inverex Nitrox hybrid inverters connected to aged tubular or under-sized lithium battery banks. When grid power drops and heavy household appliances draw current simultaneously, battery bank terminal voltage can sag dramatically.

If battery voltage drops below 40V DC on a 48V nominal battery bank during high current discharge, the internal DC-to-DC converter cannot maintain bus voltage, triggering Fault F56. Loose battery cable lugs, corroded terminals, or inadequate battery cable gauge also cause severe voltage drops under load.

To resolve Fault F56, check all battery cable connections and torque terminal bolts to manufacturer specifications. Ensure battery cable cross-sectional area is at least 35 mm² for 5kW models and 50 mm² for 8kW or 12kW models. Verify battery BMS communication cable connections when using compatible lithium battery modules. In addition, verifying DIP switch configurations on lithium battery modules prevents BMS timeout disconnects.

How do you resolve Inverex Nitrox DC bus overvoltage Fault F20?

Fault F20 DC bus overvoltage occurs when energy fed into the inverter internal DC bus cannot be discharged rapidly enough into the AC load, battery bank, or grid. Sudden disconnection of heavy household loads during peak solar generation causes transient voltage spikes on the internal bus capacitor bank.

Check whether battery charging settings are configured correctly on the Nitrox touchscreen menu. If battery maximum charge current is set too low or the battery BMS cuts off charging unexpectedly due to cell overvoltage, excess solar energy accumulates on the DC bus, triggering Fault F20.

Verify that the utility grid export parameter is operating properly if net metering is enabled. Inspect solar panel string configuration to ensure total open-circuit voltage stays within the optimal MPPT range of 150V to 425V DC for single-phase models.

What are Inverex Nitrox repair costs and warranty procedures in Pakistan?

Inverex Nitrox inverters come with a standard five-year manufacturer warranty supported by Inverex service centers across Pakistan. For units outside warranty periods or damaged by un-covered environmental events, repair costs are established by component requirements.

Replacing control board communication ICs or auxiliary power supply circuits costs approximately Rs 6,000 to Rs 10,000 (July 2026). Replacing damaged IGBT power transistors or driver circuit assemblies ranges from Rs 14,000 to Rs 22,000 (July 2026). Complete main motherboard replacement for 8kW or 12kW three-phase Nitrox hybrid units costs between Rs 22,000 and Rs 35,000 (July 2026).

Always use official Inverex service facilities in Lahore, Karachi, Rawalpindi, or Peshawar to guarantee genuine replacement modules and maintain system safety integrity. Professional servicing guarantees that thermal paste and IP65 seals remain intact for long operational reliability.

Frequently Asked Questions

What does Fault F13 mean on an Inverex Nitrox inverter?

Fault F13 indicates a grid working mode fault or internal relay error caused by grid instability or switching synchronization failure.

Why does my Inverex Nitrox show Fault F56?

Fault F56 indicates low DC bus voltage, which occurs when battery voltage sags severely under heavy load or battery cables are loose.

How do I fix Fault F18 on Inverex Nitrox?

Fault F18 is AC hardware overcurrent. Turn off heavy appliances, reset the inverter, and restart loads one by one to avoid high startup surges.
