Victron MultiPlus-II and Cerbo GX PowerAssist Setup Guide

Key Takeaways

• Victron MultiPlus-II PowerAssist prevents AC input overload by supplementing grid or generator power with battery energy.
• Accurate configuration of the AC input current limit is critical for effective PowerAssist operation and generator compatibility.
• Generator stability and waveform quality significantly impact MultiPlus-II performance; specific settings can mitigate issues.
• Configuration requires VictronConnect or VEConfigure software with an MK3-USB interface for precise adjustments.
• Installation must be carried out by a qualified electrical engineer, adhering to strict safety protocols for high-voltage and battery systems.

Understanding Victron MultiPlus-II PowerAssist and its Role

The Victron MultiPlus-II is an inverter/charger designed to provide reliable power, integrating grid, generator, and battery sources. Its PowerAssist feature is crucial for managing limited AC input power, preventing overloads on grid connections or generators. When the load demands more current than the AC input can provide, the MultiPlus-II automatically draws additional power from the battery, converting it to AC to supplement the incoming supply. This ensures that critical loads remain powered without tripping input breakers.

While this guide covers the MultiPlus-II and PowerAssist functionality, it is important to note that the provided documentation does not contain specific information regarding the "Cerbo GX" or its detailed integration with PowerAssist, nor does it cover comprehensive "ESS configuration" beyond the MultiPlus-II's core settings. This article focuses on the MultiPlus-II's capabilities and configuration as described in its official manuals.

How PowerAssist Manages Power Flow

PowerAssist operates by continuously monitoring the AC input current. When the total AC load on the MultiPlus-II's output exceeds a pre-set AC input current limit, the unit activates its inverter function. It then draws power from the connected battery bank and converts it to AC, adding this power to the incoming AC supply. This combined power is delivered to the loads, effectively "assisting" the grid or generator.

Conversely, when the AC load is low and excess power is available from the grid or generator, the MultiPlus-II uses this surplus to charge the battery. This dynamic management ensures optimal use of available power, prioritising load demands while maintaining battery charge. The system's ability to seamlessly switch between supplementing and charging is fundamental to its hybrid functionality, making it highly effective in scenarios with unstable grid power or undersized generators.

MultiPlus-II PowerAssist and Generator Configuration

Configuring the MultiPlus-II for optimal PowerAssist functionality, especially with generators, involves several key settings. The table below outlines critical parameters and their specifications for various MultiPlus-II 230V models.

Configuration Tools: The MultiPlus-II is configured using the VictronConnect app or VEConfigure software. VEConfigure, a free PC software downloadable from victronenergy.com, allows changing all settings. It requires an MK3-USB (VE.Bus to USB) interface and an RJ45 UTP cable for connection. For systems with up to three inverters/chargers in parallel or three-phase, VE.Bus Quick Configure Setup can be used. For advanced applications or systems with four or more MultiPlus units, VE.Bus System Configurator software is required.

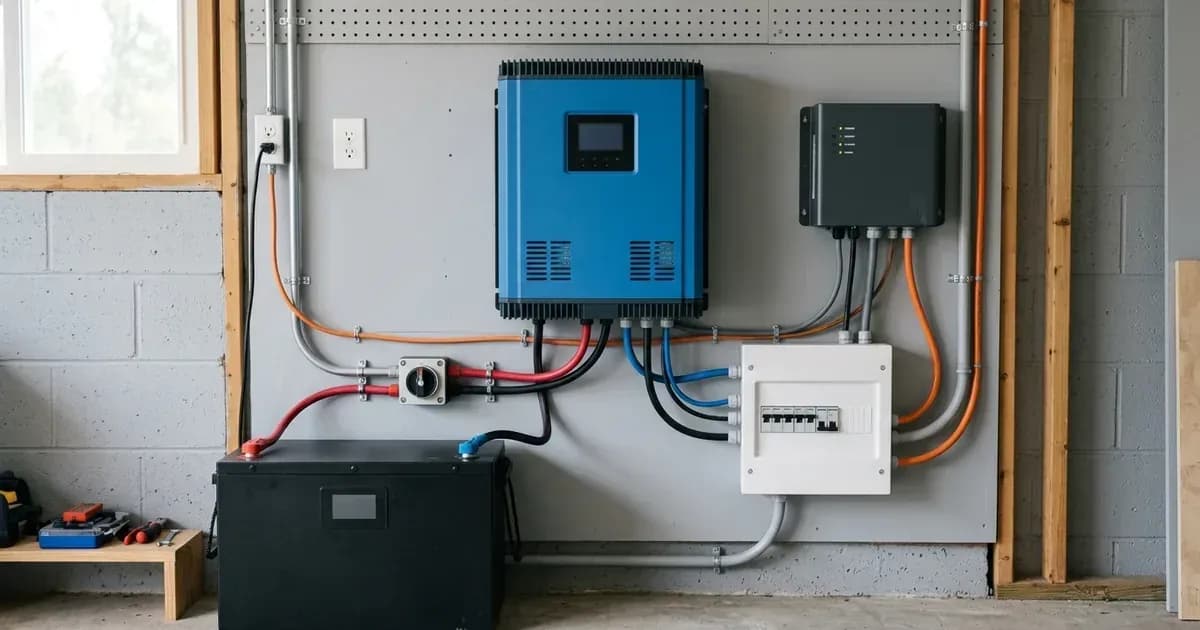

Installation Safety and Switchgear Requirements

Installation of the Victron MultiPlus-II must be carried out by a qualified electrical engineer. This product is a safety class I device, requiring an uninterruptible grounding point for its AC input/output terminals or an external grounding connection. In mobile installations, the casing must be connected to the chassis, hull, or a grounding plate.

Location and Environment: Install the unit in a dry, well-ventilated area, as close as possible to the batteries. Wall mounting on a solid surface is recommended. Do not store or place any flammable materials (such as chemicals, curtains, textiles, synthetic items, or other combustibles) in the immediate vicinity of the installation. For marine units, locate away from the battery in a separate, well-ventilated compartment, never directly above the battery. Do not operate in a closed-in area or restrict ventilation.

Electrical Disconnection and Protection: Every system installation must include a way to disconnect the AC and DC circuits. Circuit breakers used for overcurrent protection can also serve as disconnects. The AC input must be protected by a fuse or magnetic circuit breaker, for example, 32A for a 3kVA model. Ensure that neutral and phase are not inverted when connecting the AC.

Battery Safety: WARNING - BATTERIES CAN PRESENT A RISK OF ELECTRIC SHOCK, BURNS FROM HIGH SHORT-CIRCUIT CURRENTS, FIRE, OR EXPLOSION FROM VENTED GASSES. Lead-acid batteries generate explosive gases during normal operation. When working in the vicinity of a lead-acid battery, ensure the area is well-ventilated, never work alone, and have first aid readily available. Wear safety goggles and protective clothing. Immediately wash any acid contact. Never smoke or allow sparks or open flames near batteries. Use insulated tools and remove metal jewellery. Never charge a frozen battery. When connecting or disconnecting battery terminals, always remove the grounded terminal first. Connect and disconnect DC output connections only after setting any marine unit switches to the off position and disconnecting AC cords or opening AC disconnect switches.

Internal Voltages: Note that dangerous residual voltages may still exist inside the product and at its terminals after shutdown. Never open the product casing, or touch bare terminals. Opening the unit should only be performed by authorised service personnel after ensuring all power sources (PV, battery, AC) are isolated and the manual's specified capacitor-discharge time has elapsed, using appropriate Personal Protective Equipment (PPE).

Equalisation Mode: If using batteries that require equalisation, be aware that equalisation mode supplies a higher charging voltage than most DC-consuming devices can cope with. These devices must be disconnected before additional charging takes place. Ensure adequate ventilation to dissipate hydrogen gas generated during this process, and eliminate any sources of sparks or flames.

What the published sources do not tell you

The provided documentation offers comprehensive details on the MultiPlus-II's operation and configuration, particularly for PowerAssist and generator compatibility. However, there are specific areas where the information is limited or requires external consultation:

• Cerbo GX and ESS Configuration: The technical documentation explicitly states that the source documents do not contain information regarding the "Cerbo GX" or its specific integration with the MultiPlus-II for PowerAssist or comprehensive Energy Storage System (ESS) configurations. Users seeking detailed guidance on these advanced setups may need to consult additional Victron Energy resources, such as specific Cerbo GX manuals or community forums.
• BoostFactor Adjustment Guidance: While the BoostFactor is a configurable parameter for PowerAssist, the manual advises that this setting should only be changed after consulting with Victron Energy or an engineer trained by Victron Energy. This indicates that detailed, publicly available guidance for optimising this setting for various scenarios is not provided in the standard documentation.
• Generator Control in 3-phase and Parallel Systems: For large systems involving multiple MultiPlus units in parallel or three-phase configurations, especially with generators, the documentation references external links and training videos for specific details. This suggests that the provided manuals do not fully cover the complexities of generator control in such advanced setups.
• Minimum AC Input Current Limits: The technical documentation mentions an external article, "MultiPlus & Quattro Inverter/Chargers: Minimum AC Input Current Limits," which was not provided. This limits detailed information on the nuances of setting very low AC input current limits, which can be critical for small generators.
• Error Code Details: While LED indications for various operational states and alarms are provided, a comprehensive list of specific numerical error codes or more in-depth troubleshooting steps beyond the LED indications is not detailed in the available documentation.
