SolarMax Inverter Error Codes and Troubleshooting Guide

{/* visual_plan: stat_block */}

Key Takeaways

• SolarMax Error 01 indicates cooling fan failure or mechanical blockage.
• Error 05 signals output short circuit requiring immediate load disconnection.
• Error 51 indicates overcurrent protection activation during heavy load startup.
• Repair costs for SolarMax inverters in Pakistan range from Rs 3,000 to Rs 18,000 (July 2026).

Introduction

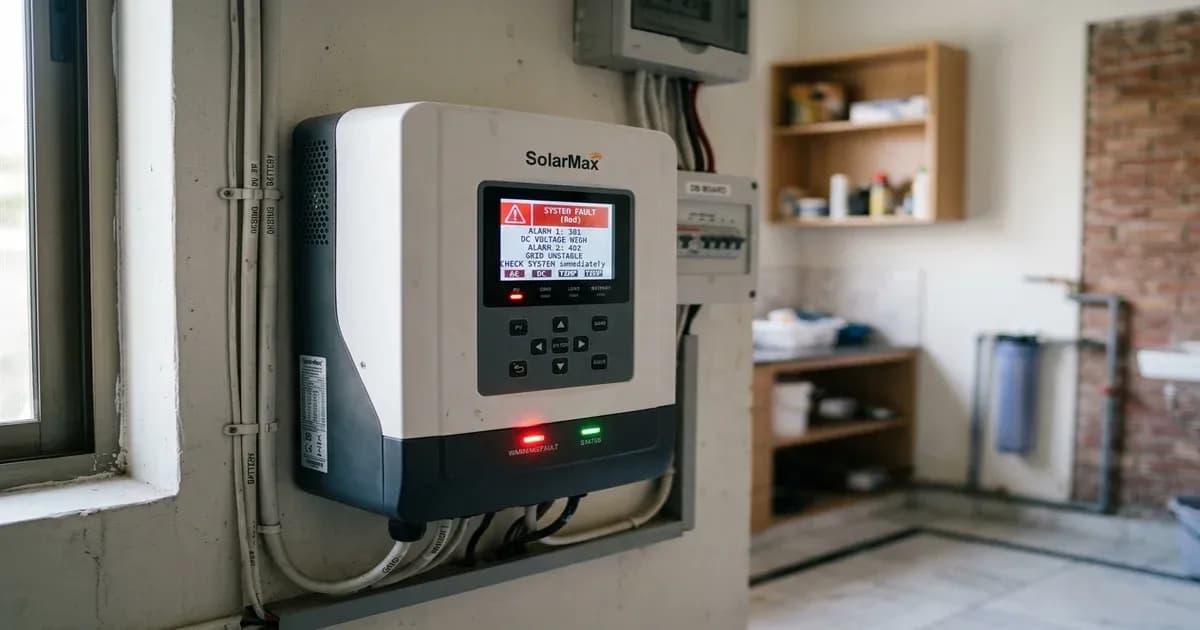

SolarMax off-grid and hybrid inverters, including the Falcon, Orion, and Onyx series, are widely installed across Pakistan for residential backup power. Equipped with digital LCD screens, SolarMax inverters display specific numerical error codes when system parameters deviate from safe operational limits. This guide details every common SolarMax error code, explaining root causes, step-by-step solutions, and local repair pricing in major Pakistani cities including Lahore, Karachi, Rawalpindi, Peshawar, and Multan.

What do common SolarMax inverter error codes mean?

SolarMax inverters use two-digit numerical error codes to notify users of operational faults, hardware protection trips, and environmental warnings. Prompt identification of these codes prevents equipment damage and restores home power quickly. SolarMax 3kW and 5kW units feature digital displays that highlight fault codes during system alarms, allowing quick diagnosis by installers.

Error 01 indicates cooling fan lock or speed abnormality. Internal heat sensors monitor fan rotation, and if dust or physical debris stops fan motion, the inverter locks out to prevent overheating. Error 03 signals battery voltage high, which occurs when external charging sources push battery voltage above 60V on 48V systems.

Error 04 indicates low battery voltage, showing that battery charge levels have fallen below safe operating cutoffs. Error 05 signals output short circuit, which trips immediately when live and neutral AC output lines make direct electrical contact.

Error 07 indicates overload timeout, occurring when connected AC load exceeds 110% of inverter rating for extended periods. Error 51 signals overcurrent protection, which trips instantly when heavy inductive motor loads create extreme current spikes. Understanding these code definitions simplifies system maintenance for residential users across urban centers.

How do you troubleshoot SolarMax Error 01 fan fault and Error 02 over-temperature?

SolarMax Error 01 fan fault and Error 02 over-temperature are closely linked thermal protection alarms. When Error 01 appears, turn off the inverter completely and inspect external cooling fan grilles located on the side or bottom of the chassis.

Use a soft brush or compressed air canister to clear accumulated dust, cobwebs, and lint from fan blades. Spin the fan blades gently with a non-metallic tool to confirm smooth mechanical rotation. If the fan remains stationary after power restoration, internal fan bearings have seized, requiring fan replacement.

For Error 02 over-temperature faults, check installation clearances around the inverter cabinet. Maintain at least 20 centimeters of open space on all sides to allow proper convection airflow. Ensure the inverter is not mounted near heat-generating equipment or exposed to direct sunlight inside hot utility rooms. In addition, installing external ventilation fans improves heat dissipation during summer heatwaves when ambient temperatures exceed 45°C.

What causes SolarMax Error 05 short circuit and Error 51 overcurrent?

Error 05 output short circuit and Error 51 overcurrent originate from severe electrical loads on the inverter AC output terminals. Error 05 is triggered by damaged electrical wiring, burnt appliance sockets, or internal insulation breakdown inside connected electrical devices.

Error 51 overcurrent trips when motor loads, such as refrigerator compressors, water pumps, or air conditioner units, draw massive inrush current during startup. If total inrush current exceeds the peak surge capacity of the inverter MOSFET power bridge, Error 51 activates instantly to protect power transistors.

To clear these errors, switch off the main AC output circuit breaker. Turn off the inverter switch, wait thirty seconds, and turn the inverter back on. Re-connect household appliance circuits one at a time to identify the specific appliance triggering the overcurrent protection circuit. Checking cable connections for burnt terminal block screws prevents repeat short circuit trips. Professional technicians inspect internal driver boards if error codes persist under zero load conditions.

How do you fix SolarMax Error 04 low battery and Error 07 overload?

SolarMax Error 04 low battery appears when battery voltage drops below minimum programmed cutoff thresholds during power outages. Verify battery voltage using a digital multimeter at inverter battery terminals. If battery voltage reads low, check utility grid input availability to initiate charging.

Inspect battery cables for loose terminal bolts, corrosion, or undersized wiring. High resistance across battery terminals causes artificial voltage drops under load, triggering Error 04 prematurely. Clean battery terminals with wire brushes and apply anti-corrosion grease to prevent voltage drops.

Error 07 overload timeout occurs when running loads exceed continuous inverter rating. Calculate total wattage of active household appliances. Turn off non-essential loads such as electric irons, washing machine heaters, and water pumps to bring total power draw within continuous rated capacity. Setting program priority modes appropriately balances solar and battery contributions. In addition, verifying AC output breaker sizing ensures proper current protection across all backup power circuits.

What are SolarMax inverter repair costs in Pakistan?

SolarMax inverters can be serviced at authorized repair shops and independent technician centers located in major Pakistani cities including Lahore, Rawalpindi, Faisalabad, and Karachi. Repair costs depend on damaged components.

Replacing a broken DC cooling fan costs between Rs 3,000 and Rs 5,000 (July 2026). Repairing control board logic circuits or replacing damaged driver ICs ranges from Rs 6,000 to Rs 10,000 (July 2026). Replacing damaged MOSFET power transistor banks on 3kW or 5kW units costs between Rs 10,000 and Rs 18,000 (July 2026).

Always demand high-grade replacement MOSFETs and original control ICs during repairs to ensure long-term operational stability and prevent repeat hardware failures. Proper installation of thermal padding under replacement power devices extends operational life significantly.

Frequently Asked Questions

What is Error 01 on a SolarMax inverter?

Error 01 indicates a cooling fan fault or mechanical fan lock caused by dust accumulation or bearing failure.

How do I fix Error 05 on my SolarMax inverter?

Error 05 is an output short circuit. Disconnect all AC loads, reset the inverter, and check household wiring for short circuits.

Why does my SolarMax inverter show Error 51?

Error 51 indicates overcurrent protection trip caused by heavy motor startup currents exceeding inverter surge capacity.
