Growatt SPH And SPA Inverter Ark Battery BMS CAN Wiring Guide

Key Takeaways

• Specific wiring diagrams and pinouts for Growatt SPH/SPA inverters and ARK batteries are not publicly detailed.
• All installations must comply with national electrical codes and be performed by accredited professionals.
• Proper earthing of the inverter chassis and battery enclosure is a critical safety step.
• Current Transformer (CT) clamps must be installed with correct orientation towards household loads.

Understanding Growatt SPH/SPA Inverter and ARK Battery Communication

Connecting a Growatt SPH3000-6000 or SPA3000-SPA10000 storage inverter to an ARK HV battery system requires precise communication wiring. The Battery Management System (BMS) in the ARK battery communicates with the inverter, typically via a CAN (Controller Area Network) protocol, to manage charge and discharge cycles. This communication ensures the battery operates within its safe parameters and integrates effectively with the inverter's energy management functions.

General Principles of Solar and Battery Wiring

While specific wiring diagrams are proprietary and provided by manufacturers to accredited installers, the general principles of safe and compliant electrical installation apply to all such systems. These systems are "engineered for residential and commercial off-grid and grid-parallel energy storage systems worldwide."

Safety and Earthing

Safety is paramount during any electrical installation. Before beginning work, ensure "complete AC circuit isolation and lock-out." For earthing, it is essential to "bond inverter chassis ground and battery metal enclosure to the main installation earthing terminal." This step protects against electrical shock and ensures the system complies with safety standards.

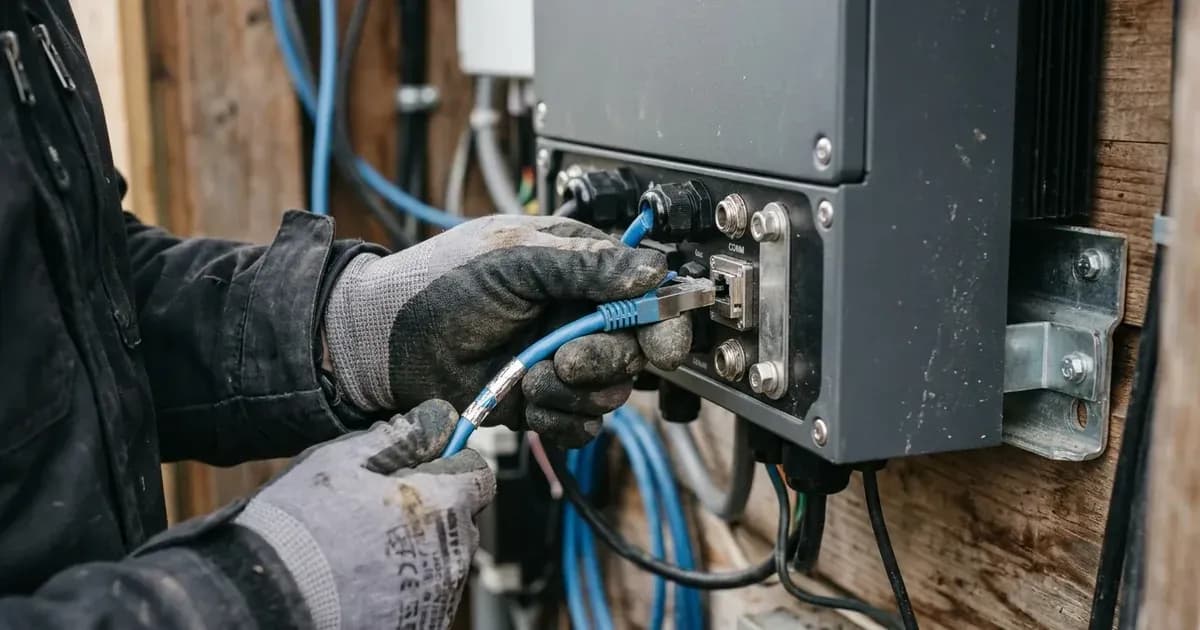

Communication Cabling

Communication between the inverter and battery BMS is critical for system operation. While the manufacturer documentation specifies CAN communication, official technical guidance mentions the need to "maintain shielded twisted-pair cabling and verify proper RS485 communication baud rate settings." Although RS485 is a different protocol, the principle of using shielded twisted-pair cabling for robust communication applies broadly to inverter-battery links. Incorrect cabling or settings can lead to communication errors, preventing the system from operating correctly.

Current Transformer (CT) Clamp Installation

Current Transformer (CT) clamps are used by the inverter to monitor household energy consumption and grid export/import. Correct installation is crucial for accurate system operation. "Install Current Transformer clamps with arrows pointing towards the household loads away from the grid incomer." If these clamps are installed incorrectly, the inverter may receive false readings, leading to incorrect battery charging or discharging behaviour. "Negative power flow during high household consumption indicates inverted CT clamp installation."

What you can check yourself, and what you cannot

As a homeowner, you can visually inspect the general condition of your system, ensuring cables are not damaged and connections appear secure. You can also monitor your system's performance via the inverter display or associated apps like ShinePhone, looking for error codes or unexpected behaviour.

However, any work involving opening the inverter or battery enclosure, making or altering electrical connections, or changing communication settings must be performed by an accredited installer. "All DC conductors, AC feeders, and auxiliary control cables must be installed in compliance with applicable national electrical codes and verified by an accredited electrical engineer." Attempting to modify wiring or settings yourself can void warranties, create safety hazards, and breach your connection agreement with the grid operator.

What the published sources do not tell you

The publicly available documentation, as represented by official documentation, does not provide specific wiring diagrams, RJ45 pinouts for CAN communication, or detailed step-by-step instructions for ShinePhone setup for the Growatt SPH3000-6000, SPA3000-SPA10000 inverters, or ARK HV battery systems. These specific details are typically found in manufacturer installation manuals, which are often restricted to certified installers.

Furthermore, specific sizing details for your system, such as battery capacity or inverter power, are determined by "site-specific engineering drawings, local utility connection capacity, and manufacturer equipment ratings." Detailed pre-commissioning checks, insulation resistance testing, and polarity verification are also part of the professional installation process and are not detailed in general public information.

An MCS Certificate is required for installations in Great Britain "to access export tariffs and verify building regulations compliance." This certification process ensures that the installation meets rigorous standards, including those for safety and performance.
