Victron Skylla-IP65 Battery Charger: Setup & Wiring

Key Takeaways

• The Victron Skylla-IP65 line comprises Skylla-IP65 12/70 24/35 heavy-duty battery chargers in IP65 splashproof aluminum casings.
• Operates on universal utility and generator supplies: Input voltage (VAC) 120 – 240 nominal with a broad Input voltage range (VAC) (1) 90 – 265 across Frequency (Hz) 45-65.
• Incorporates active power factor correction with a Power factor 0,98 for maximum electrical efficiency.
• Delivers robust output current: Charge current main batt. (A) (3) 70 35 for 12V and 24V primary storage banks.
• Features a dedicated auxiliary trickle charge output: Charge current starter batt. (A) (4) 3 4 for engine starter batteries.
• Implements an intelligent multi-stage charge algorithm: Charge curve, lead-acid 7 stage adaptive with specialized lithium profiles.
• Facilitates synchronized multi-unit paralleling via CAN bus communication port Two RJ45 connectors, NMEA2000 protocol.
• Provides remote alerting with a Remote alarm relay DPST AC rating: 240 VAC/4A DC rating: 4A up to 35 VDC, 1 A up to 60 VDC.
• Engineered for extreme maritime and industrial temperatures: Operating temp. range -20 to 60 °C (full output current up to 40 °C).

AC Power Architecture & Dual-Bank Outputs

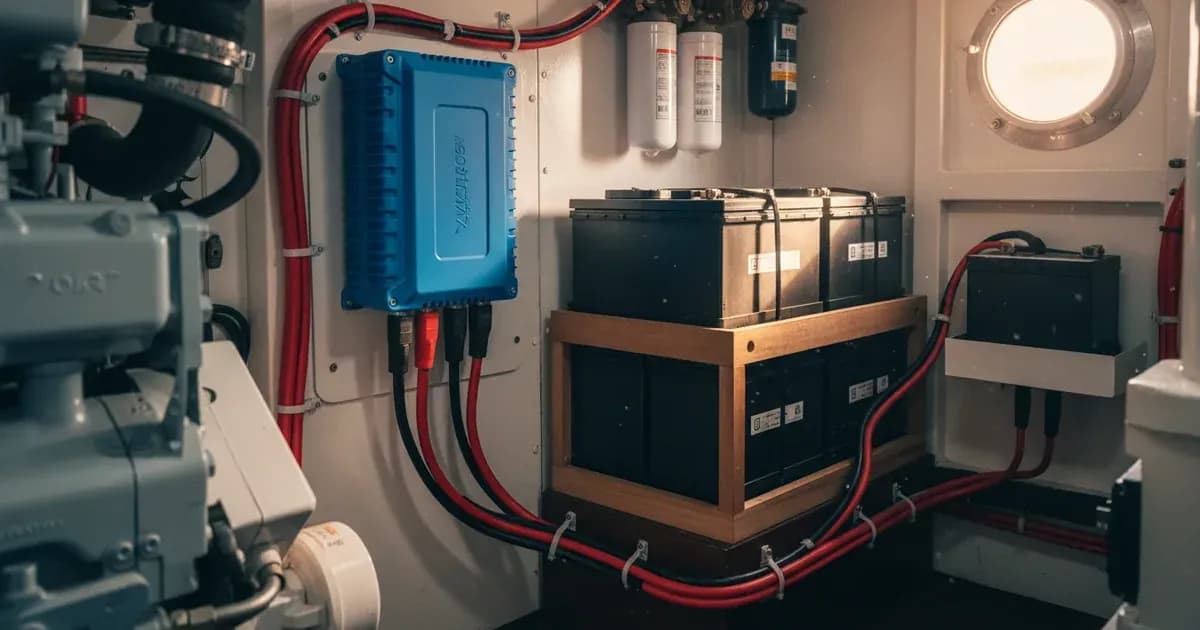

The Skylla-IP65 is engineered for harsh marine engine rooms, remote industrial plants, and off-grid generator systems. Its water-resistant, corrosion-proof aluminum enclosure protects internal power electronics against salt mist, condensation, and chemical dust.

The Victron Skylla-IP65 is an IP65 marine and industrial charger (models 12/70 and 24/35) with universal 90 - 265 VAC input (45-65 Hz, 0.98 Power Factor):

• Main Battery Output: 70A (12V Model), 35A (24V Model), 7-Stage Adaptive, Full Power to 40°C.
• Starter Output: 3A (12V Model), 4A (24V Model), Isolated Trickle, Keeps Crank Full.
• Control & CAN: Dual RJ45 CAN, NMEA2000 Bus, DPST Relay, LCD Display.

Electrical Wiring & Isolated Starter Port

1. Universal Mains Supply: Connect single-phase mains to the internal AC screw terminals. The charger accepts Input voltage (VAC) 120 – 240 and tolerates severe brownouts down to Input voltage range (VAC) (1) 90 – 265 across Frequency (Hz) 45-65.
2. Primary Bank Connection: Wire the service battery bank to the main output studs, delivering Charge current main batt. (A) (3) 70 35.
3. Auxiliary Starter Output: Connect the engine starting battery to the isolated starter terminal (Charge current starter batt. (A) (4) 3 4), maintaining starting readiness without risk of cross-discharging the house bank.

CAN Bus Paralleling & Remote Alarm Relay

The Skylla-IP65 combines sophisticated communication and automation interfaces:

• Synchronized Paralleling: Linking multiple Skylla-IP65 units via CAN bus communication port Two RJ45 connectors, NMEA2000 protocol automatically synchronizes charging stages, ensuring all paralleled units switch from bulk to absorption and float in perfect unison.
• Adaptive 7-Stage Charging: The Charge curve, lead-acid 7 stage adaptive process includes bulk, battery safe, absorption, automatic equalization, float, storage, and weekly refresh modes to maximize battery lifespan.
• Alarm Relay: The onboard Remote alarm relay DPST AC rating: 240 VAC/4A DC rating: 4A up to 35 VDC, 1 A up to 60 VDC triggers external sirens, indicator lights, or generator shutdown switches during fault states.
• Thermal Performance: Functions across Operating temp. range -20 to 60 °C (full output current up to 40 °C), automatically derating power above 40°C to protect components.

Technical Specifications & Connectivity
