AlphaESS SMILE Hybrid Inverter and Battery Setup Guide

Setting up a hybrid inverter and battery storage system requires careful attention to detail, especially concerning safety, communication, and grid integration. This guide outlines the essential steps for commissioning your AlphaESS SMILE hybrid inverter with AlphaESS M4856 lithium iron phosphate battery modules.

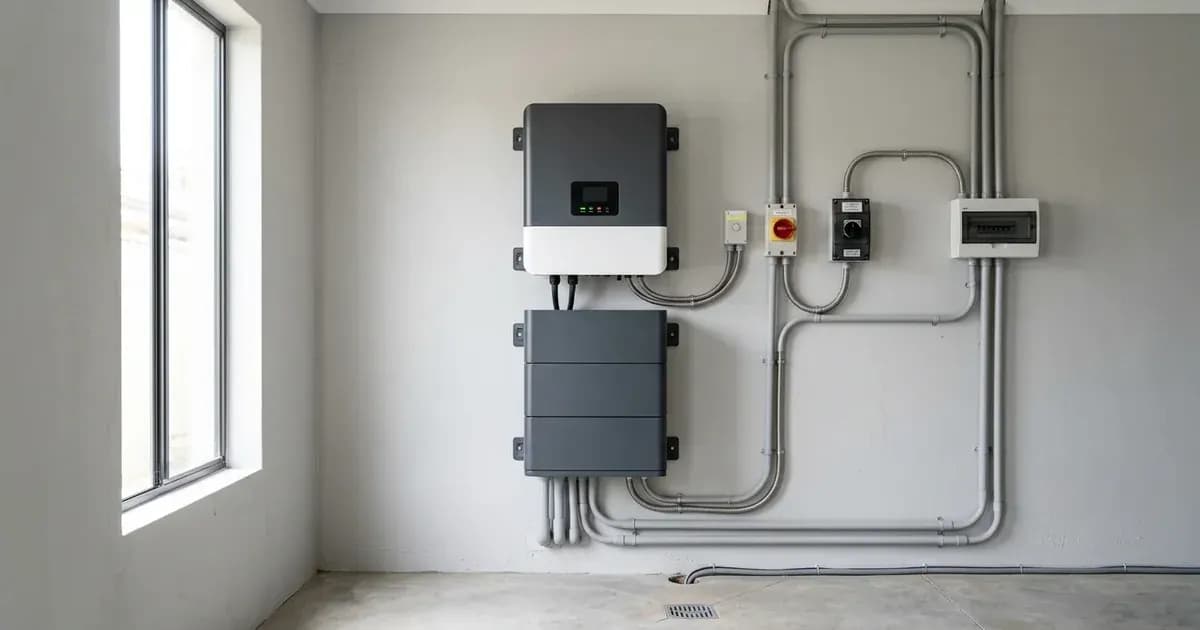

The AlphaESS SMILE system is engineered for both single-phase and three-phase residential solar energy storage installations worldwide, offering a modular approach to energy independence.

Understanding Your AlphaESS Hybrid System

The AlphaESS SMILE series offers robust solutions for energy storage:

• Inverter Models: The system integrates with AlphaESS SMILE5 (Single-Phase) and SMILE-G3 (Three-Phase) Hybrid Inverters. These inverters manage power flow between solar panels, batteries, the grid, and your home loads.
• Battery Modules: Energy storage is provided by AlphaESS M4856-P / SMILE-BAT-8.2P Lithium Iron Phosphate Modules. These are modular units designed for flexible plug-and-play expansion, allowing you to scale your storage capacity as needed.

Essential Setup Procedures

Proper installation and commissioning are crucial for the safe and efficient operation of your AlphaESS system.

1. Safety First: Disconnecting Power and Earthing

Before performing any physical connections or maintenance, always prioritize safety.

• DC Battery Disconnect: To prevent electrical hazards, switch off the DC battery circuit breaker and wait at least 5 minutes for internal capacitors to discharge. This ensures that no residual energy remains in the system components, protecting you from electric shock.
• Protective Earthing: Ensure both the inverter chassis ground and the battery metal enclosure are bonded to the main installation earthing terminal. This protective earthing is critical for safety, providing a path for fault currents and preventing dangerous voltage build-up.

2. Battery Communication Wiring (CAN / RS485)

Effective communication between the inverter and the battery's Battery Management System (BMS) is vital for optimal performance and safety.

• Dedicated Communication: The AlphaESS inverter and battery BMS communicate using shielded twisted-pair cable. This connection utilizes dedicated RJ45 ports on both devices.
• Standard Pinouts: Connect communication lines to the designated CAN-H and CAN-L terminals on the battery management port. Refer to the specific port labels on your battery module and inverter.
• Parallel Battery Connections: When installing multiple battery modules in parallel, connect the DC link cables and communication patch leads before powering up the system. This ensures proper communication handshaking between all battery modules and the inverter.

3. EPS Backup Port Connection

The AlphaESS SMILE inverters feature an integrated backup port designed to provide critical power during grid outages.

• High-Speed Backup: This port offers automatic power transfer to essential circuits during utility blackouts. Connect your critical loads to this port according to the installation manual to ensure seamless power supply during grid interruptions.

4. AlphaCloud Mobile App Commissioning

The AlphaCloud mobile app simplifies the commissioning and monitoring of your AlphaESS system.

• Wireless Configuration: Use AlphaCloud to commission inverters, configure battery operating modes, and monitor live performance wirelessly. This allows for convenient setup and ongoing management of your system.

Grid Compliance and Protection

The AlphaESS SMILE system is designed with grid safety in mind.

• Anti-Islanding Protection: The system complies with international microgeneration safety and grid protection standards. This ensures that the inverter safely disconnects from the grid during outages, protecting utility workers and preventing damage to the grid infrastructure.

By following these guidelines, you can ensure a safe and successful setup of your AlphaESS SMILE hybrid inverter and battery storage system.
