Enphase IQ8 Series Microinverters And Sunlight Backup Setup Guide

Key Takeaways

• Enphase IQ8 microinverters use proprietary grid-forming technology for Sunlight Backup without batteries.
• Microinverters connect in parallel using dedicated waterproof Q Cable AC trunk bus connectors.
• Inherent module-level rapid shutdown complies with NEC 690.12 safety rules.
• System commissioning, layout mapping, and monitoring are configured via the Enphase Installer App.

Understanding Enphase IQ8 Grid-Forming Technology

The Enphase IQ8 series microinverters, including the IQ8, IQ8+, IQ8M, and IQ8A models, incorporate proprietary split-phase grid-forming technology. This advanced capability allows for a feature known as Sunlight Backup. Sunlight Backup provides daytime backup power during grid outages, even without a physical battery storage system. This means that during a power cut, your solar panels can continue to generate electricity to power essential loads in your home, provided there is sufficient sunlight.

Connecting Enphase IQ8 Microinverters with Q Cable

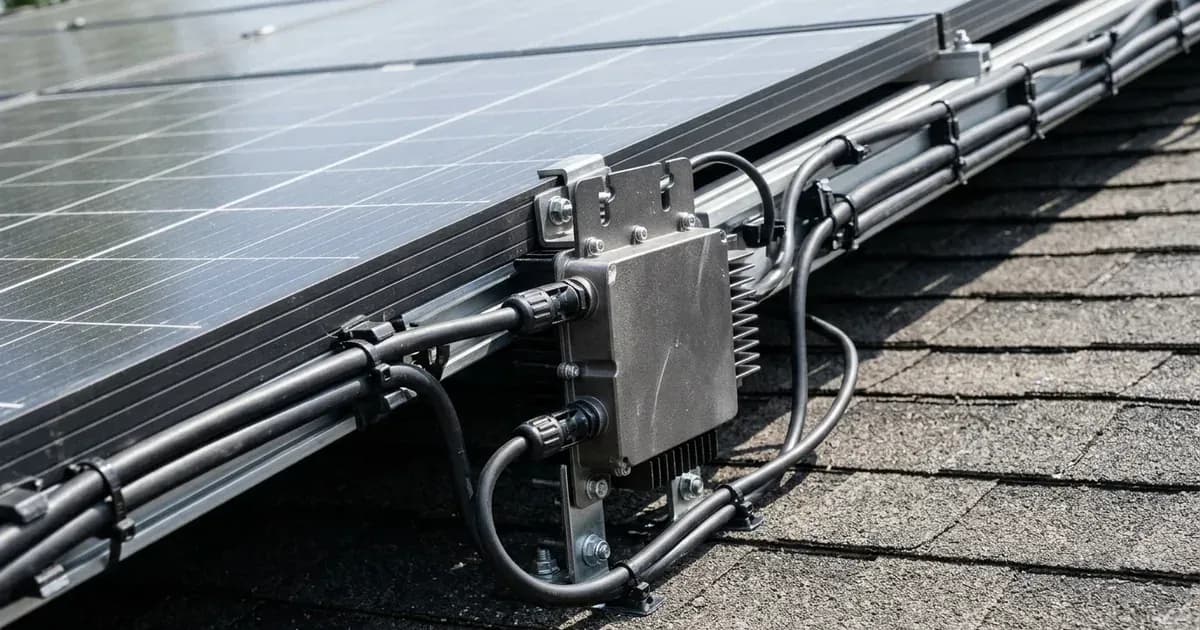

The physical interconnection of Enphase IQ8 microinverters to your solar array and electrical system is achieved using the Q Cable AC trunk bus. This system is designed for straightforward installation and reliable operation.

1. Parallel Connection: Microinverters connect in parallel along the AC trunk bus cable.
2. Waterproof Connectors: Dedicated waterproof connectors are used for all interconnections, ensuring durability and protection against environmental elements.
3. AC Branch Disconnection Safety: Before disconnecting any microinverter trunk connectors, it is critical to isolate the AC branch circuit breaker. This safety measure prevents electrical shock and protects the equipment.

Safety Features: Rapid Shutdown and Insulation

Safety is a core design principle for Enphase IQ8 microinverters, integrating several features to protect both the system and personnel.

• Inherent Rapid Shutdown: Enphase IQ8 microinverters provide inherent module-level rapid shutdown. This feature complies with NEC 690.12 safety rules, which mandate that PV systems must be able to rapidly de-energise conductors in the event of an emergency, such as a fire. This ensures that firefighters and other emergency responders can work safely around the solar array.
• Integrated Class II Double Insulation: The microinverters feature integrated Class II Double Insulation. For proper earthing, it is specified to bond inverter chassis ground and battery metal enclosure to the main installation earthing terminal.
• Certified Anti-Islanding Protection: The system complies with international microgeneration safety and grid protection standards. This anti-islanding protection ensures that the microinverters safely disconnect from the grid during an outage, preventing them from feeding power into a de-energised grid section, which could be hazardous to utility workers.

System Commissioning and Monitoring

Setting up and overseeing your Enphase IQ8 system is managed through digital tools, simplifying the process for installers and providing comprehensive data for homeowners.

• Enphase Installer App: Commissioning, module physical layout mapping, and monitoring are configured via the Enphase Installer App. This mobile application allows installers to quickly set up the system, verify connections, and map the physical location of each microinverter and solar panel.
• Enlighten Cloud Platform: The Installer App integrates with the Enlighten Cloud Platform, which provides detailed performance data and diagnostic capabilities.
• Power Line Communication (PLC) Telemetry: Microinverters transmit module-level operating telemetry to the gateway via sub-1GHz wireless signals. This allows for precise monitoring of each individual solar panel's performance, helping to identify and resolve any issues quickly.

What you can check yourself, and what you cannot

Understanding the boundaries of homeowner maintenance is crucial for safety and system integrity.

• What you can check yourself: As a homeowner, you can typically monitor your system's performance through the Enphase Enlighten app (if enabled by your installer). This allows you to see energy production and system status. You can also perform visual inspections for obvious physical damage to panels or cabling, ensuring no obstructions are shading the array.
• What you cannot check: Any work involving electrical connections, opening microinverter enclosures, or altering system settings must be performed by an accredited installer. Isolating the AC branch circuit breaker before disconnecting any microinverter trunk connectors is a critical safety step that should only be undertaken by qualified personnel. Integrated Class II Double Insulation requires specific earthing procedures that are part of the professional installation. Changing grid-protection settings or attempting to troubleshoot internal faults can breach your connection agreement and poses a significant safety risk. Opening the unit is authorised-service work.

What the published sources do not tell you

While the Enphase IQ8 series offers advanced features, certain specific details are not universally published or can vary.

• Specific Power Ratings: published guidance does not detail the exact power output ratings for each specific model within the IQ8 series (IQ8, IQ8+, IQ8M, IQ8A). These specifications are typically found in individual product datasheets.
• Detailed Wiring Diagrams: While the Q Cable interconnection method is described, comprehensive, step-by-step wiring diagrams for all possible system configurations are not provided in general documentation.
• UK Grid Connection Requirements: Although the system is certified for anti-islanding protection and compatible with global distribution systems, specific connection requirements or regional variations mandated by Distribution Network Operators (grid operators) in Great Britain are not detailed. These can sometimes involve additional equipment or specific settings.
• Advanced Troubleshooting Codes: published guidance does not list specific error codes or detailed troubleshooting procedures for various operational issues that might arise. These are typically found in installer manuals or through the Enphase support portal.
