Enphase IQ8 Commercial Microinverter Grid-Forming Capabilities for Pakistan

Key Takeaways

• Enphase IQ8 grid-forming systems are designed to continue operating during utility outages, providing power even when the grid is down.
• Commercial IQ8 systems are limited to '80A continuous current per phase in the system' for grid-forming operation.
• Off-grid PV configurations have a specific limit of '15.36 kW AC rating of PV/ 64A continuous in the system'.
• The Enphase IQ System Controller manages '5 strings of PV up to 100A only'.

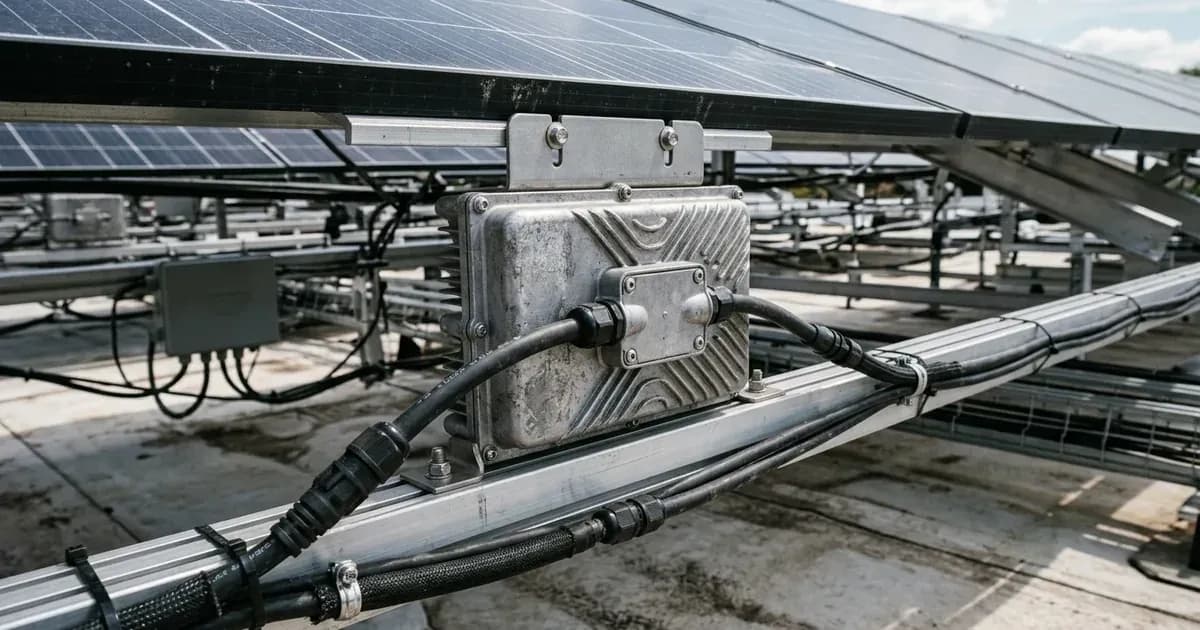

What is Enphase IQ8 Grid-Forming Technology?

The Enphase IQ8 Series microinverters, including models like the IQ8P-3P recommended for commercial applications, incorporate grid-forming technology. This capability allows the solar energy system to establish and maintain its own localised grid, enabling power generation and supply even when the main utility grid is unavailable. The manufacturer states that a grid-forming system will "continue to operate, even when the grid is down." This feature is crucial for maintaining essential loads during power outages, a common requirement in commercial and industrial settings in Pakistan.

Commercial Application and System Limits

The Enphase IQ8 Series is designed for a range of applications, with the IQ8P-3P model specifically "Recommended" for commercial projects. When configuring these systems for grid-forming operation, specific electrical limits apply to ensure stable and safe performance.

For grid-forming systems, the continuous current output is limited. The system is designed to "support only up to 80A continuous current per phase in the system." This means that the total continuous current supplied by the microinverters per phase should not exceed this value.

When operating in an off-grid configuration, the maximum PV AC rating and continuous current are also defined. Off-grid systems "support only up to 15.36 kW AC rating of PV/ 64A continuous in the system." This specification is important for sizing the solar array to match the system's standalone capabilities.

The Enphase IQ System Controller, a key component for managing system operation, has its own limits regarding PV string support. It "supports 5 strings of PV up to 100A only." Installers must ensure that the number and current of PV strings connected do not exceed these specifications.

System Compliance and Operational Considerations

Enphase IQ8 systems are engineered to meet international technical standards and operate effectively in diverse environments. For compliance with standards such as "IEEE 1547: 2018," the system requires an IQ Gateway or an IQ Combiner 4/4C, which integrates the new Gateway. The "IQ Gateway is only compliant with IQ Series microinverters," ensuring seamless integration and communication within the Enphase ecosystem.

Commercial and industrial settings often present challenges due to "High electric noise environment[s]." Electrical noise, which can originate from various industrial machines, motors, and air conditioners, can cause communication disturbances within the system. The Enphase system design acknowledges these conditions, indicating its suitability for such demanding operational environments.

For system monitoring and management, the Enphase platform offers flexible internet connectivity options, including "Cellular only," "Cellular and Wifi/Ethernet," or "Wifi/Ethernet." Additionally, the system supports "Mobile app control," allowing users to monitor performance and manage settings remotely.

Installation Safety and Electrical Requirements

Installing any solar photovoltaic system, particularly in a commercial setting, requires strict adherence to safety protocols and electrical standards. All work must be performed by qualified and authorised technicians.

Before any installation or maintenance, ensure that all power sources are isolated. This includes disconnecting the PV array, battery storage (if present), and AC grid connection by opening all relevant breakers and switches. Always verify zero voltage with a multimeter before proceeding.

Earthing requirements must be met according to local electrical codes in Pakistan to protect against electrical shock and ensure proper system function. All metallic enclosures and equipment frames must be properly earthed.

When interconnecting the PV system into an existing service panel, sizing considerations are critical. The manufacturer references "NEC section 705.12 (B)(2), not to exceed 20% of service panel amperage rating" as a guideline for safe integration. While this is a US standard, the underlying principle of limiting PV backfeed to a percentage of the main panel's rating is a common electrical safety practice to prevent overloading. Always consult with a licensed electrician to ensure compliance with Pakistan's specific electrical codes and safety regulations for PV installations.

Working with high-voltage DC and AC circuits can be hazardous. Always wear appropriate Personal Protective Equipment (PPE), including insulated gloves, safety glasses, and arc-flash rated clothing. Never work on live circuits.

What the published sources do not tell you

The provided documentation offers a high-level overview of the Enphase IQ8 commercial microinverter's grid-forming capabilities and system limits. However, it does not detail several specific aspects crucial for comprehensive planning and installation.

The source does not explicitly mention "Sunlight Jump Start" as a named feature for IQ8 microinverters. While grid-forming capability allows operation during outages, specific branding or detailed functionality of a "Jump Start" feature is absent.

Information regarding "rapid shutdown" functionality or compliance, which is a critical safety feature in many PV installations, is not present in the provided source document.

Detailed electrical specifications for the IQ8 commercial microinverters, such as specific power ratings, efficiency curves, physical dimensions, or weight, are not included. The document focuses more on system-level configuration rather than individual microinverter specifications.

No specific error or fault codes for IQ8 microinverters or the broader system are listed. This information is typically vital for troubleshooting and diagnostics.

Furthermore, the document does not provide specific settings, values, or communication protocols for IQ8 microinverter pairing or configuration. It also lacks detailed installation steps, port names, or comprehensive wiring information, generally referring to design guides for such specifics.
