Fox ESS Meter or CT Fault: Fix Export Limit Issues

Key Takeaways

• A Meter Lost Fault means the inverter cannot communicate with the external smart energy meter or has an issue with the current transformer clamp.
• Incorrect CT clamp orientation (arrow pointing away from the grid) is a common cause of Meter Lost Fault and export limit problems.
• Always ensure CT clamp wires are correctly connected to Pins 7 (CT-) and 8 (CT+) on single-phase inverters.
• If zero export is configured, a misinstalled CT clamp can cause the inverter to limit solar output or charge from the grid.

What do Fox ESS Meter Lost Fault messages mean?

A Meter Lost Fault on your Fox ESS inverter indicates a communication failure with the external smart energy meter, or a problem with the current transformer (CT) clamp. This means the inverter is unable to read data from the meter, which is crucial for functions like export limitation.

Diagnosis

Follow these steps to diagnose and resolve Meter Lost Fault messages on your Fox ESS inverter.

1. Check Inverter Display for Specific Fault:

• • Observation: The inverter LCD shows Meter Lost Fault.
  • Meaning: The inverter has lost communication with the meter. This could be due to the CT clamp being disconnected, open-circuited, reversed, or providing an invalid reading during export limitation, or a general communication failure with the smart meter.
  • Action: Proceed to check RS485 wiring and meter settings, or CT clamp wiring, orientation, and physical connection, depending on your system setup.

2. Verify Meter Type and Connection (for Meter Lost Fault related to smart meter communication):

• • Observation: You have a three-phase system or a single-phase system using a smart power meter (e.g., CHINT DTSU666/DDSU666 or Eastron SDM).
  • Meaning: Communication relies on RS485.
  • Action:
  • • Check the RS485 wiring polarity (A/B) between the meter and the inverter.
    • Verify the meter's Modbus address is set to 001.
    • Confirm the baud rate is 9600 bps.
    • Ensure the meter itself is powered on and functioning.

3. Inspect CT Clamp Wiring (for Meter Lost Fault due to CT issue):

• • Observation: You have a single-phase H1/KH inverter using a CT clamp.
  • Meaning: The CT clamp provides current measurement directly to the inverter.
  • Action:
  • • Ensure the CT clamp wires are securely connected to the inverter's RJ45 Meter/CT port. The white cable typically connects to Pin 8 (CT+) and the black cable typically connects to Pin 7 (CT-).
    • Check for any damage or loose connections on the CT clamp wires.

4. Check CT Clamp Orientation (for Meter Lost Fault due to CT issue):

• • Observation: The arrow embossed on the CT clamp body is pointing towards your home's load (away from the grid).
  • Meaning: The CT clamp is installed backwards. The inverter will misinterpret current flow, often leading to incorrect export readings or unwanted export limitation.
  • Action: Reorient the CT clamp so the embossed arrow points towards the utility grid (away from your home's load). The CT clamp must be firmly closed around the Main Live Supply Phase Conductor.

5. Review Zero-Export Configuration:

• • Observation: Your system is configured for zero export, but the inverter is limiting solar power or charging the battery from the grid during the day.
  • Meaning: This often happens if the CT clamp is installed backwards or if the meter communication is faulty. The inverter misreads home consumption as solar export, causing it to reduce output.
  • Action:
  • • Correct any CT clamp orientation issues (Step 4).
    • Verify the zero-export setting in the inverter menu: Menu -> Settings -> Advanced -> Enter Password ("0000") -> Export Limit -> Mode: Enable -> MaxExportPower: 0 W.
    • If the issue persists after correcting physical connections, perform a full system power cycle.

Cause/fix table section

Meter and CT Sensor Troubleshooting

Fox ESS inverters rely on accurate current measurement for grid interaction and export control. This section details how to troubleshoot issues related to the energy meter and current transformer (CT) clamp.

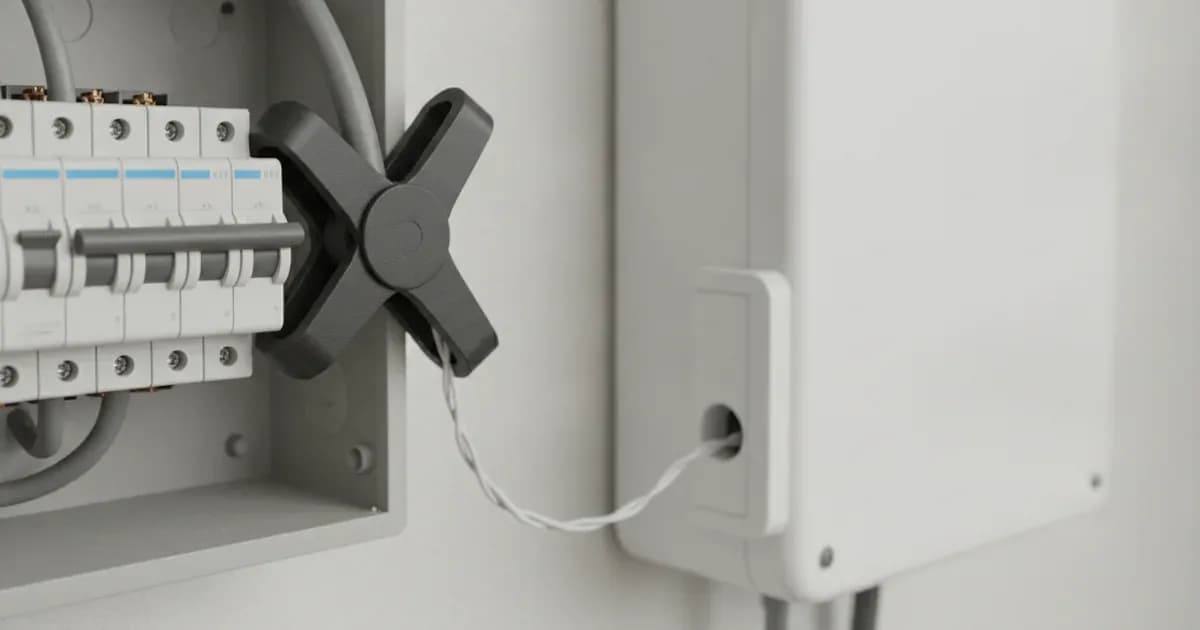

CT Clamp (Current Transformer) Checks: Single-phase Fox ESS H1 and KH inverters typically use a CT clamp for current measurement. The CT clamp connects to the inverter's RJ45 Meter/CT port. Ensure the white cable typically connects to Pin 8 (CT+) and the black cable typically connects to Pin 7 (CT-). The most critical aspect is the orientation of the CT clamp. The embossed arrow on the CT clamp body must point towards the utility grid, away from your home's load. If the arrow points the wrong way, the inverter will misinterpret current flow, leading to incorrect export limitation or even charging the battery from the grid when it should be exporting.

Smart Power Meter (Modbus RS485) Checks: For three-phase systems and some single-phase setups, Fox ESS inverters use smart power meters like the CHINT DDSU666/DTSU666 or Eastron SDM. These meters communicate with the inverter via RS485: Pin 1 (Meter485A) and Pin 2 (Meter485B) at 9600 bps baud rate with Modbus Address 001. You must verify the RS485 wiring polarity (A/B) is correct. Any mismatch in these settings will prevent communication and trigger a Meter Lost Fault.

Zero-Export Configuration: In Pakistan, many installations require zero export to avoid utility billing penalties. Fox ESS inverters allow you to configure this setting via the inverter menu: Menu -> Settings -> Advanced -> Enter Password ("0000") -> Export Limit -> Mode: Enable -> MaxExportPower: 0 W. If this setting is active, but the CT clamp or meter is faulty or misinstalled, the inverter may incorrectly limit solar production or even draw power from the grid to charge batteries during the day, thinking it is preventing export. For more details on grid interaction, refer to our guide on Fox ESS Grid Fault Overvoltage Fix. If your inverter shows an error but has no output, our inverter shows error but no output guide can provide further troubleshooting steps.

Safety: Electrical Hazards

Working with solar inverters involves significant electrical hazards. PV open-circuit voltages can reach up to 600VDC on single-phase H1(G2) models and up to 1000VDC on three-phase H3-Pro models. High-voltage lithium battery strings (Mira, ECS, EP) operate at voltages up to 438VDC (e.g., EP11) and can form strings with total voltages up to 409.6V (e.g., Mira HV25 or HV2600 with 8 modules), posing severe direct current electrical shock and arc flash risks. Always disconnect all AC and DC power sources before inspecting wiring or components. After disconnecting power, wait at least 5 minutes for internal high-voltage capacitors to fully bleed down until the LCD and all LED indicators are completely unlit. Use insulated tools and follow proper lockout/tagout procedures.

When to call a technician instead

If you have followed all troubleshooting steps and the Meter Lost Fault persists, or if you are uncomfortable performing any of the electrical checks, it is time to call a qualified solar technician. Issues involving internal inverter components, persistent communication failures, or complex wiring problems often require specialized tools and expertise. Fox ESS hybrid inverters carry a standard 5-Year manufacturer warranty on hybrid inverters and lithium storage batteries through authorized Pakistani distributors (e.g., SunSolar, BatteryMAX). Attempting repairs beyond your skill level can void your warranty or lead to dangerous electrical accidents. For a comprehensive list of error codes, consult our inverter error code glossary. You can also find more information about Fox ESS products on the Fox ESS brand page.
