Fronius Tauro Eco 100kW Commercial Solar Inverter: Setup, Communication, and Troubleshooting

Updated 6 September 2026 · By SolarNevs Research Desk, Dealer surveys + verified sources · 3 sources · Method ↗

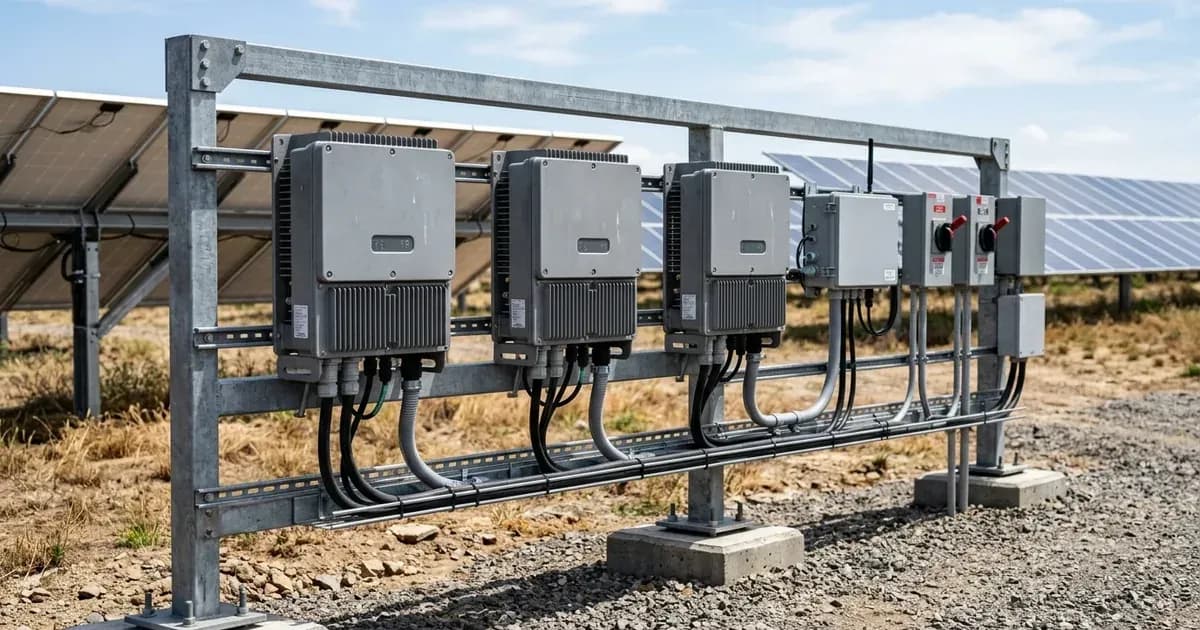

Outdoor rack with commercial string solar inverters and central datalogger enclosure near solar ground arrays. — SolarNevs spec card

Key Takeaways

  • Fronius inverters, including the Tauro Eco line, support open communication protocols like Modbus TCP for integration and monitoring.
  • The first check for most operational issues should involve verifying grid parameters or communication links.
  • Specific technical specifications for the Fronius Tauro Eco 100kW model are not detailed in available manufacturer documentation.
  • Grid-related fault codes (e.g., voltage or frequency outside limits) typically require investigation and potential intervention by the local grid operator.

Setting Up and Troubleshooting Fronius Tauro Eco Inverters for Commercial Use

Setting up and maintaining commercial solar installations with Fronius Tauro Eco inverters primarily involves establishing reliable communication, configuring integration with other system components, and understanding common operational fault codes. While specific technical details for a 100kW Tauro Eco model are not extensively documented in available sources, the general principles for Fronius inverter communication and troubleshooting apply. This guide focuses on these common aspects, including integration with Victron Energy systems and interpreting general Fronius error states.

Understanding Fronius Inverter Communication and Fault Reporting

Fronius inverters are designed with open communication capabilities, facilitating integration into various monitoring and control systems. This typically involves Modbus TCP, API access, or FTP Push for data export. The integrated Datamanager 2.0, standard in many recent Fronius inverters such as the Fronius Primo, acts as the central communication interface, enabling network connectivity via Wi-Fi or Ethernet.

When an operational issue arises, the inverter reports a "State" code. These codes categorise faults into areas such as grid conditions (voltage, frequency), DC input from the PV array, or internal communication failures. Understanding these codes is the first step in diagnosing and resolving system anomalies. For instance, grid-related states indicate an issue with the utility supply, while DC input states point to problems within the solar array. Communication states suggest a problem with the inverter's data logging or network connection.

Fronius Inverter Communication Settings and Error Codes

The following tables detail common communication settings for integrating Fronius inverters with external systems, particularly Victron GX Devices, and a list of general Fronius inverter error codes.

Fronius Inverter Communication Settings for Victron GX Device Integration

Setting / Parameter

Specification / Action

Technical Reference

Fronius PV Inverter Micro-Grid Setup

Setup MG50 profile

Victron Energy AC Coupling Documentation

Disconnect frequency (specific firmware)

53.1Hz for these versions

Victron Energy AC Coupling Documentation

Modbus Data export

Set Data export via Modbus to tcp

Victron Energy AC Coupling Documentation

Sunspec Model Type

Set Sunspec Model Type to int + SF

Victron Energy AC Coupling Documentation

LAN Configuration

Both the Fronius and the GX Device need to be connected on the same LAN - either via Wi-Fi or Ethernet.

Victron Energy AC Coupling Documentation

DHCP Addressing

If you have a DHCP server running on the LAN the Fronius and GX Device are connected to, you don't need to manually configure your LAN IP addresses as the DHCP server does this for you.

Victron Energy AC Coupling Documentation

Link-local Addressing

When no DHCP server is present on the LAN and you only have one Fronius unit to connect, Link-local addressing can be used to establish data communication between the GX Device and the Fronius.

Victron Energy AC Coupling Documentation

Manual Addressing

You will have to configure the IP address of the Fronius to be in the same subnet as the IP address of the GX Device.

Victron Energy AC Coupling Documentation

GEN24 Solar API

In Fronius GEN24 devices with software version 1.14 or higher, the Solar API interface is not activated by default and must be activated if required (e.g. integration of a GX device).

Victron Energy AC Coupling Documentation

General Fronius Inverter State Error Codes

Code

Meaning

Fix Direction

Technical Reference

State 301

Grid voltage too high

Check grid voltage, contact grid operator.

Community Fronius Inverter State Error Codes Guide

State 302

Grid voltage too low

Check grid voltage, contact grid operator.

Community Fronius Inverter State Error Codes Guide

State 401

Grid frequency too high

Check grid frequency, contact grid operator.

Community Fronius Inverter State Error Codes Guide

State 402

Grid frequency too low

Check grid frequency, contact grid operator.

Community Fronius Inverter State Error Codes Guide

State 502

No communication with Datamanager

Check Datamanager connection.

Community Fronius Inverter State Error Codes Guide

State 509

No communication with Master

Check Master inverter communication.

Community Fronius Inverter State Error Codes Guide

State 517

No communication with inverter

Check inverter connection.

Community Fronius Inverter State Error Codes Guide

State 1001

DC input voltage too high

Check PV string voltage.

Community Fronius Inverter State Error Codes Guide

State 1002

DC input voltage too low

Check PV string voltage.

Community Fronius Inverter State Error Codes Guide

Installation Safety and Switchgear Requirements

Working with commercial-scale solar inverters like the Fronius Tauro Eco involves high DC voltages from the PV array and high AC voltages connected to the grid. Adhering to strict safety protocols is paramount.

Before any inspection, maintenance, or connection work:

  1. Isolate all power sources: This includes opening the AC circuit breaker from the grid, opening the DC disconnect switch for the PV array, and ensuring any auxiliary power supplies are de-energised.
  2. Verify zero voltage: Use a suitable multimeter to confirm that all terminals are de-energised before touching any components.
  3. Wait for capacitor discharge: Allow sufficient time for internal capacitors to discharge as specified in the inverter's manual.
  4. Personal Protective Equipment (PPE): Always wear appropriate PPE, including insulated gloves, safety glasses, and arc-flash protective clothing, especially when working near live parts or high-current connections.
  5. Earthing: Ensure the inverter chassis and all associated metallic enclosures are properly earthed according to local electrical codes to prevent electric shock hazards.
  6. Authorised Personnel: All installation, commissioning, and maintenance tasks should only be performed by qualified and authorised electricians or solar technicians familiar with commercial solar systems and Fronius equipment. Opening the inverter enclosure for internal work is typically restricted to authorised service personnel.

What the Published Sources Do Not Tell You

The available documentation provides general guidance on Fronius inverter communication and troubleshooting, particularly in the context of integration with Victron Energy systems. However, there are several notable gaps concerning the specific Fronius Tauro Eco 100kW model:

  • Specific Tauro Eco 100kW Technical Specifications: Detailed technical specifications such as exact power ratings, voltage ranges, efficiency curves, physical dimensions, weight, number of MPPTs, or the specific cooling method for a 100kW Tauro Eco model are not provided. The documentation mentions "Fronius Eco (3~, 25 kW or 27 kW)" but lacks data for the 100kW variant.
  • Tauro Eco 100kW Installation Guide: No specific installation instructions or requirements tailored to the Tauro Eco 100kW model were found, which would typically include mounting procedures, wiring diagrams, and specific torque settings.
  • Centralised System Architecture Details: While Modbus TCP and Victron integration are mentioned, detailed information on how the Tauro Eco 100kW specifically fits into a broader centralised commercial system architecture beyond general AC-coupling is not present.
  • Specific Safety Facts: No specific safety information, certifications, or detailed hazard warnings for the Tauro Eco 100kW or commercial inverters were available in the provided documents.
  • Firmware Update Process: General mention of firmware updates exists, but a step-by-step process for the Tauro Eco 100kW model is not detailed.
  • Warranty Information: Details regarding warranty models, extensions, or specific conditions for the Tauro Eco 100kW are not included.

These gaps mean that for precise technical details, installation procedures, and model-specific safety guidelines for the Fronius Tauro Eco 100kW, installers would need to consult official Fronius product datasheets and installation manuals specific to that model, which were not available in the reviewed sources.

Frequently asked questions

What are common error codes for Fronius inverters?

Common error codes include State 301 for high grid voltage, State 401 for high grid frequency, and State 1001 for high DC input voltage. Communication issues like State 502 (no Datamanager communication) are also frequent.

How do I set up Modbus communication on a Fronius inverter?

For integration with a Victron GX Device, set Data export via Modbus to tcp and Sunspec Model Type to int + SF. Ensure both devices are on the same LAN, configured via DHCP, link-local, or manual IP addressing.

What should I do if my Fronius inverter shows a grid voltage error?

If your inverter displays State 301 (Grid voltage too high) or State 302 (Grid voltage too low), check the grid voltage at the installation site. If the voltage is outside nominal limits, contact your local grid operator.

Can Fronius inverters integrate with Victron energy systems?

Yes, Fronius PV inverters can be AC-coupled with Victron Multi/Quattro systems. This requires specific Micro-Grid Setup configurations, such as MG50 setup profile, and correct Modbus data export settings.

What communication options are available for Fronius inverters?

Fronius inverters offer open communication via Modbus, API, and FTP Push. They typically come with a Datamanager 2.0 for data logging and network connectivity, supporting both Wi-Fi and Ethernet.
