Tigo Ts4 A O Flex Mlpe Power Optimizer Setup Guide

Key Takeaways

• Tigo TS4-A-O optimizers manage individual PV module output and enable rapid shutdown for safety.
• The optimization hardware must be secured directly to the PV module mounting frames.
• All DC connectors used must be of identical manufacturer and type to ensure safe and compliant connections.
• High-voltage DC, AC grid interconnection, and switchgear modifications require certified, licensed personnel.

How to Correctly Install Tigo TS4-A-O Flex MLPE Power Optimizers

Installing Tigo TS4-A-O Flex Module Level Power Electronics (MLPE) power optimizers correctly is crucial for system performance and safety. This guide outlines the essential requirements for mounting, connector use, and array compliance, ensuring your solar photovoltaic (PV) system operates safely and efficiently.

Understanding Tigo TS4-A-O Function and Deployment

The Tigo TS4-A-O is designed to provide module-level optimisation and rapid shutdown capabilities for PV systems. This means it can manage the power output of individual solar panels, mitigating the effects of shading or module mismatch. It also allows for rapid shutdown, a safety feature that quickly reduces the voltage of the PV array to a safe level, often required by electrical codes.

When deploying these optimizers, you might choose selective deployment, where only shaded or underperforming modules receive an optimizer, or full string deployment. Regardless of the strategy, the overall PV array must comply with string voltage and current ratings. This ensures that the inverter and other system components operate within their specified limits.

Installation Steps and Requirements

Follow these steps and requirements for the physical installation of Tigo TS4-A-O optimizers:

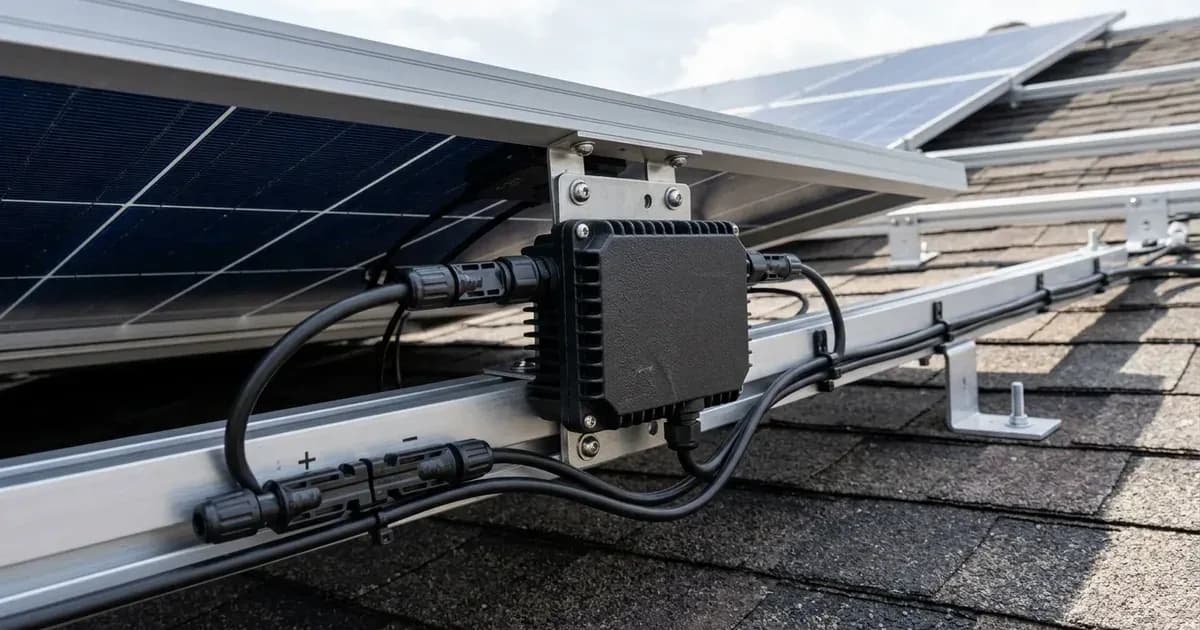

1. Secure Mounting: The optimization hardware must be secured to module mounting frames. This ensures the units are stable and protected from environmental factors.
2. DC Connector Compatibility: When making DC connections, all DC connectors must be of identical manufacturer and type. Mixing connector types can lead to poor connections, increased resistance, and potential fire hazards.
3. Array Compliance: Ensure that your PV array design, including the use of optimizers, complies with string voltage and current ratings. This is a fundamental requirement for the safe and efficient operation of the entire system.

What You Can Check Yourself, and What You Cannot

As a homeowner or system owner, there are specific aspects of the Tigo TS4-A-O installation you can verify, and others that strictly require professional expertise.

What you can check yourself:

• Physical Mounting: You can visually inspect that the Tigo TS4-A-O units are securely fastened to the PV module frames.
• Connector Type Verification: You can confirm that all visible DC connectors are from the same manufacturer and are of the same type.

What you cannot do yourself:

• Electrical Connections: Making high-voltage DC connections, AC grid interconnection, and modifications to switchgear are complex and dangerous tasks. These must be performed by certified, licensed personnel. Attempting these tasks without proper training and certification can result in serious injury or death, and can invalidate warranties and insurance.
• System Sizing and Configuration: Determining the correct string voltage and current ratings, and configuring the system for optimal performance and safety, requires specialised knowledge.

What the Published Sources Do Not Tell You

While this guide provides essential setup requirements based on certified specifications, it is important to recognise the limits of general information. Detailed wiring diagrams, specific voltage and current limits for various PV modules, and comprehensive installation manuals are typically proprietary to the manufacturer or require access to specific industry standards.

These detailed specifications often vary by product model and local electrical codes. For precise installation instructions, troubleshooting, and advanced configuration, always refer to the official Tigo TS4-A-O installation manual and consult with a certified solar installer. Access to paywalled standards or network rules that vary by distributor are also not covered in general public documentation.
