Tigo TS4-A-O Optimizer and Module Monitoring Setup Guide

Key Takeaways

• Tigo TS4-A-O optimizers maximise energy harvest by managing each solar panel individually.
• They can be deployed selectively on specific panels, such as those prone to shading.
• Commissioning and mapping of optimizers are performed using the Tigo SMART app.
• Always connect module DC leads to TS4 inputs before connecting TS4 outputs in series.

What are Tigo TS4-A-O Optimizers?

Tigo TS4-A-O optimizers are module-level power electronics (MLPE) designed to enhance the performance, safety, and monitoring capabilities of solar photovoltaic (PV) systems. Unlike traditional string inverters that treat all panels in a series string as one, optimizers work at the individual panel level. This allows each solar panel to operate at its maximum power point (MPPT) independently, even if other panels in the array are shaded or performing sub-optimally.

These devices are crucial for mitigating the effects of module mismatch, which can arise from manufacturing tolerances, varying levels of soiling, or partial shading. By optimising each module, the overall energy yield of the solar array is increased.

Key Features for Your Solar Array

Tigo TS4-A-O optimizers bring several important capabilities to a solar installation, addressing both performance and safety.

Setting Up Your Tigo TS4-A-O System

Proper installation and commissioning are essential for the Tigo TS4-A-O optimizers to function correctly. The process involves physical wiring and digital mapping.

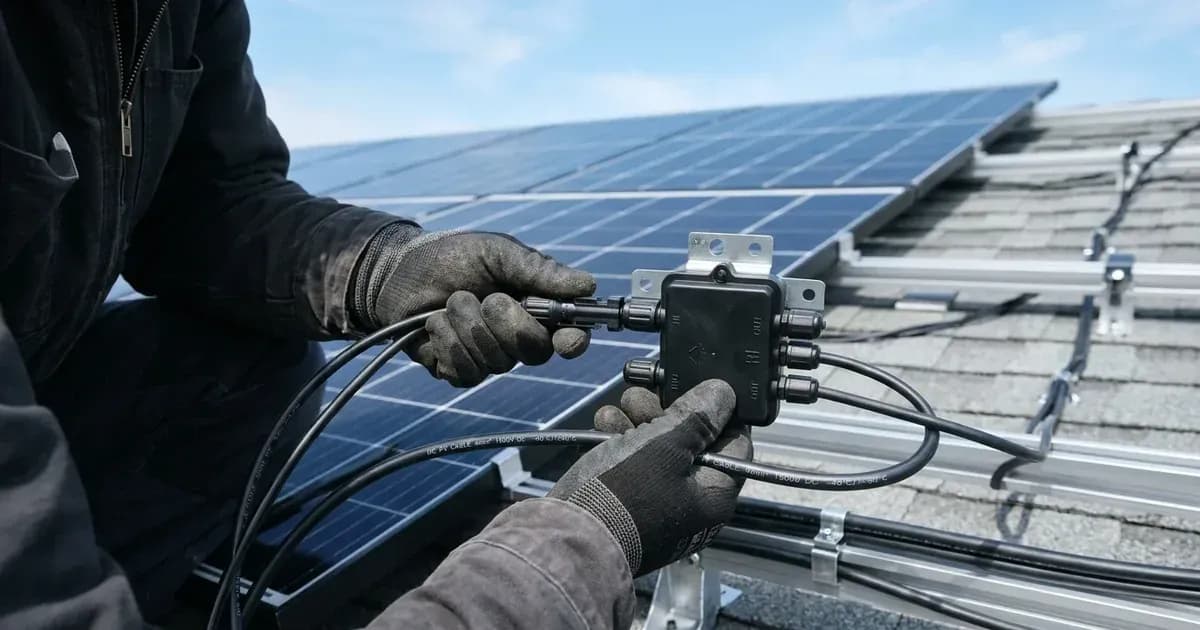

Physical Wiring

When installing Tigo TS4 optimizers, follow this critical wiring rule:

• Connect solar PV module DC leads to TS4 inputs before connecting TS4 outputs in series string sequence. This ensures the optimizers are correctly integrated into the DC circuit of each solar panel before the string is formed.

Digital Commissioning and Mapping

After the physical installation, the system needs to be commissioned:

• Commissioning, module barcode scanning, and string layout mapping are performed via the Tigo SMART app. This app allows you to scan the unique barcode of each optimizer, map its physical location within the array, and configure the system. This mapping is crucial for accurate module-level monitoring and troubleshooting.

Ensuring Safety and Compliance

Safety is paramount in any solar PV installation. Tigo TS4-A-O optimizers contribute to system safety through their rapid shutdown capabilities and require specific safety practices during installation and servicing.

Rapid Shutdown

The module-level rapid shutdown feature provides an important safety mechanism. It ensures that in an emergency, such as a fire, the DC voltage at the module level can be quickly reduced, protecting emergency personnel. The system provides automated rapid shutdown upon AC grid or emergency switch initiation. While official scheme guidelines references NEC 690.12, a US standard, the principle of rapid shutdown is a critical safety feature globally, including in the UK.

Electrical Safety During Installation and Servicing

Adhere to these safety guidelines:

• Isolate the AC branch circuit breaker before disconnecting any microinverter trunk connectors. This prevents electrical shock hazards during maintenance or servicing.
• Bond inverter chassis ground and battery metal enclosure to the main installation earthing terminal. Proper earthing (grounding) is vital to protect against electrical faults and ensure the safe operation of the system. Always wear appropriate personal protective equipment, including eye protection, when working with electrical systems.

Compatibility and System Integration

Tigo TS4-A-O optimizers are designed for broad compatibility, making them a flexible choice for many solar installations. They are compatible with major string and hybrid inverter brands, meaning you are not restricted to specific inverter manufacturers. This universal compatibility simplifies system design and allows for greater choice in selecting other components.

The optimizers support both standard single-phase and three-phase electrical distribution systems globally. This makes them suitable for a wide range of applications, from typical residential setups to larger commercial projects. They are engineered for both off-grid and grid-parallel energy storage systems worldwide, offering versatility for various system configurations.

What you can check yourself, and what you cannot

As a homeowner, you can perform several basic checks to ensure your Tigo TS4-A-O system is operating as expected.

What You Can Check

• Tigo SMART App Monitoring: Regularly check the Tigo SMART app or the Tigo Energy Intelligence (EI) Platform. This interface provides module-level telemetry, allowing you to see the performance of individual panels. If a specific panel is consistently underperforming, it may indicate an issue.
• Visual Inspection: Periodically inspect your solar panels for obvious issues like heavy soiling, shading from new obstructions, or physical damage. Ensure that no cables appear loose or damaged at the module level.
• Basic Connectivity: Confirm that your Tigo Access Point (TAP) is powered on and communicating with your optimizers. The app will usually indicate communication status.

What You Cannot Check or Change Yourself

• Internal Wiring or Component Replacement: Opening the optimizer units or attempting to re-wire internal components is not a homeowner task. This is authorised-service work that requires a qualified and accredited installer.
• Inverter Settings: Do not attempt to change inverter settings related to the optimizers unless specifically instructed by an accredited installer. Incorrect settings can compromise system performance or safety.
• Troubleshooting Complex Faults: While the app provides data, diagnosing complex electrical faults, such as impedance mismatch issues or communication errors that persist, requires the expertise of a certified solar technician. They have the specialised tools and knowledge to safely troubleshoot and repair the system.

What the published sources do not tell you

While official scheme guidelines provides key specifications and setup rules for Tigo TS4-A-O optimizers, it does not detail every aspect of installation and operation.

For instance, specific UK rapid shutdown standards or local electrical codes beyond the general mention of NEC 690.12 are not provided. Installers in Great Britain must ensure compliance with relevant British Standards (BS) and IET Wiring Regulations (applicable electrical wiring standards). Official scheme guidelines also does not list specific inverter models that are compatible, instead stating "major string and hybrid inverter brands." Detailed troubleshooting guides beyond basic app monitoring are not included, nor are specific performance curves under varying environmental conditions. The precise range and optimal placement for the 2.4GHz mesh networking between optimizers and the TAP access point are also not specified, which can vary based on site conditions.
