GivEnergy Inverter Tripping: GFCI Earth Faults, Overvoltage, and DNO Fixes

Key Takeaways

• Repeated tripping on GivEnergy systems is driven by DC earth leakage (GFCI faults), string voltages exceeding 580VDC, or high local grid voltage.
• The first check is confirming whether the trip occurs on the AC miniature circuit breaker, the 30mA residual current device, or the inverter internal software alarm.
• Always isolate the AC supply breaker, DC solar array isolator, and battery before touching wiring to eliminate electric shock and arc hazards.
• If an earth leakage fault persists after wet weather, stop DIY resets and have an electrician test DC string insulation resistance.

Why is my GivEnergy solar inverter tripping out?

A GivEnergy inverter that trips its circuit breaker or shuts down with an alarm halts both your solar generation and home battery operation. On British domestic installations, tripping falls into three distinct electrical categories: alternating current (AC) side overcurrent or earth leakage, direct current (DC) solar string overvoltage, and utility grid voltage non-compliance.

When the inverter trips out internally rather than blowing a physical fuse, it reports an alarm code. An INV_GFCI_FAULT or STORAGE_ERROR_GFCI_FAULT indicates that the internal Ground Fault Circuit Interrupter has detected DC current leaking to earth. By contrast, an INV_PV_OVER_VOLTAGE indicates that the series string open-circuit voltage has breached the hardware ceiling of 580VDC.

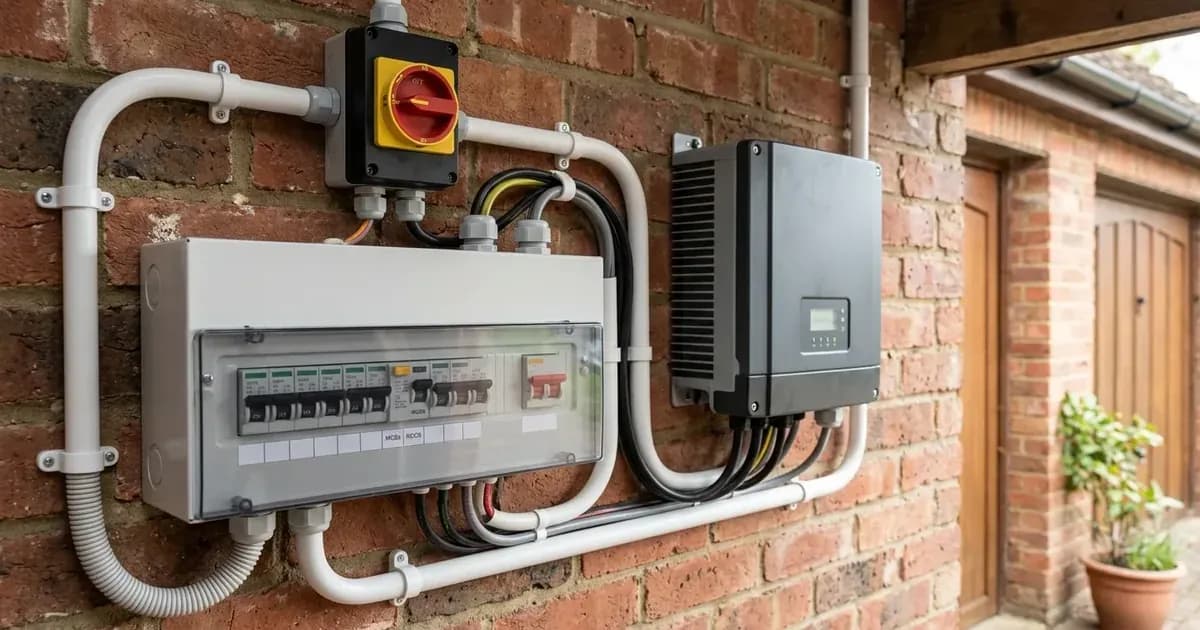

If the trip occurs at your domestic consumer unit, the cause is typically an undersized protective device or an incompatible residual current device (RCD). GivEnergy specifies dedicated circuit protection to accommodate high-frequency inverter leakage currents.

For national grid code compliance and microgenerator standards, consult our ENA EREC G98 grid connection guide.

Diagnostic workflow for inverter trips

Follow this step-by-step procedure to isolate the source of the trip:

1. Identify the Tripping Component: Check your consumer unit. Did the miniature circuit breaker (MCB) trip, did the residual current device (RCD) trip, or is the board intact while the inverter screen displays an alarm?
2. Read the Inverter Alarm: If the consumer unit breakers remain closed, check the portal for INV_GFCI_FAULT, INV_PV_OVER_VOLTAGE, or Grid Voltage Too High.
3. Verify DC Startup Voltage: For hybrid inverters, verify that array irradiation provides the required 150V startup voltage before normal power conversion begins.
4. Inspect the Physical AC Connections: Check the underside of the inverter chassis to confirm that all AC terminals and rotary isolator contacts are secure.
5. Inspect the EPS Backup Circuit: If backup power was engaged during an outage, verify that total connected household loads do not exceed the continuous rating.

For statutory voltage tolerances on British distribution networks, read our UK statutory voltage declaration guide.

Tripping faults and root cause table

The table below compiles official fault conditions, trigger limits, and remediation directions from the GivEnergy commissioning documentation:

Electrical protection and cable requirements

To prevent nuisance tripping and ensure compliance with British wiring standards, AC supplies must match manufacturer specifications:

• Hybrid 3.6kW Inverters: Maximum continuous AC current is 16.4A, requiring a C20 miniature circuit breaker and 2.5mm copper cable.
• Hybrid 5.0kW Inverters: Maximum continuous AC current is 22.8A, requiring a C25 or C32 breaker, a Type A 30mA RCD, and 4.0mm cabling.
• AC Coupled 3.0kW Inverters: Maximum AC current is 13A, operating on a C20 breaker and 2.5mm cable.
• DC Sizing Ceiling: String voltage must never exceed 580VDC under open-circuit conditions at minimum winter temperatures.

For installation guidelines governing domestic solar installations, consult our UK solar electrical installation guide.

Emergency power supply and earthing rules

When wiring the Emergency Power Supply (EPS) backup circuit, strict earthing separation is mandatory:

• EPS Overload Hazard: An overload of the EPS circuit may damage the inverter. If the EPS circuit is overloaded, backup power shuts down immediately.
• Island Earthing Restrictions: In island mode, EPS circuits must not rely on a TNS or TN-C-S earthing system as when grid live is lost grid earth and neutral may also be lost.
• Dedicated Ground Electrode: At a minimum, the EPS consumer unit will require TT earthing method, using a dedicated earth rod independent of the supplier earth.

For domestic battery compartmentation and placement standards, see our UK battery storage fire safety guide.

Safety: Capacitive discharge and earth isolation

Troubleshooting an inverter that trips due to electrical faults carries severe shock hazards:

• Capacitive Energy Storage: The system is capable of retaining a high voltage, even when disconnected. Allow internal capacitors to fully de-energise before removing wiring covers.
• Safe Terminal Isolation: When inspecting AC or DC terminations, switch off the AC isolator, open the DC solar switch, and turn off the battery DC breaker. Always verify absence of voltage with an approved two-pole voltage tester.
• Moisture and Ground Faults: If INV_GFCI_FAULT appears following heavy rain, water has likely penetrated DC isolator enclosures or solar panel junction boxes. Do not touch wet solar conduits.

When to contact your installer or DNO

If your inverter trips with Grid Voltage Too High on sunny afternoons, the issue sits on the local utility network rather than your equipment. In this case, contact your local DNO to log a voltage complaint.

GivEnergy provides a 12-year warranty on inverters from the installation date. If an internal GFCI fault persists after isolating external circuits, contact GivEnergy technical support on 01377 252 874 or call your certified solar installer.
