Solar Inverter Tripping RCD in UK Consumer Units: Diagnostic and Fix Guide

Key Takeaways

• Solar inverters naturally produce operational differential currents due to the capacitance between the solar panels and earth, which can trip sensitive consumer unit protection.
• Under BS 7671 Section 712, a Type B RCD is standard unless the manufacturer certifies that the inverter is approved for residual-current devices of type A.
• Inverter startup can cause transient current surges during grid synchronization, requiring C-curve breakers rather than B-curve breakers to avoid nuisance overcurrent trips.
• Always isolate AC and DC supplies before opening electrical enclosures; testing inside consumer units presents lethal electric shock hazards and must be left to qualified electricians.

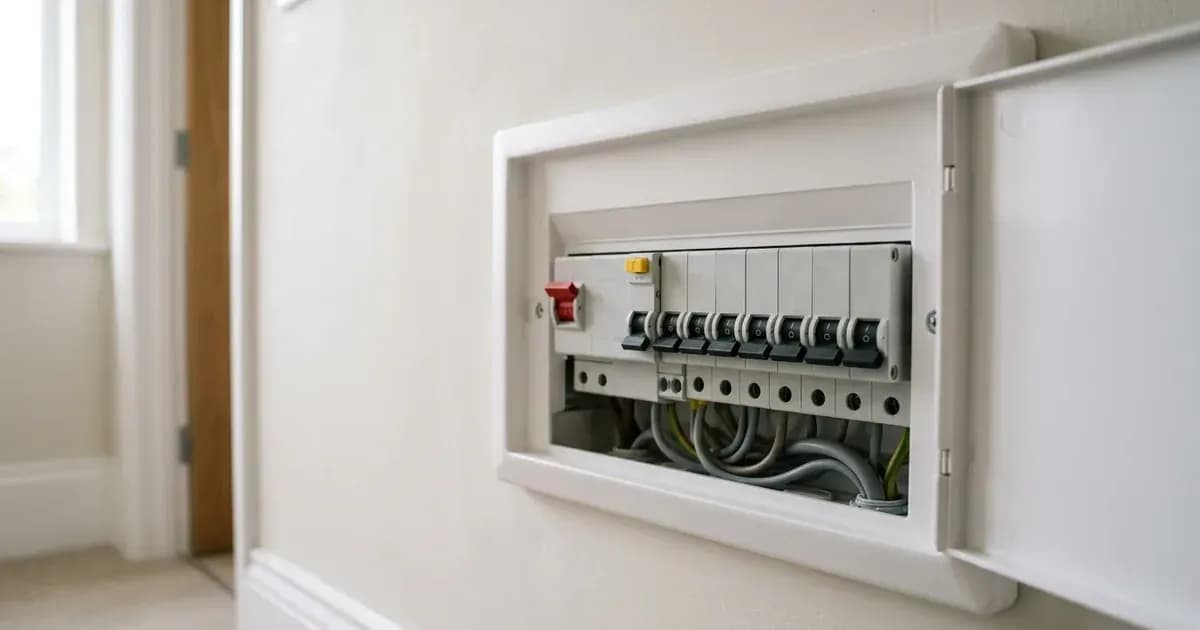

Why is your solar inverter tripping the consumer unit RCD?

A solar inverter trips the domestic residual-current device (RCD) because it detects leakage current flowing to earth, or because morning moisture temporarily increases capacitive coupling between the solar array and the roof structure. When operating a transformerless inverter, differential currents occur due to the insulation resistance and capacities of the PV array.

In the UK, domestic electrical systems operate at 230 V AC and rely on strict disconnection times for personal safety. Under standard regulations, maximum disconnection times are 0.2 s in TT systems and 0.4 s in TN systems. When an inverter generates alternating current, any ground fault or excessive capacitive leakage trips the front-end device to protect building occupants.

Understanding Type A versus Type B RCD requirements

A major cause of persistent tripping in British homes is installing an incompatible RCD type. Traditional AC-only RCDs can be blinded by smooth DC residual currents generated by solar power electronics.

According to engineering standards, a residual-current device of type B must be used for the protection of the AC circuit. An exception to this requirement applies if the inverter manufacturer approves the inverter for other RCD types. Many modern residential inverters incorporate internal residual current monitoring units (RCMUs) that disconnect within milliseconds if DC earth leakage exceeds safety thresholds. Where certified by the manufacturer, inverters are officially approved for residual-current devices of type A.

In agricultural settings or outbuildings such as a barn, fire protection regulations mandate that an additional type A residual-current device with a rated residual current of max. 300 mA must be installed. In commercial or industrial installations where high continuous leakage currents exist, equipment standards recognize devices with a rated residual current IΔf of 500 mA for automated fault protection.

Morning startup surges and circuit breaker trip curves

If your inverter trips the consumer unit breaker exclusively when the sun first hits the roof, the issue is frequently breaker curve selection rather than an ongoing cable fault.

During startup, the inverter might briefly draw or output more current than normal as it synchronizes with the grid or connected loads. This occurs when either a transient current or AC leakage is detected by the protection switchgear.

Miniature circuit breakers (MCBs) possess distinct magnetic tripping characteristics:

• B-characteristics trip at factor 5 times the nominal current. For a 16 A breaker, this yields 5 x 16 A = 80 A instantaneous tripping current.
• C-characteristics trip at factor 10 times the nominal current. For a circuit breaker C16 A, the operating threshold is Ia = 160 A.
• For larger residential systems using a C32A circuit breaker, the short-circuit operating current reaches 320 A.

If an installer fitted a standard Type B MCB or RCBO, the brief inrush current during grid connection can cause magnetic tripping even when no ground leakage exists. Upgrading to a Type C device with the same current rating accommodates these standard synchronization surges while maintaining complete circuit overcurrent protection.

Systematic step-by-step triage for homeowners

Follow this sequence to isolate whether the fault originates in the solar installation or within your wider domestic circuits.

Step one: Note the trip pattern and weather conditions

Observe whether the trip happens during heavy rain or damp morning mist. If tripping coincides with wet weather and resets cleanly once the sun dries the roof, the root cause is high capacitive leakage or moisture ingress in rooftop connectors.

Step two: Check for shared neutral issues on split-load boards

In older UK consumer units with dual RCD split-load arrangements, solar generation circuits wired into a shared neutral bar can cause unbalanced return currents. Under BS 7671, a solar PV system should ideally be installed on its own dedicated RCBO or independent mini consumer unit directly fed from the meter tails.

Step three: Inspect inverter circuit cable specifications

Verify that the AC supply circuit matches the manufacturer installation manual. For example, a Hybrid 3.6kW unit drawing 16.4A requires a C20 breaker with 2.5mm wiring, whereas a Hybrid 5.0kW unit drawing 22.8A requires a C25 or C32 breaker with 30mA Type A protection and 4.0mm cable. Undersized cables increase circuit resistance, raising terminal temperatures and destabilizing RCD operation.

Step four: Verify earth fault loop impedance

Qualified electricians assess circuit safety by measuring loop impedance. In standard design examples where loop impedance Zs = 1.5 Ω, the circuit breaker must disconnect within statutory limits under fault conditions. If loop impedance is excessive, an RCD becomes mandatory for fault protection under BS 7671.

Safety rules: isolating consumer unit hazards

Working inside an electrical consumer unit carries severe risk of fatal electric shock and arc blast injury:

• Never remove the front cover of a domestic consumer unit or attempt to tighten internal busbar screws.
• Always isolate the solar inverter AC isolator and DC rotary isolator before an electrician carries out physical testing.
• When testing earth leakage with a clamp meter, ensure only calibrated, insulated test instruments are used.
• Do not wedge or tape a tripped circuit breaker in the ON position; doing so bypasses essential fire and shock protection.

When to contact an accredited solar electrician

Contact an MCS-certified solar technician or NICEIC/NAPIT registered electrician when:

1. The RCD trips immediately upon resetting, even with the inverter DC isolator turned OFF.
2. The breaker shows signs of thermal discoloration, scorching, or emits an audible buzzing hum.
3. Your consumer unit requires a dedicated Type B RCD or separate RCBO retrofit to comply with BS 7671 Section 712.
4. Megger insulation resistance testing is required across the DC array to locate damaged cabling or water ingress beneath the solar panels.
