Domestic Tiled Roof Solar Mounting Systems UK: Rails, Hooks & Flashing

The vast majority of residential homes across the United Kingdom feature pitched timber truss roofs clad in concrete or clay tiles. From modern interlocking concrete pantiles to traditional double-lapped plain tiles and Rosemary clay tiles, installing rooftop solar photovoltaics requires specialized structural mounting hardware and rigorous weatherproofing methods.

Unlike smooth slate roofs or in-roof integrated cassettes, retrofitting solar panels onto tiled roofs involves anchoring structural stainless steel or aluminium roof hooks directly to timber rafters, passing brackets between overlapping tiles, and securing an aluminium rail grid.

To maintain structural stability under UK wind uplift loads and prevent water ingress over decades of operation, installers rely on certified mounting platforms like K2 Systems SingleRail and dedicated weatherproofing flashing systems like Genius Roof Solutions SolarFlash.

<Callout type="info" title="Key Engineering Facts: Tiled Roof Mounting">

• Versatile Rail Grid: The K2 SingleRail platform features an extensive range of rails suitable for various load cases and spans, using direct lateral rail connections for rapid installation.
• Hook Standardisation: 80% of all applications can be covered with SingleHook 3S, 3S light or 4S roof hooks.
• Tile Compatibility: Heavy-duty roof hooks accommodate the majority of clay tiles, pantiles and concrete roof tiles.
• Flexible Levelling: Features simple height adjustment on the base plate, cantilever, or slotted hole connection to compensate for batten variations.
• Extended Manufacturer Warranty: All components in the system network carry a 12-year product warranty, extended to 20 years when planned in K2 Base with static verification and documented in K2 DocuApp.
• Dedicated Weatherproofing: Genius Roof Solutions SolarFlash provides four different SolarFlash kits, including the Flat Tile Kit for plain, Rosemary, and flat tiles, and the FlexiFlash Kit for profile tiles.
  </Callout>

Structural Hook Mechanics and Rafter Connections

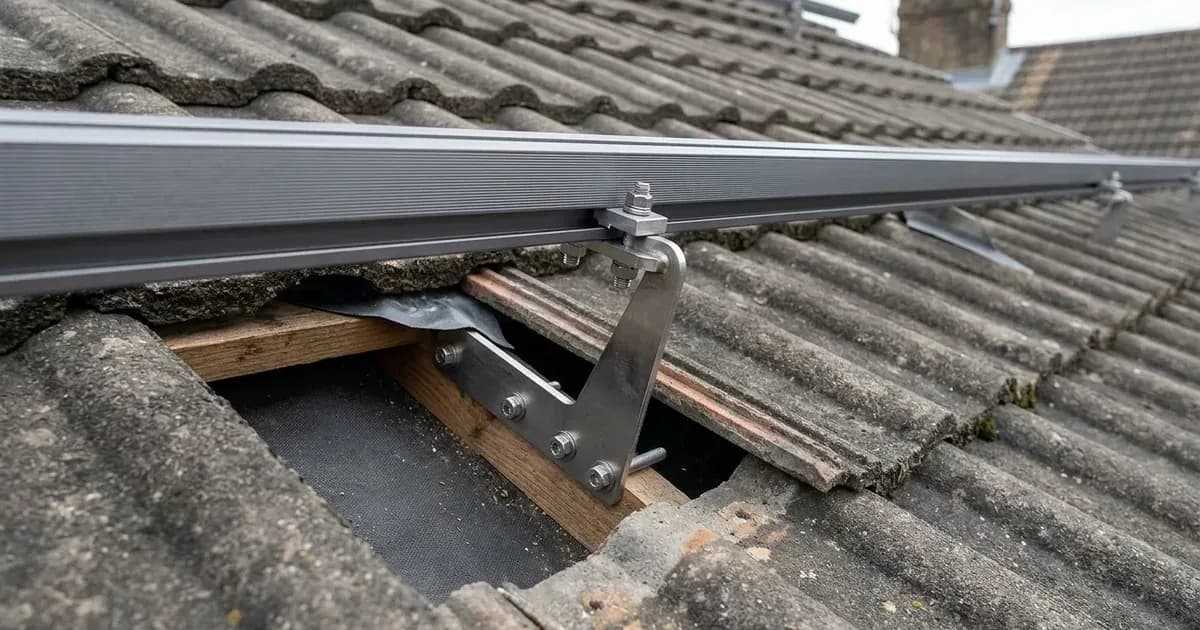

The structural foundation of any pitched tile solar installation is the mechanical connection between the roof hook and the primary building frame. Installers locate the structural timber rafters beneath roof tiles and battens, securing heavy-duty hooks with heavy structural timber drive screws.

In K2 Systems engineering:

• Comprehensive Tile Coverage: Roof hooks are engineered for the majority of clay tiles, pantiles and concrete roof tiles.
• Unified Component Selection: 80% of all applications can be covered with SingleHook 3S, 3S light or 4S brackets.
• Precision Levelling Adjustments: Brackets feature simple height adjustment on the base plate, cantilever, or slotted hole connection. This flexibility allows installers to level the rail plane even across warped rafters, variable batten depths, or irregular tile crowns.

When roof hooks are secured, the mounting system supports an extensive range of rails suitable for various load cases and a range of spans. Direct lateral connection to the rail enables fast and cost-effective installation, clipping the rail securely to each hook arm without requiring awkward underneath tightening.

Weatherproofing and Flashing Around Roof Brackets

The most critical operational risk in retrofitting solar panels to pitched tile roofs is moisture ingress. Traditional installation practices often relied on angle-grinding deep notches into overlapping tiles or relying on mastic sealants. Over time, seasonal thermal expansion, driving rain, and capillary action can lead to cracked tiles and water penetration.

To eliminate this vulnerability, industry standards require certified flashing systems. The SolarFlash system is a simple and effective waterproof solution to refitting roofing slates or tiles around a roof bracket when installing solar photovoltaic (or other) panels.

Genius Roof Solutions manufactures dedicated solutions:

• Four Distinct Kits: There are four different SolarFlash kits engineered to address specific roofing profiles.
• Flat Tile Flashing: The SolarFlash Flat Tile Kit (For plain tiles, Rosemary tiles and most flat tiles) slides under the overlapping tile course, providing an integrated rubber weatherseal sleeve through which the bracket neck emerges.
• Profile Tile Flashing: The FlexiFlash Kit (For profile tiles) incorporates a malleable flashing apron that moulds tightly into the contours of curved pantiles.

Using dedicated flashing kits ensures that SolarFlash is very easy to install and enables you to do a high-quality job and leave the roof tidy, reliable and weatherproof. Consequently, SolarFlash is in use all over the UK as well as in a growing number of countries, used by solar installers, housing associations, roofers and developers.

Structural Verification and Warranty Terms

To ensure compliance with UK building regulations and MCS installation standards (including Eurocode wind uplift and snow load requirements), mounting designs must undergo formal static verification.

Under the K2 Systems framework:

• Base Guarantee: All components in the system network are covered by a 12-year product warranty.
• Extended Static Guarantee: If the project is planned in K2 Base with static verification and documented in K2 DocuApp, the warranty for the mounting system is extended to 20 years.
• Verification Records: Installers and asset owners can verify and register completed designs through the official portal at k2-systems.com/en/warranty.

By combining software-verified static calculations in K2 Base with purpose-designed SolarFlash weatherproofing, domestic tiled roof solar installations maintain structural security and roof integrity over their multi-decade operating lifecycle.
