Victron NMEA 2000 Marine Integration: Monitor Your System

Key Takeaways

• Victron GX devices are central to integrating your system with NMEA 2000 marine networks.
• NMEA 2000 allows monitoring Victron system data directly on compatible Multi-Function Displays (MFDs).
• A VE.Can to NMEA 2000 micro-C male cable is required for direct connection of VE.Can products.
• For complex marine electrical systems, consult a marine electronics specialist for optimal integration and setup.

How do Victron Energy systems integrate with NMEA 2000 marine networks?

Victron Energy systems integrate with NMEA 2000 marine networks to allow monitoring and control of your power system directly from your boat's Multi-Function Displays (MFDs). This integration primarily uses a Victron GX device as a central hub, which collects data from various Victron components and translates it for the NMEA 2000 network. This enables you to view critical information like battery status, tank levels, and solar production alongside your navigation data.

Understanding Victron NMEA 2000 Integration Components

Integrating Victron Energy systems with an NMEA 2000 network involves specific Victron devices and connection methods. The core of this integration typically revolves around a GX device, which acts as a bridge between your Victron components and the marine network.

GX Devices: The Integration Hub

A GX device, such as the Cerbo GX or Ekrano GX, is typically involved in Victron NMEA 2000 integration. It acts as a hub, collecting information from connected equipment, such as Inverters, Battery Monitors, and Chargers. The GX device then makes this data available to the MFD.

Direct VE.Can Connections

Some Victron products feature a VE.Can port, allowing for direct connection to an NMEA 2000 network using a specific cable. These products include:

• Skylla-i 24V Battery Chargers
• Skylla IP65 Battery Chargers
• Lynx Shunt VE.Can Battery Monitor
• Lynx Smart BMS
• SmartSolar MPPT Solar Chargers with VE.Can communications port
• Multi RS
• Inverter RS

To connect these VE.Can products to an NMEA 2000 network, a VE.Can to NMEA 2000 micro-C male cable is used.

Tank Level Monitoring

For comprehensive tank level monitoring, the GX Tank 140 module can expand capabilities. This module supports voltage (0-10V) or current (4-20mA) inputs from tank senders. You can monitor tank levels on the GX device and VRM Portal. The system allows you to customize tank naming, shapes, and damping for accurate readings. You can also access NMEA 2000 tank data or share GX tank data with NMEA 2000.

Key Integration Features

Victron NMEA 2000 integration offers several features to enhance your marine system monitoring.

MFD Monitoring

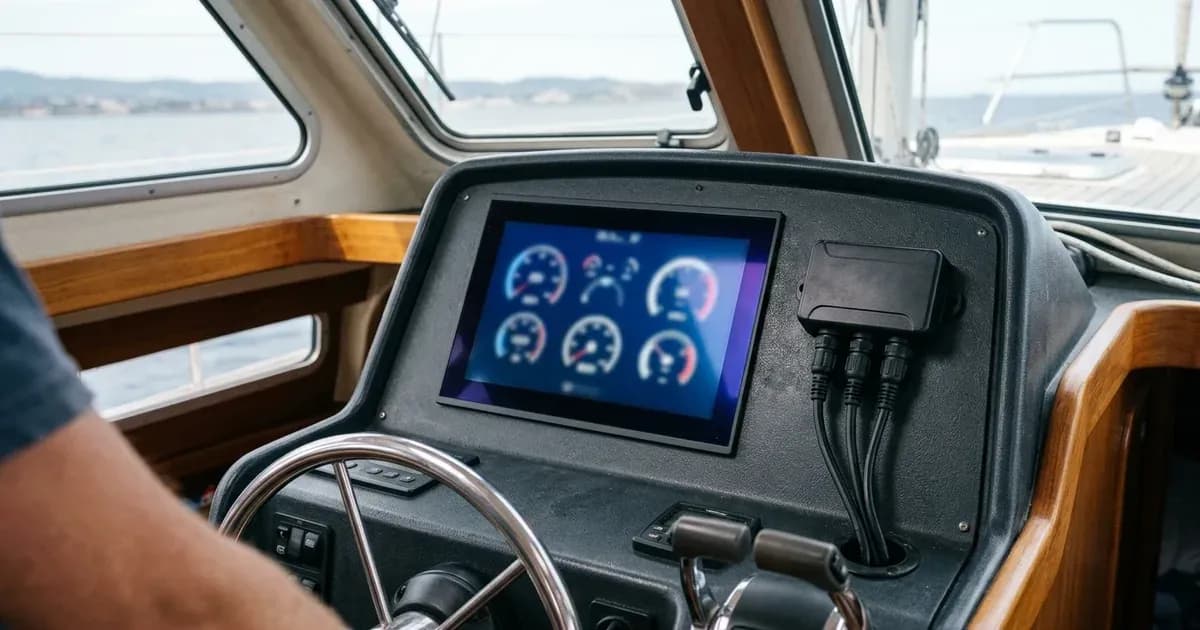

This feature allows you to display Victron system data on compatible MFDs from brands like Garmin, Raymarine, Furuno, Q Display, B&G, Simrad, and Lowrance. You can set up customizable data pages on the MFD for NMEA 2000 integration, which requires more configuration. Alternatively, an HTML5 App integration via Ethernet offers a plug-and-play experience with an auto-configured system overview, though it is less customizable.

NMEA2000-out Function

Victron Energy GX devices feature an NMEA 2000-out function. When enabled, the GX device acts as a bridge, making the data of all connected Battery monitors, Inverter/chargers, as well as other products connected to the GX device, available on the NMEA 2000 network.

GPS Integration

GX devices can read GPS data, such as location and speed, from NMEA 2000. However, GX devices do not output GPS data to the network.

Advanced Features Powered by Signal K

For advanced functionality, Signal K offers features such as:

• Wireless AIS & Navigation Data: Share NMEA 2000 data via WiFi for apps like Navionics.
• Anchor Alarm: Provides a reliable and easy-to-use alarm.
• Automatic Logbook: Helps track journeys effortlessly.

Modbus-TCP

The GX built-in Modbus-TCP server enables SCADA system integration for more complex setups.

Victron Products with NMEA 2000 Capability

The following Victron products are designed to integrate with NMEA 2000 marine networks, either directly via VE.Can or through a GX device:

Note that the use of older interfaces like the VE.Bus to NMEA 2000 interface and VE.Direct to NMEA 2000 interface is deprecated. It is recommended to use a GX device instead for modern installations.

Safety Considerations

The provided documentation does not list specific safety facts related to NMEA 2000 integration hardware. When working with marine electrical systems, always follow general electrical safety practices. Ensure all power sources are disconnected before making or breaking connections. Use appropriate tools and consult product manuals for specific safety guidelines related to each Victron component.

When to Consult a Marine Electronics Specialist

While many aspects of Victron NMEA 2000 integration can be managed by a knowledgeable boat owner, there are situations where professional assistance is recommended:

• Complex Network Configurations: If your vessel has an extensive NMEA 2000 network with multiple devices and data sources, a specialist can ensure proper configuration and prevent data conflicts.
• Troubleshooting Persistent Issues: If you encounter difficulties with data display, communication errors, or unexpected behavior after integration, a marine electronics specialist has the diagnostic tools and expertise to identify and resolve the problem.
• Custom System Design: For new installations or significant upgrades where optimal performance and reliability are critical, a specialist can design a system tailored to your specific needs.
• Warranty Concerns: Improper installation or modification of equipment may void warranties. A certified installer can ensure compliance with manufacturer guidelines.
