Enphase IQ Gateway Commercial: CT Metering and Setup Guide

Key Takeaways

• The Enphase IQ Gateway is exclusively compatible with IQ Series microinverters and is crucial for commercial installations.
• Current transformer (CT) metering provides essential data for system health monitoring and enabling Power Export Limiting.
• Commercial environments may introduce electrical noise, which can disturb system communication.
• The IQ Battery oversubscription feature allows for higher storage capacity but requires local authority verification.

Enphase IQ Gateway Commercial Setup and CT Metering Explained

The Enphase IQ Gateway serves as the central intelligence for commercial solar installations utilising Enphase IQ Series microinverters. It is specifically designed to be compliant with IQ Series microinverters, ensuring seamless integration and optimal performance. For commercial sites in Pakistan, the IQ Gateway facilitates critical functions such as production and consumption measurement through Current Transformers (CTs). This measurement capability is vital for understanding system performance, diagnosing issues, and enabling advanced features like Power Export Limiting, which may be mandated by local grid regulations.

The IQ Gateway is also a key component for systems requiring compliance with specific grid interaction standards, such as IEEE 1547:2018 for storage systems, where the new IQ Gateway or an IQ Combiner 4/4C is necessary. When setting up a commercial project, installers select the "Commercial" project type within the Enphase Installer platform, configuring the system to meet the demands of larger-scale deployments.

Understanding Production and Consumption Measurement

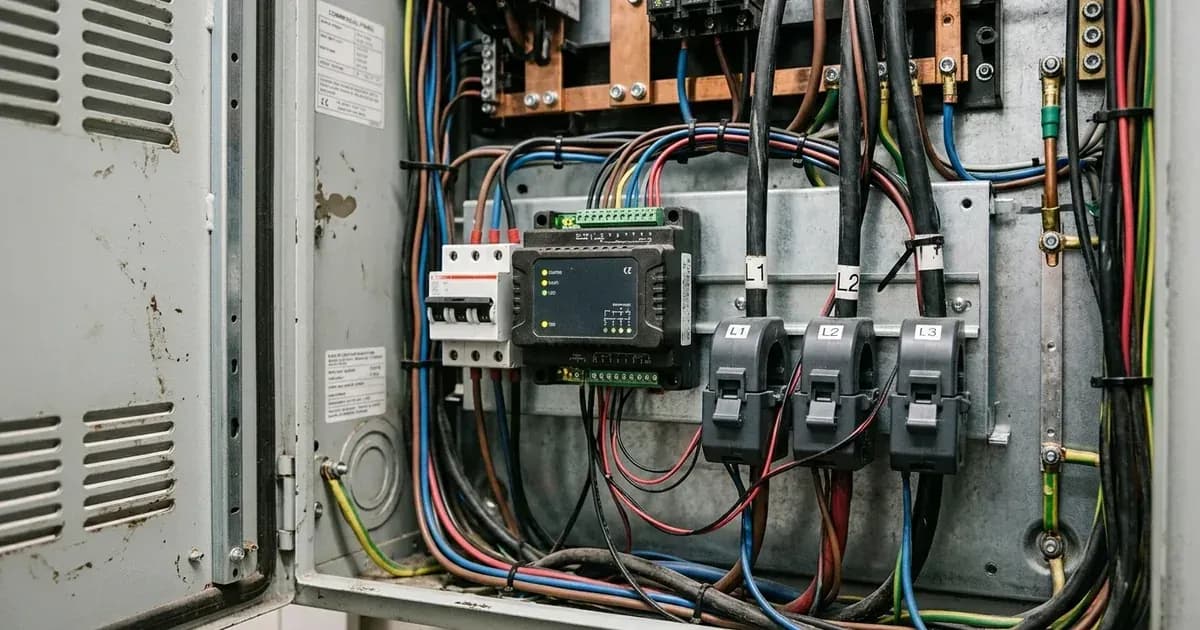

Production and consumption measurement is a fundamental aspect of managing a commercial solar energy system. This process provides detailed insights into the system's operational health and how energy is being generated and consumed on-site. Current Transformers (CTs) are the primary devices used for this measurement, installed around the main service conductors to monitor the flow of electricity.

The data collected by the CTs allows the IQ Gateway to accurately track how much energy the solar array is producing and how much energy the commercial premises are consuming from both the solar system and the grid. This information is critical for:

• System Health Monitoring: Identifying underperformance or anomalies in energy generation or consumption patterns.
• Power Export Limiting: Enabling features that restrict the amount of excess solar power exported back to the grid, a requirement in certain regions to maintain grid stability or comply with utility policies.

When installing, the appropriate IQ Gateway type must be selected: either an IQ Gateway Metered or an IQ Gateway Standard, depending on whether production and consumption metering is required. The IQ Gateway Metered option is specifically designed for systems that require comprehensive energy measurement.

Configuring Your Enphase IQ Gateway for Commercial Use

Setting up an Enphase IQ Gateway for a commercial installation involves specific configurations to ensure accurate monitoring and optimal system performance. The following table outlines key settings and considerations during commissioning.

The Enphase Installer platform is used for system configuration and monitoring, providing access to these settings. Once configured, system details and monitoring data can also be accessed via the Enphase Homeowner app, which supports mobile app control for IQ Batteries.

Installation Safety and Switchgear Requirements

Working with commercial electrical systems requires strict adherence to safety protocols and proper installation practices. The installation of an Enphase IQ Gateway and associated CTs must always be performed by qualified personnel.

Before any work begins on the electrical system, the following isolation sequence must be observed:

1. Isolate AC Supply: Disconnect the main AC breaker from the utility grid.
2. Isolate PV Array: Disconnect the DC isolators for the PV array, ensuring no power is being generated by the microinverters.
3. Isolate Battery Storage: If an IQ Battery system is present, ensure it is fully isolated and de-energised according to manufacturer guidelines.
4. Verify De-energisation: Use a suitable voltage tester to confirm that all circuits are de-energised before proceeding.

Personal Protective Equipment (PPE), including insulated gloves, safety glasses, and appropriate footwear, must be worn at all times when working with electrical systems.

In commercial and industrial settings, electrical noise can be a significant concern. Electrical Noise can originate from loads or other devices such as air conditioners, motors heat pumps, industrial machines etc. in commercial and industrial settings and may cause communication disturbances. Installers should consider measures to mitigate electrical noise, such as proper cable shielding and routing, to ensure reliable communication within the Enphase system.

What the published sources do not tell you

While the Enphase documentation provides essential information for commercial IQ Gateway installations, there are several areas where specific details are not explicitly covered:

• CT Calibration Procedures: The documentation confirms the necessity of production and consumption measurement but does not detail specific calibration procedures for Current Transformers (CTs) or any required post-installation verification steps.
• Enlighten Manager Specifics: Although the "Enphase Installer platform" and "Enphase Homeowner app" are mentioned, detailed functionalities, specific interface elements, or advanced features of a distinct "Enlighten Manager" product/service are not described.
• Error/Fault Codes: No specific error or fault codes related to the IQ Gateway, CTs, or the monitoring platform are provided, which could aid in troubleshooting.
• Detailed Commercial Installation Steps: While commercial project support is confirmed, the document does not offer specific installation steps or considerations unique to commercial deployments beyond general system building principles.
• Specific CT Metering Models/Specifications: The documentation mentions "production and consumption measurement" but does not list specific CT models, their ratings, or detailed installation diagrams for various commercial panel configurations.
• Communication Protocols for CTs: There is no information on how CTs communicate with the IQ Gateway (e.g., wired, wireless, specific protocols), which could be relevant for complex installations.
• Troubleshooting for CTs: Common issues or troubleshooting steps specifically for CT metering are not detailed, leaving installers to rely on general electrical diagnostics.
